54-00201

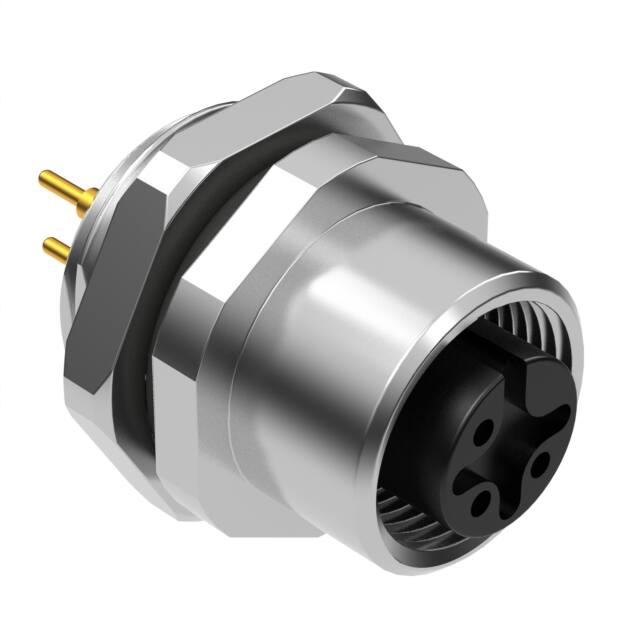

Style M12 Socket, shielded 3 pin A-coding Ratings Voltage: 250 V Current: 4 A 1 Operating Temperature Range -40~105 °C 4 Materials 1 Insulator: Polyamide 66 (PA66), UL94 HB, black 2 Pin: C5191 phosphor bronze, gold plated 3 Shell: C3604 brass, nickel plated 4 Nut: C3604 brass, nickel plated 5 O-ring: Nitrile rubber, green/black 3 Front View Not to Scale 26.2 11.5 ±0.3 17 Electrical Requirements Dielectric strength: 1 min @ 500 Vac Insulation resistance: 100 MΩ @ 500 Vdc Contact resistance: 10 mΩ or less 11.7 ±0.50 2.8 A Mechanical Requirements Life cycle: 500 mating cycles minimum 18 Environmental Requirements Salt spray test: 35 °C, relative humidity 90-95%, 5% NaCl mist for 48 hrs. Wash parts after test. Maintain mechanical requirements and a contact resistance of less than 10 mΩ. Waterproof: IP67 A 3 1 13.5 6.5 ±0.30 +0.30 13.5 0 3 4 1 4 2 1 Panel cutout (PG9) Panel thickness (3.5mm max.) 1 45° +0.30 15.3 0 5 M12 x 1.0 5 3 PCB Layout 5 SECTION A-A Revision: A Date: 10/5/2020 Description: Initial release Prepared: JC Digitally signed by JC Date: 2020.10.23 14:52:36 -07'00' Verified: AG Digitally signed by AG Date: 2020.10.23 15:33:37 -07'00' Dimensions are in millimeters. Tolerances: 0.3 mm X: 0.1 mm X.X: X.XX: 0.05 mm 5 4 Notes: RoHS compliant Function test: no open, no short circuit, no intermittent tel fax Description: Connector, 3 pin M12 A-code socket, 12xL26.2mm, gold plated, panel mount, PCB, IP67 3 2 1.541.323.3228 1.541.323.4202 Size: Part number: A 54-00201 Scale: 800 web 877.670.7118 tensility.com Sheet 1 of 1 2:1 1
