Style
M12 Socket, shielded
5 pin
A-coding
Ratings
Voltage: 60 V
Current: 4 A
1
2
5
Operating Temperature Range
-40~105 °C
4
Materials
1 Insulator: Polyamide 66 (PA66), UL94 HB, black
2 Pin: C5191 phosphor bronze, gold plated
3 Shell: C3604 brass, nickel plated
4 Nut: C3604 brass, nickel plated
5 O-ring: Nitrile rubber, green/black
3
Front View
Not to Scale
26.2
11.5 ±0.30
17
Electrical Requirements
Dielectric strength: 1 min @ 500 Vac
Insulation resistance: 100 MΩ @ 500 Vdc
Contact resistance: 10 mΩ or less
11.7 ±0.50
2.8
A
Mechanical Requirements
Life cycle: 500 mating cycles minimum
18
Environmental Requirements
Salt spray test: 35 °C, relative humidity 90-95%, 5% NaCl
mist for 48 hrs. Wash parts after test. Maintain mechanical
requirements and a contact resistance of less than 10 mΩ.
Waterproof: IP67
A
3
1
13.5
6.5 ±0.30
+0.30
13.5 0
4
5
2
M12 x 1.0
1
5
4
3
2
1
Panel cutout (PG9)
Panel thickness (3.5mm max.)
1
45°
+0.30
15.3 0
3
PCB Layout
5
5
SECTION A-A
Revision:
A
Date:
10/5/2020
Description:
Initial release
Prepared:
JC
Notes:
Digitally signed by JC
Date: 2020.10.23
14:53:27 -07'00'
RoHS compliant
Digitally signed by AG
Date: 2020.10.23 15:34:19
-07'00'
Function test: no open, no short circuit, no
intermittent
Verified:
AG
Dimensions are in
millimeters.
Tolerances:
X:
0.3 mm
X.X:
0.1 mm
X.XX: 0.05 mm
5
4
tel
fax
Description:

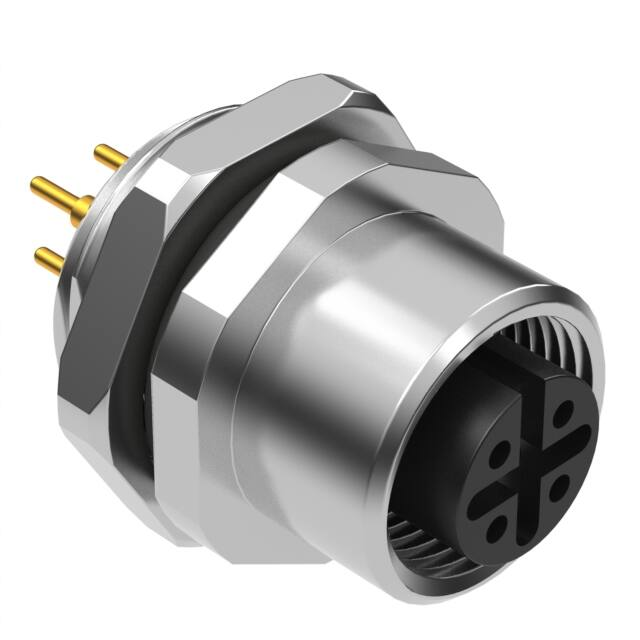

Connector, 5 pin M12 A-code socket, 12xL26.2, gold
plated, panel mount, PCB, IP67
3
2
1.541.323.3228
1.541.323.4202
Size:
Part number:
A
54-00203
Scale:
800
web
877.670.7118
tensility.com
2:1
Sheet 1 of 1
1
