54-00205

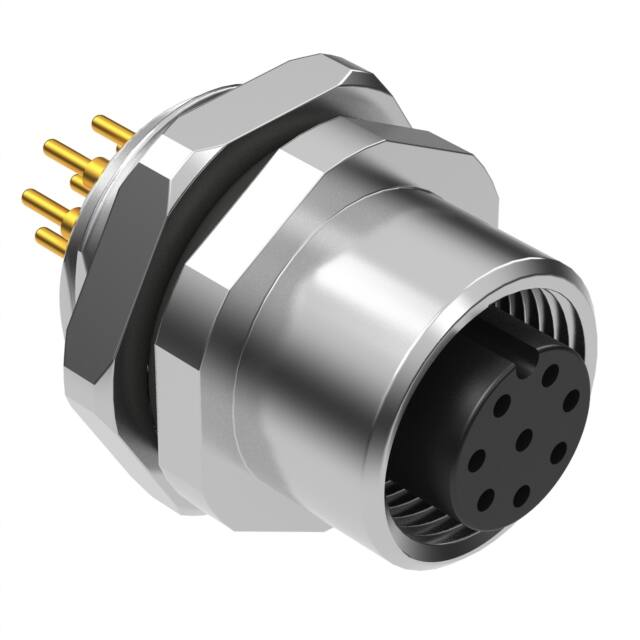

Style M12 Socket, shielded 8 pin A-coding Ratings Voltage: 30 V Current: 2 A 1 7 Operating Temperature Range -40~105 °C 5 6 Materials 1 Insulator: Polyamide 66 (PA66), UL94 HB, black 2 Pin: C5191 phosphor bronze, gold plated 3 Shell: C3604 brass, nickel plated 4 Nut: C3604 brass, nickel plated 5 O-ring: Nitrile rubber, green/black 2 8 3 4 Front View Not to Scale 26.2 11.5 ±0.30 17 Electrical Requirements Dielectric strength: 1 min @ 500 Vac Insulation resistance: 100 MΩ @ 500 Vdc Contact resistance: 10 mΩ or less 11.7 ±0.50 2.8 A 18 Environmental Requirements Salt spray test: 35 °C, relative humidity 90-95%, 5% NaCl mist for 48 hrs. Wash parts after test. Maintain mechanical requirements and a contact resistance of less than 10 mΩ. Waterproof: IP67 A 13.5 Mechanical Requirements Life cycle: 500 mating cycles minimum 3 0. 8 6.5 ±0.30 +0.30 13.5 0 4 66° 2 7 3 0.8 8 6 M12 x 1.0 5 5 4 5.5 2 1 Panel cutout (PG9) Panel thickness (3.5mm max.) 1 49 ° +0.30 15.3 0 3 PCB Layout 5 SECTION A-A Revision: Date: Description: A 10/5/2020 Initial release Prepared: JC Digitally signed by JC Date: 2020.10.23 14:54:40 -07'00' Verified: AG Digitally signed by AG Date: 2020.10.23 15:35:06 -07'00' Dimensions are in millimeters. Tolerances: X: 0.3 mm X.X: 0.1 mm X.XX: 0.05 mm 5 4 Notes: RoHS compliant Function test: no open, no short circuit, no intermittent tel fax Description: Connector, 8 pin M12 A-code socket, 12xL26.2mm, gold plated, panel mount, PCB, IP67 3 2 1.541.323.3228 1.541.323.4202 Size: Part number: A 54-00205 Scale: 800 web 877.670.7118 tensility.com 2:1 Sheet 1 of 1 1
