54-00216

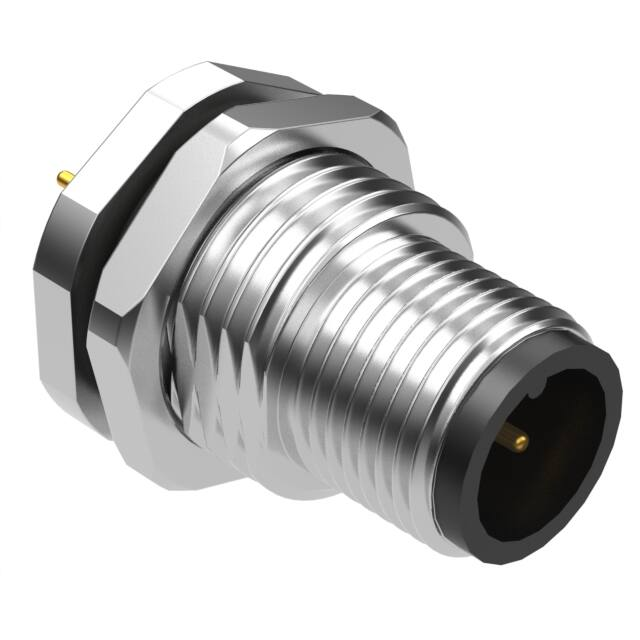

Style M12 Plug, shielded 4 pin A-coding Ratings Voltage: 250 V Current: 4 A Operating Temperature Range -40~105 °C Materials 1 Insulator: Polyamide 66 (PA66), UL94 HB, black 2 Pin: C3604 brass, gold plated 3 Shell: C3604 brass, nickel plated 4 Nut: C3604 brass, nickel plated 5 O-ring: Nitrile rubber, black 2 1 3 4 Front View Not to Scale A 29.2 20.2 ±0.50 18 Electrical Requirements Dielectric strength: 1 min @ 500 Vac Insulation resistance: 100 MΩ @ 500 Vdc Contact resistance: 10 mΩ or less 10.2 ±0.30 2.8 2.5 Mechanical Requirements Life cycle: 500 mating cycles minimum Environmental Requirements Salt spray test: 35 °C, relative humidity 90-95%, 5% NaCl mist for 48 hrs. Wash parts after test. Maintain mechanical requirements and a contact resistance of less than 10 mΩ. Waterproof: IP67 3 1 M12 x 1.0 6.5 ±0.30 A +0.30 13.5 0 2 1 3 Panel cutout (PG9) Panel thickness (5.0mm max.) Revision: A Date: 10/6/2020 Description: Prepared: Initial release JC Digitally signed by AG Date: 2020.10.23 15:44:27 -07'00' Dimensions are in millimeters. Tolerances: X: 0.3 mm X.X: 0.1 mm X.XX: 0.05 mm 5 4 1 3 4 1 PCB Layout 4 5 SECTION A-A Notes: Digitally signed by JC Date: 2020.10.23 15:32:48 -07'00' Verified: AG 2 45° +0.30 15.3 0 5 RoHS compliant Function test: no open, no short circuit, no intermittent tel fax Description: Connector, 4 pin M12 A-code plug, 12xL29.2mm, gold plated, panel mount, PCB, IP67 3 2 1.541.323.3228 1.541.323.4202 Size: Part number: A 54-00216 Scale: 800 web 877.670.7118 tensility.com 2:1 Sheet 1 of 1 1
