54-00217

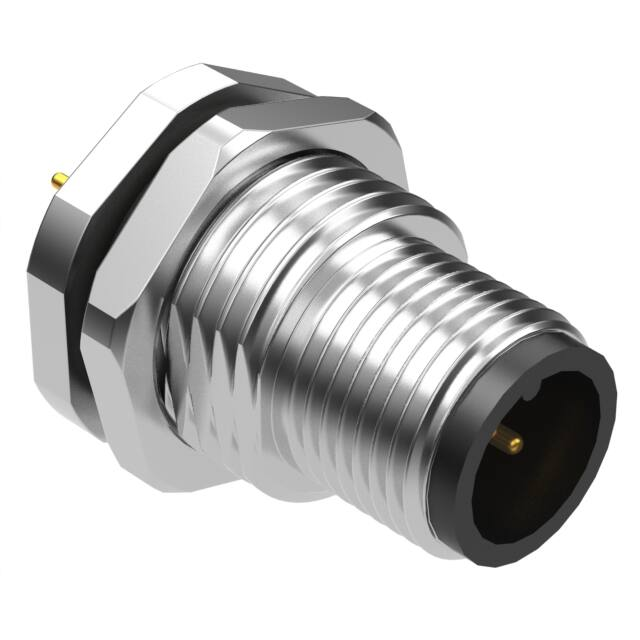

Style M12 Plug, shielded 5 pin A-coding Ratings Voltage: 60 V Current: 4 A 2 Operating Temperature Range -40~105 °C 1 5 3 Materials 1 Insulator: Polyamide 66 (PA66), UL94 HB, black 2 Pin: C3604 brass, gold plated 3 Shell: C3604 brass, nickel plated 4 Nut: C3604 brass, nickel plated 5 O-ring: Nitrile rubber, black 4 Front View Not to Scale 29.2 A 20.2 ±0.50 2.8 10.2 ±0.30 18 Electrical Requirements Dielectric strength: 1 min @ 500 Vac Insulation resistance: 100 MΩ @ 500 Vdc Contact resistance: 10 mΩ or less 2.5 Mechanical Requirements Life cycle: 500 mating cycles minimum Environmental Requirements Salt spray test: 35 °C, relative humidity 90-95%, 5% NaCl mist for 48 hrs. Wash parts after test. Maintain mechanical requirements and a contact resistance of less than 10 mΩ. Waterproof: IP67 3 1 M12 x 1.0 6.5 ±0.30 A +0.30 13.5 0 5 +0.30 15.3 0 5 1 A Date: 10/6/2020 Description: 3 Initial release Digitally signed by JC Date: 2020.10.23 15:33:17 -07'00' RoHS compliant Digitally signed by AG Date: 2020.10.23 15:44:48 -07'00' Function test: no open, no short circuit, no intermittent Verified: AG Dimensions are in millimeters. Tolerances: X: 0.3 mm X.X: 0.1 mm X.XX: 0.05 mm 5 4 4 1 PCB Layout 5 4 SECTION A-A Notes: Prepared: JC 3 2 Panel cutout (PG9) Panel thickness (5.0mm max.) Revision: 1 45° 2 tel fax Description: Connector, 5 pin M12 A-code plug, 12xL29.2mm, gold plated, panel mount, PCB, IP67 3 2 1.541.323.3228 1.541.323.4202 Size: Part number: A 54-00217 Scale: 800 web 877.670.7118 tensility.com Sheet 1 of 1 2:1 1
