54-00247

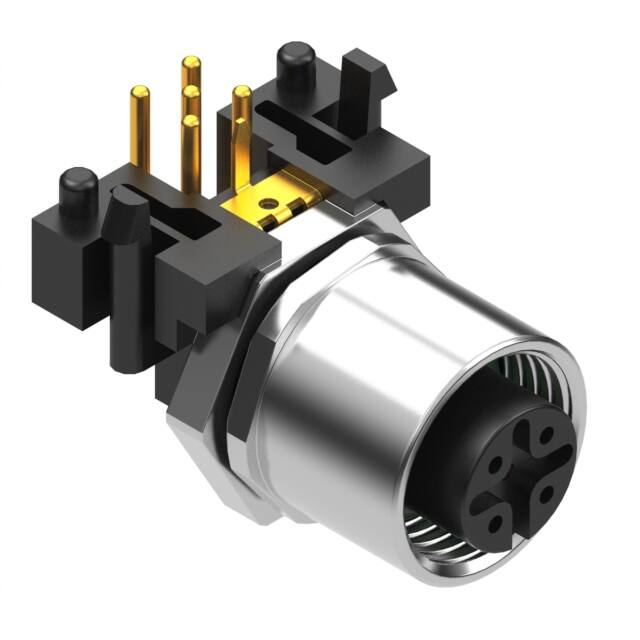

Style M12 Socket, shielded 5 pin A-coding 1 2 5 4 Ratings Voltage: 60 V Current: 4A Front View Not to Scale Operating Temperature Range -40 ~ 105 °C Materials 1 Insulator: Polyamide 66 (PA66), UL94 HB, black 2 Pin: C3604 brass, gold plated 3 Shell: C3604 brass, nickel plated 4 O-ring: Nitrile rubber, black & green A 19.5 16 1 3 +0.30 12.1 0 3 1 Shell 4 3 2 2. 8 5 ° 45 2.3 M12 x 1.0 4 4 Date: Description: A 9/29/2020 Initial release Prepared: JC Verified: AG Digitally signed by JC Date: 2020.10.23 15:50:23 -07'00' Digitally signed by AG Date: 2020.10.23 15:58:48 -07'00' Dimensions are in millimeters. Tolerances: X: 0.5 mm X.X: 0.3 mm X.XX: 0.1 mm 5 4 2 1 5 15 4 1. 3 TY P PCB Layout SECTION A-A Revision: Panel Thickness 2.0~3.0 mm 9 A 4 Environmental Requirements Salt spray test: 35 °C, relative humidity 90-95%, 5% NaCl mist for 48 hrs. Wash parts after test. Maintain mechanical requirements and a contact resistance of less than 10 mΩ. Waterproof: IP67 13.5 8.5 Mechanical Requirements Life cycle: 500 mating cycles minimum 16.5 19.5 14 Electrical Requirements Dielectric strength: 1 min @ 500 Vac Insulation resistance: 100 MΩ @ 500 Vdc Contact resistance: 10 mΩ or less 3 Notes: RoHS compliant Function test: no open, no short circuit, no intermittent tel fax Description: Connector, 5 pin M12 A-code socket, 12xL25mm, gold plated, PCB mount, 90°, PCB, IP67 3 2 1.541.323.3228 1.541.323.4202 Size: Part number: A 54-00247 Scale: 800 web 877.670.7118 tensility.com 2:1 Sheet 1 of 1 1
