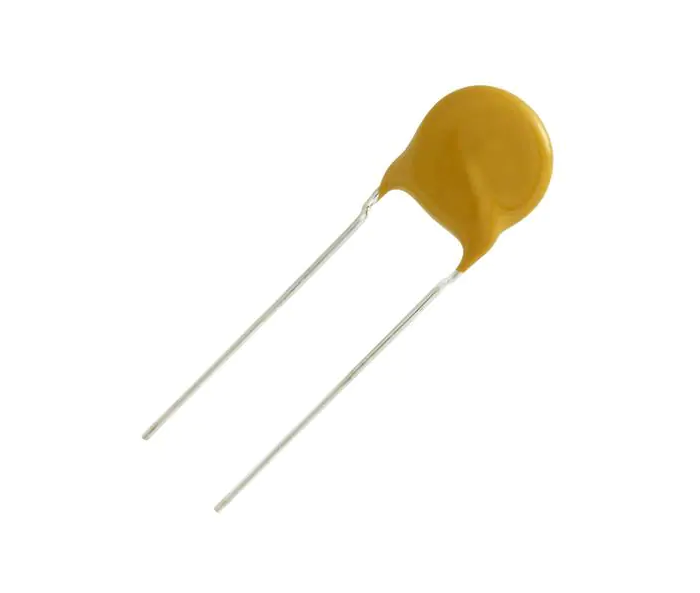

561RTSQ33

561R and 562R Series www.vishay.com Vishay Cera-Mite Lower Voltage Ceramic DC Disc Capacitors 1000 VDC Temperature and Voltage Stabilized FEATURES • Low losses • High stability • High capacitance in small size • Complete range of capacitance values • Radial leads • Ceramic singlelayer capacitor • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS • Bypassing • Resonant circuit QUICK REFERENCE DATA • Coupling DESCRIPTION VALUE Ceramic Class 1 Ceramic Dielectric C0G 2 U2J Voltage (VDC) DESIGN X5F X7R 1000 Min. Capacitance (pF) 10 27 56 10 000 Max. Capacitance (pF) 10 39 4700 10 000 Mounting Radial INSULATION RESISTANCE Min. 1000 F or 50 000 M The capacitors consist of a ceramic disc of which both sides are silver-plated. Connection leads are made of tinned copper or tinned copper clad steel having diameters of 0.020" (0.51 mm) or 0.025" (0.64 mm). The capacitors may be supplied with radial kinked or straight leads having lead spacing of 0.250" (6.35 mm) or 0.375" (9.5 mm). The standard tolerance is ± 10 %. ± 10 % Coating is made of flame retardant epoxy resin in accordance with “UL 94 V-0”. DISSIPATION FACTOR CAPACITANCE RANGE 2.0 % max. at 1 kHz; 1 V 10 pF to 10 nF CATEGORY TEMPERATURE RANGE RATED VOLTAGE (-55 to +125) °C C0G, U2J, X7R 1000 VDC (-25 to +85) °C X5F DIELECTRIC STRENGTH BETWEEN LEADS TOLERANCE ON CAPACITANCE CLIMATIC CATEGORY ACC. TO EN 60068-1 Component test: 55/125/21 C0G, U2J, X7R 2500 VDC, 2 s 25/085/21 X5F CERAMIC DIELECTRIC OPERATING TEMPERATURE RANGE C0G, U2J (Class 1) (-55 to +105) °C X5F, X7R (Class 2) Revision: 02-Mar-15 Document Number: 23109 1 For technical questions, contact: ceramitesupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 561R and 562R Series www.vishay.com Vishay Cera-Mite DIMENSIONS in inches (millimeters) Fig. 2 Fig. 1 LO 0.125 max. (3) LO 0.125 max. (3) Dmax. Dmax. 1.250 min. (32) LS 1.250 min. (32) LS Tmax. Tmax. ORDERING INFORMATION, CERAMIC 1000 VDC TEMPERATURE AND VOLTAGE STABILIZED C (pF) TOL. (%) C0G (NP0) 10 ± 10 U2J (N750) 27 30 ± 10 33 39 X5F 56 68 75 82 100 120 150 180 200 220 250 270 300 330 ± 10 390 470 500 560 680 750 820 1000 1500 2000 2200 2700 3300 4700 X7R 0.010 μF ± 10 Dmax. DIAMETER INCH (mm) Tmax. THICKNESS INCH (mm) LS LEAD SPACE INCH (mm) ± 1 mm LO LEAD OFFSET INCH (mm) ± 0.5 mm 0.250 (6.4) 0.156 (4.0) 0.250 (6.4) 0.051 (1.3) 0.156 (4.0) 0.250 (6.4) 0.156 (4.0) 0.250 (6.4) 0.290 (7.4) 0.047 (1.2) 0.039 (1.0) 0.039 (1.0) 0.039 (1.0) 0.290 (7.4) 0.156 (4.0) 0.250 (6.4) 0.440 (11.2) 0.490 (12.4) 0.490 (12.4) 0.560 (14.2) 0.560 (14.2) 0.680 (17.3) 0.156 (4.0) 0.156 (4.0) 0.156 (4.0) 0.156 (4.0) 0.156 (4.0) 0.156 (4.0) 0.250 (6.4) 0.375 (9.5) 0.375 (9.5) 0.375 (9.5) 0.375 (9.5) 0.375 (9.5) 0.075 (1.9) 0.063 (1.6) 0.059 (1.5) 0.055 (1.4) 0.055 (1.4) 0.051 (1.3) 0.043 (1.1) 0.043 (1.1) 0.039 (1.0) 0.051 (1.3) 0.047 (1.2) 0.043 (1.1) 0.039 (1.0) 0.039 (1.0) 0.043 (1.1) 0.039 (1.0) 0.039 (1.0) 0.047 (1.2) 0.043 (1.1) 0.039 (1.0) 0.039 (1.0) 0.035 (0.9) 0.051 (1.3) 0.051 (1.3) 0.047 (1.2) 0.051 (1.3) 0.047 (1.2) 0.051 (1.3) 0.680 (17.3) 0.156 (4.0) 0.375 (9.5) 0.047 (1.2) 0.250 (6.4) 0.156 (4.0) 0.250 (6.4) WIRE SIZE AWG INCH (mm) 24 0.020 (0.51) 24 0.020 (0.51) FIG. ORDERING CODE 2 561R10TSQ10 2 561R10TSQ27 561R10TSQ30 561R10TSQ33 561R10TSQ39 24 0.020 (0.51) 2 22 0.025 (0.64) 1 22 0.025 (0.64) 1 562R10TSQ56 562R10TSQ68 562R10TSQ75 562R10TSQ82 562R10TST10 562R10TST12 562R10TST15 562R10TST18 562R10TST20 562R10TST22 562R10TST25 562R10TST27 562R10TST30 562R10TST33 562R10TST39 562R10TST47 562R10TST50 562R10TST56 562R10TST68 562R10TST75 562R10TST82 562R10TSD10 562R10TSD15 562R10TSD20 562R10TSD22 562R10TSD27 562R10TSD33 562R10TSD47 562R10TSS10 TAPE AND REEL OPTIONS • Tape and reel available on diameter sizes 0.250" to 0.680" • Part number codes and specifications for tape and reel packaging are found in the general information document - find web-link below RELATED DOCUMENTS General Information Revision: 02-Mar-15 www.vishay.com/doc?23140 Document Number: 23109 2 For technical questions, contact: ceramitesupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2019 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 01-Jan-2019 1 Document Number: 91000 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Vishay: 10TCCV56 10TCCV39BA 10TSQ10QR 10TSQ10PL 10TSQ10PA 10TSQ30RE 10TSD10BA 10TST68RR 10TCCQ10BA 561R10TSQ27 561R10TSQ30 561R10TSQ33 561R10TSQ47 561R10TSQ50 561RU2JQA102EC200K 562R10TSD10BA 562R10TSD10TK 562R10TSD15 562R10TSD20 562R10TSD22 562R10TSD33 562R10TSQ56 562R10TSQ68 562R10TSQ68PL 562R10TST10 562R10TST15 562R10TST22 562R10TST25 562R10TST27 562R10TST33 562R10TST33RR 562R10TST39 562R10TST47 562R10TST47WK 562R10TST56 562R10TST68 562R10TST68RR 562R10TST82 562R5TSD10 562R5TSD22 562RTST10 562RTST22 10TSQ50RE 10TCCV50BA 10TCCV50RE 10TCCV30BA 10TCUT15JE 10TCCV68BA 10TCCQ18TR 10TCCQ18BA 10TCCQ22QA 10TSQ68PL 10TSCQ22BA 10TSD18 10TSD10 10TSD15 10TST75 10TST39 10TST33 10TSD33 10TST30 10TSQ68 10TSQ25 10TSQ27 10TSQ50 10TSQ33 10TSQ30 10TSQ39 10TSQ56 10TSQ75 10TSQ10 10TCUQ47RE1A 10TSQ47RE 10TSQ82 10TSQ47 10TCCV56BA 10TST47WK 562R10TST20 562R10TST30 562R10TST18 562R10TST12 562R10TSD27 562R10TSD18 10TSQ33RE 10TSQ33JQ 10TSQ47PL 10TCCQ25BA 10TCCV47BA 10TSD20 10TSD22 10TSD47 10TCCQ12BA 10TSS10 10TCCQ15BA 10TCCQ30BA 10TCCQ22BA 10TCCQ22TR 10TCCV82BA 10TST33RR 562RTST47
