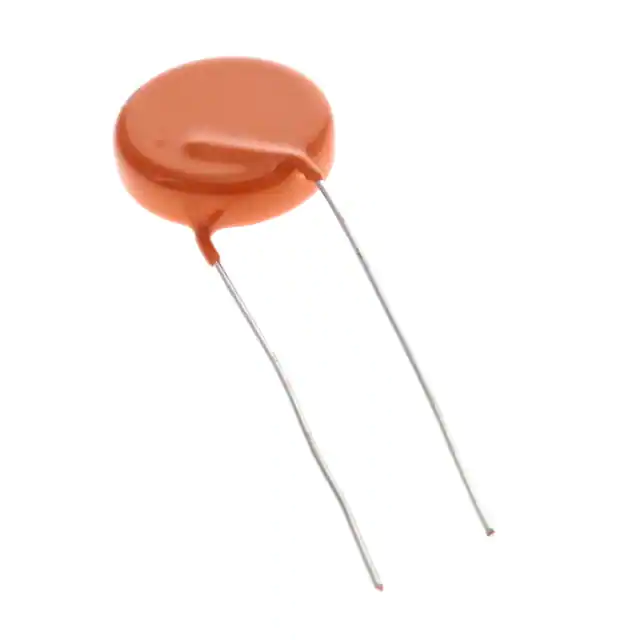

615R Series www.vishay.com Vishay Cera-Mite High Voltage Ceramic DC Disc Capacitors 10 kVDC and 15 kVDC FEATURES • 20 kV rated voltage available on request • Low losses • High capacitance in small sizes • High stability • Radial leads • Ceramic singlelayer capacitor • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 QUICK REFERENCE DATA DESCRIPTION Ceramic Class Ceramic Dielectric Voltage (VDC) APPLICATIONS VALUE • TV and monitors 1 2 T3M (N4700) X5F, Y5R, Y5U, Z5U 10 000 15 000 10 000 15 000 Min. Capacitance (pF) 250 100 100 100 Max. Capacitance (pF) 1000 750 3300 2500 Mounting Radial INSULATION RESISTANCE Min. 1000 F or 200 000 M TOLERANCE ON CAPACITANCE ± 20 % or + 80 % / - 20 % DISSIPATION FACTOR • SMPS • DC and pulse high voltage • X-ray equipment DESIGN The capacitors consist of a ceramic disc of which both sides are silver-plated. Connection leads are made of tinned copper having diameters of 0.032" (0.81 mm). The capacitors may be supplied with straight leads having lead spacing of 0.375" (9.5 mm), 0.500" (12.7 mm) or 0.750" (19.2 mm). Coating is made of flame retardant epoxy resin in accordance with “UL 94 V-0”. 0.2 % max. at 1 kHz; 1 V (Class 1) 2.0 % max. at 1 kHz; 1 V (Class 2) CAPACITANCE RANGE CATEGORY TEMPERATURE RANGE DIELECTRIC STRENGTH BETWEEN LEADS -25 °C to +85 °C 10 kVDC 15 kVDC CLIMATIC CATEGORY ACC. TO EN 60068-1 25/85/21 OPERATING TEMPERATURE RANGE -25 °C to +105 °C Revision: 09-Mar-16 100 pF to 3300 pF 15 000 VDC, 2 s 24 000 VDC, 2 s (in dielectric fluid) CERAMIC DIELECTRIC T3M (Class 1) X5F, Y5R, Y5U, Z5U (Class 2) Document Number: 23119 1 For technical questions, contact: ceramitesupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 615R Series www.vishay.com Vishay Cera-Mite DIMENSIONS in inches (millimeters) 1.250 min. (32) D max. LO LS Tinned copper leads Ø T max. 0.250 (6.4) ORDERING INFORMATION, CERAMIC 10 kVDC Dmax. DIAMETER INCH (mm) Tmax. THICKNESS INCH (mm) LS LEAD SPACE INCH (mm) ± 0.040" (± 1 mm) LO LEAD OFFSET INCH (mm) ± 0.020" (± 0.5 mm) 250 0.490 (12.4) 0.290 (7.4) 0.375 (9.5) 0.193 (4.9) 615R100GATT25 500 0.680 (17.3) 0.272 (6.9) 0.173 (4.4) 615R100GATT50 C (pF) TOL. (%) WIRE SIZE AWG INCH (mm) ORDERING CODE T3M (N4700) 680 ± 20 0.750 (19.1) 0.181 (4.6) 0.300 (7.6) 820 0.810 (20.6) 1000 0.980 (24.9) 20 0.032 (0.81) 615R100GATT68 0.500 (12.7) 0.181 (4.6) 615R100GATT82 0.320 (8.1) 0.189 (4.8) 615R100GATD10 0.382 (9.7) 0.283 (7.2) 615R100GAT10 X5F 100 250 ± 20 0.680 (17.3) 500 0.300 (7.6) 0.500 (12.7) 0.201 (5.1) 20 0.032 (0.81) 615R100GAT25 0.345 (8.8) 0.248 (6.3) 615R100GAT50 0.320 (8.1) 0.220 (5.6) 615R100GAST10 Y5R 100 250 0.490 (12.4) 0.331 (8.4) 0.375 (9.5) 0.232 (5.9) ± 20 500 0.310 (7.9) 1000 615R100GAST25 20 0.750 (19.1) 0.032 (0.81) 0.213 (5.4) 615R100GAST50 0.320 (8.1) 0.500 (12.7) 0.220 (5.6) 615R100GAD10 0.330 (8.4) 0.500 (12.7) 0.232 (5.9) Y5U 1000 2500 + 80 / - 20 ± 20 0.680 (17.3) 615R100GASD10 20 0.032 (0.81) 0.980 (24.9) 615R100GATD25 Z5U 2500 0.750 (19.1) 0.350 (8.9) + 80 / - 20 3300 Revision: 09-Mar-16 0.256 (6.5) 0.500 (12.7) 0.980 (24.9) 0.390 (9.9) 615R100GAD25 20 0.303 (7.7) 0.032 (0.81) 615R100GAD33 Document Number: 23119 2 For technical questions, contact: ceramitesupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 615R Series www.vishay.com Vishay Cera-Mite ORDERING INFORMATION, CERAMIC 15 kVDC C (pF) TOL. (%) Dmax. DIAMETER INCH (mm) Tmax. THICKNESS INCH (mm) LS LEAD SPACE INCH (mm) ± 0.040" (± 1 mm) 0.500 (12.7) LO LEAD OFFSET INCH (mm) ± 0.020" (± 0.5 mm) WIRE SIZE AWG INCH (mm) ORDERING CODE T3M (N4700) 100 0.490 (12.4) 0.470 (11.9) 250 0.670 (17.0) 0.460 (11.7) 390 0.750 (19.1) 0.425 (10.8) 500 ± 20 0.810 (20.6) 0.382 (9.7) 750 1.063 (27.0) 0.430 (10.9) 0.370 (9.4) 615R150GATT10 0.362 (9.2) 615R150GATT25 0.283 (7.2) 0.750 (19.1) 20 0.032 (0.81) 615R150GATT39 0.283 (7.2) 615R150GATT50 0.331 (8.4) 615R150GATT75 X5F 100 250 ± 20 0.430 (10.9) 0.670 (17.0) 0.455 (11.6) 0.331 (8.4) 0.750 (19.1) 20 0.358 (9.1) 0.032 (0.81) 615R150GAT10 615R150GAT25 Y5R 100 250 500 0.449 (11.4) 0.490 (12.4) ± 20 1000 0.480 (12.2) 0.670 (17.0) 0.450 (11.4) 0.980 (24.9) 0.460 (11.7) 0.500 (12.7) 0.350 (8.9) 615R150GAST10 0.382 (9.7) 615R150GAST25 20 0.331 (8.4) 0.750 (19.1) 0.032 (0.81) 0.362 (9.2) 615R150GAT50 615R150GATD10 Y5U 500 1000 + 80 / - 20 0.490 (12.4) 0.375 (9.5) 0.500 (12.7) 0.276 (7.0) 0.670 (17.0) 0.420 (10.7) 0.750 (19.1) 0.323 (8.2) 20 0.032 (0.81) 20 0.032 (0.81) 615R150GAST50 615R150GAD10 Z5U 2200 2500 + 80 / - 20 0.510 (13.0) 0.980 (24.9) 0.450 (11.4) 0.413 (10.5) 0.750 (19.1) 0.350 (8.9) 615R150GAD22 615R150GAD25 ᐃC/C (%) CAPACITANCE CHANGE VS. VOLTAGE (typical) 10 0 -10 -20 -30 -40 -50 -60 -70 -80 -90 -100 Y5R / X5F T3M (N4700) Y5U Z5U ΔC/C = f (UR) 0 10 20 30 40 50 60 70 80 90 100 UR (%) RELATED DOCUMENTS General Information Revision: 09-Mar-16 www.vishay.com/doc?23140 Document Number: 23119 3 For technical questions, contact: ceramitesupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer  ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. Revision: 13-Jun-16 1 Document Number: 91000
