615R Series
www.vishay.com
Vishay Cera-Mite

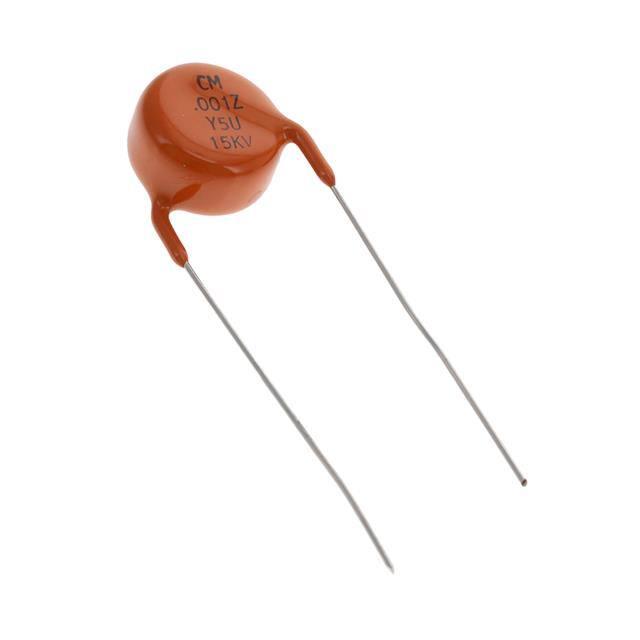

High Voltage Ceramic DC Disc Capacitors
10 kVDC and 15 kVDC
FEATURES
• 20 kV rated voltage available on request
• Low losses
• High capacitance in small sizes
• High stability
• Radial leads
• Ceramic singlelayer capacitor
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
LINKS TO ADDITIONAL RESOURCES
APPLICATIONS
3D 3D
• High voltage power supplies
3D Models
• DC and pulse high voltage
• X-ray equipment, baggage scanner, air purifier, ionizer
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Dielectric
Voltage (VDC)
DESIGN
VALUE
Ceramic Class
1
2
T3M (N4700)
X5F, Y5R, Y5U, Z5U
10 000 15 000
10 000
15 000
Min. Capacitance (pF)
250
100
100
100
Max. Capacitance (pF)
1000
750
3300
2500
Mounting
Radial
INSULATION RESISTANCE
The capacitors consist of a ceramic disc of which both sides
are silver-plated. Connection leads are made of tinned
copper having diameters of 0.032" (0.81 mm).
The capacitors may be supplied with straight leads having
lead spacing of 0.375" (9.5 mm), 0.500" (12.7 mm) or 0.750"
(19.2 mm).
Coating is made of flame retardant epoxy resin in
accordance with “UL 94 V-0”.
Min. 1000 ΩF or 200 000 MΩ
CAPACITANCE RANGE
TOLERANCE ON CAPACITANCE
100 pF to 3300 pF
± 20 % or + 80 % / - 20 %
DIELECTRIC STRENGTH BETWEEN LEADS
DISSIPATION FACTOR
10 kVDC
15 kVDC
0.2 % max. at 1 kHz; 1 V (Class 1)
2.0 % max. at 1 kHz; 1 V (Class 2)
CATEGORY TEMPERATURE RANGE
-25 °C to +85 °C
15 000 VDC, 2 s
24 000 VDC, 2 s
(in dielectric fluid)
CERAMIC DIELECTRIC
T3M (Class 1)
X5F, Y5R, Y5U, Z5U (Class 2)
CLIMATIC CATEGORY ACC. TO EN 60068-1
25 / 85 / 21
OPERATING TEMPERATURE RANGE
-25 °C to +105 °C (1)
Note
(1) For explanation about the difference of operating temperature
range and temperature characteristic of capacitance, please see
www.vishay.com/doc?48299
Revision: 16-Aug-2021
Document Number: 23119
1
For technical questions, contact: ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
615R Series
www.vishay.com
Vishay Cera-Mite
DIMENSIONS in inches (millimeters)
1.250 min.
(32)
D
max.
LO
LS
Tinned copper leads
Ø
0.250 (6.4)
T
max.
ORDERING INFORMATION, CERAMIC 10 kVDC
C
(pF)
TOL.
(%)
T3M (N4700)
250
500
680
± 20
820
1000
X5F
100
250
± 20
500
Y5R
100
250
± 20
500
1000
Y5U
1000
+ 80 / - 20
2500
± 20
Z5U
2500
+ 80 / - 20
3300
LS
LO
LEAD SPACE
LEAD OFFSET
INCH (mm)
INCH (mm)
± 0.040" (± 1 mm) ± 0.020" (± 0.5 mm)
Dmax.
DIAMETER
INCH (mm)
Tmax.
THICKNESS
INCH (mm)
0.490 (12.4)
0.680 (17.3)
0.750 (19.1)
0.810 (20.6)
0.980 (24.9)
0.290 (7.4)
0.272 (6.9)
0.375 (9.5)
0.300 (7.6)
0.500 (12.7)
0.680 (17.3)
0.320 (8.1)
0.382 (9.7)
0.300 (7.6)
0.345 (8.8)
0.320 (8.1)
0.331 (8.4)
0.310 (7.9)
0.320 (8.1)
0.680 (17.3)
0.980 (24.9)
0.750 (19.1)
0.980 (24.9)
0.490 (12.4)
0.750 (19.1)
0.500 (12.7)
WIRE SIZE
AWG
INCH (mm)
ORDERING
CODE
0.193 (4.9)
0.173 (4.4)
0.181 (4.6)
0.181 (4.6)
0.189 (4.8)
20
0.032 (0.81)
615R100GATT25
615R100GATT50
615R100GATT68
615R100GATT82
615R100GATD10
0.283 (7.2)
0.201 (5.1)
0.248 (6.3)
20
0.032 (0.81)
615R100GAT10
615R100GAT25
615R100GAT50
20
0.032 (0.81)
0.500 (12.7)
0.220 (5.6)
0.232 (5.9)
0.213 (5.4)
0.220 (5.6)
615R100GAST10
615R100GAST25
615R100GAST50
615R100GAD10
0.330 (8.4)
0.500 (12.7)
0.232 (5.9)
20
0.032 (0.81)
615R100GASD10
615R100GATD25
0.350 (8.9)
0.390 (9.9)
0.500 (12.7)
0.256 (6.5)
0.303 (7.7)
20
0.032 (0.81)
615R100GAD25
615R100GAD33
0.375 (9.5)
ORDERING INFORMATION, CERAMIC 15 kVDC
C
(pF)
TOL.
(%)
T3M (N4700)
100
250
390
± 20
500
750
X5F
100
± 20
250
Y5R
100
250
± 20
500
1000
Y5U
500
+ 80 / - 20
1000
Z5U
2200
+ 80 / - 20
2500
Revision: 16-Aug-2021
Dmax.
DIAMETER
INCH (mm)
Tmax.
THICKNESS
INCH (mm)
0.490 (12.4)
0.670 (17.0)
0.750 (19.1)
0.810 (20.6)
1.063 (27.0)
0.470 (11.9)
0.460 (11.7)
0.425 (10.8)
0.382 (9.7)
0.430 (10.9)
0.670 (17.0)
0.430 (10.9)
0.455 (11.6)
LS
LO
LEAD SPACE
LEAD OFFSET
INCH (mm)
INCH (mm)
± 0.040" (± 1 mm) ± 0.020" (± 0.5 mm)
0.500 (12.7)
0.750 (19.1)
0.750 (19.1)
WIRE SIZE
AWG
INCH (mm)
ORDERING
CODE
0.370 (9.4)
0.362 (9.2)
0.283 (7.2)
0.283 (7.2)
0.331 (8.4)
20
0.032 (0.81)
615R150GATT10
615R150GATT25
615R150GATT39
615R150GATT50
615R150GATT75
0.331 (8.4)
0.358 (9.1)
20
0.032 (0.81)
615R150GAT10
615R150GAT25
0.670 (17.0)
0.980 (24.9)
0.449 (11.4)
0.480 (12.2)
0.450 (11.4)
0.460 (11.7)
0.490 (12.4)
0.670 (17.0)
0.375 (9.5)
0.420 (10.7)
0.500 (12.7)
0.750 (19.1)
0.276 (7.0)
0.323 (8.2)
20
0.032 (0.81)
615R150GAST50
615R150GAD10
0.980 (24.9)
0.510 (13.0)
0.450 (11.4)
0.750 (19.1)
0.413 (10.5)
0.350 (8.9)
20
0.032 (0.81)
615R150GAD22
615R150GAD25
0.490 (12.4)
0.500 (12.7)
0.750 (19.1)
0.350 (8.9)
0.382 (9.7)
0.331 (8.4)
0.362 (9.2)
20
0.032 (0.81)
615R150GAST10
615R150GAST25
615R150GAT50
615R150GATD10
Document Number: 23119
2
For technical questions, contact: ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
615R Series
www.vishay.com
Vishay Cera-Mite
CAPACITANCE CHANGE VS. TEMPERATURE (TYPICAL)
Axis Title
Axis Title
2nd line
Capacitance Change ΔC/C (%)
30
20
1000
10
0
-10
-20
100
-30
-40
-50
10000
Temperature dependence of the capacitance
25
N4700
1st line
2nd line
2nd line
Capacitance Change ΔC/C (%)
40
30
10000
10
5
25
45
65
15
10
1000
5
Y5R
0
-5
-10
100
-15
-20
-25
Temperature dependence of the capacitance
-60
-55 -35 -15
20
1st line
2nd line
50
10
-30
-55 -35 -15
85 105 125
Temperature (°C)
5
25
45
65
85 105 125
Temperature (°C)
Axis Title
Axis Title
10000
20
10000
60
10
1000
5
X5F
0
-5
100
-10
-15
40
20
Y5U
1000
0
1st line
2nd line
2nd line
Capacitance Change ΔC/C (%)
15
1st line
2nd line
2nd line
Capacitance Change ΔC/C (%)
Temperature dependence of the capacitance
-20
-40
100
-60
-80
Temperature dependence of the capacitance
10
-20
-55 -35 -15
5
25
45
65
10
-100
85 105 125
-55 -35 -15
Temperature (°C)
5
25
45
65
85 105 125
Temperature (°C)
Axis Title
10000
60
40
Z5U
20
1000
0
1st line
2nd line
2nd line
Capacitance Change ΔC/C (%)
Temperature dependence of the capacitance
-20
-40
100
-60
-80
10
-100
-15
5
25
45
65
85
105
125
Temperature (°C)
Revision: 16-Aug-2021
Document Number: 23119
3
For technical questions, contact: ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
615R Series
www.vishay.com
Vishay Cera-Mite
CAPACITANCE CHANGE VS. VOLTAGE (TYPICAL)
Axis Title
10
10000
Y5R / X5F
-10
-20
T3M (N4700)
-30
-40
1000
1st line
2nd line
2nd line
ΔC/C - Capacitance Change (%)
0
Y5U
-50
Z5U
-60
100
-70
-80
ΔC/C = f (UR)
-90
10
-100
0
10
20
30
40
50
60
70
80
90 100
UR - Rated Voltage (%)
STORAGE
The capacitors must not be stored in a corrosive atmosphere, where sulphide or chloride gas, acid, alkali or salt are present.
Exposure of the components to moisture, should be avoided. The solderability of the leads is not affected by storage of up to
24 months (temperature +10 °C to +40 °C, relative humidity up to 60 % RH). Class 2 ceramic dielectric capacitors are also
subject to aging see general information (www.vishay.com/doc?23140).
SOLDERING
SOLDERING SPECIFICATIONS
Soldering test for capacitors with wire leads: (according to IEC 60068-2-20, solder bath method)
Soldering temperature
Soldering duration
Distance from component body
SOLDERABILITY
RESISTANCE TO SOLDERING HEAT
(235 ± 5) °C
(260 ± 5) °C
(2 ± 0.5) s
(10 ± 1) s
≥ 2 mm
≥ 5 mm
SOLDERING RECOMMENDATIONS
Ceramic capacitors are very sensitive to rapid changes in temperature (thermal shock) therefore the solder heat resistance
specification (see table above) should not be exceeded. Exposing the capacitor to excessive heating may result in thermal
shocks that can crack the ceramic body. Similarly, excessive heating can cause the internal solder junction to melt.
When soldering radial leaded ceramic capacitors with a soldering iron, it should be performed under the following conditions
and should not exceed:
• Maximum temperature of iron-tip: 400 °C
• Maximum soldering iron wattage: 50 W
• Maximum soldering time: 3.5 s
Failure to follow the above cautions may result, in worst case, in short circuit or cause fuming or thermo-mechanical damage
when the product is used.
Leaded ceramic capacitors are not designed for reflow process or dipping the body into a solder melt.
CLEANING
The components should be cleaned immediately following the soldering operation with vapor degreasers.
CLEANING (ULTRASONIC CLEANING)
To perform ultrasonic cleaning, observe the following conditions:
•
•
•
•
Maximum rinse bath capacity output: 20 W/liter
Maximum rinsing time: 300 s
Do not vibrate the PCB/PWB directly
Excessive ultrasonic cleaning may lead to mechanical damage
Revision: 16-Aug-2021
Document Number: 23119
4
For technical questions, contact: ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
615R Series
www.vishay.com
Vishay Cera-Mite
SOLVENT RESISTANCE
The coating and marking of the capacitors are resistant to the following test method:
IEC 60068-2-45 (method XA)
MOUNTING
We do not recommend modifying the lead terminals, e.g. bending or cropping. This action could break the coating or crack the
ceramic insert. In order to avoid such failures we are offering different lead wire designs (e.g. straight, inline, inside crimp,
outside crimp etc.) If however, the lead must be modified in any way, we recommend support of the lead with a clamping fixture
next to the coating. If a defined product stop is required for mounting on a PCB, a mechanically formed product stop or a
mounting tool should be used.
OPERATING VOLTAGE
In case the voltage is applied to the circuit, starting as well as stopping, may generate irregular voltage for a transit period
because of resonance or switching. Be sure to use a capacitor with a rated voltage range that includes these irregular voltages.
OPERATING TEMPERATURE AND SELF-GENERATED HEAT
Keep the surface temperature of a capacitor below the upper limit of its rated operating temperature range. Be sure to take into
account the heat generated by the capacitor itself. When the capacitor is used in a high frequency, pulse, or similar application,
it may have self-generated heat due to dielectric dissipation.
Temperature increase due to self-generated heating should not exceed 20 °C while operating at an atmosphere temperature of
25 °C.
When measuring, the surface temperature, make sure that the capacitor is not affected by radiant, conductive and convective
heat by its surroundings. Excessive heat may lead to thermo-mechanical deterioration of the capacitor's characteristics and
reliability.
RELATED DOCUMENTS
General Information
Revision: 16-Aug-2021
www.vishay.com/doc?23140
Document Number: 23119
5
For technical questions, contact: ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay's knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer's responsibility to validate that a particular product
with the properties described in the product specification is suitable for use in a particular application. Parameters provided in
datasheets and / or specifications may vary in different applications and performance may vary over time. All operating
parameters, including typical parameters, must be validated for each customer application by the customer's technical experts.
Product specifications do not expand or otherwise modify Vishay's terms and conditions of purchase, including but not limited
to the warranty expressed therein.
Hyperlinks included in this datasheet may direct users to third-party websites. These links are provided as a convenience and
for informational purposes only. Inclusion of these hyperlinks does not constitute an endorsement or an approval by Vishay of
any of the products, services or opinions of the corporation, organization or individual associated with the third-party website.
Vishay disclaims any and all liability and bears no responsibility for the accuracy, legality or content of the third-party website
or for that of subsequent links.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please
contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
© 2021 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED
Revision: 09-Jul-2021
1
Document Number: 91000
