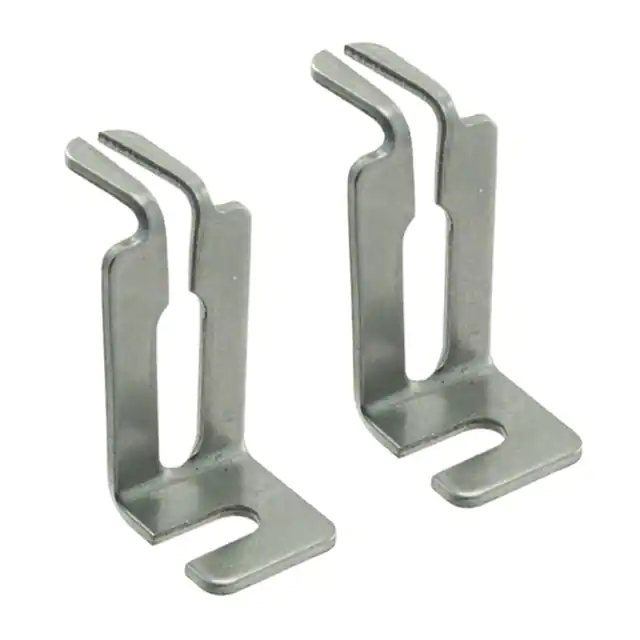

2E Vishay Sfernice Fixing Accessories for Wirewound Resistors Equipped with AN Collars Suitable for RW - RA - RSSD - RSO FEATURES • They are available in three versions: - Bracket 2E N Shape - Bracket 2E U Shape (restricted space) - Brackets 2E T or 2E Z shape Ø 40 mm and 50 mm These 2E double right-angle brackets are designed to fix resistors without providing electrical contact. As they are fitted to resistors with fixing insulated connections, they can be mounted on uninsulated panels. designed for models of • The brackets are metal, and are corrosion-resistant • Compliant to RoHS directive 2002/95/EC DIMENSIONS in millimeters DOUBLE RIGHT-ANGLE BRACKET 2E U DOUBLE RIGHT-ANGLE BRACKET 2E N F F e L1 M1 G e L2 M2 G E DIMENSIONS in millimeters SERIES RW RSO RA RSSD BRACKET E ± 0.1 F ±1 G ± 0.5 L1 -0 -4 M1 -1 -4 L2 -0 -4 M2 -0 -4 E AVERAGE UNIT WEIGHT IN g 8 x 34 8 x 34 2E BN or 2E BU 3.2 21.5 8 58 48 38 26 1 1.8 10 x 50 10 x 50 2E DN or 2E DU 3.2 21.5 10 74 64 54 42 1 2.2 13 x 70 16 x 94 2E DN or 2E DU 3.2 21.5 10 94 84 74 62 1 2.2 13 x 70 2E FN or 2E FU 4 26.5 14 102.5 88.5 74.5 58 1.2 4.5 16 x 94 2E HN or 2E HU 5 29.5 20 132.5 115.5 98.5 79 1.2 8 2E HN or 2E HU 5 29.5 20 155.5 138.5 121.5 102 1.2 8 20 x 117 2E KN or 2E KU 5.5 37.5 22 161.5 141.5 121.5 99 1.2 13 25 x 138 20 x 117 2E KN or 2E KU 5.5 37.5 22 182.5 162.5 142.5 120 1.2 13 25 x 168 2E KN or 2E KU 5.5 37.5 22 212.5 192.5 172.5 150 1.2 13 25 x 138 2E MN or 2E MU 5.5 37.5 22 182.5 162.5 142.5 120 1.2 13 25 x 168 2E MN or 2E MU 5.5 37.5 22 212.5 192.5 172.5 150 1.2 13 30 x 250 2E PN or 2E PU 8 44.2 30 311 283 255 224 1.5 28 30 x 250 2E SN or 2E SU 8 44.2 30 311 283 255 224 1.5 28 40 x 370 40 x 370 2E T 9 40 40 448 418 - - 6 65 50 x 373 50 x 373 2E Z 9 40 40 451 421 - - 6 65 www.vishay.com 124 For technical questions contact sfer@vishay.com Document Number: 50021 Revision: 05-Oct-09 2E Fixing Accessories for Wirewound Resistors Equipped with AN Collars Suitable for RW - RA - RSSD - RSO Vishay Sfernice ORDERING INFORMATION MODEL TYPE PAIR LEAD (Pb)-FREE 2E BN ... e Fixing accessories for RW 8 x 34 AN resistor Note • Brackets are sold in pairs SAP PART NUMBERING GUIDELINES ACCRF 2E BN MODEL STYLE TYPE Document Number: 50021 Revision: 05-Oct-09 For technical questions contact sfer@vishay.com www.vishay.com 125 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. Material Category Policy Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment (EEE) - recast, unless otherwise specified as non-compliant. Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU. Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21 conform to JEDEC JS709A standards. Revision: 02-Oct-12 1 Document Number: 91000
