BAV100, BAV101, BAV102, BAV103
www.vishay.com
Vishay Semiconductors
Small Signal Switching Diodes, High Voltage
FEATURES
• Silicon epitaxial planar diode
• AEC-Q101 qualified
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
• General purposes
DESIGN SUPPORT TOOLS click logo to get started
Models
Available
MECHANICAL DATA

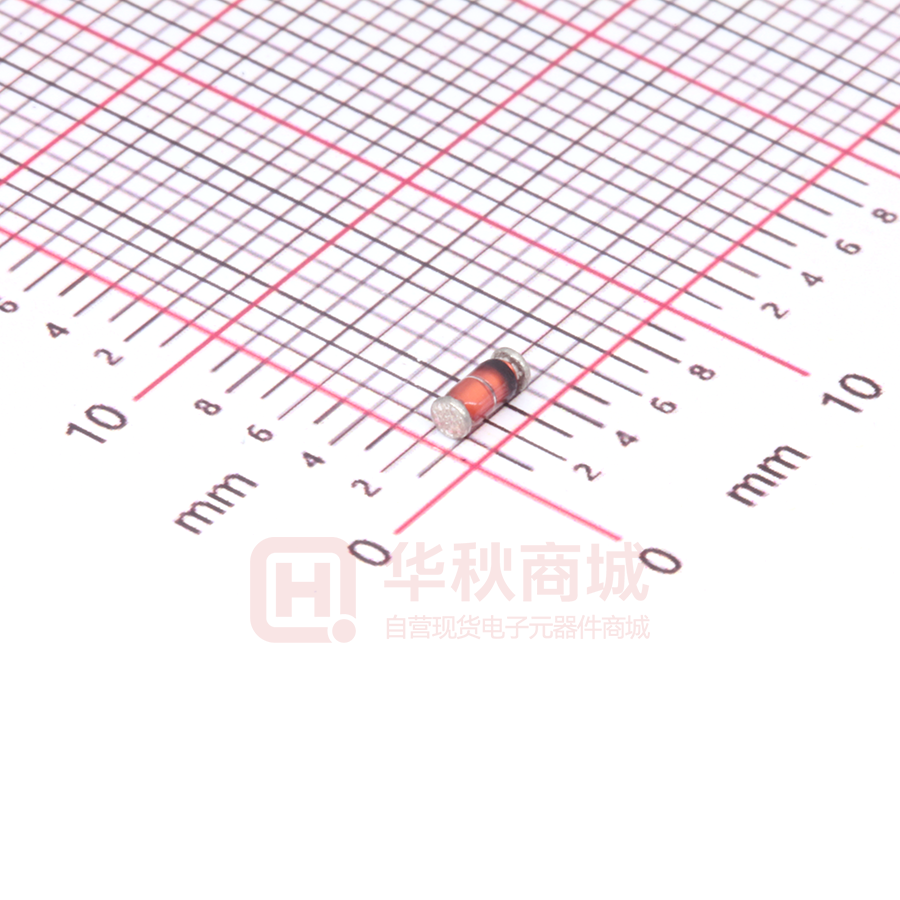

Case: MiniMELF (SOD-80)
Weight: approx. 31 mg
Cathode band color: black
Packaging codes / options:
GS18/10K per 13" reel (8 mm tape), 10K/box
GS08/2.5K per 7" reel (8 mm tape), 12.5K/box
PARTS TABLE
PART
TYPE
DIFFERENTIATION
ORDERING CODE
TYPE
MARKING
CIRCUIT CONFIGURATION
REMARKS
BAV100
VRRM = 60 V
BAV100-GS18 or BAV100-GS08
-
Single
Tape and reel
BAV101
VRRM = 120 V
BAV101-GS18 or BAV101-GS08
-
Single
Tape and reel
BAV102
VRRM = 200 V
BAV102-GS18 or BAV102-GS08
-
Single
Tape and reel
BAV103
VRRM = 250 V
BAV103-GS18 or BAV103-GS08
-
Single
Tape and reel
ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
Repetitive peak reverse voltage
Reverse voltage
Peak forward surge current
Repetitive peak forward current
Forward continuous current
Power dissipation
tp = 1 s
PART
SYMBOL
VALUE
UNIT
BAV100
VRRM
60
V
BAV101
VRRM
120
V
BAV102
VRRM
200
V
BAV103
VRRM
250
V
BAV100
VR
50
V
BAV101
VR
100
V
BAV102
VR
150
V
BAV103
VR
200
V
IFSM
1
A
IFRM
625
mA
IF
250
mA
Ptot
500
mW
Rev. 1.8, 12-Jul-17
Document Number: 85542
1
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
BAV100, BAV101, BAV102, BAV103
www.vishay.com
Vishay Semiconductors
THERMAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
SYMBOL
VALUE
UNIT
RthJL
350
K/W
RthJA
500
K/W
Thermal resistance junction to lead
Thermal resistance junction to ambient air
On PC board
50 mm x 50 mm x 1.6 mm
Junction temperature
Storage temperature range
Tj
175
°C
Tstg
-65 to +175
°C
ELECTRICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
Forward voltage
PART
IF = 100 mA
Reverse current
Breakdown voltage
Differential forward current
Reverse recovery time
MIN.
TYP.
MAX.
UNIT
VF
1
V
VR = 50 V
BAV100
IR
100
nA
VR = 100 V
BAV101
IR
100
nA
VR = 150 V
BAV102
IR
100
nA
VR = 200 V
BAV103
IR
100
nA
Tj = 100 °C, VR = 50 V
BAV100
IR
15
μA
Tj = 100 °C, VR = 100 V
BAV101
IR
15
μA
Tj = 100 °C, VR = 150 V
BAV102
IR
15
μA
Tj = 100 °C, VR = 200 V
BAV103
IR
15
μA
IR = 100 μA, tp/T = 0.01,
tp = 0.3 ms
BAV100
V(BR)
60
V
IR = 100 μA, tp/T = 0.01,
tp = 0.3 ms
BAV101
V(BR)
120
V
BAV102
V(BR)
200
V
BAV103
V(BR)
250
V
IR = 100 μA, tp/T = 0.01,
tp = 0.3 ms
Diode capacitance
SYMBOL
VR = 0 V, f = 1 MHz,
VHF = 50 mV
CD
1.5
pF
IF = 10 mA
rf
5
Ω
IF = IR = 30 mA,
iR = 3 mA, RL = 100 Ω
trr
50
ns
TYPICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
1000
100
I F - Forward Current (mA)
I R - Reverse Current (µA)
1000
Scattering Limit
10
1
VR = VRRM
0.1
0.01
Scattering Limit
10
1
0.1
0
94 9084
Tj = 25 °C
100
40
80
120
160
200
Tj - Junction Temperature (°C)
Fig. 1 - Reverse Current vs. Junction Temperature
0
94 9085
0.4
0.8
1.2
1.6
2.0
V F - Forward Voltage (V)
Fig. 2 - Forward Current vs. Forward Voltage
Rev. 1.8, 12-Jul-17
Document Number: 85542
2
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
BAV100, BAV101, BAV102, BAV103
rf - Differential Forward Resistance (Ω)
www.vishay.com
Vishay Semiconductors
1000
100
Tj = 25 °C
10
1
0.1
1
100
10
I F - Forward Current (mA)
94 9089
Fig. 3 - Differential Forward Resistance vs. Forward Current
PACKAGE DIMENSIONS in millimeters (inches): MiniMELF (SOD-80)
1.6 (0.063)
1.4 (0.055)
Cathode indentification
*
0.47 (0.019) max.
3.7 (0.146)
3.3 (0.130)
* The gap between plug and glass can
be either on cathode or anode side
2.5 (0.098) max.
1.25 (0.49) min.
2 (0.079) min.
Foot print recommendation:
Document no.:6.560-5005.01-4
Rev. 8 - Date: 07.June.2006
5 (0.197) ref.
96 12070
Rev. 1.8, 12-Jul-17
Document Number: 85542
3
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
