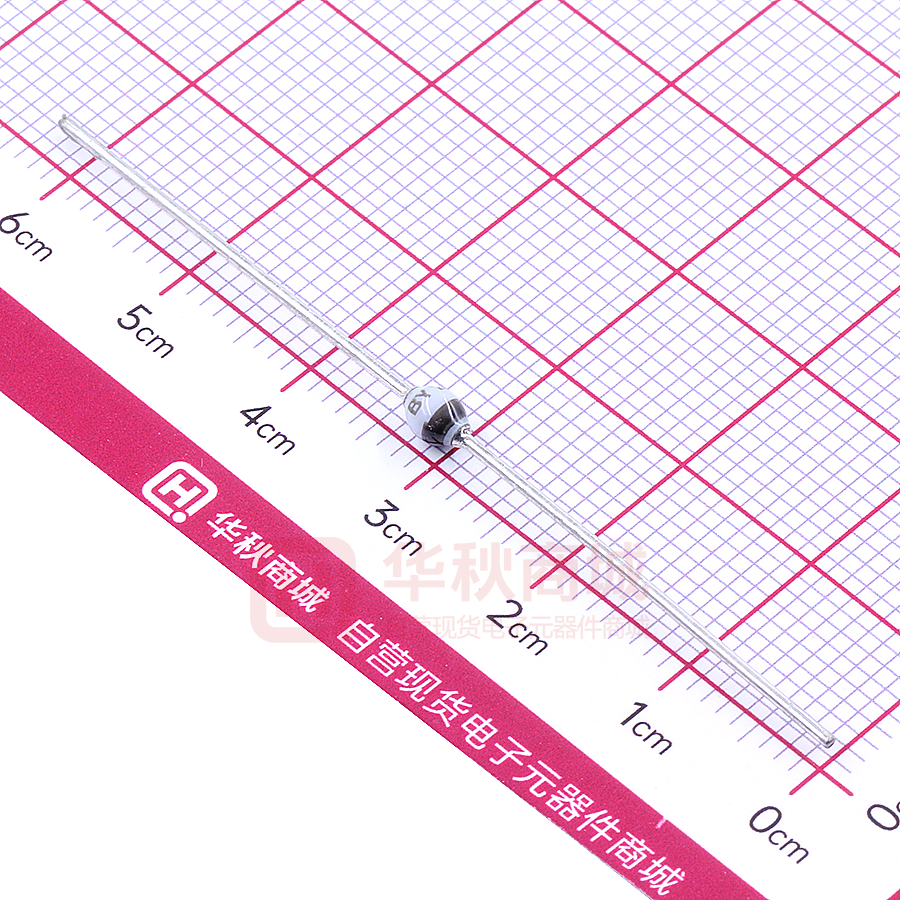

BY203-20STR

BY203-12S, BY203-16S, BY203-20S www.vishay.com Vishay Semiconductors Fast Avalanche Sinterglass Diode FEATURES • Glass passivated junction • Hermetically sealed package • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS 949539 DESIGN SUPPORT TOOLS click logo to get started Models Available MECHANICAL DATA Case: SOD-57 sintered glass case Terminals: plated axial leads, solderable per MIL-STD-750, method 2026 Polarity: color band denotes cathode end Mounting position: any Weight: approx. 369 mg • Fast rectification and switching avalanche sinterglass diode for TV-line output circuits an switch mode power supply               ORDERING INFORMATION (Example) DEVICE NAME ORDERING CODE TAPED UNITS BY203-20S BY203-20STR 5000 per 10" tape and reel MINIMUM ORDER QUANTITY 25 000 BY203-20S BY203-20STAP 5000 per ammopack 25 000 TYPE DIFFERENTIATION PACKAGE BY203-12S VR = 1200 V; IF(AV) = 250 mA SOD-57 BY203-16S VR = 1600 V; IF(AV) = 250 mA SOD-57 BY203-20S VR = 2000 V; IF(AV) = 250 mA SOD-57 PARTS TABLE PART ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified) PARAMETER PART SYMBOL VALUE UNIT BY203-12S VR = VRRM 1200 V BY203-16S VR = VRRM 1600 V BY203-20S VR = VRRM 2000 V IFSM 20 A IF(AV) 0.25 A ER 10 mJ Junction temperature range Tj -55 to +150 °C Storage temperature range Tstg -55 to +175 °C Reverse voltage = repetitive peak reverse voltage Peak forward surge current TEST CONDITION lR = 100 μA tp = 10 ms, half sine wave Average forward current Non repetitive reverse avalanche energy I(BR)R = 0.4 A Rev. 1.9, 20-Feb-18 Document Number: 86002 1 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 BY203-12S, BY203-16S, BY203-20S www.vishay.com Vishay Semiconductors MAXIMUM THERMAL RESISTANCE (Tamb = 25 °C, unless otherwise specified) PARAMETER Junction ambient TEST CONDITION SYMBOL VALUE Lead length l = 10 mm, TL = constant RthJA 45 UNIT K/W Maximum lead length RthJA 100 K/W ELECTRICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. VF - - 2.4 V IF = 0.2 A, tp/T = 0.01, tp = 0.3ms Forward voltage Reverse current Breakdown voltage VR = 700 V BY203-12S IR - - 2 μA VR = 1000 V BY203-16S IR - - 2 μA VR = 1200 V BY203-20S IR - - 2 μA BY203-12S V(BR) 1200 - - V BY203-16S V(BR) 1600 - - V BY203-20S V(BR) 2000 - - V trr - - 300 ns lR = 100 μA, tp/T = 0.01, tp = 0.3 ms IF = 0.5 A, IR = 1 A, iR = 0.25 A Reverse recovery time UNIT TYPICAL CHARACTERISTICS (Tamb = 25 C, unless otherwise specified) 0.30 200 160 120 VRRM VR BY203/12 80 40 BY203/16 BY203/20 IFAV - Average Forward Current (A) Tj - Junction Temperature (°C) 240 RthJA = 45 K/W I = 10 mm 0.25 0.20 0.10 VR = VRRM half sinewave 0.05 0 0 0 949080 RthJA = 100 K/W PCB: d = 25 mm 0.15 400 800 1200 1600 VR, VRRM - Rev./Rep. Peak Rev. Voltage (V) 0 30 60 90 120 150 Tamb - Ambient Temperature (°C) 16398 Fig. 3 - Max. Average Forward Current vs. Ambient Temperature Fig. 1 - Junction Temperature vs. Reverse/Repetitive Peak Reverse Voltage 10 1000 IR - Reverse Current (μA) IF - Forward Current (A) VR = VRRM 1 Tj = 175 °C 0.1 Tj = 25 °C 0.01 100 10 1 25 0.001 0 16397 1 2 3 4 5.0 VF - Forward Voltage (V) Fig. 2 - Max. Forward Current vs. Forward Voltage 16399 50 75 100 125 150 Tj - Junction Temperature (°C) Fig. 4 - Max. Reverse Current vs. Junction Temperature Rev. 1.9, 20-Feb-18 Document Number: 86002 2 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 BY203-12S, BY203-16S, BY203-20S Vishay Semiconductors 18 500 VR = VRRM CD - Diode Capacitance (pF) PR - Reverse Power Dissipation (mW) www.vishay.com 400 PR-Limit at 100 % VR 300 PR-Limit at 80 % VR 200 100 14 12 10 8 6 4 2 0 0.1 0 25 50 75 100 125 150 Tj - Junction Temperature (°C) 16400 16401 Fig. 5 - Max. Reverse Power Dissipation vs. Junction Temperature f = 1 MHz 16 1 10 100 VR - Reverse Voltage (V) Fig. 6 - Diode Capacitance vs. Reverse Voltage 3.6 (0.142) max. 0.82 (0.032) max. PACKAGE DIMENSIONS in millimeters (inches): SOD-57 26 (1.024) min. 4 (0.157) max. 26 (1.024) min. 20543 Rev. 1.9, 20-Feb-18 Document Number: 86002 3 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Outline Dimensions www.vishay.com Vishay Semiconductors SOD-57 BYT62-BY203 3.4 max. [0.134] 0.82 max. [0.032] PACKAGE DIMENSIONS in millimeters (inches) 26 min. [1.024] 4.2 max. [0.165] 26 min. [1.024] 23194 Rev. 3 - Date: 09.February.2005 Document no.:6.563-5006.5-4 Rev. 1.2, 25-Apr-2022 Document Number: 84045 1 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay's knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer's responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer's technical experts. Product specifications do not expand or otherwise modify Vishay's terms and conditions of purchase, including but not limited to the warranty expressed therein. Hyperlinks included in this datasheet may direct users to third-party websites. These links are provided as a convenience and for informational purposes only. Inclusion of these hyperlinks does not constitute an endorsement or an approval by Vishay of any of the products, services or opinions of the corporation, organization or individual associated with the third-party website. Vishay disclaims any and all liability and bears no responsibility for the accuracy, legality or content of the third-party website or for that of subsequent links. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2024 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Document Number: 91000 1 For technical questions, contact: THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Revision: 01-Jan-2024
