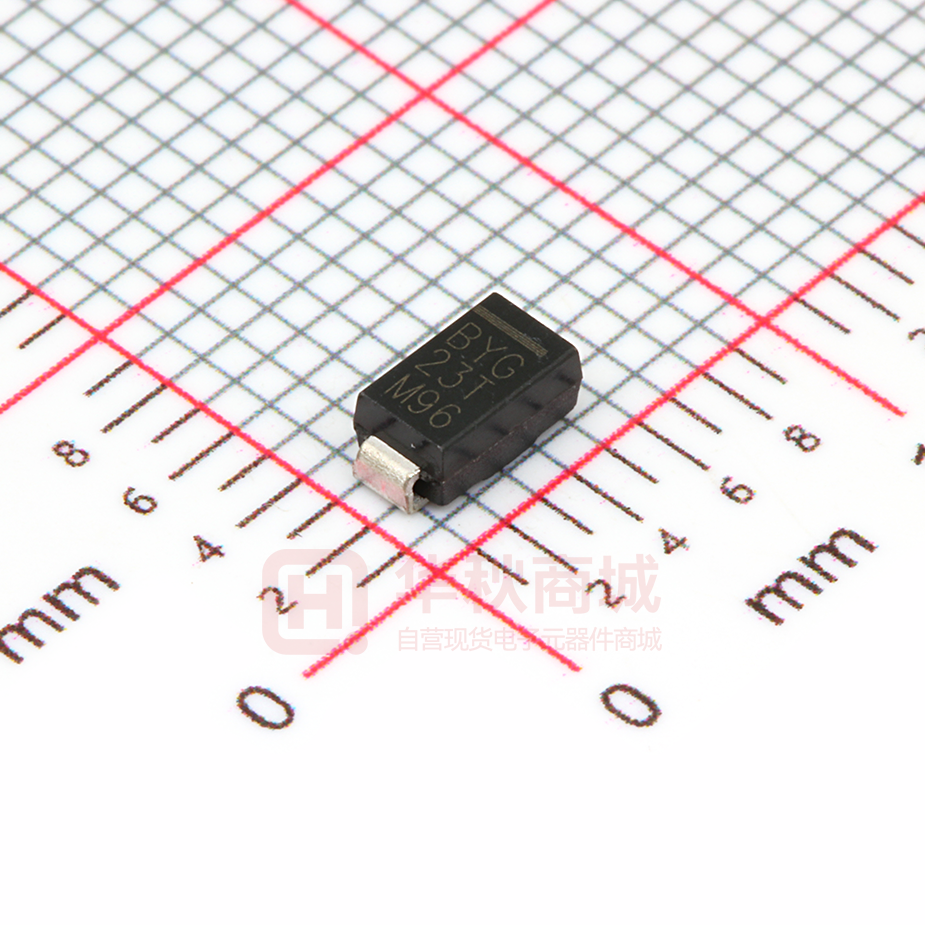

BYG23T-M3/TR

BYG23T-M3 www.vishay.com Vishay General Semiconductor High Voltage Ultrafast Avalanche SMD Rectifiers FEATURES • Glass passivated pellet chip junction • Low profile package • Ideal for automated placement • Low reverse current • High reverse voltage • Ultra fast reverse recovery time DO-214AC (SMA) • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C PRIMARY CHARACTERISTICS IF(AV) 1.0 A VRRM 1300 V IFSM 18 A trr 75 ns ER 5 mJ VF at IF = 1.0 A (TA = 125 °C) 1.39 V TJ max. 150 °C Package DO-214AC (SMA) Diode variations Single die  TYPICAL APPLICATIONS For use in high voltage, high frequency rectification specially suited for freewheeling, clamping, snubbering in power supply, ignition drive of HID, UHP and industrial ballast and snubber for PDP TV power supply application. • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 MECHANICAL DATA Case: DO-214AC (SMA) Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade Terminals: Matte tin plated leads, solderable J-STD-002 and JESD 22-B102 M3 suffix meets JESD 201 class 2 whisker test per Polarity: Color band denotes the cathode end        MAXIMUM RATINGS (TC = 25 °C unless otherwise noted) PARAMETER SYMBOL Device marking code Maximum repetitive peak reverse voltage BYG23T UNIT BYG23T VRRM 1300 V Maximum DC forward current (fig.1) IF (1) 1.0 A Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load IFSM 18 A Pulse energy in avalanche mode, non repetitive (inductive load switch off) I(BR)R = 0.4 A, TL = 25 °C ER 5 mJ Maximum operating junction temperature TJ 150 °C TSTG -55 to +150 °C Storage temperature range Note • Free air, mounted on recommended copper pad area Revision: 19-Feb-15 Document Number: 89429 1 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 BYG23T-M3 www.vishay.com Vishay General Semiconductor ELECTRICAL CHARACTERISTICS (TC = 25 °C unless otherwise noted) PARAMETER TEST CONDITIONS SYMBOL TA = 25 °C Instantaneous forward voltage (1) IF = 1.0 A Reverse current (2) VR = 1300 V Maximum reverse recovery time IF = 0.5 A, IR = 1.0 A, Irr = 0.25 A Forward recovery time Peak forward voltage IF = 1.5 A, dI/dt = 12 A/μs,  VF = 1.1 x VF max. Typical junction capacitance 4.0 V, 1 MHz VF TA = 125 °C TA = 25 °C TA = 25 °C TA = 25 °C MAX. 1.74 1.9 1.39 1.65 UNIT V - 5.0 2.9 50 trr 65 75 tfr 620 - VFP 9.0 - V CJ 9.0 - pF IR TA = 125 °C TYP. μA ns Notes (1) Pulse test: 300 μs pulse width, 1 % duty cycle (2) Pulse test: Pulse width  40 ms THERMAL CHARACTERISTICS (TA = 25 °C unless otherwise noted) PARAMETER SYMBOL BYG23T RJA 120 RJM 20 Typical thermal resistance (1) UNIT °C/W Note (1) Free air, mounted on recommended PCB 1 oz. pad area. Thermal resistance R JA - junction to ambient, RJM - junction to mount. ORDERING INFORMATION (Example) UNIT WEIGHT (g) PREFERRED PACKAGE CODE BASE QANTITY DELIVERY MODE BYG23T-M3/TR PREFERRED P/N 0.064 TR 1800 7" diameter plastic tape and reel BYG23T-M3/TR3 0.064 TR3 7500 13" diameter plastic tape and reel Revision: 19-Feb-15 Document Number: 89429 2 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 BYG23T-M3 www.vishay.com Vishay General Semiconductor RATINGS AND CHARACTERISTICS CURVES (TA = 25 °C unless otherwise noted) Instantaneous Reverse Current (mA) 1.2 0.8 0.6 0.4 TM - Measured at the Lead terminal 0.2 0 0 25 50 75 100 150 TA = 150 °C TA = 125 °C 1 TA = 25 °C 0.1 0.01 175 10 20 30 40 50 60 70 80 90 100 Percent of Rated Peak Reverse Voltage (%) Fig. 1 - Max. Forward Current Derating Curve Fig. 4 - Typical Reverse Characteristics 100 D = 0.5 1.8 D = 0.8 D = 0.3 1.6 D = 0.2 1.4 D = 1.0 D = 0.1 1.2 1.0 0.8 T 0.6 0.4 0.2 D = tp/T 0 TJ = 25 °C f = 1.0 MHz Vstg = 50 mVp-p 10 tp 0 1 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 0.1 1 10 100 Average Forward Current (A) Reverse Voltage (V) Fig. 2 - Forward Power Loss Characteristics Fig. 5 - Typical Junction Capacitance Transient Thermal Impedance (°C/W) 20 Instantaneous Forward Current (A) 10 TM - Mount Temperature (°C) 2.0 Average Power Loss (W) 125 Junction Capacitance (pF) DC Forward Current (A) 1.0 100 10 TA = 150 °C 1 TA = 125 °C TA = 25 °C 0.1 0.4 0.8 1.2 1.6 2.0 2.4 2.8 3.2 3.6 4.0 Instantaneous Forward Voltage (V) Fig. 3 - Typical Instantaneous Forward Characteristics 1000 Junction to Ambient 100 10 1 0.01 0.1 1 10 100 t - Pulse Duration (s) Fig. 6 - Typical Transient Thermal Impedance  Revision: 19-Feb-15 Document Number: 89429 3 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 BYG23T-M3 www.vishay.com Vishay General Semiconductor PACKAGE OUTLINE DIMENSIONS in inches (millimeters) DO-214AC (SMA) Cathode Band Mounting Pad Layout 0.110 (2.79) 0.100 (2.54) 0.065 (1.65) 0.049 (1.25) 0.177 (4.50) 0.157 (3.99) 0.012 (0.305) 0.006 (0.152) 0.060 (1.52) MIN. 0.208 (5.28) REF. 0.090 (2.29) 0.078 (1.98) 0.060 (1.52) 0.030 (0.76) 0.074 (1.88) MAX. 0.066 (1.68) MIN. 0.008 (0.203) 0 (0) 0.208 (5.28) 0.194 (4.93) Revision: 19-Feb-15 Document Number: 89429 4 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer  ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2017 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 08-Feb-17 1 Document Number: 91000
