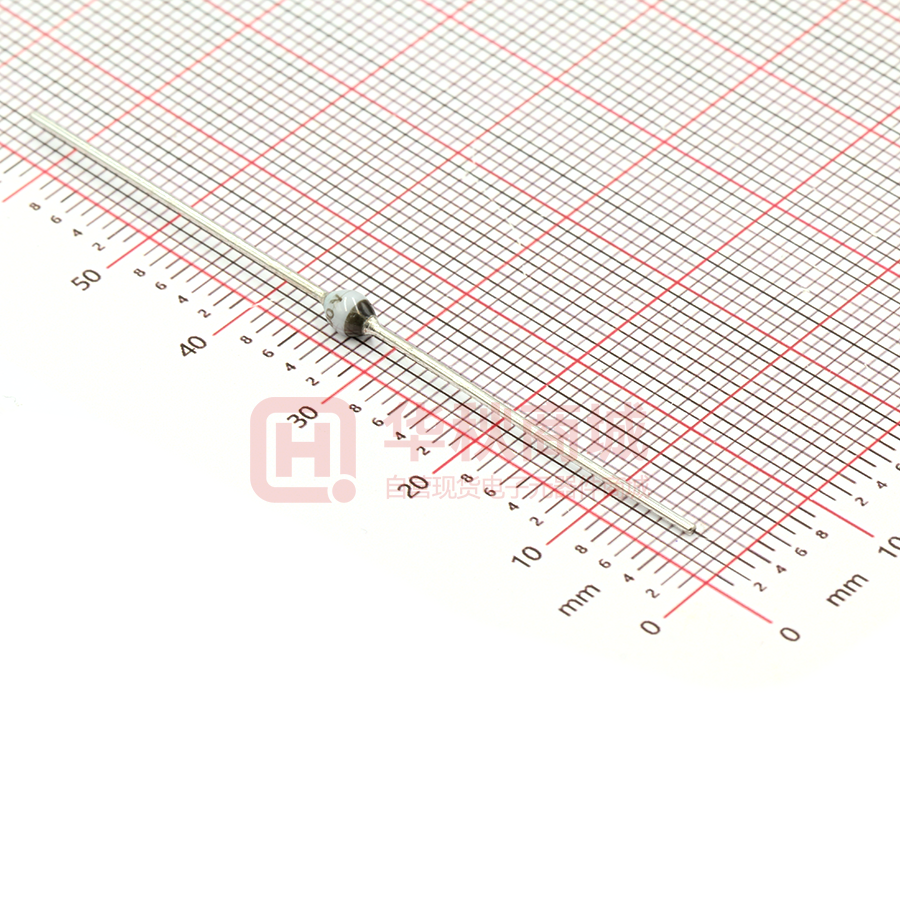

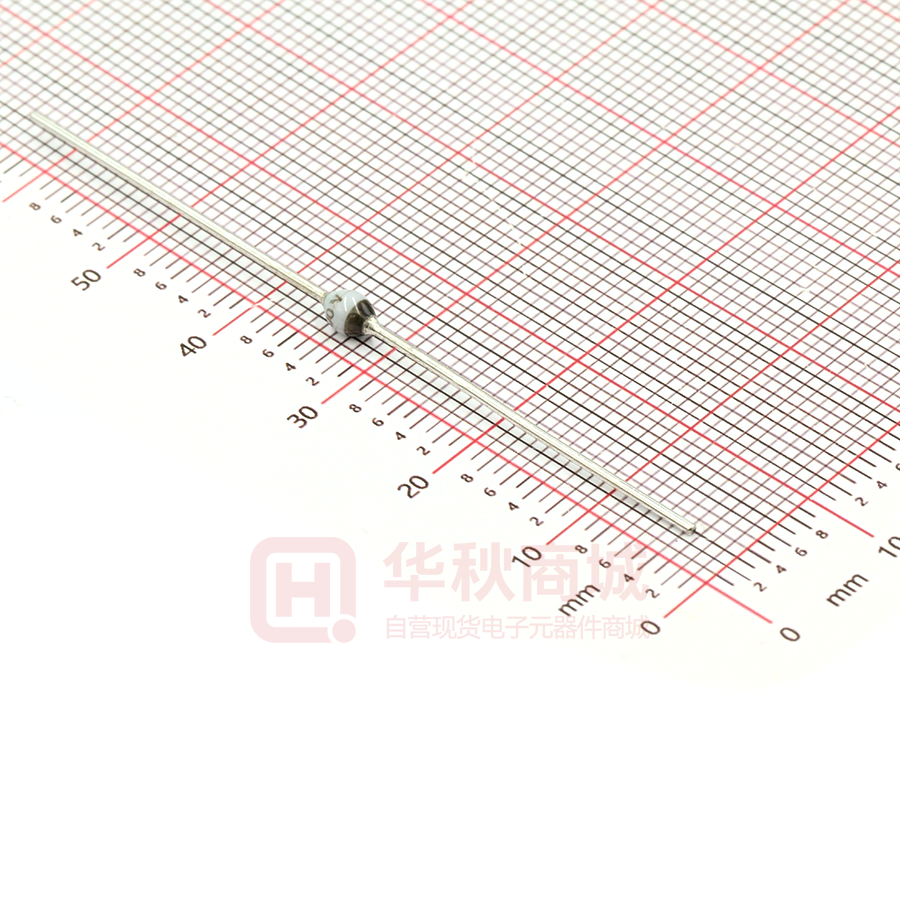

BYV27-600
www.vishay.com
Vishay Semiconductors
Ultra-Fast Avalanche Sinterglass Diode
FEATURES
• Glass passivated junction
• Hermetically sealed axial-leaded glass envelope
• Low reverse current
• Ultra fast soft recovery switching
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
949539
APPLICATIONS
• Electronic ballast
DESIGN SUPPORT TOOLS
click logo to get started
Models
Available
MECHANICAL DATA
Case: SOD-57
Terminals: plated axial leads, solderable per MIL-STD-750,
method 2026
Polarity: color band denotes cathode end
• SMPS
Mounting position: any
Weight: approx. 369 mg
ORDERING INFORMATION (Example)
DEVICE NAME
ORDERING CODE
TAPED UNITS
BYV27-600
BYV27-600-TR
5000 per 10" tape and reel
MINIMUM ORDER QUANTITY
25 000
BYV27-600
BYV27-600-TAP
5000 per ammopack
25 000
TYPE DIFFERENTIATION
PACKAGE
VR = 600 V; IF(AV) = 2 A
SOD-57
PARTS TABLE
PART
BYV27-600
ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified)
PARAMETER
Reverse voltage = repetitive peak reverse
voltage
Peak forward surge current
Average forward current
Non repetitive reverse avalanche energy
TEST CONDITION
PART
SYMBOL
VALUE
UNIT
See electrical characteristics
BYV27-600
VR = VRRM
600
V
tp = 10 ms, half sine wave
IFSM
50
A
Tamb = 50 °C, I = 10 mm
IF(AV)
2
A
ER
10
mJ
Tj = Tstg
- 55 to + 175
°C
Inductive load, I(BR)R = 400 mA
Junction and storage temperature range
MAXIMUM THERMAL RESISTANCE (Tamb = 25 °C, unless otherwise specified)
PARAMETER
Junction ambient
TEST CONDITION
SYMBOL
VALUE
Lead length l = 10 mm, TL = constant
RthJA
45
UNIT
K/W
On PC board with spacing 25 mm
RthJA
100
K/W
Rev. 1.7, 21-Feb-18
Document Number: 86041
1
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
BYV27-600
www.vishay.com
Vishay Semiconductors
ELECTRICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
Forward voltage
Reverse current
SYMBOL
MIN.
TYP.
MAX.
UNIT
IF = 1 A
PART
VF
-
-
1.15
V
IF = 3 A
VF
-
-
1.35
V
IF = 1 A, Tj = 175 °C
VF
-
-
0.85
V
IF = 3 A, Tj = 175 °C
VF
-
-
1.15
V
VR = VRRM
IR
-
-
5
μA
μA
VR = VRRM, Tj = 150 °C
IR
-
-
150
V(BR)R
600
-
-
V
IF = 0.5 A, IR = 1 A, iR = 0.25 A
trr
-
-
40
ns
Forward recovery
IF = 1 A
VFP
-
3.4
-
V
Forward recovery time
IF = 1 A
tfr
-
250
-
ns
IR = 100 μA
Reverse breakdown voltage
Reverse recovery time
BYV27-600
350
2.2
IFAV - Average Forward Current (A)
PR - Reverse Power Dissipation (mW)
TYPICAL CHARACTERISTICS (Tamb = 25 C, unless otherwise specified)
VR = VRRM
300
RthJA =
250
45 K/W
PR - Limit
at 100 % VR
100 K/W
200
160 K/W
150
100
PR - Limit
at 80 % VR
50
1.8
1.6
RthJA ≤ 45 K/W
l = 10 mm
1.4
1.2
1.0
0.8
RthJA ≤ 100 K/W
PCB: d = 25 mm
0.6
0.4
0.2
0.0
0
25
14360
VR = VRRM
half sine wave
2.0
50
75
100
125
150
0
175
14359
Tj - Junction Temperature (°C)
Fig. 1 - Max. Reverse Power Dissipation vs. Junction Temperature
20
40
60
80 100 120 140 160 180
Tamb - Ambient Temperature (°C)
Fig. 3 - Max. Average Forward Current vs. Ambient Temperature
1000
100
IF - Forward Current (A)
IR - Reverse Current (A)
VR = VRRM
100
10
1
Tj = 175 °C
1
Tj = 25 °C
0.1
0.01
0.001
25
14361
10
50
75
100
125
150
175
Tj - Junction Temperature (°C)
Fig. 2 - Max. Reverse Current vs. Junction Temperature
0.0
14358
0.4
0.8
1.2
1.6
2.0
2.4
2.8
VF - Forward Voltage (V)
Fig. 4 - Max. Forward Current vs. Forward Voltage
Rev. 1.7, 21-Feb-18
Document Number: 86041
2
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
BYV27-600
www.vishay.com
Vishay Semiconductors
70
CD - Diode Capacitance (pF)
f = 1 MHz
60
50
40
30
20
10
0
0.1
1
10
100
VR - Reverse Voltage
14362
Fig. 5 - Typ. Diode Capacitance vs. Reverse Voltage
3.6 (0.142) max.
0.82 (0.032) max.
PACKAGE DIMENSIONS in millimeters (inches): SOD-57
26 (1.024) min.
4 (0.157) max.
26 (1.024) min.
20543
