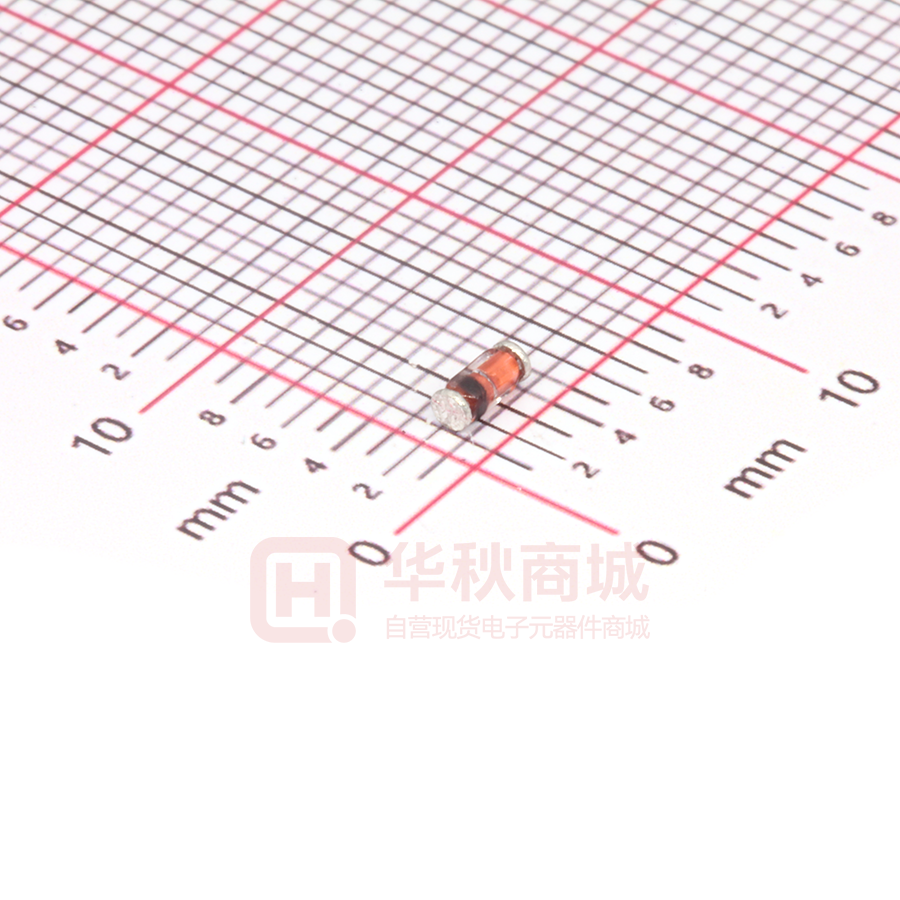

BZT55C5V1-GS08

BZT55-Series www.vishay.com Vishay Semiconductors Small Signal Zener Diodes FEATURES • Very sharp reverse characteristic • Low reverse current level • Very high stability • Low noise • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS • Voltage stabilization LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models PRIMARY CHARACTERISTICS PARAMETER VALUE UNIT VZ range nom. 2.4 to 75 V Test current IZT 2.5 to 5 mA VZ specification Pulse current Circuit configuration Single ORDERING INFORMATION DEVICE NAME ORDERING CODE TAPED UNITS PER REEL MINIMUM ORDER QUANTITY BZT55-series BZT55-series-GS18 10 000 per 13" reel 10 000/box BZT55-series BZT55-series-GS08 2500 per 7" reel 12 500/box PACKAGE PACKAGE NAME QuadroMELF (SOD-80) WEIGHT MOLDING COMPOUND FLAMMABILITY RATING MOISTURE SENSITIVITY LEVEL SOLDERING CONDITIONS 34 mg UL 94 V-0 MSL level 1 (according J-STD-020) 260 °C/10 s at terminals ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified) PARAMETER Power dissipation TEST CONDITION SYMBOL RthJA ≤ 300 K/W Zener current Junction to ambient air On PC board 50 mm x 50 mm x 1.6 mm Junction temperature Storage temperature range Forward voltage (max.) IF = 200 mA VALUE UNIT Ptot 500 mW IZ PV/VZ mA RthJA 500 K/W Tj 175 °C Tstg -65 to +175 °C VF 1.5 V Rev. 1.7, 25-Nov-2021 Document Number: 85637 1 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 BZT55-Series www.vishay.com Vishay Semiconductors ELECTRICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) ZENER VOLTAGE RANGE (1) VZ at IZT1 PART NUMBER TEST CURRENT IZT1 V IZT2 REVERSE LEAKAGE CURRENT DYNAMIC RESISTANCE IR at VR ZZ at IZT1 ZZK at IZT2 Tamb = 150 °C f = 1 kHz Tamb = 25 °C mA μA TEMPERATURE COEFFICIENT TKVZ Ω V %/K MIN. NOM. MAX. MAX. MAX. MIN. BZT55C2V4 2.28 2.4 2.56 5 1 < 50 < 100 MAX. 1 < 85 < 600 -0.09 BZT55C2V7 2.5 2.7 2.9 5 1 < 10 -0.06 < 50 1 < 85 < 600 -0.09 BZT55C3V0 2.8 3.0 3.2 5 1 -0.06
