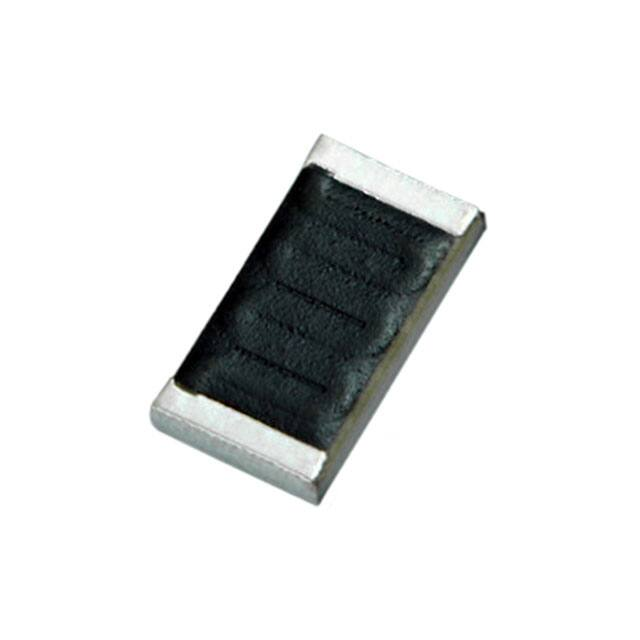

CRMA2010AF550KFKEF

CRMA www.vishay.com Vishay Techno Thick Film Chip Resistors, High Voltage FEATURES • AEC-Q200 qualified Available • Voltages up to 3000 V • Automatic placement capability Available • Termination style: 3-sided wraparound termination or single termination flip chip available • Tape and reel packaging available • Internationally standardized sizes, custom sizes available • Termination material: solder-coated nickel barrier or solder coated non-magnetic terminations standard • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 Note * This datasheet provides information about parts that are RoHS-compliant and / or parts that are non RoHS-compliant. For example, parts with lead (Pb) terminations are not RoHS-compliant. Please see the information / tables in this datasheet for details STANDARD ELECTRICAL SPECIFICATIONS GLOBAL MODEL CASE SIZE POWER RATING P70 °C W MAX. WORKING VOLTAGE (2) V RESISTANCE RANGE (1) Ω TOLERANCE ±% TEMPERATURE COEFFICIENT (3) ± ppm/°C CRMA1206 1206 0.30 1000 150 to 15M 0.5, 1, 2, 5, 10 100 CRMA1210 1210 0.35 1250 300 to 20M 0.5, 1, 2, 5, 10 100 CRMA2010 2010 0.50 2000 500 to 40M 0.5, 1, 2, 5, 10 100 CRMA2510 2510 0.80 2500 1K to 60M 0.5, 1, 2, 5, 10 100 CRMA2512 2512 1.0 3000 1K to 75M 0.5, 1, 2, 5, 10 100 Notes • For non-standard sizes, lower values or higher power rating requirement, contact factory (1) Resistance values calibrated at 10 V . Calibration at other voltages available upon request DC (2) Continuous working voltage shall be P x R or Maximum Working Voltage, whichever is less (3) Reference only: Not for all values specified. Consult factory for your size and value TECHNICAL SPECIFICATIONS PARAMETER UNIT CRMA1206 CRMA1210 CRMA2010 CRMA2510 CRMA2512 Rated dissipation at 70 °C W 0.30 0.35 0.50 0.80 1.0 Limiting element voltage V≅ 1000 1250 2000 2500 3000 Insulation resistance Ω ≥ 1011 ≥ 1011 ≥ 1011 ≥ 1011 ≥ 1011 Category temperature range °C -55 to +155 -55 to +155 -55 to +155 -55 to +155 -55 to +155 Weight/1000 (typical) g 12.2 19.6 32.2 39.8 49.7 ppm/V
