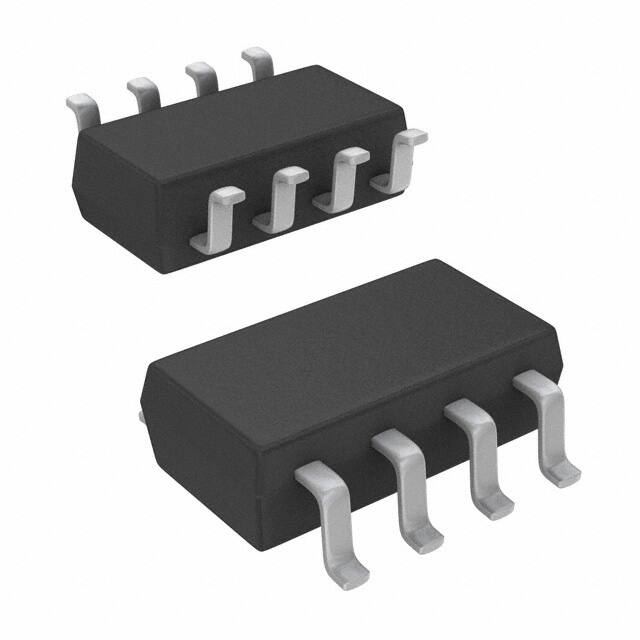

DG449DS-T1-E3

DG449 Vishay Siliconix High Voltage Single SPDT Analog Switch in SOT23-8 DESCRIPTION FEATURES The DG449 is a dual supply single-pole/double-throw • • • • • • (SPDT) switches. On resistance is 38  and flatness is 2.6  max over the specified analog signal range. These analog switches were designed to provide high speed, low error switching of precision analog signals. The primary application areas are in the routing and switching in telecommunications and test equipment. Combining low power, low leakages, low on-resistance and small physical size, the DG449 is also ideally suited for portable and battery powered industrial and military equipment. The DG449 operates either from a single + 7 V to 36 V supply or from dual ± 4.5 V to ± 20 V supplies. It is offered in ± 15 V analog signal range On-resistance - RDS(on): 38 max. VL logic supply not required TTL CMOS input compatible Rail to rail signal handling Dual or single supply operation BENEFITS • • • • • • Wide dynamic range Low signal errors and distortion Break-before-make switching action Simple interfacing Small SOT23-8ld package; reduced board space Improved reliability the very popular, small SOT23-8 package. APPLICATIONS • • • • • • • • Precision test equipment Precision instrumentation Communications systems PBX, PABX systems Audio equipment Redundant systems PC multimedia boards Hard disc drives FUNCTIONAL BLOCK DIAGRAM AND PIN CONFIGURATION DG449 TRUTH TABLE Logic 0 1 NC ON OFF NO OFF ON Logic "0" 0.8 V Logic "1" 2.4 V Document Number: 73897 S11-0097-Rev. B, 24-Jan-11 www.vishay.com 1 DG449 Vishay Siliconix ORDERING INFORMATION Temp. Range - 40 to 85 °C Package 8-Pin SOT23 Part Number DG449DS-T1-E3 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Symbol Parameter (Voltages Referenced to V-) V+ Unit 44 25 GND (V-) - 2 V to (V+) + 2 V or 30 mA, whichever occurs first 30 Digital Inputsa, Vno/nc, VCOM Current , (Any Terminal) Continuous Current (NO, NC or COM) Pulsed at 1 ms, 10 % duty cycle Storage Temperature Power Dissipation Limit (Package)b 8-Pin SOT-23c 100 V mA - 65 to 150 °C 675 mW Notes: a. Signals on NO, NC, COM, or IN exceeding V+ or V- will be clamped by internal diodes. Limit forward diode current to maximum current ratings. b. All leads welded or soldered to PC board. c. Derate 8.4 mW/°C above 70 °C. www.vishay.com 2 Document Number: 73897 S11-0097-Rev. B, 24-Jan-11 DG449 Vishay Siliconix SPECIFICATIONSa Parameter Symbol Analog Switch Analog Signal Rangee VANALOG On-Resistance RON Test Conditions Unless Otherwise Specified V+ = 15 V, V- = - 15 V VIN = 2.4 V, 0.8 Vf Ino/nc = 1 mA, VCOM = ± 8.5 V V+ = 13.5 V, V- = - 13.5 V On Resistance MATCH RON On-Resistance Flatness RON Flatness Ino/nc = 1 mA, VCOM = ± 5 V, 0 V V+ = 13.5 V, V- = - 13.5 V Ino/nc(off) V+ = 16.5, V- = - 16.5 V VCOM = ± 15.5 V Vno/nc = -/+ 15.5 V Switch Off Leakage Current ICOM(off) Channel On Leakage Current ICOM(on) V+ = 16.5 V, V- = - 16.5 VCOM = Vno/nc = ± 15.5 V D Suffix - 40 °C to 85 °C Temp.b Min.d Full Room Full Room Full Room Full Room Full Room Full Room Full - 15 Full Full 2.4 Typ.c 38 2.6 -1 - 10 -1 - 10 -2 - 20 - 0.1 - 0.1 - 0.1 Max.d Unit 15 45 57 5 6 7 8 1 10 1 10 2 20 V  nA Digital Control Input, High Voltage Input, Low Voltage IINH IINL Input Capacitancee CIN Input Current VIN High or Low IIN 0.8 Room VIN = 0 or 5 V 4 -1 1 V pF µA Dynamic Characteristics Q CL = 1 nF, Vgen = 0 V, Rgen = 0  Room Full Room Full Room OIRR RL = 50 , CL= 5 pF, f = 1 MHz Room XTALK RL = 50 , CL= 5 pF, f = 1 MHz Cno/nc(off) f = 1 MHz Room 8 CCOM(on) f = 1 MHz Room 18 Room Full Room Full 4 V+ = 16.5 V, V- = - 16.5 V VIN = 0, 5 V or, V+ Turn-On Time tON Turn-Off Time tOFF Charge Injectione Off-Isolatione Crosstalke Source NO, NC Off Capacitance Channel On Capacitancee e RL = 300 , CL = 35 pF Vno/nc = ± 10 V 107 - 69 69 146 155 104 116 5 ns pC dB - 80 pF Power Supplies Positive Supply Current I+ Negative Supply Current I- Document Number: 73897 S11-0097-Rev. B, 24-Jan-11 -1 -3 20 30 µA www.vishay.com 3 DG449 Vishay Siliconix SPECIFICATIONSa Parameter Symbol Analog Switch Analog Signal Rangee VANALOG On-Resistance RON On-Resistance MATCH RON On-Resistance Flatness RON Flatness Test Conditions Unless Otherwise Specified V+ = 12 V, V- = 0 V VIN = 2.4 V, 0.8 Vf Ino/nc = 1 mA, VCOM = 3, 8 V V+ = 10.8 V Ino/nc = 1 mA, VCOM = 2, 6, 10 V V+ = 10.8 V D Suffix - 40 °C to 85 °C Temp.b Min.d Full Room Full Room Full 0 Typ.c 67 Max.d Unit 12 85 96 4 5 V Room Full 17 25 31 133 168 192 92 96 3  Dynamic Characteristics Q CL = 1 nF, Vgen = 0 V, Rgen = 0  Room Full Room Full Room I+ V+ = 13.2 V, VIN = 0 V, 5 V or V+ Room Full Turn-On Time tON Turn-Off Time tOFF Charge Injectione VNO, NC = 10 V, RL = 300 , CL = 35 pF 58 6 nS pC Power Supplies Positive Supply Current 20 30 µA Notes: a. Refer to PROCESS OPTION FLOWCHART . b. Room = 25 °C, Full = as determined by the operating temperature suffix. c. Typical values are for DESIGN AID ONLY, not guaranteed nor subject to production testing. d. The algebraic convention whereby the most negative value is a minimum and the most positive a maximum, is used in this data sheet. e. Guaranteed by design, not subject to production test. f. VIN = input voltage to perform proper function. Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. www.vishay.com 4 Document Number: 73897 S11-0097-Rev. B, 24-Jan-11 DG449 Vishay Siliconix TYPICAL CHARACTERISTICS (TA = 25 °C, unless otherwise noted) 105 140 I NO or I NC = 1 mA 95 75 65 ± 12 V 55 ± 10 V ± 13.5 V ±8V 45 ± 15 V 35 25 V+ = 9 V 80 V+ = 10.8 V V+ = 12 V 60 V+ = 20 V V+ = 24 V 40 ± 20 V V+ = 36 V 20 0 - 15 - 10 -5 0 5 10 15 20 0 4 8 12 16 20 24 28 32 36 VCOM - Analog Voltage (V) VCOM - Analog Voltage (V) On Resistance vs. VCOM and Single Supply Voltage RON vs. VCOM and Dual Supply Voltage 65 105 V+ = + 15 V V- = - 15 V I NO or I NC = 1 mA + 85 °C 35 + 25 °C 25 - 40 °C I NO or I NC = 1 mA 85 r ON – On-Resistance (Ω) 45 V+ = + 12 V V- = 0 V 95 55 r ON – On-Resistance (Ω) TA = 25 °C 100 15 5 - 20 I NO or I NC = 1 mA V+ = 7 V 120 r ON – On-Resistance (Ω) ± 4.5 V 85 r ON – On-Resistance (Ω) TA = 25 °C + 85 °C 75 65 + 25 °C 55 45 - 40 °C 35 25 15 15 5 - 15 5 - 10 -5 0 5 10 15 0 2 VCOM - Analog Voltage (V) ICOM(on) 50 ICOM(off) INO(off) /I NC(off) - 50 - 100 12 ICOM(on) 1000 INO(off) /I NC(off) 100 10 - 150 V+ = + 16.5 V V- = - 16.5 V ICOM(off) - 200 - 250 - 20 10 10000 Leakage Current (pA) I S , ID Leakage Current (pA) V+ = + 16.5 V V- = - 16.5 V T = 25 °C 100 0 8 100000 250 150 6 On Resistance vs. VCOM and Temperature On Resistance vs. VCOM and Temperature 200 4 VCOM - Analog Voltage (V) - 15 - 10 -5 0 5 10 15 VCOM ,VNO, VNC - Drain-Source Voltage 20 1 - 60 - 40 - 20 0 20 40 60 80 100 120 140 Temperature (°C) Leakage Current vs. Temperature Leakage Current vs. Analog Voltage Document Number: 73897 S11-0097-Rev. B, 24-Jan-11 www.vishay.com 5 DG449 Vishay Siliconix TYPICAL CHARACTERISTICS (TA = 25 °C, unless otherwise noted) 1000 100 + 25 °C V+ = 12 V V- = 0 V 10 I+ Supply Current (µA) Supply Current (µA) 100 IGND 1 0.1 0.01 V+ = 15 V V- = - 15 V 10 0.001 V+ = + 15 V V- = - 15 V 0.0001 I0.00001 - 60 - 40 - 20 0 20 40 60 80 1 100 120 140 0 Temperature (°C) 1 2 5 6 8 7 9 10 11 12 13 14 15 Vin Input Voltage (V) Supply Current vs. Temperature Supply Current vs. Input Voltage 10 m 150 V+ = + 15 V V- = - 15 V V = ± 15 V 1m 125 t ON 100 µ I+ 10 µ t ON , t OFF (ns) Supply Current (A) 4 3 I GND 1µ I- 100 75 t OFF 50 100 n 25 10 n 10 100 1K 10K 10M 1M 100K - 55 - 35 - 15 Supply Voltage (V) 5 45 25 65 85 105 125 Temperature (°C) Supply Current vs. Input Switching Frequency Switching Time vs. Temperature and Single Supply Voltage 280 10 0 240 Loss, OIRR, X TA LK (dB) - 10 t ON , t OFF (ns) 200 t ON V = + 12 V 160 120 80 LOSS - 20 - 30 - 40 - 50 OIRR - 60 X TALK - 70 - 80 t OFF V = + 12 V 40 V± = + 15 V V- = - 15 V RL = 50 Ω - 90 - 100 0 - 55 - 35 - 15 5 25 45 65 85 105 125 Temperature (°C) Switching Time vs. Temperature and Single Supply Voltage www.vishay.com 6 - 110 100K 1M 10M 100M 1G Frequency (Hz) Insertion Loss, Off-Isolation, Crosstalk vs. Frequency Document Number: 73897 S11-0097-Rev. B, 24-Jan-11 DG449 Vishay Siliconix TYPICAL CHARACTERISTICS (TA = 25 °C, unless otherwise noted) 50 3.0 40 30 Q - Charge Injection (pC) V - Switching Threshold (V) T 2.5 2.0 1.5 1.0 20 10 V+ = + 12 V 0 - 10 - 20 V ± = ± 15 V - 30 0.5 - 40 - 50 0 0 10 5 20 15 - 15 30 25 -6 - 12 - 9 -3 0 3 6 9 12 15 VNO, VNC - Analog Voltage (V) Supply Voltage (V) Charge Injection vs. Analog Voltage Switching Threshold vs. Supply Voltage TEST CIRCUITS VO is the steady state output with the switch on. + 15 V 3V Logic Input tr < 20 ns tf < 20 ns 50 % V+ Vi NO or NC 0V COM VO tOFF IN RL 300  V- GND CL 35 pF -15 V CL (includes fixture and stray capacitance) VO = Vi Switch Input VS Switch Output 0V Note: RL VO 90 % tON Logic input waveform is inverted for switches that have the opposite logic sense. RL + rON Figure 1. Switching Time + 15 V Rgen VO V+ NO or NC COM IN V gen VO CL 1 nF 3V GND VO V- IN OFF ON OFF Q = VO x CL - 15 V Figure 2. Charge Injection Document Number: 73897 S11-0097-Rev. B, 24-Jan-11 www.vishay.com 7 DG449 Vishay Siliconix Figure 3. Off Isolation + 15 V + 15 V C C V+ NO or NC VS VO COM 0V, 2.4 V NO or NC VS Rg = 50  RL IN GND -V– V+ COM VO Rg = 50  C RL IN 0 V, 2.4 V GND V- C - 15 V Off Isolation = 20 log - 15 V VCOM Figure 4. Insertion Loss VNO/NC + 15 V C V+ COM Meter 0 V , 2.4 V IN HP4192A Impedance Analyzer or Equivalent NO or NC GND V- f = 1 MHz C - 15 V Figure 5. Channel ON/OFF Capacitances Vishay Siliconix maintains worldwide manufacturing capability. Products may be manufactured at one of several qualified locations. Reliability data for Silicon Technology and Package Reliability represent a composite of all qualified locations. For related documents such as package/tape drawings, part marking, and reliability data, see www.vishay.com/ppg?73897. www.vishay.com 8 Document Number: 73897 S11-0097-Rev. B, 24-Jan-11 Package Information Vishay Siliconix SOT−23 : 8−LEAD b e CL E1 CL E e1 D CL A CL A2 T A1 DATUM A - A- E1 C 0.10 L MILLIMETERS NOTES: 1. All dimensions are in millimeters. 2. Foot length measured at intercept point between Datum A and lead surface. 3. 4. 5. 2 0.20 - A- Package outline exclusive of mold flash and metal burr. Package outline inclusive of solder plating. No molding flash allowed on the top and bottom lead surface. Dim Min A A1 A2 b C D E E1 e e1 L T INCHES Nom Max Min Nom Max 0.90 1.27 1.45 0.00 0.0762 0.15 0.035 0.05 0.057 0.000 0.003 0.90 1.20 0.006 1.30 0.035 0.047 0.051 0.22 0.09 0.30 0.38 0.009 0.012 0.015 0.152 0.20 0.004 0.006 2.80 0.008 2.9 3.00 0.11 0.114 0.118 2.60 2.8 23.00 0.102 0.11 0.118 1.50 1.65 1.75 0.059 0.065 0.069 0.65 REF 0.026 REF 1.95 REF 0.077 REF 0.35 0.45 0.55 0.014 0.018 0.022 0_ 4_ 8_ 0_ 4_ 8_ ECN: C-03085—Rev. A, 07-Apr-03 DWG: 5895 Document Number: 72207 09-Apr-03 www.vishay.com 1 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer  ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2017 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 08-Feb-17 1 Document Number: 91000
