ES1A, ES1B, ES1C, ES1D
www.vishay.com
Vishay General Semiconductor
Surface Mount Ultrafast Plastic Rectifier
FEATURES
• Low profile package
• Ideal for automated placement
• Glass passivated pellet chip junction
• Ultrafast recovery times for high efficiency
Available
• Low forward voltage, low power losses
• High forward surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
SMA (DO-214AC)
• AEC-Q101 qualified available
- Automotive ordering code: P/NHE3 or P/NHM3
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
TYPICAL APPLICATIONS
For use in high frequency rectification and freewheeling
application in switching mode converters and inverters for
consumer, computer, automotive and telecommunication.
PRIMARY CHARACTERISTICS
IF(AV)
1.0 A
VRRM
50 V, 100 V, 150 V, 200 V
IFSM
30 A
trr
15 ns
VF at IF
0.92 V
TJ max.
150 °C
Package
SMA (DO-214AC)
Diode variations
Single
MECHANICAL DATA
Case: SMA (DO-214AC)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/N-M3 - halogen-free, RoHS-compliant, commercial
grade
Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified
Base P/NHM3_X - halogen-free, RoHS-compliant, and
AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B, .....)
Terminals: matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3, M3, HE3, and HM3 suffix meets JESD 201 class 2
whisker test
Polarity: color band denotes cathode end
MAXIMUM RATINGS (TA = 25 °C unless otherwise noted)
PARAMETER
SYMBOL
Device marking code
ES1A
ES1B
ES1C
ES1D
EA
EB
EC
ED
UNIT
Maximum repetitive peak reverse voltage
VRRM
50
100
150
200
V
Maximum RMS voltage
VRMS
35
70
105
140
V
Maximum DC blocking voltage
VDC
50
100
150
200
V
Maximum average forward rectified current (fig. 1)
IF(AV)
1.0
A
Peak forward surge current 8.3 ms single half sine-wave
superimposed on rated load
IFSM
30
A
TJ, TSTG
-55 to +150
°C
Operating junction and storage temperature range
Revision: 21-Jul-17
Document Number: 88586
1
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
ES1A, ES1B, ES1C, ES1D
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS (TA = 25 °C unless otherwise noted)
PARAMETER
TEST CONDITIONS
Maximum instantaneous forward voltage
SYMBOL
VALUE
IF = 0.6 A
VF (1)
0.865
IF = 1.0 A
VF
0.920
TA = 25 °C
Maximum DC reverse current at rated DC
blocking voltage
IR
TA = 100 °C
Maximum reverse recovery time
IF = 0.5 A, IR = 1.0 A, lrr = 0.25 A
trr
Maximum reverse recovery time
IF = 0.6 A, VR = 30 V, dI/dt = 50 A/μs,
Irr = 10 % IRM
TJ = 100 °C
Maximum stored charge
IF = 0.6 A, VR = 30 V, dI/dt = 50 A/μs,
Irr = 10 % IRM
TJ = 100 °C
Typical junction capacitance
4.0 V, 1 MHz
TJ = 25 °C
trr
TJ = 25 °C
Qrr
CJ
5.0
100
15
25
35
10
25
10
UNIT
V
μA
ns
ns
nC
pF
Note
(1) Pulse test: 300 μs pulse width, 1 % duty cycle
THERMAL CHARACTERISTICS (TA = 25 °C unless otherwise noted)
PARAMETER
SYMBOL
Typical thermal resistance
ES1A
ES1B
ES1C
RθJA
(1)
85
RθJL
(1)
35
ES1D
UNIT
°C/W
Note
Units mounted on PCB 5.0 mm x 5.0 mm (0.013 mm thick) land areas
(1)
ORDERING INFORMATION (Example)
PREFERRED P/N
UNIT WEIGHT (g)
PREFERRED PACKAGE CODE
BASE QUANTITY
DELIVERY MODE
ES1D-E3/61T
0.064
61T
1800
7" diameter plastic tape and reel
ES1D-E3/5AT
0.064
5AT
7500
13" diameter plastic tape and reel

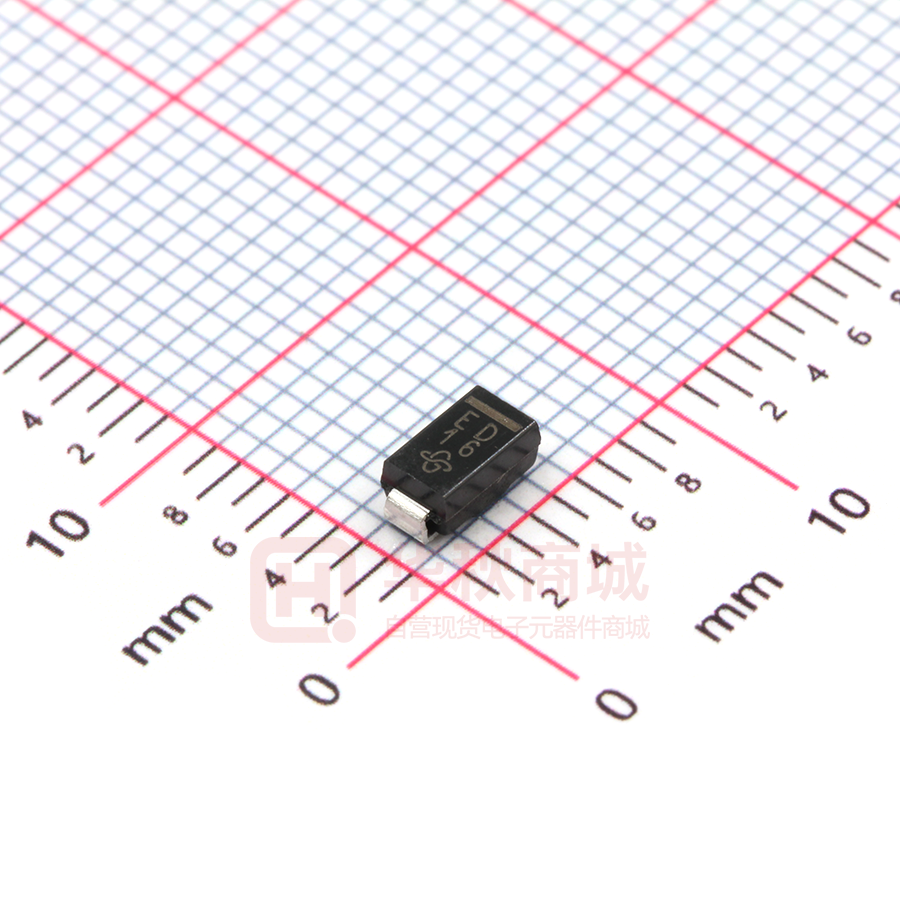

ES1DHE3_A/H (1)
0.064
H
1800
7" diameter plastic tape and reel
ES1DHE3_A/I (1)
0.064
I
7500
13" diameter plastic tape and reel
ES1D-M3/61T
0.064
61T
1800
7" diameter plastic tape and reel
ES1D-M3/5AT
0.064
5AT
7500
13" diameter plastic tape and reel
0.064
H
1800
7" diameter plastic tape and reel
0.064
I
7500
13" diameter plastic tape and reel
ES1DHM3_A/H (1)
ES1DHM3_A/I
(1)
Note
(1) AEC-Q101 qualified
Revision: 21-Jul-17
Document Number: 88586
2
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
ES1A, ES1B, ES1C, ES1D
www.vishay.com
Vishay General Semiconductor
RATINGS AND CHARACTERISTICS CURVES (TA = 25 °C unless otherwise noted)
1000
Instantaneous Reverse Leakage
Current (µA)
Average Forward Rectified Current (A)
1.2
1.0
0.8
0.6
0.4
Resistive or Inductive Load
P.C.B. Mounted on
0.2" x 0.2" (5.0 mm x 5.0 mm)
Copper Pad Areas
0.2
0
TJ = 125 °C
100
TJ = 100 °C
10
1
TJ = 25 °C
0.1
80
90
100
110
120
130
140
0
150
20
40
60
80
Percent of Rated Peak Reverse Voltage (%)
Fig. 1 - Maximum Forward Current Derating Curve
Fig. 4 - Typical Reverse Leakage Characteristics
14
TJ = 25 °C
f = 1.0 MHz
Vsig = 50mVp-p
8.3 ms Single Half Sine-Wave
12
Junction Capacitance (pF)
25
20
15
10
5
10
8
6
4
2
0
0
100
10
1
0.1
1
10
Number of Cycles at 60 Hz
Reverse Voltage (V)
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current
Fig. 5 - Typical Junction Capacitance
100
TJ = 150 °C
10
TJ = 125 °C
1
TJ = 100 °C
0.1
TJ = 25 °C
0.01
0.2
100
100
Transient Thermal Impedance (°C/W)
Instantaneous Forward Current (A)
100
Lead Temperature (°C)
30
Peak Forward Surge Current (A)
TJ = 150 °C
0.4
0.6
0.8
1.0
1.2
1.4
Mounted on 0.2" x 0.2" (5 mm x 7 mm)
Copper Pad Areas
10
1
0.1
1
10
Instantaneous Forward Voltage (V)
t - Pulse Duration (s)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 6 - Typical Thermal Impedance
100
Revision: 21-Jul-17
Document Number: 88586
3
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
ES1A, ES1B, ES1C, ES1D
www.vishay.com
Vishay General Semiconductor
PACKAGE OUTLINE DIMENSIONS in inches (millimeters)
SMA (DO-214AC)
Cathode Band
Mounting Pad Layout
0.110 (2.79)
0.100 (2.54)
0.065 (1.65)
0.049 (1.25)
0.177 (4.50)
0.157 (3.99)
0.012 (0.305)
0.006 (0.152)
0.060 (1.52)
MIN.
0.208 (5.28)
REF.
0.090 (2.29)
0.078 (1.98)
0.060 (1.52)
0.030 (0.76)
0.074 (1.88)
MAX.
0.066 (1.68)
MIN.
0.008 (0.203)
0 (0)
0.208 (5.28)
0.194 (4.93)
Revision: 21-Jul-17
Document Number: 88586
4
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
