BYM10-xxx, GL41x
www.vishay.com
Vishay General Semiconductor
Surface Mount Glass Passivated Junction Rectifier
FEATURES
• Superectifier structure for high reliability condition
• Ideal for automated placement
SUPERECTIFIER
®
• Low forward voltage drop
• Low leakage current
• High forward surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak of
250 °C
• AEC-Q101 qualified
DO-213AB
• Material categorization: For definitions of compliance
please see www.vishay.com/doc?99912
TYPICAL APPLICATIONS
For use in general purpose rectification of power supplies,
inverters, converters and freewheeling diodes for consumer,
automotive and telecommunication.
PRIMARY CHARACTERISTICS
IF(AV)
1.0 A
VRRM (BYM10-xxx, GL41x)
50 V to 1000 V, 50 V to 1600 V
IFSM
30 A
IR
10 μA
EAS
5 mJ
VF
1.1 V, 1.2 V
TJ max.
175 °C
Package
DO-213AB
Diode variations
Single die
MECHANICAL DATA
Case: DO-213AB, molded epoxy over glass body
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified
Terminals: Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix
meets JESD 201 class 2 whisker test

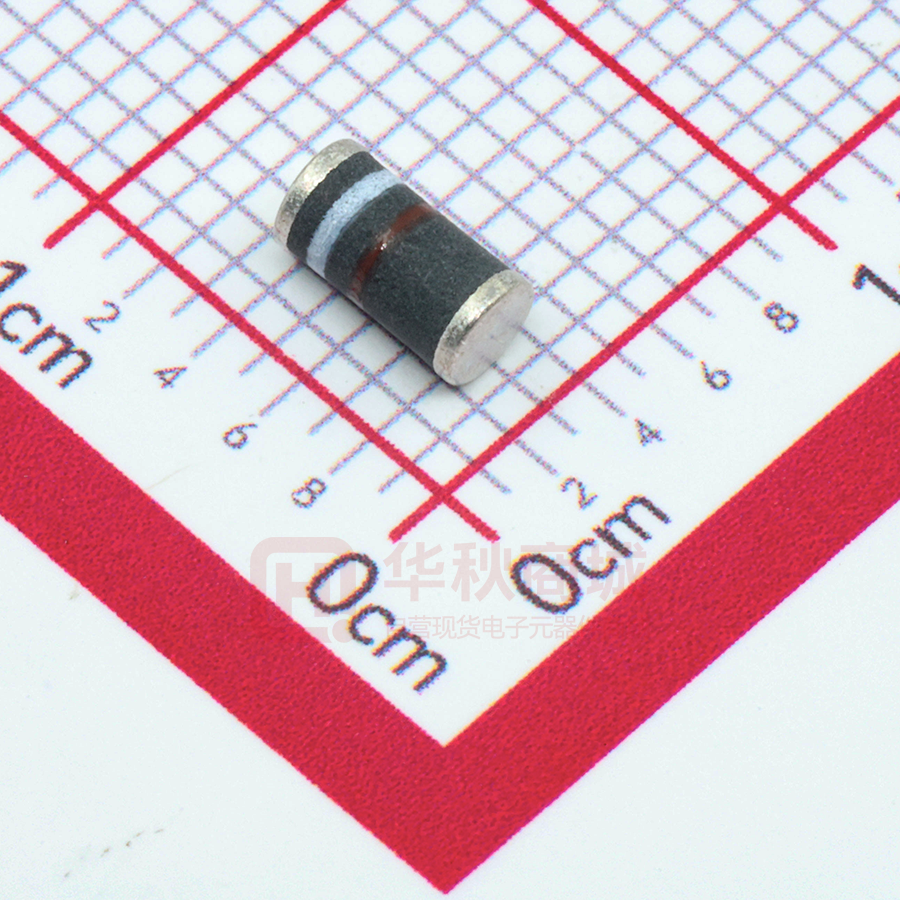

Polarity: Two bands indicate cathode end - 1st band
denotes device type and 2nd band denotes repetitive peak
reverse voltage rating
MAXIMUM RATINGS (TA = 25 °C unless otherwise noted)
PARAMETER
STANDARD RECOVERY
DEVICE: 1ST BAND IS WHITE
SYMBOL
Polarity color bands (2nd band)
BYM
10-50
BYM
10-100
BYM
10-200
BYM
10-400
BYM
10-600
BYM
10-800
BYM
10-1000
GL41A
GL41B
GL41D
GL41G
GL41J
GL41K
GL41M
GL41T
GL41Y
Gray
Red
Orange
Yellow
Green
Blue
Violet
White
Brown
100
200
400
600
800
1000
1300
1600
UNIT
Max. repetitive peak
reverse voltage
VRRM
50
Max. RMS voltage
VRMS
35
70
140
280
420
560
700
910
1120
V
Max. DC blocking voltage
VDC
50
100
200
400
600
800
1000
1300
1600
V
Max. average forward rectified
current (fig. 1)
IF(AV)
1.0
A
Peak forward surge current
8.3 ms single half sine-wave
IFSM
30
A
Max. full load reverse current
full cycle average
at TA = 75 °C
IR(AV)
30
μA
Non-repetitive peak reverse
avalanche energy at TJ = 25 °C,
IAS = 1 A, L = 10 mH
EAS
Operating junction and storage
temperature range
TJ, TSTG
Revision: 11-Dec-13
5
- 65 to + 175
V
mJ
°C
Document Number: 88546
1
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
BYM10-xxx, GL41x
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS (TA = 25 °C unless otherwise noted)
TEST
CONDITIONS
PARAMETER
Max.
instantaneous
forward voltage
Max. DC
reverse current
at rated DC
blocking
voltage
Typical junction
capacitance
1.0 A
SYMBOL
BYM
10-50
BYM
10-100
BYM
10-200
BYM
10-400
BYM
10-600
BYM
BYM
10-800 10-1000
GL41A
GL41B
GL41D
GL41G
GL41J
GL41K
1.1
VF
UNIT
GL41T
GL41Y
1.2
TA = 25 °C
V
10
IR
TA = 125 °C
4.0 V, 1 MHz
GL41M
μA
50
CJ
8.0
pF
THERMAL CHARACTERISTICS (TA = 25 °C unless otherwise noted)
PARAMETER
SYMBOL
Typical thermal resistance
BYM
10-50
BYM
10-100
BYM
10-200
BYM
10-400
BYM
10-600
BYM
10-800
BYM
10-1000
GL41A
GL41B
GL41D
GL41G
GL41J
GL41K
GL41M
RJA (1)
75
(2)
30
RJT
UNIT
GL41T GL41Y
°C/W
Notes
(1) Thermal resistance from junction to ambient, 0.24" x 0.24" (6.0 mm x 6.0 mm) copper pads to each terminal
(2) Thermal resistance from junction to terminal, 0.24" x 0.24" (6.0 mm x 6.0 mm) copper pads to each terminal
ORDERING INFORMATION (Example)
PREFERRED P/N
UNIT WEIGHT (g)
PREFERRED PACKAGE CODE
BASE QUANTITY
DELIVERY MODE
BYM10-600-E3/96
0.114
96
1500
7" diameter plastic tape and reel
BYM10-600-E3/97
0.114
97
5000
13" diameter plastic tape and reel
GL41J-E3/96
0.114
96
1500
7" diameter plastic tape and reel
GL41J-E3/97
0.114
97
5000
13" diameter plastic tape and reel
BYM10-600HE3/96 (1)
0.114
96
1500
7" diameter plastic tape and reel
BYM10-600HE3/97 (1)
0.114
97
5000
13" diameter plastic tape and reel
GL41JHE3/96 (1)
0.114
96
1500
7" diameter plastic tape and reel
(1)
0.114
97
5000
13" diameter plastic tape and reel
GL41JHE3/97
Note
(1) AEC-Q101 qualified
Revision: 11-Dec-13
Document Number: 88546
2
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
BYM10-xxx, GL41x
www.vishay.com
Vishay General Semiconductor
RATINGS AND CHARACTERISTICS CURVES (TA = 25 °C unless otherwise noted)
10
GL41A thru GL41M
Instantaneous Reverse Current (µA)
Average Forward Rectified Current (A)
1.0
0.75
60 Hz
Resistive or
Inductive Load
GL41T thru GL41Y
0.50
0.25
0.1
TJ = 25 °C
0.01
0
25
50
75
100
125
150
0
175
20
40
60
80
Terminal Temperature (°C)
Percent of Rated Peak Reverse Voltage (%)
Fig. 1 - Forward Current Derating Curve
Fig. 4 - Typical Reverse Characteristics
30
25
20
GL41A thru GL41M
15
10
5.0
0
TJ = 25 °C
f = 1.0 MHz
Vsig = 50 mVp-p
10
1
10
1
100
1
10
100
Number of Cycles at 60 Hz
Reverse Voltage (V)
Fig. 2 - Max. Non-Repetitive Peak Forward Surge Current
Fig. 5 - Typical Junction Capacitance
10
100
Transient Thermal Impedance (°C/W)
Instantaneous Forward Current (A)
100
100
TJ = TJ Max.
8.3 ms Single Half Sine-Wave
Junction Capacitance (pF)
Peak Forward Surge Current (A)
TJ = 100 °C
1
GL41A thru GL41J
GL41K thru GL41Y
1
TJ = 25 °C
Pulse Width = 300 µs
1 % Duty Cycle
0.1
0.01
0.4
0.6
0.8
1.0
1.2
1.4
1.6
(
10
1
Mounted on 0.20" x 0.27" (5 mm x 7 mm)
Copper Pad Areas
0.1
0.01
0.1
1
10
100
Instantaneous Forward Voltage (V)
t - Pulse Duration (s)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 6 - Typical Transient Thermal Impedance
Revision: 11-Dec-13
Document Number: 88546
3
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
BYM10-xxx, GL41x
www.vishay.com
Vishay General Semiconductor
PACKAGE OUTLINE DIMENSIONS in inches (millimeters)
DO-213AB
Solderable Ends
1st Band
Mounting Pad Layout
0
D2 = D1 +- 0.008
(0.20)
0.138 (3.5) MAX.
D2
0.022 (0.56)
0.018 (0.46)
D1 =
0.105 (2.67)
0.095 (2.41)
0.022 (0.56)
0.018 (0.46)
0.205 (5.2)
0.185 (4.7)
0.118 (3.0) MIN.
0.049 (1.25) MIN.
0.238 (6.0) REF.
1st band denotes type and positive end (cathode)
Revision: 11-Dec-13
Document Number: 88546
4
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
