GSIB1520, GSIB1540, GSIB1560, GSIB1580
www.vishay.com
Vishay General Semiconductor
Single-Phase Single In-Line Bridge Rectifiers
FEATURES
• UL recognition file number E54214
• Thin single in-line package
• Glass passivated chip junction
• High surge current capability
• High case dielectric strength of 2500 VRMS
~
• Solder dip 275 °C max. 10 s, per JESD 22-B106
~
~
~
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912

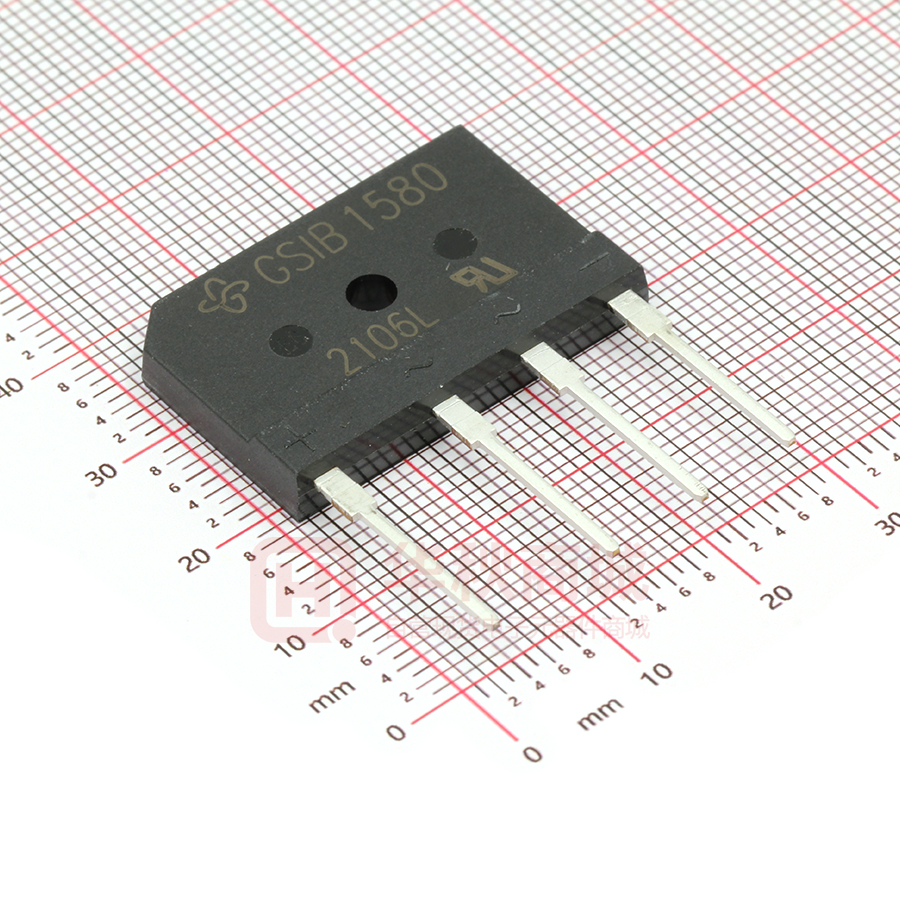

Case Style GSIB-5S
TYPICAL APPLICATIONS
General purpose use in AC/DC bridge full wave rectification
for switching power supply, home appliances, office
equipment, industrial automation applications.
PRIMARY CHARACTERISTICS
Package
GSIB-5S
IF(AV)
15 A
VRRM
200 V, 400 V, 600 V, 800 V
IFSM
300 A
IR
10 μA
VF at IF = 7.5 V
0.95 V
TJ max.
150 °C
Diode variations
In-Line
MECHANICAL DATA
Case: GSIB-5S
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Terminals: Matte tin plated leads, solderable
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test
per
Polarity: As marked on body
Mounting Torque: 10 cm-kg (8.8 inches-lbs) max.
Recommended Torque: 5.7 cm-kg (5 inches-lbs)
MAXIMUM RATINGS (TA = 25 °C unless otherwise noted)
PARAMETER
SYMBOL
GSIB1520
GSIB1540
GSIB1560
GSIB1580
UNIT
Maximum repetitive peak reverse voltage
VRRM
200
400
600
800
V
Maximum RMS voltage
VRMS
140
280
420
560
V
Maximum DC blocking voltage
VDC
200
400
600
800
V
Maximum average forward rectified
output current at
TC = 107 °C (1)
TA = 25 °C (2)
Peak forward surge current single sine-wave
superimposed on rated load
Rating for fusing (t < 8.3 ms)
Operating junction and storage temperature range
15
IF(AV)
A
3.5
IFSM
300
A
I2t
240
A2s
TJ, TSTG
-55 to +150
°C
Notes
(1) Unit case mounted on aluminum plate heatsink
(2) Units mounted on PCB without heatsink
ELECTRICAL CHARACTERISTICS (TA = 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous forward
voltage drop per diode
Maximum DC reverse current at
rated DC blocking voltage per diode
TEST CONDITIONS SYMBOL
7.5 A
TA = 25 °C
TA = 125 °C
VF
IR
GSIB1520
GSIB1540
GSIB1560
0.95
10
250
GSIB1580
UNIT
V
μA
Revision: 13-Jun-14
Document Number: 88644
1
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
GSIB1520, GSIB1540, GSIB1560, GSIB1580
www.vishay.com
Vishay General Semiconductor
THERMAL CHARACTERISTICS (TA = 25 °C unless otherwise noted)
PARAMETER
SYMBOL
Typical thermal resistance
GSIB1520
GSIB1540
GSIB1560
RJA (2)
22
RJC (1)
1.5
GSIB1580
UNIT
°C/W
Notes
(1) Unit case mounted on aluminum plate heatsink
(2) Units mounted on PCB without heatsink
(3) Recommended mounting position is to bolt down on heatsink with silicone thermal compound for maximum heat transfer with #6 screw
ORDERING INFORMATION (Example)
PREFERRED P/N
UNIT WEIGHT (g)
PREFERRED PACKAGE CODE
BASE QUANTITY
DELIVERY MODE
GSIB1560-E3/45
7.0
45
20
Tube
RATINGS AND CHARACTERISTICS CURVES (TA = 25 °C unless otherwise noted)
100
Instantaneous Forward Current (A)
Average Forward Output Current (A)
20
Heatsink Mounting, TC
15
10
5
P.C.B. Mounting, TA
25
50
75
100
125
150
TJ = 25 °C
1
TJ = 125 °C
0.1
0.5
0.7
0.9
1.1
1.3
Temperature (°C)
Instantaneous Forward Voltage (V)
Fig. 1 - Derating Curve Output Rectified Current
Fig. 3 - Typical Forward Characteristics Per Diode
1000
Instantaneous Reverse Current (µA)
300
Peak Forward Surge Current (A)
10
0.01
0.3
0
0
TJ = 150 °C
250
200
150
100
50
1.0 Cycle
0
TJ = 150 °C
100
TJ = 125 °C
10
1
TJ = 25 °C
0.1
0
1
10
100
20
40
60
80
100
Number of Cycles at 60 Hz
Percent of Rated Peak Reverse Voltage (%)
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge
Current Per Diode
Fig. 4 - Typical Reverse Characteristics Per Diode
Revision: 13-Jun-14
Document Number: 88644
2
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
GSIB1520, GSIB1540, GSIB1560, GSIB1580
www.vishay.com
Vishay General Semiconductor
10
Transient Thermal Impedance (°C/W)
Junction Capacitance (pF)
1000
100
10
0.1
0.01
1
1
10
1
100
0.1
1
10
Reverse Voltage (V)
t - Heating Time (s)
Fig. 5 - Typical Junction Capacitance Per Diode
Fig. 6 - Typical Transient Thermal Impedance
PACKAGE OUTLINE DIMENSIONS in millimeters
Case Style GSIB-5S
4.6 ± 0.2
3.5 ± 0.2
11 ± 0.2
20 ± 0.3
5
+
3.2 ± 0.2
3.6 ± 0.2
30 ± 0.3
2.2 ± 0.2
1 ± 0.1
10 ± 0.2
7.5
± 0.2
7.5
± 0.2
2.7 ± 0.2
17.5 ± 0.5
4 ± 0.2
2.5 ± 0.2
0.7 ± 0.1
Revision: 13-Jun-14
Document Number: 88644
3
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
