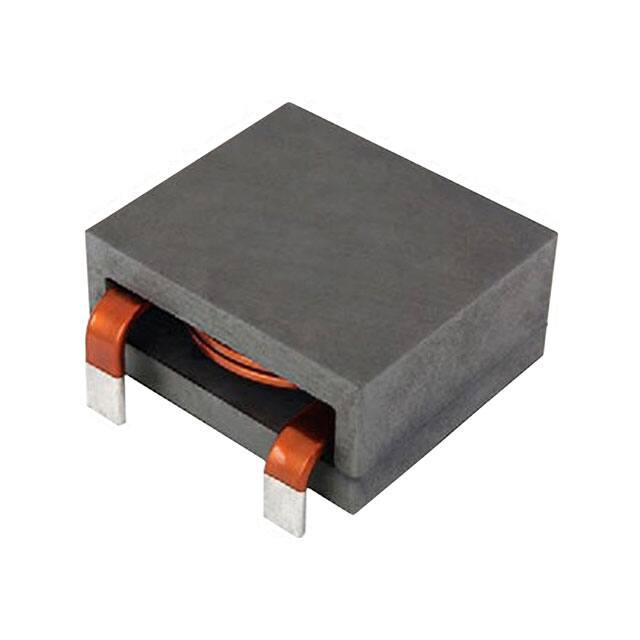

IHDF1300AEEH1R0K1A

IHDF-1300AE-1A www.vishay.com Vishay Custom Magnetics Low Profile, Through-Hole, High Current Inductors, Edge-Wound Series FEATURES • Low loss ferrite core for high performance designs with minimal ac power losses • Low DCR losses that provides high rated current performance • Low profile package - better for mechanical shock and vibration • Hot dipped Sn plating provides low risk of whisker growth • AEC-Q200 qualified • Custom options are available • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models APPLICATIONS • • • • • MARKINGS VISHAY IDHF1300AExxxx1A High current and high temperature applications DC/DC converters High current motor and switching noise suppression Inverters On board chargers YYWW-4 DIMENSIONS in inches [millimeters] 1.031 ± 0.020 [26.2 ± 0.5] STANDARD ELECTRICAL SPECIFICATIONS L0 HIPOT INDUCTANCE HEAT SATURATION CORE ± 10 % DCR RATING CURRENT TO WIRE, AT 100 kHz, MAX. CURRENT DC TYP. SRF 500 VDC, 0.25 V, 0 A 25 °C DC TYP. (1) AT 100 °C (2) TYP. 2s (μH) (mΩ) (mA) (A) (A) (MHz) 1.0 2.2 3.3 4.7 5.0 0.79 1.11 1.11 1.11 1.11 72.0 59.0 59.0 59.0 59.0 230 149 112 92 78 39 23 18 16 15 1.173 max. [29.8] 1.299 ± 0.039 [33.0 ± 1.0]
