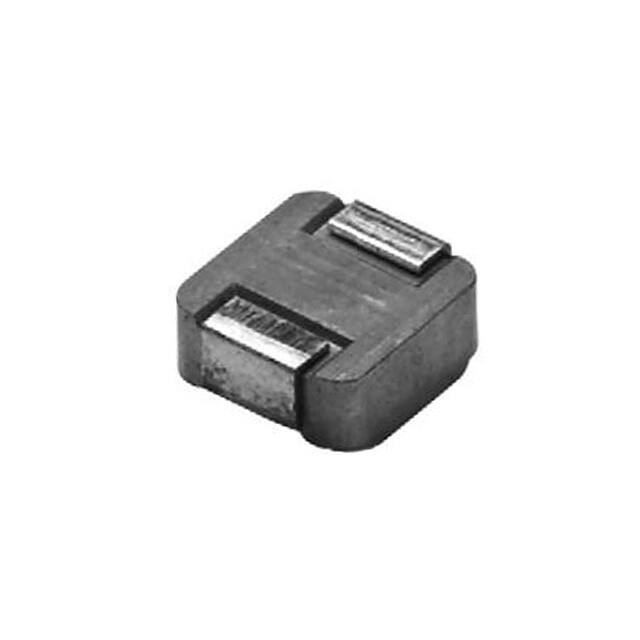

IHLP-1616BZ-0H
www.vishay.com
Vishay Dale
High Frequency, Low Profile, High Current IHLP® Inductors
FEATURES
•
•
•
•
Shielded construction
Extended frequency range up to 10 MHz
Lowest losses above 1 MHz
Handles high transient current spikes without
saturation
• Ultra low buzz noise, due to composite
construction
• IHLP design. PATENT(S): www.vishay.com/patents
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
APPLICATIONS
DESIGN SUPPORT TOOLS click logo to get started
Models
Available
•
•
•
•
•
Design Tools
Available
Notebook / desktop applications
High current POL converters
Low profile, high current power supplies
Battery powered devices
PMIC for sensors and cameras
STANDARD ELECTRICAL SPECIFICATIONS
L0
INDUCTANCE
± 20 %
AT 100 kHz,
0.25 V, 0 A
(μH)
DCR
TYP.
25 °C
(m)
DCR
MAX.
25 °C
(m)
HEAT
RATING
CURRENT
DC TYP.
(A) (1)
SATURATION
CURRENT
DC TYP.
(A) (2)
SATURATION
CURRENT
DC TYP.
(A) (3)
SRF
TYP.
(MHz)
0.10
5.5
5.9
14.0
36.0
45.0
485
0.47
13.2
14.1
8.5
13.1
17.5
145
1.00
26.6
28.5
6.1
10.3
13.0
91
Notes
• All test data is referenced to 25 °C ambient
• Operating temperature range -55 °C to +125 °C
• The part temperature (ambient + temp rise) should not exceed 125°C under worst case operating conditions. Circuit design, component
placement, PWB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be
verified in the end application
• Rated operating voltage (across inductor) = 50 V
(1) DC current (A) that will cause an approximate T of 40 °C
(2) DC current (A) that will cause L to drop approximately 20 %
0
(3) DC current (A) that will cause L to drop approximately 30 %
0
DIMENSIONS in inches [millimeters]
0.160 ± 0.010
[4.06 ± 0.254]
0.160 ± 0.010
[4.06 ± 0.254]
Typical Pad Layout
0.222
[5.639]
0.080 ± 0.002
[2.0 ± 0.05]
0.175 ± 0.010
[4.45 ± 0.254]
0.079
[2.0]
Max.
0.090
[2.286]
0.030 ± 0.012
[0.76 ± 0.30]
0.076
[1.930]
PATENT(S): www.vishay.com/patents
This Vishay product is protected by one or more United States and International patents.
Revision: 26-Sep-17
Document Number: 34452
1
For technical questions, contact: magnetics@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
IHLP-1616BZ-0H
www.vishay.com
Vishay Dale
DESCRIPTION
IHLP-1616BZ-0H
MODEL
0.47 μH
± 20 %
INDUCTANCE VALUE
ER
INDUCTANCE TOLERANCE
e3
JEDEC®
PACKAGE CODE
LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
I
H
L
P
1
6
1
PRODUCT FAMILY
6
B
Z
E
SIZE
R
R
PACKAGE
CODE
4
7
INDUCTANCE
VALUE
M
0
TOL.
H
SERIES
PERFORMANCE GRAPHS
0.47 µH
0.5
100
60
0.12
L
0.08
40
0.04
20
INDUCTANCE (μH)
80
0.16
TEMPERATURE (°C)
0
5
10
15
20
25
0.4
80
0.3
60
0.2
40
0.1
20
0
0.0
0
0.00
0
30
2
4
DC CURRENT (A)
6
8
10
12
14
DC CURRENT (A)
1.0 µH
1.0
100
ΔT °C
L
INDUCTANCE (μH)
100
ΔT °C
L
0.8
80
0.6
60
0.4
40
0.2
20
TEMPERATURE (°C)
INDUCTANCE (μH)
ΔT °C
TEMPERATURE (°C)
0.1 µH
0.20
0
0.0
0
2
4
6
8
10
DC CURRENT (A)
Revision: 26-Sep-17
Document Number: 34452
2
For technical questions, contact: magnetics@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
IHLP-1616BZ-0H
www.vishay.com
Vishay Dale
PERFORMANCE GRAPHS: INDUCTANCE AND Q VS. FREQUENCY
L
0.1
40
0.05
20
0
1
10
100
0.9
60
Q
L
0.6
0.3
0
0
1000
40
20
0.1
1
10
100
0
1000
FREQUENCY (MHz)
FREQUENCY (MHz)
1.0 µH
5
INDUCTANCE (μH)
80
100
4
80
3
60
L
Q
Q
0.1
INDUCTANCE (μH)
60
Q
INDUCTANCE (μH)
Q
0.15
0.47 µH
1.2
80
Q
0.1 µH
0.2
2
40
1
20
0
0
0.1
1
10
100
FREQUENCY (MHz)
