IHXL-1500VZ-5A
www.vishay.com
Vishay Dale
High Current Through-Hole Inductor, High Temperature
FEATURES
• High temperature, up to 155 °C
• Shielded construction
• Frequency range up to 5.0 MHz
• Handles high transient current spikes without
saturation
• Ultra low buzz noise, due to composite
construction
• AEC-Q200 qualified
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
APPLICATIONS
• Automotive high current filters
• Switching regulators
• In-line noise filters
• Differential mode choke
• Boost power factor correction choke
• 12 V, 24 V, 48 V DC/DC converters
• High current battery charging
STANDARD ELECTRICAL SPECIFICATIONS
L0 INDUCTANCE
± 20 % AT 500 kHz,
2 V, 0 A
(μH)
DCR
TYP.
25 °C
(mΩ)
DCR
MAX.
25 °C
(mΩ)
HEAT RATING
CURRENT
DC TYP.
(A) (3)
HEAT RATING
CURRENT
DC TYP.
(A) (4)
SATURATION
CURRENT
DC TYP.
(A) (5)
SATURATION
CURRENT
DC TYP.
(A) (6)
0.68
0.12
0.13
154
235
301
420
0.82
0.17
0.18
132
196
235
332
1.5
0.25
0.26
120
178
138
193
2.2
0.32
0.34
115
168
104
150
3.3
0.40
0.42
96
150
87
124
Notes
(1) All test data is referenced to 25 °C ambient
(2) Operating temperature range -55 °C to +155 °C
(3) DC current (A) that will cause an approximate ΔT of 40 °C after one hour
(4) DC current (A) that will cause an approximate ΔT of 100 °C after one hour
(5) DC current (A) that will cause L to drop approximately 20 %
0
(6) DC current (A) that will cause L to drop approximately 30 %
0
(7) The part temperature (ambient + temp. rise) should not exceed 155 °C under worst case operating conditions. Circuit design, component
placement, PWB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be
verified in the end application
Revision: 08-Oct-2020
Document Number: 34568
1
For technical questions, contact: magnetics@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
IHXL-1500VZ-5A
www.vishay.com
Vishay Dale
DIMENSIONS in inches [millimeters]
1.500 ± 0.010
[38.100 ± 0.254]
“A” ± 0.010
[”A” ± 0.254]
“B” ± 0.010
[”B” ± 0.254]
1.500 ± 0.010
[38.099 ± 0.254]
0.204 ± 0.025
[5.171 ± 0.635]
0.862 ± 0.010
[21.900 ± 0.254]
0.455 ± 0.039
[11.546 ± 1.000]
tinned area
0.428 ± 0.015
[10.868 ± 0.381]
0.141 ± 0.025
[3.573 ± 0.635]
0.505 ± 0.039
[12.815 ± 1.000]
LEAD DIMENSIONS ± 0.010 [± 0.25]
VALUE
A - HEIGHT
B - WIDTH
0.68
0.162 [4.11]
0.298 [7.34]
0.82
0.102 [2.59]
0.253 [6.43]
1.5
0.102 [2.59]
0.253 [6.43]
2.2
0.102 [2.59]
0.253 [6.43]
3.3
0.102 [2.59]
0.253 [6.43]

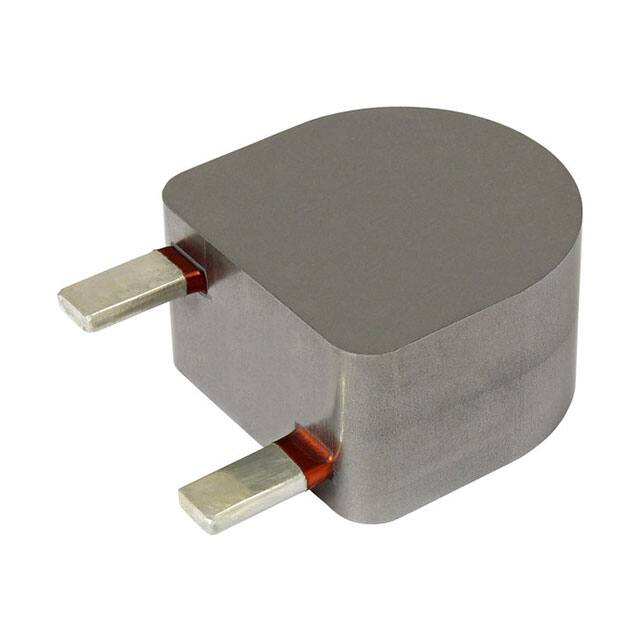

DESCRIPTION
IHXL-1500VZ-5A
2.2 μH
MODEL
± 20 %
INDUCTANCE VALUE
EB
INDUCTANCE TOLERANCE
e3
JEDEC®
PACKAGE CODE
LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
I
H
X
PRODUCT FAMILY
Revision: 08-Oct-2020
L
1
5
0
0
SIZE
V
Z
E
B
PACKAGE
CODE
2
R
INDUCTANCE
VALUE
2
M
TOL.
5
A
SERIES
Document Number: 34568
2
For technical questions, contact: magnetics@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
IHXL-1500VZ-5A
www.vishay.com
Vishay Dale
PERFORMANCE GRAPHS
0.6
60
0.4
40
0.2
20
INDUCTANCE (μH)
80
L
0
0.0
50
100
150
200
250
300
0.8
80
0.6
60
0.4
40
0.2
20
0
0.0
350
0
50
100
DC CURRENT (A)
80
60
0.8
40
0.4
20
INDUCTANCE (μH)
ΔT °C
0
0.0
50
100
150
100
ΔT °C
1.2
0
250
2.2 µH
5
TEMPERATURE (°C)
INDUCTANCE (μH)
100
L
1.6
200
DC CURRENT (A)
1.5 µH
2.0
150
80
4
3
60
L
2
40
1
20
0
0
200
TEMPERATURE (°C)
0
100
ΔT °C
L
ΔT °C
0.8
0.82 µH
1.0
TEMPERATURE (°C)
INDUCTANCE (μH)
100
TEMPERATURE (°C)
0.68 µH
1.0
0
50
DC CURRENT (A)
100
150
200
DC CURRENT (A)
3.3 µH
5
100
4
80
L
3
60
2
40
1
20
TEMPERATURE (°C)
INDUCTANCE (μH)
ΔT °C
0
0
0
40
80
120
160
DC CURRENT (A)
Revision: 08-Oct-2020
Document Number: 34568
3
For technical questions, contact: magnetics@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
IHXL-1500VZ-5A
www.vishay.com
Vishay Dale
PERFORMANCE GRAPHS: INDUCTANCE AND Q VS. FREQUENCY
0.68 µH
2
200
0.82 µH
2.5
250
L
100
50
0.5
1
100
10
50
0.5
0
0
0.1
1
FREQUENCY (MHz)
INDUCTANCE (μH)
75
6
L
4
50
2
25
1
10
L
300
10
200
5
100
0
0
100
0.1
FREQUENCY (MHz)
1
10
100
FREQUENCY (MHz)
3.3 µH
40
INDUCTANCE (μH)
400
Q
15
0
0
2.2 µH
20
Q
INDUCTANCE (μH)
100
Q
0.1
100
FREQUENCY (MHz)
1.5 µH
8
10
Q
1
150
30
400
300
Q
L
20
200
10
100
Q
0.1
1.5
0
100
0
200
L
Q
150
1
2
INDUCTANCE (μH)
Q
1.5
Q
INDUCTANCE (μH)
Q
0
0
0.1
1
10
100
FREQUENCY (MHz)
Revision: 08-Oct-2020
Document Number: 34568
4
For technical questions, contact: magnetics@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
