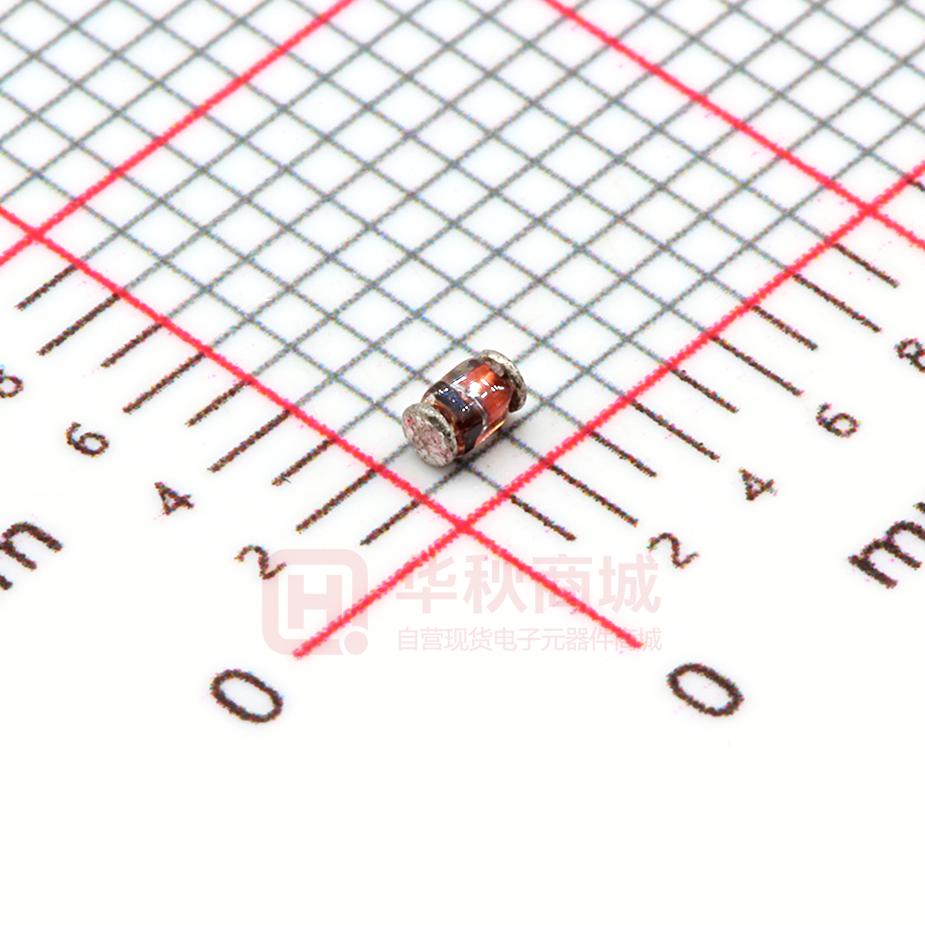

MCL4148-TR

MCL4148, MCL4448 www.vishay.com Vishay Semiconductors Small Signal Fast Switching Diodes FEATURES • Silicon epitaxial planar diode • Saving space • Hermetic sealed parts • Fits onto SOD-323 / SOT-23 footprints • Electrical data identical with the devices 1N4148 and 1N4448 respectively • MicroMELF package • AEC-Q101 qualified DESIGN SUPPORT TOOLS click logo to get started • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 Models APPLICATIONS Available • Extreme fast switches MECHANICAL DATA Case: MicroMELF Weight: approx. 12 mg Cathode band color: black Packaging codes / options: TR3/10K per 13" reel (8 mm tape), 10K/box TR/2.5K per 7" reel (8 mm tape), 12.5K/box PARTS TABLE PART TYPE DIFFERENTIATION ORDERING CODE CIRCUIT CONFIGURATION REMARKS MCL4148 VRRM = 100 V, VF at IF 50 mA = 1 V MCL4148-TR3 or MCL4148-TR Single Tape and reel MCL4448 VRRM = 100 V, VF at IF 100 mA = 1 V MCL4448-TR3 or MCL4448-TR Single Tape and reel ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified) PARAMETER TEST CONDITION Reverse voltage Repetitive peak reverse voltage Peak forward surge current tp = 1 μs Repetitive peak forward current Forward continuous current Average forward current VR = 0 V Power dissipation SYMBOL VALUE UNIT VR 75 V VRRM 100 V IFSM 2 A IFRM 450 mA IF 200 mA IF(AV) 150 mA Ptot 500 mW THERMAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) PARAMETER Thermal resistance junction to ambient air Junction temperature Storage temperature range TEST CONDITION SYMBOL VALUE UNIT Mounted on epoxy-glass hard tissue, Fig. 5, 35 μm copper clad, 0.9 mm2 copper area per electrode RthJA 500 K/W Tj 175 °C Tstg -65 to +175 °C Rev. 2.2, 14-Jul-17 Document Number: 85566 1 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 MCL4148, MCL4448 www.vishay.com Vishay Semiconductors ELECTRICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) PARAMETER TEST CONDITION SYMBOL SYMBOL MIN. IF = 5 mA MCL4448 VF 0.620 IF = 50 mA MCL4148 VF 0.860 IF = 100 mA MCL4448 VF 0.930 Forward voltage Reverse current TYP. MAX. V 1 V 1 V VR = 20 V IR 25 nA VR = 20 V, Tj = 150 °C IR 50 μA 5 μA VR = 75 V IR Breakdown voltage IR = 100 μA, tp/T = 0.01, tp = 0.3 ms V(BR) Diode capacitance VR = 0 V, f = 1 MHz, VHF = 50 mV CD VHF = 2 V, f = 100 MHz ηr IF = IR = 10 mA, iR = 1 mA trr 8 IF = 10 mA, VR = 6 V, iR = 0.1 x IR, RL = 100 Ω trr 4 Rectification efficiency Reverse recovery time UNIT 0.720 100 V 4 pF 45 % ns TYPICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) 1000 1000 IR- Reverse Current (nA) I F - Forward Current (mA) MCL 4148 100 Scattering Limit 10 1 Tj = 25 °C 100 Scattering Limit 10 Tj = 25 °C 1 0.1 0 0.4 0.8 1.2 1.6 Fig. 1 - Reverse Current vs. Junction Temperature 3.0 CD - Diode Capacitance (pF) MCL 4448 I F - Forward Current (mA) 100 Fig. 3 - Reverse Current vs. Reverse Voltage 1000 100 Scattering Limit 10 1 Tj = 25 ° C 0 0.4 0.8 1.2 1.6 f = 1 MHz Tj = 25 °C 2.5 2.0 1.5 1.0 0.5 0 0.1 16643 10 VR- Reverse Voltage (V) 94 9098 V F - Forward Voltage (V) 16641 1 2.0 0.1 2.0 V F - Forward Voltage (V) Fig. 2 - Forward Current vs. Forward Voltage 94 9099 1 10 100 VR - Reverse Voltage (V) Fig. 4 - Diode Capacitance vs. Reverse Voltage Rev. 2.2, 14-Jul-17 Document Number: 85566 2 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 MCL4148, MCL4448 www.vishay.com 0.71 Vishay Semiconductors 1.3 1.27 9.9 0.152 10 25 0.355 2.5 24 95 10329 Fig. 5 - Board for RthJA definition (in mm) PACKAFE DIMENSIONS in millimeters (inches): MicroMELF 0.6 (0.024) * 1.1 (0.043) 1.2 (0.047) < 1. surface plan gl 1 (0.039) 35 ( as 0.0 s 53 ) surface plan Cathode indification 0.25 (0.010) 0.15 (0.006) > R2.5 (0.098) glass 2 (0.079) 1.8 (0.071) * The gap between plug and glass can be either on cathode or anode side Foot print recommendation: Wave soldering 2.4 (0.094) 2.8 (0.110) 0.8 (0.031) 0.9 (0.035) 0.9 (0.035) 1.4 (0.055) 1.2 (0.047) 0.8 (0.031) Reflow soldering 0.8 (0.031) 1 (0.039) Created - Date: 26.July.1996 Rev. 13 - Date: 07.June.2006 Document no.:6.560-5007.01-4 96 12072 Rev. 2.2, 14-Jul-17 Document Number: 85566 3 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer  ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2017 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 08-Feb-17 1 Document Number: 91000
