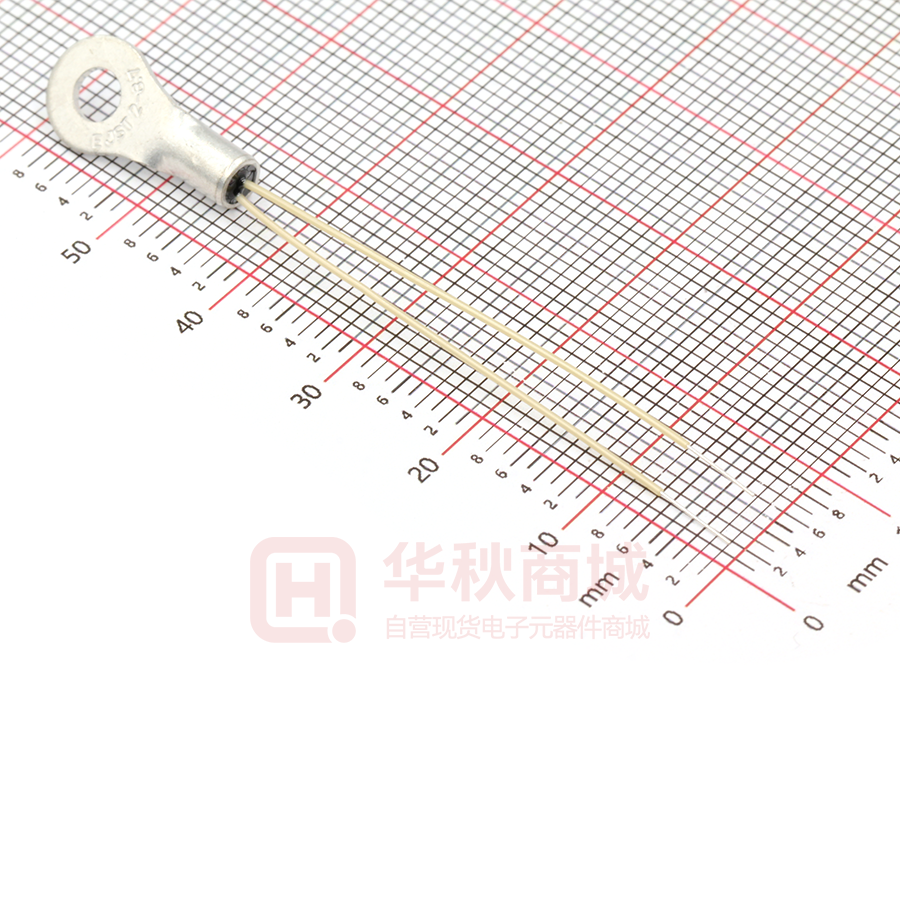

NTCALUG02A Series www.vishay.com Vishay BCcomponents NTC Thermistors, Low Thermal Gradient Lug Sensors FEATURES DESIGN SUPPORT TOOLS click logo to get started Models Available • Low thermal gradient due to the use of nickel conductor and low profile closed ring tongue • AEC-Q200 qualified (grade 1) • UL recognized, file E148885 (UL category XGPU2) • Mounting: assembly screw mounting • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS Design Tools Available • SPICE models available: www.vishay.com/doc?29177 • NTC curve computation:  www.vishay.com/thermistors/ntc-curve-list/ QUICK REFERENCE DATA PARAMETER VALUE UNIT Thermistors used for accurate surface temperature sensing and control in: • Computer equipment • Power electronics, heat-sink temperature control • Consumer appliances • Industrial equipment • Automotive equipment Resistance value at 25 °C 4.7K to 100K  Tolerance on R25-value ± 1; ± 2; ± 3 % MOUNTING B25/85 value 3435 to 4190 K ± 0.5; ± 1.0; ± 1.5 % -55 to +125 °C • The device is suitable for screwing e.g. on a metal surface through means of an M3 or M3.5 screw • The connections are suitable for soldering on a PCB or for connector insertion • The sensor is not suitable for being in permanent contact with water or liquids • Other applicable screw hole sizes are available, for example M4 or American Stud #8 • AWG#28 or AWG#26 wires available on request • Consult Vishay for other screw sizes, lead length, insulation, connector crimping or other features Tolerance on B25/85-value Operating temperature range at zero power Thermal time constant 5 s Dissipation factor 10 mW/K < 0.05 K/K 1500 VAC Thermal gradient (1) Min. dielectric withstanding voltage between terminals and lug Climatic category (LCT / UCT / days) 55 / 125 / 56 1.0 Weight g Note (1) The thermal gradient is the difference per °C between the true temperature of the surface to be sensed and the temperature measured by the sensor DESCRIPTION Vishay thermistor chip NTC with epoxy coating and middle buffer layer mounted in a tin plated copper ring lug with PEEK insulated leads AWG#30 (Ø 0.25 mm), mono-stranded silver-plated nickel. ELECTRICAL DATA AND ORDERING INFORMATION R25 () R25-TOL. (± %) B25/85 (K) B25/85-TOL. (± %) L1 (mm) SAP MATERIAL AND ORDERING NUMBER UL RECOGNIZED (Y / N) 4700 2 3984 0.5 45 ± 3 NTCALUG02A472G N 4700 1 3984 0.5 45 ± 3 NTCALUG02A472F N 5000 2 3984 0.5 45 ± 3 NTCALUG02A502G Y 10 000 2 3984 0.5 45 ± 3 NTCALUG02A103G (1) Y 10 000 1 3984 0.5 45 ± 3 NTCALUG02A103F Y 10 000 1 3984 0.5 80 +5 / -3 NTCALUG02A103F800 Y 10 000 1 3984 0.5 160 +5 / -3 NTCALUG02A103F161 Y 10 000 1 3435 1.0 45 ± 3 NTCALUG02A103FL Y 10 000 1 3435 1.0 80 +5 / -3 NTCALUG02A103F800L Y 10 000 1 3435 1.0 160 +5 / -3 NTCALUG02A103F161L Y 100 000 3 4190 1.5 45 ± 3 NTCALUG02A104H N Note (1) Is also known under material number NTCALUGE4C90294 Revision: 21-Sep-17 Document Number: 29094 1 For technical questions, contact: nlr@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 NTCALUG02A Series www.vishay.com Vishay BCcomponents DIMENSIONS in millimeters T Ø D3 Ø D4 Ø D2 Ø D1 L2 E L1 L3 L1 L2 L3 Ø D1 Ø D2 Ø D3 Ø D4 E T Refer to the ordering table 6±1 16.8 ± 0.3 3.7 +0.2 / -0 8.5 ± 0.2 4.1 +0.4 / -0.1 0.56 ± 0.1 4.8 ± 0.2 0.8 Revision: 21-Sep-17 Document Number: 29094 2 For technical questions, contact: nlr@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 NTCALUG02A Series www.vishay.com Vishay BCcomponents NTCALUG02A472G NTC LUG02A 4.7K 2 % 3984 K 0.5 % RESISTANCE TEMPERATURE CHARACTERISTICS TEMP. (°C) R(T)/R25 RESISTANCE () R/R (%)  (%/K) T (K) Rmin. () Rmax. () -40 33.43 157 109 3.90 -6.63 0.59 150 982 163 236 -35 24.13 113 422 3.72 -6.41 0.58 109 206 117 638 -30 17.61 82 782 3.54 -6.19 0.57 79 851 85714 -25 12.99 61 053 3.37 -5.99 0.56 58 994 63 112 -20 9.68 45 478 3.21 -5.79 0.55 44 017 46 938 -15 7.276 34 199 3.06 -5.61 0.54 33 154 35 244 -10 5.522 25 953 2.91 -5.43 0.54 25 198 26 707 -5 4.227 19 866 2.76 -5.26 0.53 19 317 20 415 0 3.262 15 333 2.62 -5.10 0.51 14 931 15 736 5 2.538 11 929 2.49 -4.94 0.50 11 632 12 226 10 1.990 9352 2.36 -4.80 0.49 9131 9572 15 1.571 7384 2.24 -4.65 0.48 7219 7549 20 1.249 5872 2.12 -4.52 0.47 5747 5996 25 1.000 4700 2.00 -4.39 0.46 4606 4794 30 0.8056 3786 2.11 -4.26 0.50 3706 3866 35 0.6530 3069 2.22 -4.14 0.54 3001 3137 40 0.5324 2502 2.33 -4.03 0.58 2444 2560 45 0.4365 2052 2.43 -3.92 0.62 2002 2102 50 0.3599 1691 2.53 -3.81 0.66 1649 1734 55 0.2982 1402 2.62 -3.71 0.71 1365 1438 60 0.2484 1167 2.72 -3.61 0.75 1136 1199 65 0.2079 977.0 2.81 -3.51 0.80 949.6 1004 70 0.1748 821.4 2.89 -3.42 0.85 797.6 845.2 75 0.1476 693.7 2.98 -3.34 0.89 673.0 714.3 80 0.1252 588.3 3.06 -3.25 0.94 570.3 606.4 85 0.1066 501.1 3.14 -3.17 0.99 485.3 516.8 90 0.09116 428.4 3.22 -3.09 1.04 414.7 442.2 95 0.07825 367.8 3.30 -3.02 1.09 355.6 379.9 100 0.06741 316.8 3.37 -2.94 1.14 306.2 327.5 105 0.05828 273.9 3.44 -2.87 1.20 264.5 283.4 110 0.05057 237.7 3.51 -2.81 1.25 229.3 246.0 115 0.04402 206.9 3.58 -2.74 1.31 199.5 214.3 120 0.03844 180.7 3.65 -2.68 1.36 174.1 187.3 125 0.03367 158.3 3.71 -2.62 1.42 152.4 164.1 Revision: 21-Sep-17 Document Number: 29094 3 For technical questions, contact: nlr@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 NTCALUG02A Series www.vishay.com Vishay BCcomponents NTCALUG02A472F NTC LUG02A 4.7K 1 % 3984 K 0.5 % RESISTANCE TEMPERATURE CHARACTERISTICS TEMP. (°C) R(T) RESISTANCE () R/R (%)  (%/K) T (K) Rmin. () Rmax. () -40 33.43 157 109 2.88 -6.63 0.43 152 582 161 636 -35 24.13 113 422 2.70 -6.41 0.42 110 359 116 484 -30 17.61 82 782 2.53 -6.19 0.41 80 691 84 874 -25 12.99 61 053 2.36 -5.99 0.39 59 612 62 494 -20 9.68 45 478 2.20 -5.79 0.38 44 477 46 478 -15 7.276 34 199 2.05 -5.61 0.36 33 500 34 899 -10 5.522 25 953 1.90 -5.43 0.35 25 460 26 445 -5 4.227 19 866 1.75 -5.26 0.33 19 517 20 215 0 3.262 15 333 1.62 -5.10 0.32 15 085 15 581 5 2.538 11 929 1.49 -4.94 0.30 11 752 12 106 10 1.990 9352 1.36 -4.80 0.28 9225 9478 15 1.571 7384 1.23 -4.65 0.27 7293 7475 20 1.249 5872 1.12 -4.52 0.25 5806 5937 25 1.000 4700 1.00 -4.39 0.23 4653 4747 30 0.8056 3786 1.11 -4.26 0.26 3744 3828 35 0.6530 3069 1.22 -4.14 0.29 3032 3106 40 0.5324 2502 1.32 -4.03 0.33 2469 2535 45 0.4365 2052 1.42 -3.92 0.36 2022 2081 50 0.3599 1691 1.52 -3.81 0.40 1666 1717 55 0.2982 1402 1.62 -3.71 0.44 1379 1424 60 0.2484 1167 1.71 -3.61 0.47 1147 1187 65 0.2079 977.0 1.80 -3.51 0.51 959.4 994.5 70 0.1748 821.4 1.88 -3.42 0.55 805.9 836.9 75 0.1476 693.7 1.97 -3.34 0.59 680.0 707.3 80 0.1252 588.3 2.05 -3.25 0.63 576.3 600.4 85 0.1066 501.1 2.13 -3.17 0.67 490.4 511.7 90 0.09116 428.4 2.21 -3.09 0.71 419.0 437.9 95 0.07825 367.8 2.28 -3.02 0.76 359.4 376.2 100 0.06741 316.8 2.36 -2.94 0.80 309.4 324.3 105 0.05828 273.9 2.43 -2.87 0.84 267.3 280.6 110 0.05057 237.7 2.50 -2.81 0.89 231.7 243.6 115 0.04402 206.9 2.56 -2.74 0.94 201.6 212.2 120 0.03844 180.7 2.63 -2.68 0.98 175.9 185.4 125 0.03367 158.3 2.69 -2.62 1.03 154.0 162.5 Revision: 21-Sep-17 Document Number: 29094 4 For technical questions, contact: nlr@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 NTCALUG02A Series www.vishay.com Vishay BCcomponents NTCALUG02A502G NTC LUG02A 5K 2 % 3984 K 0.5 % RESISTANCE TEMPERATURE CHARACTERISTICS TEMP. (°C) R(T)/R25 RESISTANCE () R/R (%)  (%/K) T (K) Rmin. () Rmax. () -40 33.43 167 137 3.90 -6.63 0.59 160 619 173 655 -35 24.13 120 661 3.72 -6.41 0.58 116 177 125 146 -30 17.61 88 066 3.54 -6.19 0.57 84 947 91 185 -25 12.99 64 950 3.37 -5.99 0.56 62 759 67 141 -20 9.68 48 381 3.21 -5.79 0.55 46 827 49 934 -15 7.276 36 382 3.06 -5.61 0.54 35 270 37 494 -10 5.522 27 609 2.91 -5.43 0.54 26 807 28 411 -5 4.227 21 134 2.76 -5.26 0.53 20 550 21 718 0 3.262 16 312 2.62 -5.10 0.51 15 884 16 740 5 2.538 12 691 2.49 -4.94 0.50 12 375 13 007 10 1.990 9948 2.36 -4.80 0.49 9714 10 183 15 1.571 7856 2.24 -4.65 0.48 7680 8031 20 1.249 6246 2.12 -4.52 0.47 6114 6379 25 1.000 5000 2.00 -4.39 0.46 4900 5100 30 0.8056 4028 2.11 -4.26 0.50 3943 4113 35 0.6530 3265 2.22 -4.14 0.54 3192 3337 40 0.5324 2662 2.33 -4.03 0.58 2600 2724 45 0.4365 2183 2.43 -3.92 0.62 2130 2236 50 0.3599 1799 2.53 -3.81 0.66 1754 1845 55 0.2982 1491 2.62 -3.71 0.71 1452 1530 60 0.2484 1242 2.72 -3.61 0.75 1208 1276 65 0.2079 1039 2.81 -3.51 0.80 1010 1068 70 0.1748 873.8 2.89 -3.42 0.85 848.5 899.1 75 0.1476 738.0 2.98 -3.34 0.89 716.0 759.9 80 0.1252 625.9 3.06 -3.25 0.94 606.7 645.1 85 0.1066 533.1 3.14 -3.17 0.99 516.3 549.8 90 0.09116 455.8 3.22 -3.09 1.04 441.1 470.5 95 0.07825 391.2 3.30 -3.02 1.09 378.3 404.1 100 0.06741 337.1 3.37 -2.94 1.14 325.7 348.4 105 0.05828 291.4 3.44 -2.87 1.20 281.4 301.5 110 0.05057 252.8 3.51 -2.81 1.25 244.0 261.7 115 0.04402 220.1 3.58 -2.74 1.31 212.2 228.0 120 0.03844 192.2 3.65 -2.68 1.36 185.2 199.2 125 0.03367 168.4 3.71 -2.62 1.42 162.1 174.6 Revision: 21-Sep-17 Document Number: 29094 5 For technical questions, contact: nlr@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 NTCALUG02A Series www.vishay.com Vishay BCcomponents NTCALUG02A103G NTC LUG02A 10K 2 % 3984 K 0.5 % RESISTANCE TEMPERATURE CHARACTERISTICS TEMP. (°C) R(T)/R25 RESISTANCE () R/R (%)  (%/K) T (K) Rmin. () Rmax. () -40 33.43 334 274 3.90 -6.63 0.59 321 238 347 311 -35 24.13 241 323 3.72 -6.41 0.58 232 353 250 293 -30 17.61 176 133 3.54 -6.19 0.57 169 895 182 370 -25 12.99 129 900 3.37 -5.99 0.56 125 518 134 282 -20 9.68 96 761 3.21 -5.79 0.55 93 654 99 869 -15 7.276 72 765 3.06 -5.61 0.54 70 541 74 988 -10 5.522 55 218 2.91 -5.43 0.54 53 613 56 823 -5 4.227 42 268 2.76 -5.26 0.53 41 100 43 435 0 3.262 32 624 2.62 -5.10 0.51 31 768 33 480 5 2.538 25 381 2.49 -4.94 0.50 24 749 26 013 10 1.990 19 897 2.36 -4.80 0.49 19 427 20 367 15 1.571 15 711 2.24 -4.65 0.48 15 360 16 063 20 1.249 12 493 2.12 -4.52 0.47 12 228 12 757 25 1.000 10 000 2.00 -4.39 0.46 9800 10 200 30 0.8056 8056 2.11 -4.26 0.50 7886 8226 35 0.6530 6530 2.22 -4.14 0.54 6385 6675 40 0.5324 5324 2.33 -4.03 0.58 5200 5448 45 0.4365 4365 2.43 -3.92 0.62 4259 4471 50 0.3599 3599 2.53 -3.81 0.66 3508 3690 55 0.2982 2982 2.62 -3.71 0.71 2904 3060 60 0.2484 2484 2.72 -3.61 0.75 2416 2551 65 0.2079 2079 2.81 -3.51 0.80 2020 2137 70 0.1748 1748 2.89 -3.42 0.85 1697 1798 75 0.1476 1476 2.98 -3.34 0.89 1432 1520 80 0.1252 1252 3.06 -3.25 0.94 1213 1290 85 0.1066 1066 3.14 -3.17 0.99 1033 1100 90 0.09116 911.6 3.22 -3.09 1.04 882.2 940.9 95 0.07825 782.5 3.30 -3.02 1.09 756.7 808.2 100 0.06741 674.1 3.37 -2.94 1.14 651.4 696.8 105 0.05828 582.8 3.44 -2.87 1.20 562.8 602.9 110 0.05057 505.7 3.51 -2.81 1.25 487.9 523.4 115 0.04402 440.2 3.58 -2.74 1.31 424.4 455.9 120 0.03844 384.4 3.65 -2.68 1.36 370.4 398.4 125 0.03367 336.7 3.71 -2.62 1.42 324.2 349.2 Revision: 21-Sep-17 Document Number: 29094 6 For technical questions, contact: nlr@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 NTCALUG02A Series www.vishay.com Vishay BCcomponents NTCALUG02A103F NTC LUG02A 10K 1 % 3984 K 0.5 % RESISTANCE TEMPERATURE CHARACTERISTICS TEMP. (°C) R(T)/R25 RESISTANCE () R/R (%)  (%/K) T (K) Rmin. () Rmax. () -40 33.43 334 274 2.88 -6.63 0.43 324 643 343 906 -35 24.13 241 323 2.70 -6.41 0.42 234 807 247 839 -30 17.61 176 133 2.53 -6.19 0.41 171 683 180 582 -25 12.99 129 900 2.36 -5.99 0.39 126 835 132 965 -20 9.68 96 761 2.20 -5.79 0.38 94 633 98 889 -15 7.276 72 765 2.05 -5.61 0.36 71 276 74 253 -10 5.522 55 218 1.90 -5.43 0.35 54 170 56 266 -5 4.227 42 268 1.75 -5.26 0.33 41 526 43 010 0 3.262 32 624 1.62 -5.10 0.32 32 096 33 152 5 2.538 25 381 1.49 -4.94 0.30 25 004 25 758 10 1.990 19 897 1.36 -4.80 0.28 19 627 20 167 15 1.571 15 711 1.23 -4.65 0.27 15 517 15 905 20 1.249 12 493 1.12 -4.52 0.25 12 353 12 632 25 1.000 10 000 1.00 -4.39 0.23 9900 10 100 30 0.8056 8056 1.11 -4.26 0.26 7966 8145 35 0.6530 6530 1.22 -4.14 0.29 6450 6609 40 0.5324 5324 1.32 -4.03 0.33 5253 5394 45 0.4365 4365 1.42 -3.92 0.36 4303 4427 50 0.3599 3599 1.52 -3.81 0.40 3544 3653 55 0.2982 2982 1.62 -3.71 0.44 2934 3030 60 0.2484 2484 1.71 -3.61 0.47 2441 2526 65 0.2079 2079 1.80 -3.51 0.51 2041 2116 70 0.1748 1748 1.88 -3.42 0.55 1715 1781 75 0.1476 1476 1.97 -3.34 0.59 1447 1505 80 0.1252 1252 2.05 -3.25 0.63 1226 1277 85 0.1066 1066 2.13 -3.17 0.67 1043 1089 90 0.09116 911.6 2.21 -3.09 0.71 891.5 931.7 95 0.07825 782.5 2.28 -3.02 0.76 764.6 800.3 100 0.06741 674.1 2.36 -2.94 0.80 658.2 690.0 105 0.05828 582.8 2.43 -2.87 0.84 568.7 597.0 110 0.05057 505.7 2.50 -2.81 0.89 493.0 518.3 115 0.04402 440.2 2.56 -2.74 0.94 428.9 451.5 120 0.03844 384.4 2.63 -2.68 0.98 374.3 394.5 125 0.03367 336.7 2.69 -2.62 1.03 327.7 345.8 Revision: 21-Sep-17 Document Number: 29094 7 For technical questions, contact: nlr@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 NTCALUG02A Series www.vishay.com Vishay BCcomponents NTCALUG02A103FL NTC LUG02A 10K 1 % 3435 K 1 % RESISTANCE TEMPERATURE CHARACTERISTICS TEMP. (°C) R(T)/R25 RESISTANCE () R/R (%)  (%/K) T (K) Rmin. () Rmax. () -40 19.10 190 953 4.24 -5.46 0.78 182 848 199 057 -35 14.60 145 953 3.93 -5.30 0.74 140 213 151 693 -30 11.24 112 440 3.63 -5.14 0.71 108 354 116 526 -25 8.729 87 285 3.35 -4.99 0.67 84 364 90 206 -20 6.826 68 260 3.07 -4.85 0.63 66 164 70 355 -15 5.376 53 762 2.80 -4.71 0.60 52 254 55 270 -10 4.264 42 636 2.55 -4.57 0.56 41 549 43 723 -5 3.404 34 038 2.30 -4.44 0.52 33 254 34 822 0 2.735 27 348 2.07 -4.31 0.48 26 783 27 913 5 2.211 22 108 1.84 -4.19 0.44 21 702 22 515 10 1.798 17 979 1.62 -4.08 0.40 17 689 18 270 15 1.471 14 706 1.40 -3.96 0.35 14 499 14 912 20 1.209 12 094 1.20 -3.86 0.31 11 949 12 239 25 1.000 10 000 1.00 -3.75 0.27 9900 10 100 30 0.8311 8311 1.19 -3.65 0.33 8212 8410 35 0.6941 6941 1.38 -3.55 0.39 6845 7037 40 0.5825 5825 1.56 -3.46 0.45 5734 5916 45 0.4911 4911 1.73 -3.37 0.51 4826 4996 50 0.4158 4158 1.90 -3.28 0.58 4079 4237 55 0.3536 3536 2.06 -3.20 0.65 3463 3609 60 0.3020 3020 2.22 -3.12 0.71 2953 3087 65 0.2589 2589 2.38 -3.04 0.78 2527 2650 70 0.2228 2228 2.53 -2.96 0.85 2172 2284 75 0.1925 1925 2.67 -2.89 0.92 1873 1976 80 0.1668 1668 2.81 -2.82 1.00 1621 1715 85 0.1451 1451 2.95 -2.75 1.07 1409 1494 90 0.1267 1267 3.08 -2.69 1.15 1228 1306 95 0.1109 1109 3.21 -2.62 1.22 1074 1145 100 0.09743 974.3 3.34 -2.56 1.30 941.7 1007 105 0.08583 858.3 3.46 -2.50 1.38 828.6 888.0 110 0.07584 758.4 3.58 -2.45 1.46 731.2 785.6 115 0.06720 672.0 3.70 -2.39 1.55 647.1 696.8 120 0.05971 597.1 3.81 -2.34 1.63 574.3 619.8 125 0.05319 531.9 3.92 -2.29 1.72 511.0 552.7 Revision: 21-Sep-17 Document Number: 29094 8 For technical questions, contact: nlr@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 NTCALUG02A Series www.vishay.com Vishay BCcomponents NTCALUG02A104H NTC LUG02A 100K 3 % 4190 K 1.50 % RESISTANCE TEMPERATURE CHARACTERISTICS TEMP. (°C) R(T)/R25 RESISTANCE () R/R (%)  (%/K) T (K) Rmin. () Rmax. () -40 36.66 3 666 299 9.05 -6.69 1.35 3 334 354 3 998 244 -35 26.38 2 637 588 8.47 -6.49 1.31 2 414 139 2 861 036 -30 19.17 1 916 576 7.91 -6.29 1.26 1 764 917 2 068 236 -25 14.06 1 406 111 7.38 -6.10 1.21 1 302 387 1 509 836 -20 10.41 1 041 184 6.86 -5.92 1.16 969 745 1 112 622 -15 7.778 777 846 6.37 -5.75 1.11 728 330 827 362 -10 5.861 586 097 5.89 -5.58 1.06 551 581 620 613 -5 4.453 445 257 5.43 -5.42 1.00 421 079 469 435 0 3.409 340 942 4.99 -5.26 0.95 323 936 357 948 5 2.631 263 054 4.56 -5.11 0.89 251 054 275 054 10 2.044 204 446 4.15 -4.97 0.84 195 960 212 931 15 1.600 160 014 3.75 -4.83 0.78 154 008 166 020 20 1.261 126 087 3.37 -4.70 0.72 121 837 130 336 25 1.000 100 000 3.00 -4.57 0.66 97 000 103 000 30 0.7981 79 808 3.36 -4.45 0.75 77 128 82 488 35 0.6408 64 077 3.70 -4.33 0.86 61 703 66 451 40 0.5175 51 745 4.04 -4.22 0.96 49 655 53 836 45 0.4202 42 021 4.36 -4.11 1.06 40 187 43 855 50 0.3431 34 308 4.68 -4.00 1.17 32 702 35 913 55 0.2816 28 156 4.98 -3.90 1.28 26 752 29 559 60 0.2322 23 222 5.28 -3.80 1.39 21 996 24 449 65 0.1925 19 246 5.57 -3.71 1.50 18 174 20 318 70 0.1602 16 025 5.85 -3.62 1.62 15 088 16 961 75 0.1340 13 402 6.12 -3.53 1.73 12 582 14 222 80 0.1126 11 258 6.38 -3.45 1.85 10 539 11 976 85 0.09496 9496 6.64 -3.36 1.97 8866 10 126 90 0.08042 8042 6.89 -3.28 2.10 7488 8596 95 0.06837 6837 7.13 -3.21 2.22 6350 7325 100 0.05835 5835 7.36 -3.13 2.35 5405 6265 105 0.04998 4998 7.59 -3.06 2.48 4618 5377 110 0.04296 4296 7.82 -2.99 2.61 3960 4632 115 0.03705 3705 8.03 -2.93 2.75 3407 4003 120 0.03206 3206 8.25 -2.86 2.88 2942 3470 125 0.02783 2783 8.45 -2.80 3.02 2548 3018 Revision: 21-Sep-17 Document Number: 29094 9 For technical questions, contact: nlr@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer  ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2017 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 08-Feb-17 1 Document Number: 91000
