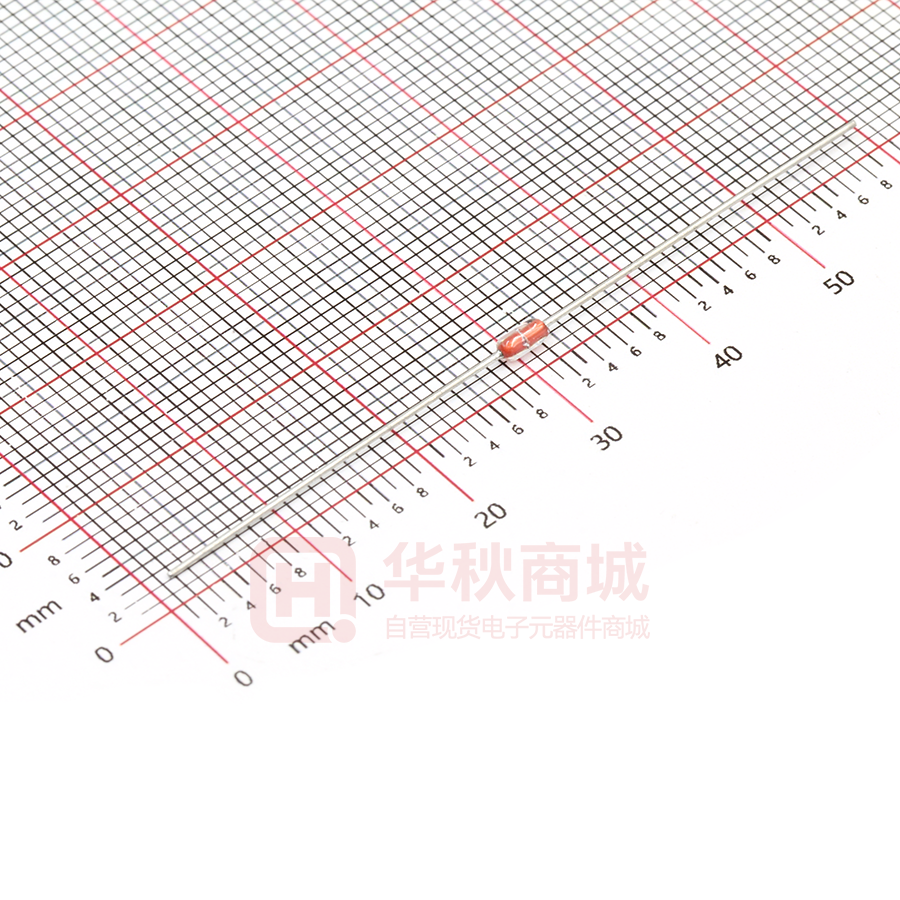

NTCLG100E2103JB

NTCLG100E2 www.vishay.com Vishay BCcomponents NTC Thermistors, Glass Encapsulated High Temperature Sensors FEATURES • Small diameter down to 1.8 mm • Quick response time down to 0.9 s • Wide temperature range from -40 °C to +200 °C • Resistant to corrosive atmospheres and harsh environments • Available in bulk or on tape • Mounting: axial • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 QUICK REFERENCE DATA PARAMETER Resistance value at 25 °C (R25) Tolerance on R25-value B25/85-value APPLICATIONS VALUE UNIT 10K to 220K Ω ±5 % 3797 to 3977 K DESIGN-IN SUPPORT For complete curve computation, please www.vishay.com/thermistors/ntc-curve-list/. Tolerance on B25/85-value ± 1.3 to ± 3 % Operating temperature range -40 to +200 °C Maximum power dissipation at 55 °C 100 mW Dissipation factor 2.5 mW/K Response time 0.9 s 6 s Thermal time constant τ Climatic category (LCT / UCT / days) • Domestic appliances • Industrial process control visit: DESCRIPTION These thermistors have a negative temperature coefficient and are mounted in a glass envelope: NTCLG100E2...B (SOD27) with tinned copper-clad steel leads in bulk NTCLG100E2...T is the taped on bandolier version 40 / 200 / 56 ≈ 0.14 Weight High temperature measurement, sensing and control: g MOUNTING By soldering, clamping or welding. Bending of the leads should be done at least 3 mm from the glass body and without exerting forces on the glass body. ELECTRICAL DATA AND ORDERING INFORMATION R25 (Ω) R25-TOL. (± %) B25/85 (K) B25/85-TOL. (± %) SAP MATERIAL AND ORDERING NUMBER NTCLG100E2... 10 000 5 3 977 1.3 103JB 20 000 5 3 977 1.3 203JB 30 000 5 3 977 1.3 303JB 100 000 5 3 977 1.3 104JB 220 000 5 3 797 3.0 224JB Note • In SAP part replace last character by B for bulk and by T for taped components Revision: 29-Jun-17 Document Number: 29050 1 For technical questions, contact: nlr@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 NTCLG100E2 www.vishay.com Vishay BCcomponents DIMENSIONS in millimeters Thermistors in bulk (NTCLG100E2...B) Ø 1.8 ± 0.2 Ø 0.46 to 0.56 25.4 min. 3.75 ± 0.5 25.4 min. THERMISTORS ON BANDOLIER (NTCLG100E2...T) Bandolier taped according to IEC 60286-1 0.8 max. S 5 ± 0.3 1.2 max. L1 L2 6 ± 0.5 53 ± 1.5 The components are centered so that |L1 - L2| = 1.2 mm max. The cumulative space (S) measured over 10 spacings = 50 mm ± 2 mm DERATING Power derating curve P (%) 100 0 - 40 0 55 85 Tamb (°C) 200 Note • Zero power is considered as measuring power max. 1 % of rated power STABILITY CHARACTERISTICS Stability of glass encapsulated NTCs in thermal shock test (200 000 cycles -40 °C / +200 °C) 0.8 0 R R (%) T (at 25 °C) T (K) - 0.1 0.6 T (at 85 °C) R85/R85 0.4 - 0.2 R25/R25 - 0.3 0.2 0 3 10 Revision: 29-Jun-17 104 105 Cycles - 0.4 106 Document Number: 29050 2 For technical questions, contact: nlr@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 NTCLG100E2 www.vishay.com Vishay BCcomponents RESISTANCE VALUES AT INTERMEDIATE TEMPERATURES FOR NTCLG100E2 R-TOL. (± %) α (%/K) TEMPERATURE (°C) RT/R25 -40 33.21 332 094 664 187 996 281 3 320 936 10.08 -6.62 1.52 -35 23.99 239 900 479 799 719 699 2 398 996 9.59 -6.39 1.50 -30 17.52 175 200 350 399 525 599 1 751 996 9.12 -6.18 1.48 -25 12.93 129 287 258 574 387 861 1 292 869 8.67 -5.98 1.45 -20 9.636 96 358 192 716 289 074 963 582 8.24 -5.78 1.42 -15 7.25 72 500 145 001 217 501 725 004 7.82 -5.60 1.40 -10 5.505 55 046 110 092 165 138 550 459 7.42 -5.42 1.37 -5 4.216 42 157 84 314 126 471 421 570 7.04 -5.25 1.34 0 3.255 32 554 65 108 97 663 325 542 6.67 -5.09 1.31 RT FOR 10 kΩ RT FOR 20 kΩ RT FOR 30 kΩ RT FOR 100 kΩ T-TOL. (± °C) 5 2.534 25 339 50 677 76 016 253 386 6.31 -4.93 1.28 10 1.987 19 872 39 744 59 617 198 722 5.96 -4.79 1.25 15 1.57 15 698 31 397 47 095 156 985 5.63 -4.64 1.21 20 1.249 12 488 24 975 37 463 124 877 5.31 -4.51 1.18 25 1.000 10 000 20 000 30 000 100 000 5.00 -4.38 1.14 30 0.8059 8059 16 118 24 177 80 591 5.30 -4.25 1.25 35 0.6535 6535 13 069 19 604 65 347 5.59 -4.13 1.35 40 0.5330 5330 10 660 15 990 53 299 5.87 -4.02 1.46 45 0.4372 4372 8743 13 115 43 717 6.14 -3.91 1.57 50 0.3605 3605 7211 10 816 36 053 6.41 -3.80 1.69 55 0.2989 2989 5977 8966 29 887 6.66 -3.70 1.80 60 0.2490 2490 4980 7470 24 900 6.91 -3.60 1.92 65 0.2084 2084 4169 6253 20 844 7.15 -3.51 2.04 70 0.1753 1753 3506 5259 17 530 7.39 -3.42 2.16 75 0.1481 1481 2962 4443 14 809 7.61 -3.33 2.29 80 0.1256 1256 2513 3769 12 564 7.84 -3.25 2.41 85 0.1070 1070 2141 3211 10 703 8.05 -3.17 2.54 90 0.09154 915.4 1831 2746 9154 8.26 -3.09 2.67 95 0.07860 786.0 1572 2358 7860 8.46 -3.01 2.81 100 0.06773 677.3 1355 2032 6773 8.66 -2.94 2.95 105 0.05857 585.7 1171 1757 5857 8.85 -2.87 3.08 110 0.05083 508.3 1017 1525 5083 9.04 -2.80 3.23 115 0.04426 442.6 885.2 1328 4426 9.22 -2.74 3.37 120 0.03866 386.6 773.2 1160 3866 9.40 -2.67 3.52 125 0.03387 338.7 677.5 1016 3387 9.57 -2.61 3.66 130 0.02977 297.7 595.4 893.1 2977 9.74 -2.55 3.81 135 0.02624 262.4 524.8 787.2 2624 9.91 -2.50 3.97 140 0.02319 231.9 463.8 695.7 2319 10.07 -2.44 4.12 145 0.02055 205.5 411.1 616.6 2055 10.23 -2.39 4.28 150 0.01826 182.6 365.3 547.9 1826 10.38 -2.34 4.44 155 0.01627 162.7 325.4 488.1 1627 10.53 -2.29 4.60 160 0.01453 145.3 290.6 435.9 1453 10.67 -2.24 4.77 165 0.01301 130.1 260.1 390.2 1301 10.82 -2.19 4.94 170 0.01167 116.7 233.4 350.1 1167 10.96 -2.15 5.11 175 0.01049 104.9 209.9 314.8 1049 11.09 -2.10 5.28 180 0.009457 94.57 189.1 283.7 945.7 11.23 -2.06 5.45 185 0.008541 85.41 170.8 256.2 854.1 11.36 -2.02 5.63 190 0.007729 77.29 154.6 231.9 772.9 11.49 -1.98 5.81 195 0.007009 70.09 140.2 210.3 700.9 11.61 -1.94 5.99 200 0.006367 63.67 127.3 191.0 636.7 11.73 -1.90 6.17 Revision: 29-Jun-17 Document Number: 29050 3 For technical questions, contact: nlr@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 NTCLG100E2 www.vishay.com Vishay BCcomponents RESISTANCE VALUES AT INTERMEDIATE TEMPERATURES FOR NTCLG100E2 TEMPERATURE (°C) RT/R25 RT FOR 220 kΩ R-TOL. (± %) α (%/K) T-TOL. (± °C) -40 -35 -30 -25 -20 -15 -10 -5 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170 175 180 185 190 195 200 25.78 19.13 14.32 10.82 8.244 6.335 4.907 3.829 3.011 2.384 1.900 1.525 1.231 1.000 0.817 0.6712 0.5543 0.4602 0.3839 0.3218 0.2710 0.2293 0.1947 0.1661 0.1422 0.1223 0.1055 0.09135 0.07936 0.06918 0.06050 0.05307 0.04670 0.04121 0.03646 0.03235 0.02878 0.02567 0.02295 0.02057 0.01847 0.01663 0.01501 0.01357 0.01229 0.01116 0.01015 0.009247 0.008442 5 672 264 4 207 576 3 150 400 2 380 124 1 813 764 1 393 675 1 079 442 842 474 662 373 524 457 418 080 335 455 270 847 220 000 179 734 147 656 121 952 101 242 84 466 70 806 59 627 50 436 42 844 36 544 31 294 26 901 23 210 20 096 17 460 15 220 13 310 11 676 10 273 9065 8022 7117 6332 5647 5049 4525 4064 3659 3301 2985 2704 2455 2233 2034 1857 16.18 15.11 14.07 13.08 12.13 11.22 10.34 9.49 8.67 7.88 7.13 6.39 5.68 5.00 5.66 6.30 6.92 7.52 8.10 8.67 9.21 9.75 10.26 10.76 11.25 11.72 12.18 12.63 13.06 13.49 13.90 14.30 14.69 15.08 15.45 15.81 16.17 16.51 16.85 17.18 17.50 17.82 18.13 18.43 18.72 19.01 19.29 19.57 19.84 -6.07 -5.88 -5.70 -5.52 -5.35 -5.19 -5.03 -4.88 -4.74 -4.60 -4.47 -4.34 -4.22 -4.10 -3.99 -3.88 -3.77 -3.67 -3.58 -3.48 -3.39 -3.30 -3.22 -3.14 -3.06 -2.99 -2.92 -2.85 -2.78 -2.71 -2.65 -2.59 -2.53 -2.47 -2.42 -2.37 -2.31 -2.26 -2.22 -2.17 -2.12 -2.08 -2.04 -2.00 -1.95 -1.92 -1.88 -1.84 -1.81 2.67 2.57 2.47 2.37 2.27 2.16 2.05 1.94 1.83 1.71 1.59 1.47 1.35 1.22 1.42 1.63 1.83 2.05 2.27 2.49 2.72 2.95 3.19 3.43 3.67 3.92 4.18 4.44 4.70 4.97 5.24 5.52 5.81 6.09 6.39 6.68 6.99 7.29 7.61 7.92 8.24 8.57 8.90 9.24 9.58 9.92 10.27 10.63 10.99 Revision: 29-Jun-17 Document Number: 29050 4 For technical questions, contact: nlr@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay's knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer's responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer's technical experts. Product specifications do not expand or otherwise modify Vishay's terms and conditions of purchase, including but not limited to the warranty expressed therein. Hyperlinks included in this datasheet may direct users to third-party websites. These links are provided as a convenience and for informational purposes only. Inclusion of these hyperlinks does not constitute an endorsement or an approval by Vishay of any of the products, services or opinions of the corporation, organization or individual associated with the third-party website. Vishay disclaims any and all liability and bears no responsibility for the accuracy, legality or content of the third-party website or for that of subsequent links. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2022 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 01-Jan-2022 1 Document Number: 91000
