PWA
www.vishay.com
Vishay Electro-Films
Thin Film Power Resistors
FEATURES
•
•
•
•
•
•
Product may not be to scale

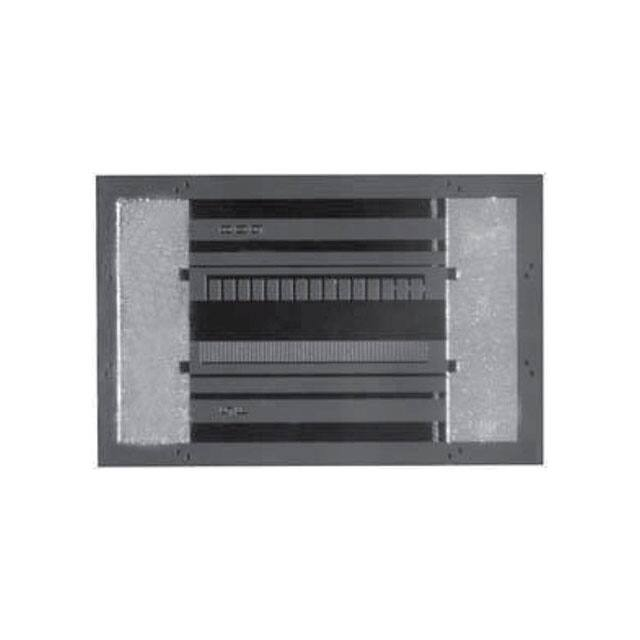

The PWA series resistor chips offer a 500 mW power rating
in a small size. These offer one of the best combinations of
size and power available.
The PWAs are manufactured using Vishay Electro-Films
(EFI) sophisticated thin film equipment and manufacturing
technology. The PWAs are 100 % electrically tested and
visually inspected to MIL-STD-883, method 2032, class H or
class K.
Wire bondable
500 mW power
Chip size: 0.030" x 0.045"
Case: 0503
Resistance range 0.3 Ω to 1 MΩ
Oxidized silicon substrate for good power
dissipation
• Resistor material: tantalum nitride, self-passivating
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
APPLICATIONS
The PWA resistor chips are used mainly in higher power
circuits of amplifiers where increased power loads require a
more specialized resistor.
TEMPERATURE COEFFICIENT OF RESISTANCE, VALUES, AND TOLERANCES
PARAMETER
Total Resistance Range
Standard Tolerances
TCR
VALUE
0.3 to 1M
± 0.1, ± 0.5, ± 1, ± 5
± 25, ± 50, ± 100, ± 150
UNIT
Ω
%
ppm/°C
Tightest Standard Tolerance Available
5%
1%
0.5 %
0.1 %
± 25 ppm/°C
± 50 ppm/°C
± 100 ppm/°C
± 150 ppm/°C
± 250 ppm/°C
+600 ppm/°C / -100 ppm/°C
0.3 2
25
5
100
*600, - 100 ppm R < 2 ± 250 ppm for 2 to 5
200 k 500 k
300 k 1 M
STANDARD ELECTRICAL SPECIFICATIONS
PARAMETER
Noise, MIL-STD-202, Method 308
100 Ω to 250 kΩ
< 100 Ω or > 251 kΩ
Moisture Resistance, MIL-STD-202, Method 106
Stability, 1000 h, +125 °C, 250 mW
Operating Temperature Range
Thermal Shock, MIL-STD-202, Method 107, Test Condition F
High Temperature Exposure, +150 °C, 100 h
Dielectric Voltage Breakdown
Insulation Resistance
Operating Voltage
Steady State
5 x Rated Power
DC Power Rating at + 70 °C (Derated to zero at + 175 °C)
(Conductive epoxy die attach to alumina substrate)
5 x Rated Power Short-Time Overload, + 25 °C, 5 s
VALUE
UNIT
-35 typ.
-20 typ.
± 0.5 max. ΔR/R
± 0.5 max. ΔR/R
-55 to +125
± 0.1 max. ΔR/R
± 0.2 max. ΔR/R
200
1012 min.
dB
%
%
°C
%
%
V
Ω
100 max.
200 max.
V
0.5
W
± 0.1 max. ΔR/R
%
Document Number: 61019
1
For technical questions, contact: efi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Revision: 19-Feb-2021
PWA
www.vishay.com
Vishay Electro-Films
DIMENSIONS in inches
0.030
0.024
0.030
0.024
0.007
0.030
0.024
0.007
0.030
0.024
0.007
0.0045
0.007
0.045
0.045 0.045
0.007
TYPICAL RANGE
0.3 Ω to 1.3 Ω
TYPICAL RANGE
1.4 Ω to 7.4 Ω
TYPICAL RANGE
7.5 Ω to 42 Ω
TYPICAL RANGE
43 Ω to 1 MΩ
SCHEMATIC
MECHANICAL SPECIFICATIONS
PARAMETER
VALUE
Chip Size
0.030" x 0.045" ± 0.002" (0.762 mm x 1.143 mm ± 0.5 mm)
Chip Thickness
0.010" ± 0.002" (0.254 mm ± 0.05 mm)
Chip Substrate Material
Oxidized silicon, 10 kÅ minimum SiO2
Resistor Material
Tantalum nitride, self-passivating
Bonding Pad Size
0.007" x 0.024" (0.1778 mm x 0.6096 mm)
Number of Pads
2
Pad Material
10 kÅ minimum aluminum (Au optional)
Backing
None, lapped semiconductor silicon (Au back optional)
GLOBAL PART NUMBER INFORMATION
Global Part Number: PWA50000FKANHWS
Global Part Number Description: PWA 5K 1 % 100 ppm Al None H WS
P
W
A
MODEL
RESISTANCE
PWA
First 4 digits
are significant
figures of
resistance
30 x 45
size
Power
resistor
5
0
0
0
0
RESISTANCE
MULTIPLIER
CODE
TOLERANCE
CODE
(%)
TCR
(ppm/°C)
D = 0.0001
C = 0.001
B = 0.01
A = 0.1
0=1
1 = 10
2 = 100
3 = 1000
B = 0.1
C = 0.25
D = 0.5
F = 1.0
G = 2.0
H = 2.5
J = 5.0
K = 10
E = ± 25
C = ± 50
K = ± 100
V = ± 150
L = ± 200
M = ± 250
Z = +600 /
-100
F
K
TERMINATION
G = Au
A = Al
A
N
H
W
S
BACK
METAL
VISUAL
CLASS
PACKAGING
CODE
G = Au
N=
none
H = class H
K = class K
WS =
waffle pack
100 min, 1 mult.
Document Number: 61019
2
For technical questions, contact: efi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Revision: 19-Feb-2021
