RS1A, RS1B, RS1D, RS1G, RS1J, RS1K
www.vishay.com
Vishay General Semiconductor
Surface Mount Fast Switching Rectifier
FEATURES
• Low profile package
• Ideal for automated placement
• Glass passivated pellet chip junction
• Fast switching for high efficiency
• High forward surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
• AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3 or P/NHM3
SMA (DO-214AC)
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
DESIGN SUPPORT TOOLS
click logo to get started
TYPICAL APPLICATIONS
For use in fast switching rectification of power supply,
inverters, converters, and freewheeling diodes for
consumer, automotive and telecommunication.
Models
Available
MECHANICAL DATA
PRIMARY CHARACTERISTICS
IF(AV)
1.0 A
VRRM
50 V, 100 V, 200 V, 400 V, 600 V, 800 V
IFSM
30 A
trr
150 ns, 250 ns, 500 ns
VF
1.3 V
TJ max.
150 °C
Package
SMA (DO-214AC)
Circuit configuration
Single
Case: SMA (DO-214AC)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/N-M3 - halogen-free, RoHS-compliant, commercial
grade
Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified
Base P/NHM3_X - halogen-free, RoHS-compliant and
AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B, .....)
Terminals: matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3, M3, HE3 and HM3 suffix meets JESD 201 class 2
whisker test
Polarity: color band denotes cathode end
MAXIMUM RATINGS (TA = 25 °C unless otherwise noted)
PARAMETER
SYMBOL
Device marking code
RS1A
RS1B
RS1D
RS1G
RS1J
RS1K
UNIT
RA
RB
RD
RG
RJ
RK
Maximum repetitive peak reverse voltage
VRRM
50
100
200
400
600
800
V
Maximum RMS voltage
VRMS
35
70
140
280
420
500
V
Maximum DC blocking voltage
VDC
50
100
200
400
600
800
V
Maximum average forward rectified current at TL = 90 °C
IF(AV)
1.0
A
Peak forward surge current 8.3 ms single half sine-wave
superimposed on rated load
IFSM
30
A
TJ, TSTG
-55 to +150
°C
Operating junction and storage temperature range
Revision: 03-Aug-2018
Document Number: 88707
1
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
RS1A, RS1B, RS1D, RS1G, RS1J, RS1K
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS (TA = 25 °C unless otherwise noted)
PARAMETER
TEST CONDITIONS
Maximum instantaneous
forward voltage
1.0 A
SYMBOL
RS1B
RS1D
RS1J
RS1K
μA
50
Maximum reverse recovery time
IF = 0.5 A, IR = 1.0 A,
Irr = 0.25 A
trr
150
Typical junction capacitance
4.0 V, 1 MHz
CJ
10
UNIT
V
5.0
IR
TA = 125 °C
RS1G
1.3
VF
TA = 25 °C
Maximum DC reverse current at
rated DC blocking voltage
RS1A
250
500
ns
7.0
pF
THERMAL CHARACTERISTICS (TA = 25 °C unless otherwise noted)
PARAMETER
SYMBOL
Typical thermal resistance
RS1A
RS1B
RS1D
RS1G
RJA
(1)
105
RJL
(1)
32
RS1J
RS1K
UNIT
°C/W
Note
(1) Thermal resistance from junction to ambient and from junction to lead mounted on PCB with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad areas
ORDERING INFORMATION (Example)
PREFERRED P/N
UNIT WEIGHT (g)
PREFERRED PACKAGE CODE
BASE QUANTITY
DELIVERY MODE

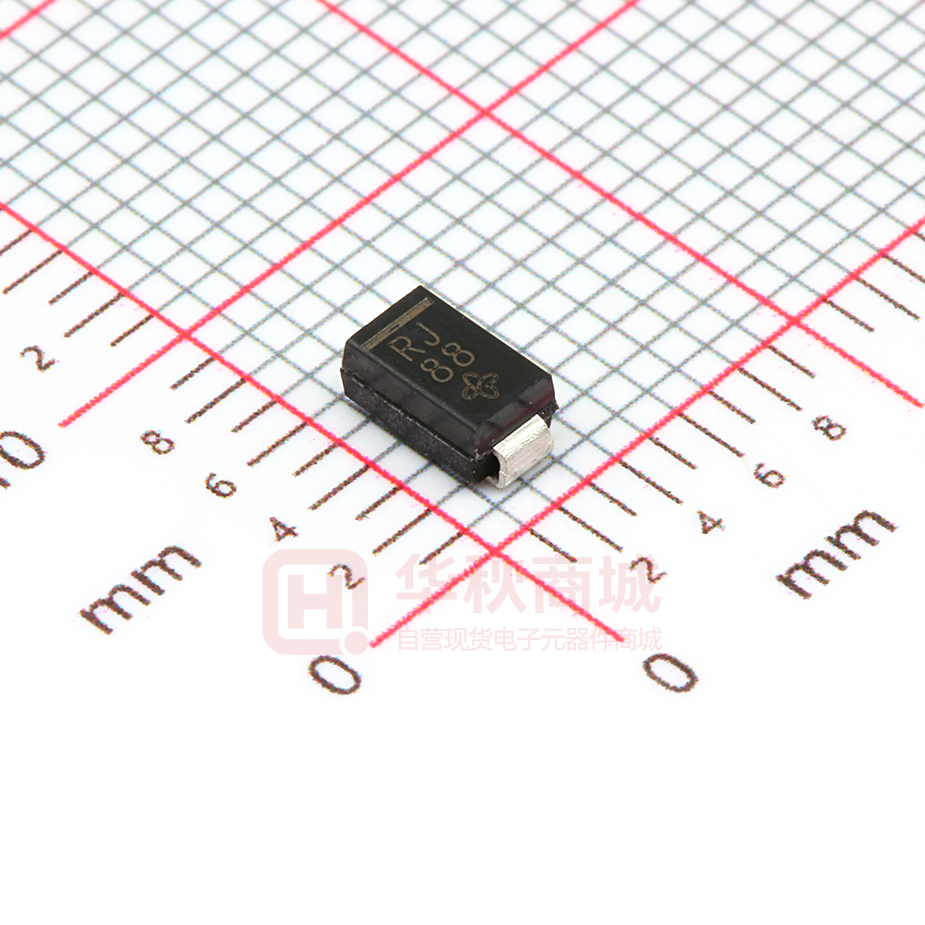

RS1J-E3/61T
0.064
61T
1800
7" diameter plastic tape and reel
RS1J-E3/5AT
0.064
5AT
7500
13" diameter plastic tape and reel
RS1JHE3_A/H (1)
0.064
H
1800
7" diameter plastic tape and reel
RS1JHE3_A/I (1)
0.064
I
7500
13" diameter plastic tape and reel
RS1J-M3/61T
0.064
61T
1800
7" diameter plastic tape and reel
RS1J-M3/5AT
0.064
5AT
7500
13" diameter plastic tape and reel
RS1JHM3_A/H (1)
0.064
H
1800
7" diameter plastic tape and reel
0.064
I
7500
13" diameter plastic tape and reel
RS1JHM3_A/I
(1)
Note
AEC-Q101 qualified
(1)
RATINGS AND CHARACTERISTICS CURVES (TA = 25 °C unless otherwise noted)
50
Resistive or Inductive Load
Peak Forward Surge Current (A)
Average Forward Rectified Current (A)
1.2
1.0
0.8
0.6
0.4
P.C.B. Mounted on
0.2" x 0.2" (5.0 mm x 5.0 mm)
Copper Pad Areas
0.2
TL = 90 °C
8.3 ms Single Half Sine-Wave
40
30
20
10
0
0
0
20
40
60
80
100
120
140
160
180
1
10
100
Lead Temperature (°C)
Number of Cycles at 60 Hz
Fig. 1 - Forward Current Derating Curve
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current
Revision: 03-Aug-2018
Document Number: 88707
2
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
RS1A, RS1B, RS1D, RS1G, RS1J, RS1K
www.vishay.com
Vishay General Semiconductor
100
Junction Capacitance (pF)
Instantaneous Forward Current (A)
100
10
TJ = 125 °C
1
TJ = 25 °C
0.1
TJ = -40 °C
TJ = 25 °C
f = 1.0 MHz
Vsig = 50 mVp-p
RS1A thru RS1G
10
RS1J thru RS1K
0.01
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1
1.8
1
10
Instantaneous Forward Voltage (V)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 5 - Typical Junction Capacitance
100
100
Transient Thermal Impedance (°C/W)
Instantaneous Reverse Current (μA)
100
Reverse Voltage (V)
TJ = 125 °C
10
TJ = 100 °C
1
0.1
TJ = 25 °C
0.01
TJ = -40 °C
0.001
10
20
30
40
50
60
70
80
90
10
Mounted on 0.2" x 0.2" (5 mm x 5 mm)
Copper Pad Area
1
0.01
100
Percent of Rated Peak Reverse Voltage (%)
0.1
1
10
t - Pulse Duration (s)
Fig. 4 - Typical Reverse Characteristics
Fig. 6 - Typical Transient Thermal Impedance
PACKAGE OUTLINE DIMENSIONS in inches (millimeters)
SMA (DO-214AC)
Cathode Band
Mounting Pad Layout
0.110 (2.79)
0.100 (2.54)
0.065 (1.65)
0.049 (1.25)
0.177 (4.50)
0.157 (3.99)
0.012 (0.305)
0.006 (0.152)
0.060 (1.52)
MIN.
0.208 (5.28)
REF.
0.090 (2.29)
0.078 (1.98)
0.060 (1.52)
0.030 (0.76)
0.074 (1.88)
MAX.
0.066 (1.68)
MIN.
0.008 (0.203)
0 (0)
0.208 (5.28)
0.194 (4.93)
Revision: 03-Aug-2018
Document Number: 88707
3
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
