S07B, S07D, S07G, S07J, S07M
www.vishay.com
Vishay Semiconductors
Standard Recovery Rectifier High Voltage Surface Mount
FEATURES
eSMP® Series
•
•
•
•
•
2
1
23020
•
•
•
•
23019

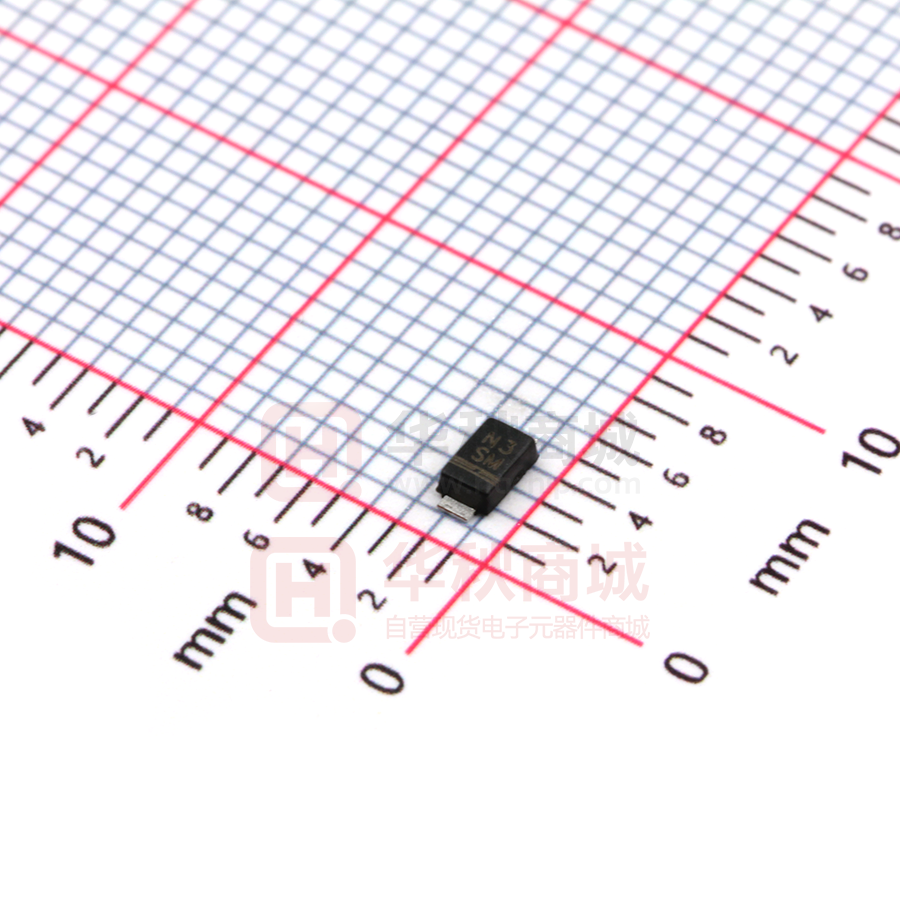

SMF (DO-219AB)
DESIGN SUPPORT TOOLS
click logo to get started
For surface mounted applications
Low profile package
Ideal for automated placement
Glass passivated
Meets MSL level 1, per J-STD-020, LF maximum
peak of 260 °C
Meets JESD 201 class 2 whisker test
Wave and reflow solderable
AEC-Q101 qualified
Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
MECHANICAL DATA
Case: SMF (DO-219AB)
Polarity: band denotes cathode end
Weight: approx. 15 mg
Packaging codes / options:
GS18/10K per 13" reel (8 mm tape)
GS08/3K per 7" reel (8 mm tape)
Circuit configuration: single
Models
Available
PARTS TABLE
PART
ORDERING CODE
MARKING
REMARKS
S07B
S07D
S07G
S07J
S07M
S07B-GS18 or S07B-GS08
S07D-GS18 or S07D-GS08
S07G-GS18 or S07G-GS08
S07J-GS18 or S07J-GS08
S07M-GS18 or S07M-GS08
SB
SD
SG
SJ
SM
Tape and reel
Tape and reel
Tape and reel
Tape and reel
Tape and reel
ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current 8.3 ms single half sine-wave
TL = 110 °C (1)
TA = 65 °C (1)
TL = 25 °C
PART
SYMBOL
VALUE
UNIT
S07B
S07D
S07G
S07J
S07M
S07B
S07D
S07G
S07J
S07M
S07B
S07D
S07G
S07J
S07M
VRRM
VRRM
VRRM
VRRM
VRRM
VRMS
VRMS
VRMS
VRMS
VRMS
VDC
VDC
VDC
VDC
VDC
IF(AV)
IF(AV)
IFSM
100
200
400
600
1000
70
140
280
420
700
100
200
400
600
1000
1.5
0.7
25
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
A
A
A
Note
(1) Averaged over any 20 ms period
Rev. 2.3, 29-Mar-18
Document Number: 85733
1
For technical questions, contact: DiodesAmericas@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
S07B, S07D, S07G, S07J, S07M
www.vishay.com
Vishay Semiconductors
THERMAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
PARAMETER
Thermal resistance junction to ambient air (1)
Operating junction and storage temperature range
TEST CONDITION
SYMBOL
RthJA
Tj, Tstg
VALUE
180
-65 to +175
UNIT
K/W
°C
Note
(1) Mounted on epoxy substrate with 3 mm x 3 mm Cu pads ( 40 μm thick)
ELECTRICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
Instantaneous forward voltage
IF = 1 A (1)
TA = 25 °C
Maximum DC reverse current at
rated DC blocking voltage
TA = 125 °C
IF = 0.5 A, IR = 1 A,
Irr = 0.25 A
Reverse recovery time
Typical capacitance
4 V, 1 MHz
PART
SYMBOL
MAX.
UNIT
S07B
VF
MIN.
TYP.
1.1
V
S07D
VF
1.1
V
S07G
VF
1.1
V
S07J
VF
1.1
V
S07M
VF
1.1
V
S07B
IR
10
μA
S07D
IR
10
μA
S07G
IR
10
μA
S07J
IR
10
μA
S07M
IR
10
μA
S07B
IR
50
μA
S07D
IR
50
μA
S07G
IR
50
μA
S07J
IR
50
μA
S07M
IR
50
μA
S07B
trr
1800
ns
S07D
trr
1800
ns
S07G
trr
1800
ns
S07J
trr
1800
ns
S07M
trr
1800
S07B
Cj
4
pF
ns
S07D
Cj
4
pF
S07G
Cj
4
pF
S07J
Cj
4
pF
S07M
Cj
4
pF
Note
(1) Pulse test: 300 μs pulse width, 1 % duty cycle
TYPICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
1000
1.4
Instantaneous Forward Current (mA)
Average Forward Rectified Current - IFAV [A]
1.6
RthJA = 30K/W
1.2
1.0
0.8
0.6
RthJA = 150K/W
0.4
0.2
TJ = 150 °C
TJ = 25 °C
TJ = 100 °C
100
0.0
0
25
22773
50
75
100
125
150
Ambient Temperature -Tamb [°C]
Fig. 1 - Forward Current Derating Curve
Rev. 2.3, 29-Mar-18
600
175
17376
700
800
900
1000
1100
Instantaneous Forward Voltage (mV)
Fig. 2 - Typical Instantaneous Forward Characteristics
Document Number: 85733
2
For technical questions, contact: DiodesAmericas@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
S07B, S07D, S07G, S07J, S07M
www.vishay.com
Vishay Semiconductors
Instantaneous Reverse Current (µA)
100
10
9
TJ = 150 °C
8
TJ = 125 °C
7
TJ = 100 °C
6
C (pF)
10
1
TJ = 75 °C
4
3
TJ = 50 °C
0.1
5
2
1
TJ = 25 °C
0.01
0
0
17377
100
200
300
400
500
600
700
800
900
Instantaneous Reverse Voltage (V)
0
5
10
15
Fig. 3 - Typical Instantaneous Reverse Characteristics
20
25
30
35
40
VR (V)
17378
Fig. 4 - Capacitance vs. Reverse Voltage
PACKAGE DIMENSIONS in millimeters (inches): SMF (DO-219AB)
0.85 (0.033)
0 (0.000)
0.1 (0.004)
5
5
0.1(0.003)
Detail Z
enlarged
1.2 (0.047)
0.8 (0.031)
0.25 (0.010)
1.9 (0.075)
1.7 (0.067)
0.35 (0.014)
1.08 (0.043)
2.9 (0.114)
0.88 (0.035)
2.7 (0.106)
3.9 (0.154)
3.5 (0.138)
Foot print recommendation:
Created - Date: 15. February 2005
Rev. 3 - Date: 13. March 2007
Document no.: S8-V-3915.01-001 (4)
1.3 (0.051)
1.4 (0.055)
1.3 (0.051)
2.9 (0.114)
17247
Rev. 2.3, 29-Mar-18
Document Number: 85733
3
For technical questions, contact: DiodesAmericas@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
S07B, S07D, S07G, S07J, S07M
www.vishay.com
Vishay Semiconductors
BLISTER TAPE DIMENSIONS in millimeters: SMF (DO-219AB)
PS
Document-No.: S8-V-3717.02-001 (3)
18513
Rev. 2.3, 29-Mar-18
Document Number: 85733
4
For technical questions, contact: DiodesAmericas@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
S07B, S07D, S07G, S07J, S07M
www.vishay.com
Vishay Semiconductors
ORIENTATION IN CARRIER TAPE - SMF
Unreeling direction
SMF
cathode
Top view
Document no.: S8-V-3717.02-003 (4)
Created - Date: 09. Feb. 2010
22670
Rev. 2.3, 29-Mar-18
Document Number: 85733
5
For technical questions, contact: DiodesAmericas@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
