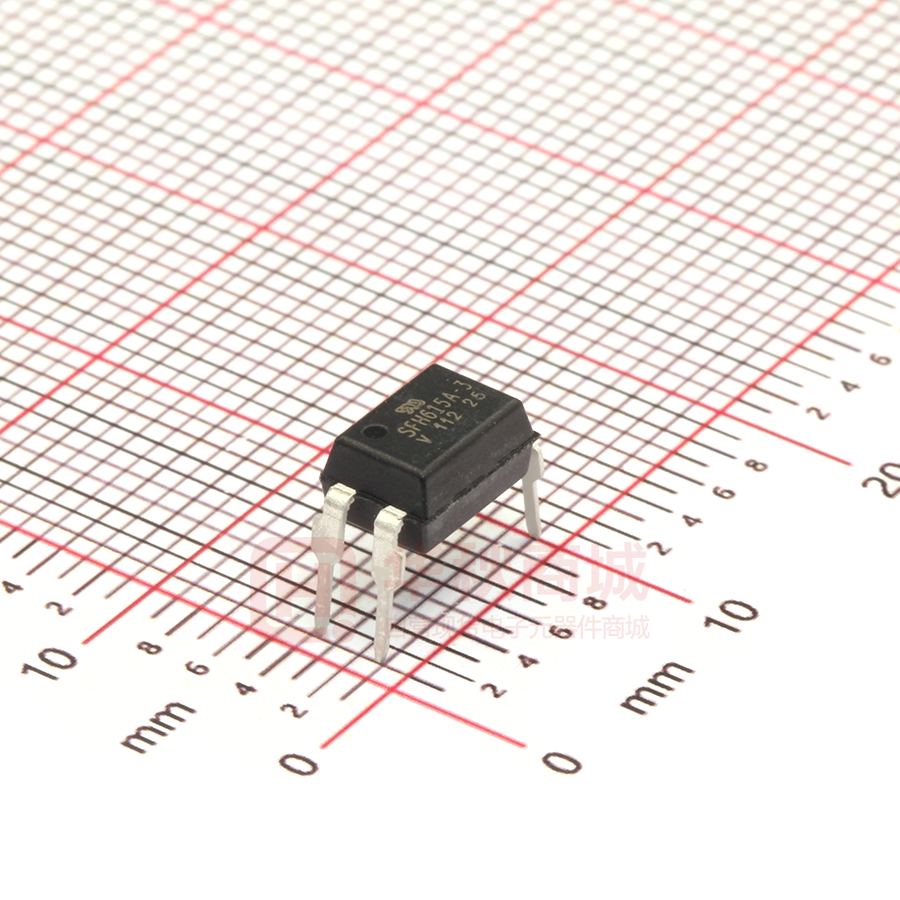

SFH615A
www.vishay.com
Vishay Semiconductors
Optocoupler, Phototransistor Output, High Reliability, 5300 VRMS
FEATURES
• Excellent CTR linearity depending on forward
current
• Isolation test voltage, 5300 VRMS
A
1
4
C
C
2
3
E
• Fast switching times
• Low CTR degradation
• Low coupling capacitance
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
17918-20
APPLICATIONS
DESCRIPTION
• Switchmode power supply
The SFH615A feature a variety of transfer ratios, low
coupling capacitance and high isolation voltage. These
couplers have a GaAs infrared diode emitter, which is
optically coupled to a silicon planar phototransistor
detector, and is incorporated in a plastic DIP-4 package.
• Telecom
The coupling devices are designed for signal transmission
between two electrically separated circuits.
• UL file no. E52744
The couplers are end-stackable with 2.54 mm lead spacing.
Creepage and clearance distances of > 8 mm are achieved
with option 6. This version complies with IEC 60950
(DIN VDE 0805) for reinforced insulation up to an operation
voltage of 400 VRMS or DC. Specifications subject to
change.
• DIN EN 60747-5-5 (VDE 0884-5) available with option 1
• Battery powered equipment
AGENCY APPROVALS
• cUL tested to CSA 22.2 bulletin 5A
• BSI EN 60950; EN 60065
• FIMKO
• CQC
ORDERING INFORMATION
S
F
H
6
1
5
A
-
PART NUMBER
#
X
CTR
BIN
0
UL, cUL, BSI, FIMKO
DIP-4, 400 mil, option 6
#
PACKAGE OPTION
AGENCY CERTIFIED/PACKAGE
DIP-4
#
DIP-4
Option 6
7.62 mm
10.16 mm
Option 7
Option 9
> 8 mm
8 mm typ.
T
TAPE
AND
REEL
CTR (%)
40 to 80
63 to 125
100 to 200
160 to 320
SFH615A-1
SFH615A-2
SFH615A-3
SFH615A-4
-
SFH615A-1X006
SFH615A-2X006
SFH615A-3X006
SMD-4, option 7
-
-
SFH615A-3X007T (1)
-
SMD-4, option 9
-
SFH615A-2X009T
SFH615A-3X009T (1)
SFH615A-4X009
UL, cUL, VDE, BSI, FIMKO
DIP-4
DIP-4, 400 mil, option 6
40 to 80
63 to 125
100 to 200
160 to 320
SFH615A-1X001
SFH615A-2X001
SFH615A-3X001
SFH615A-4X001
SFH615A-1X016
SFH615A-2X016
SFH615A-3X016
SFH615A-4X016
SMD-4, option 7
SFH615A-1X017T (1)
SFH615A-2X017T (1)
SFH615A-3X017
SFH615A-4X017T (1)
SMD-4, option 9
-
-
-
SFH615A-2X019T
SFH615A-2X019T3 (2)
Notes
• Additional options may be possible, please contact sales office.
(1) Also available in tubes; do not add T to end.
(2) T3 rotation in tape and reel packaging.
Document Number: 83433
1
For technical questions, contact: optocoupleranswers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Rev. 1.4, 31-Aug-15
SFH615A
www.vishay.com
Vishay Semiconductors
ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
SYMBOL
VALUE
UNIT
INPUT
Reverse voltage
VR
6
V
DC forward current
IF
60
mA
Forward surge current
tp ≤ 10 μs
IFSM
2.5
A
LED power dissipation
at 25 °C
Pdiss
70
mW
Collector emitter voltage
VCEO
70
V
Emitter collector voltage
VECO
7
V
IC
50
mA
tp/T = 0.5, tp ≤ 10 ms
ICM
100
mA
at 25 °C
Pdiss
150
mW
Operation temperature
Tamb
-55 to +100
°C
Storage temperature range
Tstg
-55 to +150
°C
Tsld
260
°C
OUTPUT
Collector current
Collector peak current
Ouput power dissipation
COUPLER
Soldering temperature (1)
2 mm from case, ≤ 10 s
Notes
• Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. Functional operation of the device is not
implied at these or any other conditions in excess of those given in the operational sections of this document. Exposure to absolute
maximum ratings for extended periods of the time can adversely affect reliability.
(1) Refer to reflow profile for soldering conditions for surface mounted devices (SMD). Refer to wave profile for soldering conditions for through
hole devices (DIP).
ELECTRICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
PART
SYMBOL
MIN.
TYP.
MAX.
UNIT
INPUT
Forward voltage
IF = 60 mA
VF
1.35
1.65
V
Reverse current
VR = 6 V
IR
0.01
10
μA
VR = 0 V, f = 1 MHz
CO
13
Capacitance
pF
OUTPUT
Collector emitter capacitance
Collector emitter leakage current
VCE = 5 V, f = 1 MHz
VCE = 10 V
CCE
5.2
SFH615A-1
ICEO
2
SFH615A-2
ICEO
SFH615A-3
ICEO
SFH615A-4
pF
50
nA
2
50
nA
5
100
nA
ICEO
5
100
nA
VCEsat
0.25
0.4
CC
0.4
COUPLER
Collector emitter saturation voltage
Coupling capacitance
IF = 10 mA, f = 1 MHz
V
pF
Note
• Minimum and maximum values are testing requirements. Typical values are characteristics of the device and are the result of engineering
evaluation. Typical values are for information only and are not part of the testing requirements.
Document Number: 83433
2
For technical questions, contact: optocoupleranswers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Rev. 1.4, 31-Aug-15
SFH615A
www.vishay.com
Vishay Semiconductors
CURRENT TRANSFER RATIO (Tamb = 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
IF = 10 mA, VCE = 5 V
IC/IF
IF = 1 mA, VCE = 5 V
PART
SYMBOL
MIN.
MAX.
UNIT
SFH615A-1
CTR
40
TYP.
80
%
SFH615A-2
CTR
63
125
%
SFH615A-3
CTR
100
200
%
SFH615A-4
CTR
160
320
%
SFH615A-1
CTR
13
30
%
SFH615A-2
CTR
22
45
%
SFH615A-3
CTR
34
70
%
SFH615A-4
CTR
56
90
%
SWITCHING CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
PART
SYMBOL
MIN.
TYP.
MAX.
UNIT
NON-SATURATED
Turn-on time
IF = 10 mA, VCC = 5 V, RL = 75 Ω
ton
3
μs
Rise time
IF = 10 mA, VCC = 5 V, RL = 75 Ω
tr
2
μs
Turn-off time
IF = 10 mA, VCC = 5 V, RL = 75 Ω
toff
2.3
μs
Fall time
IF = 10 mA, VCC = 5 V, RL = 75 Ω
tf
2
μs
Cut-off frequency
IF = 10 mA, VCC = 5 V, RL = 75 Ω
fCO
208
kHz
ton
3
μs
μs
SATURATED
IF = 20 mA
Turn-on time
Rise time
Turn-off time
Fall time
SFH615A-1
SFH615A-2
ton
4.2
SFH615A-3
ton
4.2
μs
IF = 5 mA
SFH615A-4
ton
6
μs
IF = 20 mA
SFH615A-1
tr
2
μs
SFH615A-2
tr
3
μs
SFH615A-3
tr
3
μs
IF = 5 mA
SFH615A-4
tr
4
μs
IF = 20 mA
SFH615A-1
toff
18
μs
IF = 10 mA
IF = 10 mA
SFH615A-2
toff
23
μs
SFH615A-3
toff
23
μs
IF = 5 mA
SFH615A-4
toff
25
μs
IF = 20 mA
SFH615A-1
tf
11
μs
SFH615A-2
tf
14
μs
SFH615A-3
tf
14
μs
SFH615A-4
tf
15
μs
IF = 10 mA
IF = 10 mA
IF = 5 mA
Document Number: 83433
3
For technical questions, contact: optocoupleranswers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Rev. 1.4, 31-Aug-15
SFH615A
www.vishay.com
IF
Vishay Semiconductors
+5V
IF
IF
0
0
tp
IC
R G = 50 Ω
tp
= 0.01
T
100 %
90 %
t p = 50 µs
Channel I
Oscilloscope
R L = 1 MΩ
C L = 20 pF
Channel II
50 Ω
10 %
0
tr
RL
td
ts
t on
95 10804-3
tp
td
tr
t on (= td + tr)
Fig. 1 - Test Circuit, Non-Saturated Operation
IF
t
0
ts
tf
t off (= ts + tf)
t
Storage time
Fall time
Turn-off time
96 11698
Fig. 3 - Switching Times
+5V
I F = 10 mA
Pulse duration
Delay time
Rise time
Turn-on time
tf
t off
IC
R G = 50 Ω
tp
= 0.01
T
t p = 50 µs
Channel I
Channel II
50 Ω
Oscilloscope
R L ≥ 1 MΩ
C L ≤ 20 pF
1 kΩ
95 10843
Fig. 2 - Test Circuit, Saturated Operation
SAFETY AND INSULATION RATINGS
PARAMETER
Climatic classification
Pollution degree
Comparative tracking index
Maximum rated withstanding isolation voltage
Tested withstanding isolation voltage
Maximum transient isolation voltage
Maximum repetitive peak isolation voltage
Isolation resistance
Output safety power
Input safety current
Input safety temperature
Creepage distance
Clearance distance
Creepage distance
Clearance distance
Creepage distance
Clearance distance
Insulation thickness
TEST CONDITION
According to IEC 68 part 1
According to DIN VDE 0109
Insulation group IIIa
According to UL1577, t = 1 min
According to UL1577, t = 1 s
According to DIN EN 60747-5-5
According to DIN EN 60747-5-5
Tamb = 25 °C, VIO = 500 V
Tamb = 100 °C, VIO = 500 V
SYMBOL
CTI
VISO
VISO
VIOTM
VIORM
RIO
RIO
PSO
ISI
TS
DIP-4
DIP-4
DIP-4, 400 mil, option 6
DIP-4, 400 mil, option 6
SMD-4, option 7 and option 9
SMD-4, option 7 and option 9
DTI
VALUE
55/115/21
2
175
4470
5300
8000
890
≥ 1012
≥ 1011
700
400
175
≥7
≥7
≥8
≥8
≥7
≥7
≥ 0.4
UNIT
VRMS
VRMS
Vpeak
Vpeak
Ω
Ω
mW
mA
°C
mm
mm
mm
mm
mm
mm
mm
Note
• As per DIN EN 60747-5-5, § 7.4.3.8.2, this optocoupler is suitable for “safe electrical insulation” only within the safety ratings. Compliance
with the safety ratings shall be ensured by means of protective circuits.
Document Number: 83433
4
For technical questions, contact: optocoupleranswers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Rev. 1.4, 31-Aug-15
SFH615A
www.vishay.com
Vishay Semiconductors
TYPICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
1.6
IF = 0 mA
Tamb = 0 °C
1.4
ICE0 - Leakage Current (nA)
VF - Forward Voltage (V)
10 000
Tamb = 25 °C
1.5
Tamb = - 40 °C
1.3
Tamb = - 55 °C
1.2
1.1
Tamb = 50 °C
1.0
Tamb = 75 °C
0.9
Tamb = 100 °C
0.8
0.7
0.6
0.1
1
10
1000
100
1
VCE = 12 V
0.1
0.01
0.001
-60 -40 -20
100
0
20
40
60
80 100
Tamb - Ambient Temperature (°C)
Fig. 4 - Forward Voltage vs. Forward Current
Fig. 7 - Leakage Current vs. Ambient Temperature
1.4
90
70
CTRNorm - Normalized CTR (NS)
IF = 30 mA
80
IC - Collector Current (mA)
VCE = 24 V
10
IF - Forward Current (mA)
IF = 20 mA
60
IF = 15 mA
50
40
IF = 10 mA
30
20
IF = 5 mA
10
0
0
1
2
3
4
5
7
6
VCE = 5 V
1.2
1.0
0.6
0.4
0.2
0
-60 -40 -20
8
Fig. 5 - Collector Current vs. Collector Emitter Voltage
(non-saturated)
IF = 10 mA
0.8
VCE - Collector Emitter Voltage (NS) (V)
0
20
40
60
80 100
Tamb - Ambient Temperature (°C)
Fig. 8 - Normalized CTR (non-saturated) vs. Ambient Temperature
1.4
IF = 25 mA
25
20
IF = 10 mA
15
IF = 5 mA
10
5
IF = 2 mA
IF = 1 mA
0
0
0.1
0.2
0.3
0.4
VCE - Collector Emitter Voltage (sat) (V)
Fig. 6 - Collector Current vs. Collector Emitter Voltage (saturated)
CTRNorm - Normalized CTR (sat)
30
IC - Collector Current (mA)
VCE = 40 V
VCE = 0.4 V
1.2
1.0
IF = 10 mA
0.8
0.6
0.4
0.2
0
-60 -40 -20
0
20
40
60
80 100
Tamb - Ambient Temperature (°C)
Fig. 9 - Normalized CTR (saturated) vs. Ambient Temperature
Document Number: 83433
5
For technical questions, contact: optocoupleranswers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Rev. 1.4, 31-Aug-15
SFH615A
www.vishay.com
Vishay Semiconductors
1000
VCE = 10 V
1.2
VCE = 5 V
Tamb = 25 °C
Tamb = 50 °C
Tamb = 0 °C
1.0
Tamb = 75 °C
Tamb = - 40 °C
0.8
Tamb = - 55 °C
0.6
Tamb = 100 °C
0.4
0.2
0
0.1
1
10
fCTR - CTR Frequency (kHz)
CTRNorm - Normalized CTR (NS)
1.4
100
10
1
0.1
100
IF - Forward Current (mA)
Fig. 10 - Normalized CTR (non-saturated) vs. Forward Current
10
100
Fig. 13 - Cut-Off Frequency vs. Collector Current
1000
1.4
VCE = 5 V, IF = 10 mA
VCE = 0.4 V
1.2
Tamb = 25 °C
Tamb = 50 °C
Tamb = 0 °C
1.0
Tamb = 75 °C
Tamb = - 40 °C
0.8
Tamb = - 55 °C
0.6
Tamb = 100 °C
0.4
0.2
0
0.1
1
100
10
ton, toff - Switching Time (μs)
CTRNorm - Normalized CTR (sat)
1
IC - Collector Current (mA)
toff
100
10
ton
1
0.1
0.1
1
10
100
RL - Load Resistance (kΩ)
IF - Forward Current (mA)
Fig. 11 - Normalized CTR (saturated) vs. Forward Current
Fig. 14 - Switching Time vs. Load Resistance
0
VCE = 5 V
Phase Angle (deg)
-20
-40
-60
-80
-100
-120
-140
1
10
100
1000
f - Frequency (kHz)
Fig. 12 - Phase Angle vs. Frequency
Document Number: 83433
6
For technical questions, contact: optocoupleranswers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Rev. 1.4, 31-Aug-15
SFH615A
www.vishay.com
Vishay Semiconductors
PACKAGE DIMENISONS in millimeters
4
3
6.5 ± 0.5
Pin 1 identifier
1
2
7.62 ± 0.3
4.58 ± 0.5
0.85 ± 0.1
3.5 ± 0.3
0.5 typ.
0.26
3.3 ± 0.5
2.8 ± 0.5
0.5 ± 0.1
2.54 ± 0.25
i178027-10
7.62 to 9.98
Option 6
Option 7
7.62 typ.
7.62 typ.
Option 9
7.62 typ.
3.5 ± 0.3
+ 0.25
- 0.3
0.35
3.5 ± 0.3
0.1 ± 0.1
3.5 ± 0.3
0.1 min.
0.6 min.
8 min.
2.7 min.
0.6 min.
10.16 ± 0.3
8.16 ± 0.8
10.16 ± 0.3
R 0.25
11.05
1.52
7.7
11.05
1.78
20802-28
8 min.
R 0.25
1.78
1.52
0.76
2.54
0.76
2.54
10.16 typ.
PACKAGE MARKING (Example)
SFH615A-3
V YWW 25
Notes
• VDE logo is only marked on option 1 parts. Option information is not marked on the part.
• Tape and reel suffix (T) is not part of the package marking.
Document Number: 83433
7
For technical questions, contact: optocoupleranswers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Rev. 1.4, 31-Aug-15
SFH615A
www.vishay.com
Vishay Semiconductors
PACKING INFORMATION
DEVICE PER TUBE
TYPE
UNITS/TUBE
TUBES/BOX
UNITS/BOX
DIP-4
100
40
4000
Regular, special,
or bar code label
Tape slot in core
13"
17999-1
Fig. 15 - Tape and Reel Shipping Medium
2 ± 0.1
Ø 1.55 ± 0.05
4 ± 0.1
1.75 ± 0.1
7.5 ± 0.1
16 ± 0.3
12 ± 0.1
0.3 ± 0.05
Fig. 16 - Tape and Packing for Option 7 and Option 9
Ø 1.55 ± 0.05
8 ± 0.1
2 ± 0.1
4 ± 0.1
1.75 ± 0.1
7.5 ± 0.1
16 ± 0.3
0.3 ± 0.05
22734
Fig. 17 - Tape Packing for Option 7 and Option 9, T3 Rotation (2000 units per reel)
Document Number: 83433
8
For technical questions, contact: optocoupleranswers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Rev. 1.4, 31-Aug-15
SFH615A
www.vishay.com
Vishay Semiconductors
SOLDER PROFILES
HANDLING AND STORAGE CONDITIONS
ESD level: HBM class 2
300
5s
Lead temperature
Temperature (°C)
250
235 °C to
260 °C
first wave
200
wave
ca. 200 K/s
150
100 °C to
130 °C
100
Conditions: Tamb < 30 °C, RH < 85 %
Moisture sensitivity level 1, according to J-STD-020
ca. 2 K/s
2 K/s
50
full line: typical
dotted line:
process limits
second
wave
Floor life: unlimited
ca. 5 K/s
forced cooling
0
0
50
100
94 8626
150
200
250
Time (s)
Fig. 18 - Wave Soldering Double Wave Profile According to
J-STD-020 for DIP-8 Devices
300
Temperature (°C)
max. 260 °C
245 °C
255 °C
240 °C
217 °C
250
200
max. 30 s
150
max. 100 s
max. 120 s
100
max. ramp down 6 °C/s
50
max. ramp up 3 °C/s
0
0
19841
50
100
150
200
250
300
Time (s)
Fig. 19 - Lead (Pb)-free Reflow Solder Profile According to
J-STD-020 for SMD-8 Devices
Document Number: 83433
9
For technical questions, contact: optocoupleranswers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Rev. 1.4, 31-Aug-15
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of
typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding
statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a
particular product with the properties described in the product specification is suitable for use in a particular application.
Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over
time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.
Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for
such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document
or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
© 2019 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED
Revision: 01-Jan-2019
1
Document Number: 91000
