SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
4.5 V to 20 V Input, 15 A, 25 A, 40 A
microBuck® DC/DC Converter With PMBus Interface
FEATURES
• Versatile
LINKS TO ADDITIONAL RESOURCES
Evaluation
Boards
Design Tools
DESCRIPTION
The SiC45x is a PMBus 1.3 compliant non-isolated DC/DC
buck regulator with integrated MOSFETs. It is capable of
supplying up to 40 A (SiC450) continuous output current. Its
output voltage is digitally adjustable from 0.3 V to 12 V from
a 4.5 V to 20 V input with switching frequencies up to 1.5
MHz.
SiC45x architecture delivers ultrafast transient response
with minimum output capacitance and tight regulation over
a broad load range. The device has integrated internal
compensation and is stable with any type of output
capacitor. The device incorporates a power saving scheme
that significantly increases light load efficiency.
The SiC45x allows power block configuration programs to
be stored in non volatile memory (NVM). Various operation
parameters can all be locally stored and used to determine
fault behavior. Operation is firmware based and is field
upgradable Pinstrap option is also available for default
configuration without PMBus.
The SiC45x is available in lead (Pb)-free power enhanced
MLP 5 mm x 7 mm package.
APPLICATIONS
•
•
•
•
Server, cloud, and infrastructure
Networking, telecom, storage applications
Distributed point of load power architectures
DDR memory
Axis Title
98
TYPICAL APPLICATION CIRCUIT
96
94
BOOT
PGOOD
EN
VIN
PVIN
PVCC
SiC45x
PH
SW
VSEN+
VSEN-
VDD
ADDR
SALRT
VSET
SCL
AGND
SDA
PGND
RT/SYNC
VOUT
2nd line
eff - Efficiency (%)
PGOOD
ENABLE
INPUT
4.5 V to 20 V
10000
1000
92
2.5 Vo
90
3.3 Vo
5 Vo
1st line
2nd line
Design Tool
- Single supply operation from 4.5 V to 20 V
input voltage
- Scalable solution with continuous output
current of
40 A (SiC450), 25 A (SiC451),
15 A (SiC453)
- Adjustable output voltage from 0.3 V to 12 V
- Built in 5 V regulator for internal circuits and driver supply
- 1 % output voltage accuracy over temperature
- Ultrafast transient response
• Highly efficient
- 98 % peak efficiency
- Optional power save mode
• Highly configurable
- PMBus 1.3 compliant with 1 MHz bus speed
- Internal NVM
- VOUT adjustability and reading resolution of 2 mV
- Supports over 50 PMBus commands
- Supports in phase or 180° out of phase synchronization
- Output voltage source and sink capability
• Robust and reliable
- PVIN, VOUT, IIN and IOUT and temperature reporting
- Over current protection in pulse-by-pulse mode
- Output over and under voltage protection
- Over temperature protection with hysteresis
- Differential output remote sensing
88
86
100
VIN = 12 V
Fsw = 600 kHz
84
82
80
10
0
5
10
15
20
25
30
35
40
IOUT - Output Current (A)
Fig. 1 - Typical Application Circuit
S21-0213-Rev. B, 08-Mar-2021
Fig. 2 - SiC450 Efficiency Curve
Document Number: 77863
1
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
PIN CONFIGURATION
NC 9
NC 8
AGND 7
BOOT 6
GH 5
PH 4
PVIN 3
PVIN 2
PVIN 1
10 NC
11 VSEN12
VSEN+
13 PGOOD
14 ADDR
15 VSET
16 AGND
17 RT / SYNC
18 SALRT
PVIN 34
PGND 33
PGND 32
SW 31
19 SDA
20 SCL
21 EN
22 VDD
23 VIN
24 PVCC
25 GL
26 SW
27 SW
28 SW
29 SW
30 SW

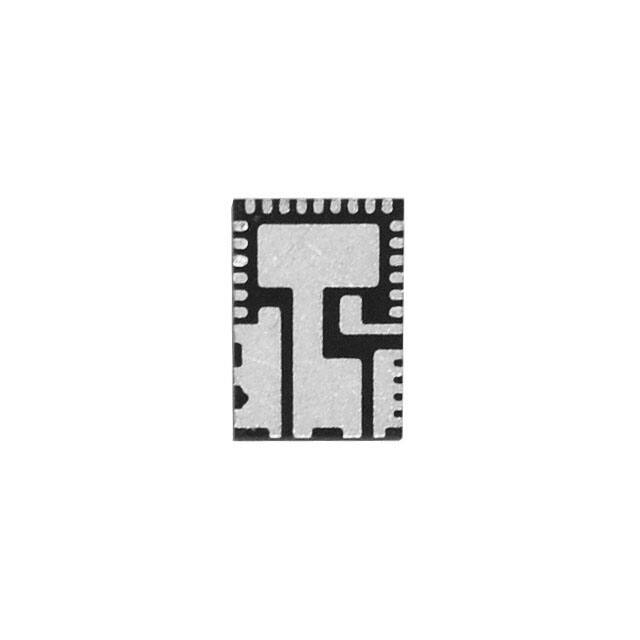

Fig. 3 - Pin Configuration - Bottom View
PIN DESCRIPTION
PIN NUMBER
1, 2, 3, 34
SYMBOL
PVIN
DESCRIPTION
Input voltage for power stage
4
PH
Phase node, return path of high side gate driver
5
GH
High side MOSFET gate monitor
6
BOOT
7, 16
AGND
Bootstrap voltage for high side gate driver (referenced to PH)
Analog signal return ground
8
NC
Not used in Vishay device
9
NC
Not used in Vishay device
10
NC
11
VSEN-
Remote sense amplifier negative input connect to output ground
12
VSEN+
Remote sense amplifier positive input connect to output
13
PGOOD
Power good; open-drain output indicating VOUT is within set limits. Connect a pull up resistor typically
10 kΩ to VDD
14
ADDR
PMBus address programming pin
15
VSET
17
RT/SYNC
18
SALRT
19
SDA
20
SCL
PMBus clock. Connect to external host interface
21
EN
Enable pin. Active high 5 V logic level input
Not used in Vishay device
Output voltage set point by connecting a resistor from VSET to AGND
Clock synchronization pin. Frequency can be set by connecting a resistor to AGND.
Pending on master / salve configuration, a clock can be send / receive via the pin
PMBus alert. Connect to external host interface if desired
PMBus data. Connect to external host interface
22
VDD
Internal 5 V circuits supply voltage. VDD is a LDO output, connect a 1 μF decoupling capacitor to AGND
23
VIN
Internal driver supply voltage
24
PVCC
Supply voltage for internal gate drive. PVCC is a LDO output. Connect a 4.7 μF decoupling capacitor to
PGND
25
GL
Low side MOSFET gate monitor
26 to 31
SW
Switch node
32, 33
PGND
Power ground. Common return for internal MOSFETs
ORDERING INFORMATION
PART NUMBER
SiC450ED-T1-GE3
PART MARKING
MAXIMUM CURRENT
PACKAGE
SiC450
40 A
PowerPAK MLP34-57
SiC450EVB
SiC451ED-T1-GE3
Reference board
SiC451
SiC451EVB
SiC453ED-T1-GE3
SiC453EVB
S21-0213-Rev. B, 08-Mar-2021
25 A
PowerPAK MLP34-57
Reference board
SiC453
15 A
PowerPAK MLP34-57
Reference board
Document Number: 77863
2
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
PART MARKING INFORMATION
=
pin 1 indicator
P/N
P/N =
=
Siliconix logo
LL
=
ESD symbol
F
=
assembly factory code
Y
=
year code
WW
=
week code
LL
=
lot code
FYWW
part number code
ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted)
ELECTRICAL PARAMETER
PVIN, VIN
SW / PH
SW / PH (AC)
BOOT
BOOT to SW
Drive supply voltage (PVCC)
Bias supply voltage (VDD)
AGND to PGND
All other pins
Temperature
Junction temperature
Storage temperature
Power Dissipation
Junction-to-ambient thermal impedance (RthJA)
Thermal resistance from junction to case (RthJ-C)
Thermal resistance from junction to PCB (RthJ-PCB)
ESD Protection
Electrostatic discharge protection
CONDITIONS
LIMITS
UNIT
Reference to PGND
Reference to PGND
Reference to PGND (100 ns)
-0.3 to +28
-0.3 to +28
-8 to +33
-0.3 to VPH + PVCC
-0.3 to +6
-0.3 to +6
-0.3 to +6
-0.3 to +0.3
-0.3 to VDD + 0.3
V
-40 to +150
-65 to +150
°C
24
4.5
5
°C/W
2
750
kV
V
Reference to AGND
HBM
CDM
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation
of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum
rating / conditions for extended periods may affect device reliability.
RECOMMENDED OPERATING CONDITIONS (all voltages referenced to GND = 0 V)
ELECTRICAL PARAMETER
MIN.
TYP.
MAX.
UNIT
PVIN, VIN
Logic pins
VOUT
Drive supply voltage (PVCC)
Bias supply voltage (VDD)
Temperature
Recommended ambient temperature
Operating junction temperature
4.5
0
0.3
4.75
4.75
5
5
20
5.5
12
5.25
5.25
V
S21-0213-Rev. B, 08-Mar-2021
-40 to +85
-40 to +125
°C
Document Number: 77863
3
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
ELECTRICAL SPECIFICATIONS (PVIN = 12 V, TJ = -40 °C to +125 °C, unless otherwise specified)
PARAMETER
Power Supplies
PVIN, VIN
VIN_ON, default
VIN_OFF, default
PVCC supply
VDD supply
PVCC UVLO threshold
PVCC UVLO hysteresis
Input current
Shutdown current
PVIN Monitoring
PVIN monitor accuracy
PVIN min. monitor resolution
PVIN monitor full scale
PVIN read frequency
IIN Fault Response Time
IIN fault response time
Pin (Input power)
Pin sense accuracy
Pin sense resolution
Output Voltage
VOUT default set-point
VOUT set-point accuracy
VOUT set-point range
VOUT set-point resolution
Line regulation
Load regulation
VOUT min. monitor resolution
VOUT start up delay range
SYMBOL
TEST CONDITIONS
PVIN, VIN
VIN_ON
VIN_OFF
VPVCC
VDD
Default setting
Default setting
VIN = 4.5 V to 20 V
Logic supply voltage
VPVCC_UVLO_TH
VPVCC_UVLO_HYS
IVIN
IVIN_SDN
TJ = 25 °C, non-switching, no load, VOUT > VSET,
IPVCC + IPVDD + IPVIN
EN = 0 V, IPVCC + IPVDD + IPVIN
VPVIN_MON_ACC
VPVIN_MON_RSO
VPVIN_MON_SCL
tPVIN_RSP
LIMITS
UNIT
MIN.
TYP.
MAX.
4.5
4.5
4.5
3.4
-
10
9
5
5
3.6
300
20
5.5
5.5
3.8
-
-
3.5
6
-
2.5
6
-
3
70
78
28
-
%
mV
V
Hz
V
mV
mA
tIIN_RSP
IIN_OC_WARN
-
78
-
Hz
PPVIN_SNS_ACC
PPVIN_SNS_RSO
5 W to 160 W
-
5
0.5
-
%
W
VOUT
VOUT_ACC
VOUT_RNG
VOUT_RSO
VOUT_REG
VOUT_REG
VSET resistor = OPEN or SHORT
Measured as ΔV (VSEN+ – VSEN-)
VOUT scale loop = 1
From PVIN valid until 1st PWM pulse
0.6
2
1
1
5
0
1
12
-
V
%
V
mV
VOUT_MON_RSO
tS_DLY_RNG
-1
0.3
-
%
mV
ms
VSEN+ common mode range
VVSNS_RNG
-0.2
-
12
V
VSEN- common mode range
VOUT read conversion frequency
Controller and Timing
Minimum on-time
Minimum off-time
tON accuracy
Frequency, default
Frequency setting range
VOUT Soft Start / Soft Stop
tON rise, default
tON rise, setting range
tOFF fall, default
tOFF fall, setting range
tON delay, default
tON delay, setting range
tOFF delay, default
tOFF delay, setting range
tON max. fault limit, default
tON max. fault limit, setting range
VVSNS_RNG
tVOUT_RSP
-200
-
78
200
-
mV
Hz
tON_MIN
tOFF_MIN
tON_ACC
fSW
fSW_RNG
-10
540
300
50
250
600
-
10
660
1500
0
0
0
0
0
5
5
0
0
20
-
127
127
127
127
127
S21-0213-Rev. B, 08-Mar-2021
tON_RISE
tON_RNG
tSSP
tSSP,RNG
tON_DLY
tON_DLY,RNG
tOFF_DLY
tOFF_DLY,RNG
tmax_FLT
tmax_FLT,RNG
CCM mode
From VOUT = 0 V to VOUT set point
From VOUT = 0 V to VOUT set point
ns
%
kHz
ms
Document Number: 77863
4
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
ELECTRICAL SPECIFICATIONS (PVIN = 12 V, TJ = -40 °C to +125 °C, unless otherwise specified)
PARAMETER
Enable
EN pull down resistance
RT/SYNC
Logic high level
Logic low level
Input minimum pulse width
Sync switching
Power Good
Power good output rising
threshold
Power good output falling
threshold
Power good hysteresis
Power good on resistance
SYMBOL
TEST CONDITIONS
MAX.
REN
-
5
-
VRT/SYNC_HI
VRT/SYNC_LO
tIN Pulse_min
FSYNC
2
300
100
-
0.8
1500
-
90
-
VFB_FALLING_TH
-
85
-
VFB_HYST
-
5
-
RPG
-
5.5
-
Ω
-
25
100
-
μs
-40
-5
-
1
125
35
+150
+5
-
°C
2
-
0.1
5
0.8
-
-
56
35
21
115
80
-
-3
-
3
-15
-6
-5
-9
-4
-3
-
15
6
5
9
4
3
-6
-
6
-7
-
7
-12
-4
-3
-9
-4
-3
-
12
4
3
9
4
3
VFB_RISING_TH
Default value respect to VOUT default setting = 0.6 V
Valley current limit, default
IOCP
SiC450 (40 A), TJ = -40 °C to +85 °C
SiC451 (25 A), TJ = -40 °C to +85 °C
SiC453 (15 A), TJ = -40 °C to +85 °C
Output OVP threshold, default
Output UVP threshold, default
Telemetry
VOVP
VUVP
VOUT with respect to VSET
VIN
VIN
IIN
IIN
PIN
PIN
VOUT
IOUT
IOUT
POUT
POUT
S21-0213-Rev. B, 08-Mar-2021
UNIT
TYP.
Power good delay time (rising)
tPG_RISE_DLY
Power good delay time (falling)
tPG_FALL_DLY
Temperature Monitor and Temperature Shutdown
Monitoring resolution
TMON_RSO
Monitoring range
TMON_RNG
Monitoring accuracy
TMON_ACC
Thermal shutdown
TSD
Thermal shutdown hysteresis
TSD_HYS
Digital Inputs (ADDR, SALRT, SCLK, SDA, EN)
Input high threshold
VIH
Input low threshold
VIL
Input hysteresis
VHYST
Pin capacitance
CPIN
Fault Protections
VOUT
LIMITS
MIN.
Load current, 20 % to 100 %
(TA = -40 °C to +125 °C)
20 % of load current (TA = 25 °C)
50 % of load current (TA = 25 °C)
100 % of load current (TA = 25 °C)
20 % of load current (TA = 25 °C)
50 % of load current (TA = 25 °C)
100 % of load current (TA = 25 °C)
2 V < VOUT < 5.5 V, load current, 20 % to 100 %
(TA = -40 °C to +125 °C)
0.5 V < VOUT < 2 V, load current, 20 % to 100 %
(TA = -40 °C to +125 °C)
20 % of load current (TA = 25 °C)
50 % of load current (TA = 25 °C)
100 % of load current (TA = 25 °C)
20 % of load current (TA = 25 °C)
50 % of load current (TA = 25 °C)
100 % of load current (TA = 25 °C)
MΩ
V
ns
kHz
%
V
pF
A
%
%
Document Number: 77863
5
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
FUNCTIONAL BLOCK DIAGRAM
V IN
PVCC
VDD
Charge
pump
PFD
BOOT
Ramp
generator
Differential
amplifier
PWM
comparator
tON
generator
OTA
Rcomp
Ccomp
Bandgap
VSET
VSET
ADC
ADDR
ADC
High side
driver
PEC/BUS
management
PMBus
interface
SCLK
Control
logic
Over
current
protection
Fault
management
Monitoring
compensation
PIN / POUT
calculation
ADC
Monitoring
sense
circuits
PVCC
Low side
driver
Command
registers
1K
NVM
SDA
PH
SW
Minimum
tOFF
Cp
Reference
generator
and
DAC
SALRT
A GND
PV IN
PVCC
VDD
UVLO
SW
VSEN-
UVLO
Linear regulator
RT / SYNC
V SEN+
EN
PGND
Zero
crossing
detector
PGOOD
circuit
PGOOD
Fig. 4 - Functional Block Diagram
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
6
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
OPERATIONAL DESCRIPTION
Device Overview
SiC45x is a high efficiency synchronous buck regulator
capable of delivering up to 25 A continuous current. The
device has programmable switching frequency of 300 kHz
to 1.5 MHz. The control scheme delivers fast transient
response and minimizes external components. Thanks to
the internal current ramp information, no high ESR output
bulk or virtual ESR network is required for the loop stability.
This device also incorporates a power saving feature by
enabling diode emulation mode and frequency fold back as
the load decreases.
PVIN
PVIN
SW
Constant on time
PWM generator
In addition, a built in PLL allows in phase or 180° out of
phase synchronization under master / slave configuration.
OTA
CP
SiC45x has a full set of protection and monitoring features
with response that can be set with PMBus:
• Power good open drain output
This device is available in MLP34-57 package to deliver high
power density and minimize PCB area.
PWM Control Mechanism
SiC45x employs a voltage - mode COT control mechanism.
During steady-state operation, feedback voltage is
compared with internal reference and the amplified error
signal (VCOMP) is generated in the internal comp node. An
internally generated ramp signal and VCOMP are fed into a
comparator. Once VRAMP crosses VCOMP, a single shot
on-time pulse is generated for a fixed time, programmed by
the external Rfsw. During the on-time pulse, the high side
MOSFET will be turned on. Once the on-time pulse expires,
the low side MOSFET will be turned on after a
break-before-make period. The low side MOSFET will be on
for duration of minimum off-time pulse until VRAMP crosses
VCOMP. The cycle is then repeated.
Fig. 5 illustrates the basic block diagram for VM-COT
architecture. In this architecture the following is achieved:
• The reference of a basic ripple control regulator is
replaced with a high again error amplifier loop
• This establishes two parallel voltage regulating feedback
paths, a fast and slow path
• Fast path is the ripple injection which ensures rapid
correction of the transient perturbation
• Slow path is the error amplifier loop which ensures the DC
component of the output voltage follows the internal
accurate reference voltage
S21-0213-Rev. B, 08-Mar-2021
REF
VSEN-
AGND
Fig. 5 - VM-COT Block Diagram
• Output over voltage protection
• Dedicated enable pin for easy power sequencing
Rcomp
Differential
amplifier
Ccomp
• Over current protection in pulse-by-pulse mode
• Over temperature protection with hysteresis
VSEN+
Ramp generator
Comparator
• Output under voltage protection
Load
PGND
All components for RAMP signal generation and error
amplifier compensation required for the control loop are
internal to the IC, see Fig. 5. In order for the device to cover
a wide range of VOUT operation, the internal RAMP signal
components are automatically selected depending on the
VOUT voltage and switching frequency. The error amplifier
internal compensation consists of a resistor in series with a
capacitor (RCOMP, CCOMP).
Fig. 6 demonstrates the basic operational waveforms:
Basic operational waveforms
VRAMP
VCOMP
PWM
Fixed on-time
Fig. 6 - VM-COT Operational Principle
Light Load Condition
To improve efficiency at light-load condition, SiC45x
provide a set of innovative implementations to eliminate LS
recirculating current and switching losses. The internal zero
crossing detector monitors SW node voltage to determine
when inductor current starts to flow negatively. In power
saving mode, as soon as inductor valley current crosses
zero, the device deploys diode emulation mode by turning
off low side MOSFET. If load further decreases, switching
frequency is reduced proportional to load condition to save
switching losses while keeping output ripple within
tolerance. The switching frequency is set by the controller to
Document Number: 77863
7
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
maintain regulation. In the standard power save mode, there
is no minimum switching frequency. If ultrasonic mode is
selected via PMBus, the minimum switching frequency that
the regulator will reduce to is > 20 kHz as the part avoids
switching frequencies in the audible range.
Power Stage
SiC45x integrates a high performance power stage with a
4 mΩ n-channel high side MOSFET and a 1.4 mΩ n-channel
low side MOSFET. The MOSFETs are optimized to achieve
up to 96 % efficiency.
The power input voltage (PVIN) can go up to 20 V and down
as low as 4.5 V. The output voltage must always be less than
the input voltage.
pulses in a row, secondary level OC fault is recognized and
both HS and LS MOSFETs are turned off. The device
continues restart attempt in a delay time until the OC fault
condition no longer exists.
The consecutive switching pulse in a row, the delay time,
and other types of fault responses can be programmed via
PMBus (see PMBus command section). The default number
is 128 for counting consecutive switching pulse in a row.
The default delay time is 20 ms.
The OCP is enabled immediately after VDD passes UVLO
level.
Sequencing of Input / Output Supplies
SiC45x has no sequencing requirements on any of its
input / output, PVIN, PVCC, VIN, VDD and EN. VIN is internal
supply voltage and is used to implement on time of COT
control. VIN shall be directly connected to PVIN.
OCPthreshold
Iload
Iinductor
EN
The SiC45x has an EN pin to turn the part on and off. Driving
this pin high enables the device, while grounding it turns it
off.
There are no sequencing requirements with respect to
input / output supplies.
GH
Skipped GH pulse
Fig. 7 - Over-Current Protection Illustration
Output Overcurrent Protection (OCP)
Output Undervoltage Protection (UVP)
SiC45x has pulse-by-pulse overcurrent (OC) limit control.
The inductor valley current is monitored during low-side (LS)
FET turn-on period through RDS(on) sensing. After a
pre-defined blanking time, the valley current is compared
with
an
internal
OCP
threshold
named
IOUT_OC_FAULT_LIMIT, which can be programmed via
PMBus. Once monitored valley current is larger than
IOUT_OC_FAULT_LIMIT, a pulse-by-pulse over-current
limit is broken, high-side (HS) turn-on pulse is skipped and
LS FET is kept on until the inductor valley current returns
below OCP limit as illustrated by Fig. 7.
UVP is implemented by monitoring the output voltage. If the
output voltage drops below a threshold voltage
VOUT_UV_FAULT_LIMIT (VUFL), the output-undervoltage (UV)
fault condition is recognized and both the HS and LS
MOSFETs are turned off. The device continues restart
attempt in a delay time until the UV condition no longer
exists.
An
equation
is
given
in
(1)
to
calculate
IOUT_OC_FAULT_LIMIT from steady-state value of DC load
current when OCP happens.
The VUFL and the delay time can be programmed via PMBus
(see PMBus command section). The default value of VUFL is
20 % less than the target VOUT. The default delay time is
20 ms.
The UVP is only active after the completion of soft-start
sequence.
Output-Overvoltage Protection (OVP)
IOUT_OC_FAULT_LIMIT =
( PV IN – V OUT ) × V OUT
I OUT_OCP – ---------------------------------------------------------2 × L × PV IN × f SW
(1)
where: IOUT_OC_FAULT_LIMIT is the OCP threshold to be
programmed via PMBus; IOUT_OCP is the steady-state value
of DC load current when pulse-by-pulse OC event happens;
PVIN is the input voltage for power stage; VOUT is the output
voltage for power stage; L is inductance of power inductor;
and fSW is switching frequency for power stage.
OVP is implemented by monitoring the output voltage. If the
output voltage is above a threshold voltage
VOUT_OV_FAULT_LIMIT (VOFL), the output-overvoltage (OV) fault
condition is recognized and both the HS and LS MOSFETs
are turned off. The device restarts when the OV fault
condition no longer exists.
The UVFL can be programmed via PMBus (see PMBus
command section). The default value of VOFL is 15 % more
than the target VOUT.
The OVP is enabled immediately after VDD passes UVLO
level.
SiC45x also provides secondary level OCP protection. If the
pulse-by-pulse overcurrent limit is persistently broken for
more than a specific number of consecutive switching
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
8
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
Input-Overvoltage Protection (VIN-OVP)
VIN-OVP is implemented by monitoring the input voltage.
When the input voltage is pulled above a threshold voltage
VIN_OV_FAULT_LIMIT (VIN-OFL), the input-overvoltage (VIN-OV)
fault condition is recognized and both the HS and LS
MOSFETs are turned off. When the input voltage is pulled
below the VIN-OFL, the VIN-OV fault condition no longer exists
and the device restarts.
The VIN-OFL can be programmed via PMBus (see PMBus
command section). The default value of VIN-OFL is 15 V.
The VIN-OVP is enabled immediately after VDD passes UVLO
level.
Input-Undervoltage Protection (VIN-UVP)
VIN-UVP is implemented by monitoring the input voltage.
When the input voltage is pulled below a threshold VIN_OFF,
the input-undervoltage (VIN-UV) fault condition is recognized
and both the HS and LS MOSFETs are turned off. When the
input voltage is pulled above a threshold VIN_ON, the VIN-UV
fault condition no longer exists and the device restarts.
The VIN-OFF and VIN_ON can be programmed via PMBus (see
PMBus command section). The default value of VIN-OFF is
9 V. The default value of VIN_ON is 10 V.
The VIN-UVP is enabled immediately after VDD passes UVLO
level.
tON-MAX. Protection (tMP)
SiC45x has power up time limit control. When the device
does not power up the output voltage above the VUFL in a
time interval longer than tON_MAX_FAULT_LIMIT (tMFL), the
tON-MAX. (tM) fault condition is recognized and both the HS
and LS MOSFETs are turned off. The device continues
restart attempt after the shutdown in a delay time until the tM
fault no longer exists.
The tMFL and delay time can be programmed via PMBus (see
PMBus command section). The default value of tMFL is
20 ms. The default delay time is 20 ms.
Fig. 8 - Pre-Bias Start-Up
Output Voltage Setting
Connecting a resistor from VSET to AGND will set output
voltage (VOUT), eight VOUT related warning and fault voltage
limits, and the value of VOUT_SCALE_LOOP as listed in the
“VOUT_SCALE_LOOP look up” table. See below table for
the list of supported output voltage (VOUT) set by the VSET
resistor value. After VOUT is set by the resistor, the voltage
level of eight VOUT related warning and fault limits defined by
PMBus and the VOUT_SCALE_LOOP register are
automatically set also. See below table for the list of the
eight VOUT related warning and fault limits set by VOUT
setting resistor. Please do not leave the setting resistor open
or short, or contact Vishay for technical support. The resistor
setting VOUT or anyone of the eight VOUT related warning and
fault limits can be separately overridden by a PMBus
command with resolution 1.953 mV (see PMBus command
table).
OUTPUT VOLTAGE SETTINGS
VSET RESISTOR (kΩ)
VOUT (V)
0.845
0.60
1.30
0.90
1.78
0.95
2.32
1.00
2.87
1.05
3.48
1.20
4.12
1.25
4.75
1.50
5.49
1.80
The OFL can be programmed via PMBus (see PMBus
command section). The default value of OFL is 125 °C.
6.19
2.10
6.98
2.50
The OTP is enabled immediately after VDD passes UVLO
level.
7.87
3.30
The tMP is enabled immediately after VDD passes UVLO level.
Overtemperature Protection (OTP)
SiC45x has internal thermal monitor block to support device
temperature control. When the device temperature rises
above OT_FAULT_LIMIT (OFL), the overtemperature (OT)
fault condition is recognized and both the HS and LS
MOSFETs are turned off. When OT fault condition no longer
exists, the device restarts.
Pre-Bias Start-Up
8.87
5.00
11.0
12.00
VOUT is monitored through differential output voltage sense
pins Vsen+ and Vsen-. If the sensed voltage is higher than
VSET, control logic prevents HS and LS FET from switching
to avoid negative output voltage spike and excessive
current sinking through LS FET.
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
9
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
VOUT RELATED WARNINGS AND
FAULTS
Vishay Siliconix
VOLTAGE LEVEL
FREQUENCY SETTINGS
RT RESISTOR (kΩ)
FREQUENCY (kHz)
0.845
300
1.30
400
1.78
500
2.32
550
2.87
600
3.48
650
4.12
700
4.75
750
RT/SYNC PIN and Mode of Switching Configuration
5.49
800
The SiC45x has an RT / SYNC pin. This pin can be used to
set the switching frequency and to send or receive a clock
signal for synchronization between a master and slave.
SiC45x will inject less than 1 mA DC current across the
RT/SYNC pin to the ground during initial power up process,
and connecting a resistor from the RT/SYNC pin to ground
will be used to set the switching frequency according to the
table listed below. The following table shows the supported
frequency settings by the RT resistor value. Please do not
leave the setting resistor open or short, or contact Vishay for
technical support. The frequency set by the external resistor
can be overridden by a PMBus command with resolution
50 kHz (see PMBus command table).
6.19
850
6.98
900
POWER_GOOD_ON
90 % VOUT
POWER_GOOD_OFF
85 % VOUT
VOUT_OV_FAULT_LIMIT
115 % VOUT
VOUT_OV_WARN_LIMIT
110 % VOUT
VOUT_UV_WARN_LIMIT
90 % VOUT
VOUT_UV_FAULT_LIMIT
80 % VOUT
VOUT_MARGIN_LOW
95 % VOUT
VOUT_MARGIN_HIGH
105 % VOUT
7.87
950
8.87
1000
10
1250
11
1500
SiC45x supports four modes of switching configuration,
including standalone mode, master mode, slave mode in
phase, and slave mode 180° out of phase. The master mode
is default one of switching configuration and user can
override it to be either standalone mode, slave mode in
phase, or slave mode 180° out of phase by PMBus
command INTERLEAVE (see PMBus command table).
The following table introduces four modes of switching configuration, recommended RT/SYNC pin connections, and content of
related PMBus command INTERLEAVE.
MODE OF SWITCHING CONFIGURATION, PIN CONNECTION, AND INTERLEAVE PMBus
MODE DESCRIPTION
SWITCHING FREQUENCY AND RECOMMENDED
RT/SYNC PIN CONNECTION
SWITCHING
PHASE
INTERLEAVE
COMMAND
Chip works individually
Cross a resistor RRT from RT / SYNC pin to ground. During
power up, less than 1 mA DC current will be injected into
resistor RRT to determine default switching frequency. The
default switching frequency can be overridden by PMBus
command. After power up, RT / SYNC pin is released and
connected to ground via RRT.
Self determined
0x0000
Chip works as a master
chip outputting a clock
signal in phase with its
switching to drive an
external slave chip’s
switching frequency and
phase
Cross a resistor RRT from RT / SYNC pin to ground. During
power up, less than 1 mA DC current will be injected into
resistor RRT to determine default switching frequency. The
default switching frequency can be overridden by PMBus
command. After power up, RT / SYNC pin outputs a 50 %
duty cycle pulse signal toggling between 0 and VDD, which
is in phase with the chip’s switching node.
Self determined
0x0100
Cross a resistor RRT from RT / SYNC pin to ground. During
power up, less than 1 mA DC current will be injected into
resistor RRT to determine default switching frequency. The
Chip works as a slave
default switching frequency can be overridden by PMBus In phase with the
chip receiving an external
command. When there is an external clock signal
external clock, or
clock signal and
presented at the RT / SYNC pin, the switching frequency self determined
Slave in phase
synchronize its switching
will be overridden and the chip’s switching node is in
when individually
in phase with the clock
phase with the external clock signal. If the external clock
works
signal
signal comes from a SiC45x working in master mode
switching configuration, the resistor RRT shall be same to
the RRT used by the master chip.
0x0120
MODE TYPE
Standalone
Master
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
10
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
MODE OF SWITCHING CONFIGURATION, PIN CONNECTION, AND INTERLEAVE PMBus
MODE TYPE
Slave 180 °
out of phase
MODE DESCRIPTION
SWITCHING FREQUENCY AND RECOMMENDED
RT/SYNC PIN CONNECTION
SWITCHING
PHASE
INTERLEAVE
COMMAND
Cross a resistor RRT from RT / SYNC pin to ground. During
power up, less than 1 mA DC current will be injected into
resistor RRT to determine default switching frequency. The
Chip works as a slave
180° out of phase
default switching frequency can be overridden by PMBus
chip receiving an external
with the external
command. When there is an external clock signal
clock signal and
clock, or self
presented at the RT / SYNC pin, the switching frequency
synchronize its switching
determined when
will be overridden and the chip’s switching node is 180°
180 ° out of phase with
individually
out of phase with the external clock signal. If the external
the clock signal
works
clock signal comes from a SiC45x working in master mode
switching configuration, the resistor RRT shall be same to
the RRT used by the master chip
0x0121
PMBus ADDRESS (ADDR pin)
The SiC45x has a 7-bit register that are used to set the base
PMBus address of the device. A resistor assembled
between ADDR pin and ground sets an offset from the
default pre-configured MFR base address in the memory.
Up to 15 different offsets can be set allowing 15 SiC45x
devices with unique addresses in a single system. This
offset and therefore the device address is read by the ADC
during the initialization sequence. The table below provides
the resistor values needed to set the 15 offsets from the
base address. Please do not leave the setting resistor open
or short, or contact Vishay for technical support.
MFR_BASE_ADDRESS
Vishay provides another 15 options of PMBus address listed
in table of MFR_BASE_ADDRESS_2. Please contact Vishay
for technical support.
MFR_BASE_ADDRESS_2
CONNECTION
ADDRESS
HEX
[3 : 0]
NVM
[6 : 4]
BIN
[6 : 0]
0.845K
1
0
101b
1010 000b
1.3K
2
1
101b
1010 001b
1.78K
3
2
101b
1010 010b
2.32K
4
3
101b
1010 011b
2.87K
5
4
101b
1010 100b
3.48K
6
5
101b
1010 101b
4.12K
7
6
101b
1010 110b
CONNECTION
ADDRESS
HEX
[3 : 0]
NVM
[6 : 4]
BIN
[6 : 0]
0.845K
1
0
001b
0010 000b
4.75K
8
7
101b
1010 111b
0010 001b
5.49K
9
8
101b
1011 000b
0010 010b
6.19K
10
9
101b
1011 001b
0010 011b
6.98K
11
A
101b
1011 010b
0010 100b
7.87K
12
B
101b
1011 011b
0010 101b
8.87K
13
C
101b
1011 100b
14
D
101b
1011 101b
15
E
101b
1011 110b
1.3K
1.78K
2.32K
2.87K
3.48K
2
3
4
5
6
1
2
3
4
5
001b
001b
001b
001b
001b
4.12K
7
6
001b
0010 110b
10K
4.75K
8
7
001b
0010 111b
11K
5.49K
9
8
001b
0011 000b
6.19K
10
9
001b
0011 001b
6.98K
11
A
001b
0011 010b
7.87K
12
B
001b
0011 011b
8.87K
13
C
001b
0011 100b
10K
14
D
001b
0011 101b
11K
15
E
001b
0011 110b
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
11
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
PMBus COMMAND LIST
ADDRESS
01h
PMBus COMMAND NAME
OPERATION
TYPE
R/W
DATA
FORMAT
(UNITS)
-
[7 : 5] 000: reserved
[4] 1: no power up until commanded
by the CONTROL and OPERATION
[3] 1: to start, the unit requires on/off
portion of the OPERATION
1Fh
command
(0001,1111) [2] 1: to start, the unit requires
CONTROL asserted
[1] 1: active high to start the unit
[0] 1: turn off VOUT as fast as
possible, ignore TOFF_DELAY and
TOFF_FALL
-
R/W
Byte
03h
CLEAR_FAULTS
Write
-
Write
VALID
RANGE
Byte
ON_OFF_CONFIGURATION
WRITE_PROTECT
DEFAULT
[7] 1: PMBus unit output is on
[6] 0: output is turned off
immediately and any power down
sequencing commads are ignored
[5 : 4] 00: VOUT set by
VOUT_COMMAND
[3 : 2] 10: faults caused by selecting
VOUT_MARGIN_HIGH or
88h
VOUT_MARGIN_LOW
(1000,1000)
as the nominal output voltage
source are acted upon according to
the settings of the
VOUT_OV_FAULT_RESPONSE and
VOUT_IV_FAULT_RESPONSE data
bytes
[1] 0: not used
[0]: reserved 02h
02h
10h
DEFAULT
VALUE IN
NVM
Byte
-
-
00h
[7 : 0]: 0000,0000:
(0000,0000) allows write to all registers
-
15h
STORE_USER_ALL
Write
-
-
-
-
16h
RESTORE_USER_ALL
Write
-
-
-
-
19h
CAPABILITY
Read
Byte
[7] 1: packet error checking is
supported
[6 : 5] 10: maximum supported
bus speed is 1 MHz
[4] 1: the unit has SMBALERT# pin
D0h
and supports SMBus alert response
(1101,0000) protocol
[3] 0: numeric data is in LINEAR11,
LINEAR16, or DIRECT format
[2] 0: AVSBUS not supported
[1 : 0] 00: reserved
1Bh
SMBALERT_MASK
R/W
Block
0x0000
(0000,0000,
0000,0000)
-
20h
VOUT_MODE
Read
[7 : 5] 000: the unit uses
LINEAR16 format for
VOUT related commands
17h
LINEAR16
[4 : 0] 1,0111: five bit two is
(V)
(0001,0111)
complement exponent
equals -9 for VOUT related
commands
21h
VOUT_COMMAND
R/W
0133h
LINEAR16
(0000,0001,
(V)
0011,0011)
S21-0213-Rev. B, 08-Mar-2021
0.6 V
-
-
-
0.3 V to 14 V,
1.953 mV
resolution
Document Number: 77863
12
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
PMBus COMMAND LIST
ADDRESS
PMBus COMMAND NAME
TYPE
DATA
FORMAT
(UNITS)
DEFAULT
VALUE IN
NVM
This command deviates from
xxxxh
standard PMBus 1.3 specifications;
(xxxx,xxxx,
a factory trim value varying by
xxxx,xxxx)
devices
DEFAULT
VALID
RANGE
-2 V to 2 V,
1.953 mV
resolution
22h
VOUT_TRIM
R/W
LINEAR16
(V)
24h
VOUT_MAX
R/W
1C00h
LINEAR16
(0001,1100,
(V)
0000,0000)
14 V
0.3 V to 14 V,
1.953 mV
resolution
25h
VOUT_MARGIN_HIGH
R/W
0142h
LINEAR16
(0000,0001,
(V)
0100,0010)
0.63 V
0.3 V to 14 V,
1.953 mV
resolution
26h
VOUT_MARGIN_LOW
R/W
0123h
LINEAR16
(0000,0001,
(V)
0010,0011)
0.57 V
0.3 V to 14 V,
1.953 mV
resolution
27h
VOUT_TRANSITION_RATE
R/W
E002h
LINEAR11
(1110,0000,
(mV/μs)
0000,0010)
0.125 mV/μs
0.0625 mV/μs
to2 mV/μs,
0.0625 mV/μs
resolution
29h
VOUT_SCALE_LOOP
R/W
E808h
This command deviates from
LINEAR11
(1110,1000, standard PMBus 1.3 specifications;
(V/V)
0000,1000) 1 V/V
33h
FREQUENCY_SWITCH
R/W
0258h
LINEAR11
(0000,0010,
(kHz)
0101,1000)
600 kHz
300 kHz to
1500 kHz,
50 kHz
resolution
35h
VIN_ON
R/W
F814h
LINEAR11
(1111,1000,
(V)
0001,0100)
10 V
1 V to 80 V,
0.5 V
resolution
36h
VIN_OFF
R/W
0100h
LINEAR11
(0000,0001,
(V)
0000,0000)
9V
1 V to 80 V,
0.5 V
resolution
37h
INTERLEAVE
R/W
40h
VOUT_OV_FAULT_LIMIT
R/W
Word
[15 : 12] 0000: reserved
[11 : 8] 0001: sets unit as
0100h
(0000,0001, Master or Slave
0000,0000) [7 : 4] 0000: sets unit as master
[3 : 0] 0000: not used
0161h
LINEAR16
(0000,0001,
(V)
0011,0011)
Standalone,
master, slave
in phase,
slave
180° out of
phase
0.3 V to 14 V,
1.953 mV
resolution
The device’s output is disabled while
the fault is present. Operation
resumes and the output is enabled
00h, 16h,
when the fault condition no longer
22h,
exists. It attempts to restart
F8h
36h, C0h,
continuously, without limitation, until
(1111,1000)
D6h,
it is commanded off (by the
CONTROL pin or OPERATION
E2h, F6h, F8h
command or both), bias power is
removed, or another fault condition
causes the unit to shut down
41h
VOUT_OV_FAULT_RESPONSE
R/W
42h
VOUT_OV_WARN_LIMIT
R/W
0151h
LINEAR16
(0000,0001,
(V)
0101,0001)
0.66 V
0.3 V to 14 V,
1.953 mV
resolution
43h
VOUT_UV_WARN_LIMIT
R/W
0114h
LINEAR16
(0000,0001,
(V)
0001,0100)
0.54 V
0 V to 14 V,
1.953 mV
resolution
S21-0213-Rev. B, 08-Mar-2021
Byte
0.69 V
0.125 V/V,
0.25 V/V,
0.5 V/V, 1 V/V
Document Number: 77863
13
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
PMBus COMMAND LIST
ADDRESS
44h
45h
46h
47h
PMBus COMMAND NAME
TYPE
VOUT_UV_FAULT_LIMIT
R/W
VOUT_UV_FAULT_RESPONSE
IOUT_OC_FAULT_LIMIT
IOUT_OC_FAULT_RESPONSE
R/W
R/W
R/W
DATA
FORMAT
(UNITS)
DEFAULT
VALUE IN
NVM
00F5h
LINEAR16
(0000,0000,
(V)
1111,0101)
Byte
4Ah
IOUT_OC_WARN_LIMIT
R/W
4Fh
OT_FAULT_LIMIT
R/W
007Dh
LINEAR11
(0000,0000,
(°)
0111,1101)
OT_FAULT_RESPONSE
R/W
51h
OT_WARN_LIMIT
R/W
S21-0213-Rev. B, 08-Mar-2021
Byte
0.48 V
0 V to 14 V,
1.953 mV
resolution
SiC455: 56 A
SiC456: 35 A
SiC458: 21 A
This command deviates from
standard PMBus 1.3 specifications.
The device continues operation for
A1h
128 consecutive OC cycles and then
(1010,0001)
shut down. Waiting for 20 ms, it
hiccups until the fault condition no
longer exists
SiC455:
F868h
(1111,1000,
0110,1000)
SiC456:
F841h
LINEAR11
(A)
(1111,1000,
0100,0010)
SiC458:
F827h
(1111,1000,
0010,0111)
50h
VALID
RANGE
The device shuts down (disables the
output) and attempts to restart
continuously, without limitation, until
B9h
it is commanded off (by the EN pin or
(1011,1001) OPERATION command or both),
bias power is removed, or another
fault condition causes the unit to
shut down. 20 ms delay
SiC455:F87
0h
(1111,1000,
0111,0000)
SiC456:
F846h
LINEAR11
(A)
(1111,1000,
0100,0110)
SiC458:
F82Ah
(1111,1000,
0010,1010)
Byte
DEFAULT
0 A to 127 A,
0.5 A
resolution
00h, 16h,
22h, 36h,
A1h, C0h,
D6h, E2h,
F6h,
F8h
SiC455: 52 A
SiC456: 32.5 A
SiC458: 19.5 A
0 A to 127 A,
0.5 A
resolution
125 °C
0 °C to 150 °C,
1 °C
resolution
The device’s output is disabled while
the fault is present. Operation
resumes and the output is enabled
when the fault condition no longer
exists. It attempts to restart
F9h
continuously, without limitation, until
(1111,1001) it is commanded off (by the EN pin
or OPERATION command or both),
bias power is removed, or another
fault condition causes the unit to
shut down
0069h
LINEAR11
(0000,0000,
(°)
0110,1001)
00h, 16h,
22h, 36h,
B9h, C0h,
D6h, E2h,
F6h
105 °C
00h, 16h,
22h, 36h,
C0h, D6h,
E2h, F6h,
F9h
0 °C to 150 °C,
1 °C
resolution
Document Number: 77863
14
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
PMBus COMMAND LIST
ADDRESS
55h
PMBus COMMAND NAME
TYPE
VIN_OV_FAULT_LIMIT
R/W
DATA
FORMAT
(UNITS)
DEFAULT
VALUE IN
NVM
F81Eh
LINEAR11
(1111,1000,
(V)
0001,1110)
Byte
DEFAULT
VALID
RANGE
15 V
1 V to 80 V,
0.5 V
resolution
This command deviates from
standard PMBus 1.3
specifications.The device’s output is
disabled while the fault is present.
B8h
Operation resumes and the output is
(1011,1000)
enabled when the fault condition no
longer exists. It does not attempt to
restart. The output remains disabled
until the fault is cleared
00h, 16h,
22h, 36h,
B8h, C0h,
D6h, E2h,
F6h
56h
VIN_OV_FAULT_RESPONSE
R/W
58h
VIN_UV_WARN_LIMIT
R/W
F812h
LINEAR11
(1111,1000,
(V)
0001,0010)
9V
1 V to 80 V,
0.5 V
resolution
5Dh
IIN_OC_WARN_LIMIT
R/W
F80Ah
LINEAR11
(1111,1000,
(A)
0000,1010)
5A
0 A to 127 A,
0.5 A
resolution
5Eh
POWER_GOOD_ON
R/W
0114h
LINEAR16
(0000,0001,
(V)
0001,0100)
0.54 V
0.24 V to 14 V,
1.953 mV
resolution
5Fh
POWER_GOOD_OFF
R/W
0105h
LINEAR16
(0000,0001,
(V)
0000,0101)
0.51 V
0.24 V to 14 V,
1.953 mV
resolution
60h
TON_DELAY
R/W
0000h
LINEAR11
(0000,0000,
(ms)
0000,0000)
0 ms
0 ms to
127 ms, 1 ms
resolution
61h
TON_RISE
R/W
0005h
LINEAR11
(0000,0000,
(ms)
0000,0101)
5 ms
0 ms to
127 ms, 1 ms
resolution
62h
TON_MAX_FAULT_LIMIT
R/W
0014h
LINEAR11
(0000,0000,
(mS)
0001,0100)
20 ms
0 ms to
127 ms, 1 ms
resolution
80h, 83h,
86h, 88h,
89h, 8Ah,
8Bh, B9h
63h
TON_MAX_FAULT_RESPONSE
R/W
64h
TOFF_DELAY
R/W
0000h
LINEAR11
(0000,0000,
(ms)
0000,0000)
0 ms
0 ms to
127 ms, 1 ms
resolution
65h
TOFF_FALL
R/W
0005h
LINEAR11
(0000,0000,
(ms)
0000,0101)
5 ms
0 ms to
127 ms, 1 ms
resolution
66h
TOFF_MAX_WARN_LIMIT
R/W
003Ch
LINEAR11
(0000,0000,
(ms)
0011,1100)
60 ms
0 ms to
127 ms, 1 ms
resolution
78h
STATUS_BYTE
Read
Byte
00h
(0000,0000)
No faults
-
79h
STATUS_WORD
Read
Word
0000h
(0000,0000,
0000,0000)
No faults
-
7Ah
STATUS_VOUT
Read
Byte
00h
(0000,0000)
No faults
-
S21-0213-Rev. B, 08-Mar-2021
Byte
The device shuts down (disables the
output). It attempts to restart
continuously, without limitation, until
B9h
it is commanded off (by the EN pin or
(1011,1001) OPERATION command or both),
bias power is removed, or another
fault condition causes the unit to
shut down. 20 ms delay
Document Number: 77863
15
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
PMBus COMMAND LIST
PMBus COMMAND NAME
TYPE
DATA
FORMAT
(UNITS)
DEFAULT
VALUE IN
NVM
DEFAULT
VALID
RANGE
7Bh
STATUS_IOUT
Read
Byte
00h
(0000,0000)
No faults
-
7Ch
STATUS_INPUT
Read
Byte
00h
(0000,0000)
No faults
-
7Dh
STATUS_TEMPERATURE
Read
Byte
00h
(0000,0000)
No faults
-
7Eh
STATUS_CML
Read
Byte
00h
(0000,0000)
No faults
-
80h
STATUS_MFR_SPECIFIC
Read
Byte
00h
(0000,0000)
No faults
-
88h
READ_VIN
Read
LINEAR11
(V)
n/a
n/a
0 V to 80 V
89h
READ_IIN
Read
LINEAR11
(A)
n/a
n/a
exp:
(-4) to (-16)
8Bh
READ_VOUT
Read
LINEAR16
(V)
n/a
n/a
0 V to 48 V
8Ch
READ_IOUT
Read
LINEAR11
(A)
n/a
n/a
exp:
(-4 ) to (-10)
8Dh
READ_TEMPERATURE
Read
LINEAR11
(°)
n/a
n/a
(-50)° to 150°
94h
READ_DUTY_CYCLE
Read
LINEAR11
(%)
n/a
n/a
0 % to 100 %
96h
READ_POUT
Read
LINEAR11
(W)
n/a
n/a
exp:
(-4) to (-16)
97h
READ_PIN
Read
LINEAR11
(W)
n/a
n/a
exp:
(-4) to (-16)
98h
PMBUS_REVISION
Read
Byte
9Eh
MFR_SERIAL
R/W
Block
n/a
ADDRESS
33h
[7 :4] 0011: part I revision 1.3
(0011,0011) [3 : 0] 0011: part II revision 1.3
For user to store customized
information
ADh
IC_DEVICE_ID
R/W
Block
0000h
-
D7h
MFR_BASE_ADDRESS
Pins program
7-bit
10h
-
E2h
MFR_BASE_ADDRESS_2
Pins program
7-bit
50h
-
PMBus COMMAND DETAILS
OPERATION (01 h)
The OPERATION command sets the operational state of the regulator. It is used for the following functions:
• Turn the regulator output on and off in conjunction with the input from EN signal
• Set the output voltage with upper or lower margins
• Select the fault handling behavior when fault is caused by margining state
COMMAND
Bit position
Function
Default (88 h)
S21-0213-Rev. B, 08-Mar-2021
7
On/off
1
6
Off B
0
5
4
Margin
0
0
OPERATION
3
2
MRGNFLT
1
0
1
Nouse
0
0
RSV
0
Document Number: 77863
16
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
Bit Description (default setting in bold)
BITS
SYMBOL
7
On/off
6
Off B
5:4
3:2
1
0
Margin
VALUE
0b
1b
0b
1b
Regulator turns off following the TOFF_DELAY and TOFF_FALL command
00b
01b
10b
11b
00b
Output voltage is set by the PMBus VOUT_COMMAND data
Output voltage is set by the PMBus VOUT_MARGIN_LOW data
Output voltage is set by the PMBus VOUT_MARGIN_HIGH data
Not supported
Not supported
01b
Faults caused by selecting VOUT_MARGIN_HIGH or VOUT_MARGIN_LOW as the nominal
output voltage source are ignored
10b
Faults caused by selecting VOUT_MARGIN_HIGH or VOUT_MARGIN_LOW as the
nominal output voltage source are acted upon according to the settings of the
VOUT_OV_FAULT_RESPONSE and VOUT_UV_FAULT_RESPONSE
11b
x
x
Not supported
Not used
Reserved
MRGNFLT
Nouse
RSV
ACTION
Output is disabled
Output is enabled
Output is turned off immediately and power off sequence commands ignored
ON_OFF_CONFIGURATION (02 h)
The ON_OFF_CONFIG command configures the combination of EN pin input and PMBus commands needed to turn the unit
on and off. This includes how the unit responds when power is applied.
COMMAND
Bit position
Function
Default (1Fh)
7
0
6
RSV
0
5
0
ON/OFF_CONFIGURATION
4
3
2
PU
CMD
EN
1
1
1
1
ENPOL
1
0
Off B1
1
Bit Description (default setting in bold)
BITS
7:5
SYMBOL
RSV
4
PU
3
CMD
2
EN
1
ENPOL
0
OFFB1
VALUE
000b
0b
1b
0b
1b
0b
1b
0b
1b
ACTION
Reserved
Regulator powers up any time power is present regardless of state of the EN signalpin
Regulator does not power up until commanded by the CONTROLEN
pin and OPERATION command
Regulator ignores the “on” bit in the OPERATION command
Regulator responds the “on” bit in the OPERATION command
Regulator ignores the EN pin. Power conversion is controlled only by the OPERATION
command
Regulator requires the EN pin to be asserted to start the unit
EN signal is active low
EN signal is active high
0b
Regulator turns off following the tOFF_DELAY and tOFF_FALL command when EN signal is used
to turn off
1b
Regulator turns off immediately
CLEAR_FAULTS (03 h)
The CLEAR_FAULTS command is used to clear any fault bits that have been set. This command clears all bits in all status
registers simultaneously. At the same time, the device negates (clears, releases) its SALRT ALERT# signal output if the device
is asserting the SALRT ALERT# signal.
WRITE_PROTECT (10 h)
The WRITE_PROTECT command is used to control writing to the PMBus device. The intent of this command is to provide
protection against accidental changes. This command is not intended to provide protection against deliberate or malicious
changes to a device’s configuration or operation.
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
17
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
COMMAND
WRITE_PROTECT
Bit position
7
6
Function
5
4
3
2
WTPRT
Default (00h)
0
1
0
0
0
Nouse
0
0
0
0
0
Bit Description (default setting in bold)
BITS
SYMBOL
7:5
VALUE
WTPRT
4:0
Nouse
ACTION
000b
Enable writes to all commands
100b
Disable all writes except to the WRITE_PROTECT command
010b
Disable all writes except to the WRITE_PROTECT and OPERATION commands
001b
Disable all writes except to the WRITE_PROTECT, OPERATION, ON_OFF_CONFIG and
VOUT_COMMAND commands
00000b
Not used
STORE_USER_ALL (15 h)
The STORE_USER_ALL command instructs the PMBus device to copy the entire contents of the operating memory to the
matching locations in the non-volatile User Store memory. Any items in operating memory that do not have matching locations
in the User Store are ignored.
RESTORE_USER_ALL (16 h)
The RESTORE_USER_ALL command instructs the PMBus device to copy the entire contents of the nonvolatile user store
memory (NVM) to the matching locations in the operating memory. The values in the operating memory are overwritten by the
value retrieved from the user store. This feature is protected by the EEPROM_PASSWORD (DBh) command, see the section
below for more information. Any items in user store that do not have matching locations in the operating memory are ignored,
see the summary table for details.
CAPABILITY (19 h)
The CAPABILITY command provides a way for a host system to determine some key capabilities of the PMBus device.
This is a read only register.
COMMAND
WRITE_PROTECT
Bit position
7
Function
6
PEC
Default (D0h)
5
SPD
1
1
0
4
3
2
ALRT
NFMT
AVS
1
1
0
0
0
RSV
0
0
Bit Description
BITS
7
6:5
4
3
2
1:0
SYMBOL
PEC
SPD
ALRT
NFMT
AVS
RSV
VALUE
1b
10b
1b
0b
0b
00b
ACTION
Packet error checking is supported
Maximum supported bus speed is 1 MHz
The unit has ALERT# pin and supports PMBus alert response protocol
Numeric data is in LINEAR11, LINEAR16, or DIRECT format
AVSBUS not supported
Reserved
SMBALERT_MASK (1Bh)
The SMBALERT_MASK command may be used to prevent a warning or fault condition from asserting the SMBALERT# signal.
The command format used to block a status bit or bits from causing the SMBALERT# signal to be asserted is shown in Fig. 9.
The bits in the mask byte align with the bits in the corresponding status register. For example, if the STATUS_TEMPERATURE
command code were sent with the mask byte 01000000b, then an over temperature warning OT_WARNING (overtemperature
warning) condition would be blocked from asserting SMBALERT#.
7
S
Slave
Address
1
W
1
A
8
SMBalert_mask
Command_code
1
A
8
Status_x
Command code
1
A
8
Mask BYTE
1
A
P
Fig. 9 - SMBALSER_MASK Command Packet Format
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
18
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
The command format used by the host to determine the SMALER_MASK setting for a given status register is shown in Fig. 10.
7
1
Slave
S
1
W
address
8
1
SMBalert_Mask
A
A
Command_code
7
S
Slave
r
address
8
1
1
R
A
1
Block count
A
(=1)
8
8
A
(=1)
A
Command code
1
Block count
1
Status_x
8
1
N
Mask byte
P
A
Fig. 10 - Retrieving the SMBALSER_MASK Setting for a Given Status Register
VOUT_MODE (20 h)
The PMBus specification dictates that the data word for the VOUT_MODE command is one byte that consists of a 3-bit mode and
5-bit exponent parameter, as shown below. The 3-bit mode sets whether the device uses the linear or direct modes for output
voltage related commands. The 5-bit parameter sets the exponent value for the linear data mode. The mode and exponent
parameters are fixed and do not permit the user to change the values.
This is a read only register
COMMAND
WRITE_PROTECT
Bit position
7
6
Function
5
4
3
2
Mode
Default (D0h)
0
1
0
1
1
EXP
0
0
1
0
1
Bit Description
BITS
SYMBOL
VALUE
7:5
Mode
000b
4:0
EXP
10111b
ACTION
The unit uses ULINEAR16 format for VOUT related commands
5-bit two’s complement binary integer equals -9 for VOUT related commands
VOUT_COMMAND (21 h)
The VOUT_COMMAND is used to directly set the output voltage using the ULINEAR16 format, which is a 16- bit unsigned
integer. This is a read and write register. The output voltage, in volts, is calculated from the equation:
VOUT_SET = VOUT_COMMAND x 2N
Where:
VOUT_SET is the set output voltage in volt
VOUT_COMMAND is the 16- bit unsigned binary integer specified in the command
N is a 5- bit two’s complement binary integer specified in VOUT mode [4 : 0]
VOUT COMMAND
COMMAND
Bit position
7
6
5
Function
4
3
2
1
0
7
6
5
Data byte high
Default (133h)
0
0
0
0
0
4
3
2
1
0
0
1
1
Data byte low
0
0
1
0
0
1
1
0
Bit Description
BITS
FORMAT
VALUE
15 : 0
Unlinear 16
0133h
ACTION
VOUT_COMMAND is specified as 307 x 2-9 = 0.6 V
The output voltage’s range is 0.3 V to 14 V, resolution is 1.953 mV, and its NVM register default store value is 0133h equivalent
to 0.6 V.
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
19
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
VOUT_TRIM (22 h)
The VOUT_TRIM command is used to apply a fixed offset voltage to the output voltage command value. This is a read and write
register. The VOUT_TRIM has two data bytes formatted as a two’s complement binary integer (SLINEAR16 format). It is most
typically used by the end user to trim the output voltage at the time the PMBus device is assembled into the end user’s system.
The VOUT_TRIM command deviates from standard PMBus 1.3 specifications, at which it requires adding an integer calculating
from the expected offset voltage and the VOUT_SCALE_LOOP to VOUT_TRIM’s NVM register default store value varying by
devices. The effect of this command on the output voltage, in volts, is calculated from the equation:
N
ΔV × 2
ΔVoltage = --------------------------------------------------------VOUT_SCALE_LOOP
Where:
Δvoltage is the fixed offset voltage to the output voltage in volt
ΔV is the 16-bit two’s complement integer specified in VOUT_TRIM
VOUT_SCALE_LOOP is the dimensionless scale factor specified in VOUT_SCALE_LOOP command
N is a 5-bit two’s complement binary integer specified in VOUT_MODE [4:0].
COMMAND
VOUT TRIM
Bit position
15
Function
14
13
12
11
10
9
8
sign
Default (0000h)
0
7
6
5
4
3
2
1
0
0
0
0
0
0
0
0
data
0
0
0
0
0
0
0
0
Bit Description
BITS
FORMAT
VALUE
15 : 0
Unlinear 16
0000h
ACTION
ΔV is 0 V
The offset voltage’s range is -2 V to 2 V, resolution is 1.953 mV, and its NVM register default store value is a factory trim value
varying by devices. The users need to calculate a 16-bit two’s complement integer number following the above equation and
add the number to the factory trim value, so as to achieve the expected offset voltage to the output voltage.
VOUT_MAX (24 h)
The VOUT_MAX command sets an upper limit on the output voltage the unit can command regardless of any other commands
or combinations. The intent of this command is to provide a safeguard against a user accidentally setting the output voltage to
a possibly destructive level rather than to be the primary output overvoltage protection. This is a read and write register.
The VOUT_MAX uses ULINEAR16 format, which is a 16- bit unsigned integer according to the setting of the VOUT_MAX
command.
Bit Description
BITS
FORMAT
VALUE
15 : 0
Unlinear 16
1C00h
ACTION
The VOUT_MAX is specified as 14 V
The VOUT_MAX range is 0.3 V to 14 V, resolution is 1.953 mV, and its NVM register default store value is 1C00h equivalent to
14 V.
VOUT_MARGIN_HIGH (25 h)
The VOUT_MARGIN_HIGH command loads the unit with the voltage to which the output is to be changed when the
OPERATION command is set to “margin high”. This is a read and write register.
The VOUT_MARGIN_HIGH uses ULINEAR16 format, which is a 16-bit unsigned integer according to the setting of the
VOUT_MODE command.
Bit Description
BITS
FORMAT
VALUE
ACTION
15 : 0
Unlinear 16
0142h
The VOUT_MARGIN_HIGH is specified as 0.63 V
The VOUT_MARGIN_HIGH range is 0.3 V to 14 V, resolution is 1.953 mV, and its NVM register default store value is 0142h
equivalent to 0.63 V.
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
20
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
VOUT_MARGIN_LOW (26 h)
The VOUT_MARGIN_LOW command loads the unit with the voltage to which the output is to be changed when the OPERATION
command is set to margin low. This is a read and write register.
The VOUT_MARGIN_LOW uses ULINEAR16 format, which is a 16-bit unsigned integer according to the setting of the
VOUT_MODE command.
Bit Description
BITS
FORMAT
VALUE
ACTION
15 : 0
Unlinear 16
0123h
The VOUT_MARGIN_LOW is specified as 0.57 V
The VOUT_MARGIN_LOW range is 0.3 V to 14 V, resolution is 1.953 mV, and its NVM register default store value is 0123h
equivalent to 0.57 V.
VOUT_TRANSITION_RATE (27 h)
The VOUT_TRANSITION_RATE command sets the rate in mV/μs at which the output voltage should change voltage when a
PMBus device receives either a VOUT_COMMAND or OPERATION (margin high, margin low) that causes the output voltage to
change. This commanded rate of change does not apply when the unit is commanded to turn on or to turn off. This is a read
and write register.
The VOUT_TRANSITION_RATE uses LINEAR11 format, which has two data bytes with an 11-bit two’s complement mantissa
and a 5-bit two’s complement exponent (scaling factor). The 5-bit two’s complement exponent of the
VOUT_TRANSITION_RATE command is constant as 5’b11100, that is, -4 in decimal. The LINEAR11 format of the two data
bytes is illustrated in table below.
Table - LINEAR11 Numeric Format Data Bytes
COMMAND
VOUT_TRANSITION_RATE
Bit position
15
14
Function
13
12
11
10
9
8
7
6
EXP
Default (E002h)
1
1
1
5
4
3
2
1
0
0
0
0
1
0
MAN
0
0
0
0
0
0
0
0
Bit Description
BITS
SYMBOL
VALUE
15
EXP SGN
1b
14 : 11
EXP
1100b
10
MAN SGN
0b
19 : 0
MAN DATA
00, 0000, 0010b
ACTION
Exponent value with negative sign
Five 5-bit two’s complement exponent equals -4 for VOUT_TRANSITION_RATE command
Mantissa value with positive sign
Eleven 11-bit two’s complement mantissa equals 2 for VOUT_TRANSITION_RATE
command
The VOUT_TRANSITION_RATE range is 0.0625 - 2 mV/μs, resolution is 0.0625 mV/μs, and its NVM register default store value
is E002h equivalent to 0.125 mV/μs. Any commands out of the valid range or with incorrect resolution will be ignored and
reported.
VOUT_SCALE_LOOP (29 h)
The VOUT_SCALE_LOOP command deviates from standard PMBus 1.3 specifications. The VOUT_SCALE_LOOP command
is used to scale down both the VOUT_COMMAND and the sense differential output voltage at the unit input, so as to extend
operational range of the PMBus unit to reach the maximum output voltage 12 V without the requirement of external resistor
divider on board. This is a read and write register.
The VOUT_SCALE_LOOP uses LINEAR11 format, which has two data bytes with an 11- bit two’s complement mantissa and a
5-bit two’s complement exponent (scaling factor). The 5-bit two’s complement exponent of the VOUT_SCALE_LOOP command
is constant as 5’b11101, that is, -3 in decimal.
The LINEAR11 format of the two data bytes is illustrated in Table “LINEAR11 Numeric Format Data Bytes”.
Table - VOUT_SCALE_LOOP Look Up
SET OUTPUT VOLTAGE (V)
0.3 V < VOUT < 1.8 V
SCALE DOWN FACTOR (V/V)
VOUT_SCALE_LOOP BITS [15 : 0]
1.0
E808h
E804h
1.8 V ≤ VOUT < 3.3 V
0.5
3.3 V ≤ VOUT ≤ 5.0 V
0.25
E802h
5.0 V < VOUT ≤ 12.0 V
0.125
E801h
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
21
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
Bit Description
BITS
SYMBOL
VALUE
15 to 0
Linear 11
E808h
ACTION
The VOUT_SCALE_LOOP is specified as 1 V/V
The VOUT_SCALE_LOOP offers four options of scale down factor: 1.0 V/V, 0.5 V/V, 0.25 V/V, and 0.125 V/V. When VOUT is set
by a resistor between VSET pin and ground, the value of VOUT_SCALE_LOOP is automatically chosen according to the
“VOUT_SCALE_LOOP look up” table. When VOUT is set by PMBus VOUT_COMMAND, the value of the VOUT_SCALE_LOOP
shall be updated according to the “VOUT_SCALE_LOOP look up” table.
The VOUT_SCALE_LOOP NVM register default store value is E808h equivalent to 1.0 V/V. Any commands out of the valid
options will be ignored and reported.
FREQUENCY_SWITCH (33 h)
The FREQUENCY_SWITCH command sets the switching frequency, in kHz, of the PMBus unit. This is a read and write register.
The FREQUENCY_SWITCH uses LINEAR11 format, which has two data bytes with an 11- bit two’s complement mantissa and
a 5-bit two’s complement exponent (scaling factor). The 5-bit two’s complement exponent of the FREQUENCY_SWITCH
command is constant as 5’b00000, that is, 0 in decimal. The LINEAR11 format of the two data bytes is illustrated in Table “LINEAR11 Numeric Format Data Bytes”.
Bit Description
BITS
SYMBOL
VALUE
15 : 0
Linear 11
0258h
ACTION
FREQUENCY_SWITCH is specified 600 kHz.
The FREQUENCY_SWITCH range is 300 kHz to 1500 kHz, resolution is 50 kHz, and its NVM register default store value is 0258h
equivalent to 600 kHz. Any commands out of the valid range or with incorrect resolution will be ignored and reported.
VIN_ON (35 h)
The VIN_ON command sets the value of the input voltage, in volt, at which the PMBus unit should start power conversion. This
is a read and write register. The VIN_ON uses LINEAR11 format, which has two data bytes with an 11-bit two’s complement
mantissa and a 5-bit two’s complement exponent (scaling factor). The 5-bit two’s complement exponent of the VIN_ON
command is constant as 5’b11111, that is, -1 in decimal. The LINEAR11 format of the two data bytes is illustrated in Table “LINEAR11 Numeric Format Data Bytes”.
Bit Description
BITS
SYMBOL
VALUE
15 : 0
Linear 11
F814h
ACTION
The VIN_ON is specified as 10 V
The VIN_ON range is 1 V to 80 V, resolution is 0.5 V, and its NVM register default store value is F814h equivalent to 10 V. Any
commands out of the valid range or with incorrect resolution will be ignored and reported.
VIN_OFF (36 h)
The VIN_OFF command sets the value of the input voltage, in volt, at which the PMBus unit, once operation has started, should
stop power conversion. This is a read and write register. The VIN_OFF uses LINEAR11 format, which has two data bytes with
an 11-bit two’s complement mantissa and a 5-bit two’s complement exponent (scaling factor). The 5-bit two’s complement
exponent of the VIN_OFF command is constant as 5’b11111, that is, -1 in decimal. The LINEAR11 format of the two data bytes
is illustrated in Table - “LINEAR11 Numeric Format Data Bytes”.
Bit Description
BITS
SYMBOL
VALUE
15 : 0
Linear 11
F812h
ACTION
The VIN_OFF is specified as 9 V
The VIN_OFF range is 1 V to 80 V, resolution is 0.5 V, and its NVM register default store value is F812h equivalent to 9 V. Any
commands out of the valid range or with incorrect resolution will be ignored and reported.
INTERLEAVE (37 h)
The INTERLEAVE command deviates from standard PMBus 1.3 specifications. The INTERLEAVE command is used to sets the
mode of switching frequency and phase, at which the PMBus unit, once operation has started, should use to generate switching
frequency and phase angle. This is a read and write register.
The INTERLEAVE commands offer four modes of switching configuration: STANDALONE, MASTER, SLAVE in phase, and
SALVE 180° out of phase.
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
22
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
The description of all four modes and the corresponding INTERLEAVE command is listed in the table below.
INTERLEAVE COMMAND AND MODE OF SWITCHING FREQUENCY GENERATION
DESCRIPTION
INTERLEAVE BITS
[15 : 0]
STANDALONE
The value of unit switching frequency is set by resistance of a resistor connected to RT/SYNC
unit designated pin. The setting value of the switching frequency will be overridden after the
PMBus unit receiving the PMBus command FREQUENCY_SWITCH command. The RT/SYNC pin
shall not be used for other purposes
0000h
MASTER
The value of unit switching frequency is set by resistance of a resistor connected to RT/SYNC
pin. The setting value of the switching frequency will be overridden after the PMBus unit receiving
the PMBus command FREQUENCY_SWITCH command. After inside power VDD of the unit is
above its under voltage level, the RT/SYNC pin will output a 50% duty cycle pulse signal in phase
with the switching frequency, which may be used to drive other units set as the SLAVE mode by
INTERLEAVE command. The RT/SYNC pin shall not be used for other purposes
0100h
SLAVE in phase
The value of unit switching frequency is set by resistance of a resistor connected to RT/SYNC
pin. The setting value of the switching frequency will be overridden after the PMBus unit receiving
the PMBus command FREQUENCY_SWITCH command. When an external pulse switching
signal is connected to the /SYNC pin, the unit will synchronize its switching frequency to the
external pulse switching signal with 0º phase difference. The RT/SYNC pin shall not be used for
other purpose
0120h
SLAVE 180º out of
phase
The value of unit switching frequency is set by resistance of a resistor connected to RT/SYNC
pin. The setting value of the switching frequency will be overridden after the PMBus unit receiving
the PMBus command FREQUENCY_SWITCH command. When an external pulse switching
signal is connected to the /SYNC pin, the unit will synchronize its switching frequency to the
external pulse switching signal with 180º phase difference. The RT/SYNC pin shall not be used
for other purposes
0121h
Bit Description
BITS
SYMBOL
VALUE
ACTION
15:0
Linear 11
0100h
The INTERLEAVE is specified as MASTER mode
The INTERLEAVE NVM register default store value is 0100h equivalent to MASTER mode. Any commands out of the options
will be ignored and reported.
VOUT_OV_FAULT_LIMIT (40 h)
The VOUT_OV_FAULT_LIMIT command sets the value of the output voltage measured at the sense of output pins that causes
an output overvoltage fault. This is a read and write register.
The VOUT_OV_FAULT_LIMIT uses ULINEAR16 format, which is a 16-bit unsigned integer according to the setting of the
VOUT_MODE command.
Bit Description
BITS
SYMBOL
VALUE
15:0
Ulinear 16
0161h
ACTION
The VOUT_OV_FAULT_LIMIT is specified as 0.69 V
The VOUT_OV_FAULT_LIMIT range is 0.3 V to 14 V, resolution is 1.953 mV, and its NVM register default store value is 0161h
equivalent to 0.69 V.
VOUT_OV_FAULT_RESPONSE (41h)
The VOUT_OV_FAULT_RESPONSE command instructs the device on what action to take in response to an output overvoltage
fault. This is a read and write register and the NVM register default store value is F8h.
COMMAND
Bit position
VOUT_OV_FAULT_RESPONSE
7
Function
Default (F8h)
S21-0213-Rev. B, 08-Mar-2021
6
5
OVRSP
1
4
3
2
OVRTY
1
1
1
1
0
OVDLY
1
0
0
0
Document Number: 77863
23
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
Supported Commands
OVRSP
OVRTY
OVDLY
DESCRIPTIONS
1
1
1
1
1
0
0
0
The device’s output is disabled while the fault is present. Operation resumes
and the output is enabled when the fault condition no longer exists. It
attempts to restart continuously, without limitation, until it is commanded off
(by the CONTROL pin or OPERATION command or both), bias power is
removed, or another fault condition causes the unit to shut down
0
0
0
0
0
0
0
0
The device continues operation
0
0
0
1
0
1
1
0
The device continues operation
0
0
1
0
0
0
1
0
The device continues operation
0
0
1
1
0
1
1
0
The device continues operation
1
1
0
0
0
0
0
0
The device’s output is disabled while the fault is present. Operation resumes
and the output is enabled when the fault condition no longer exists
1
1
0
1
0
1
1
0
The device’s output is disabled while the fault is present. Operation resumes
and the output is enabled when the fault condition no longer exists
1
1
1
0
0
0
1
0
The device’s output is disabled while the fault is present. Operation resumes
and the output is enabled when the fault condition no longer exists
1
1
1
1
0
1
1
0
The device’s output is disabled while the fault is present. Operation resumes
and the output is enabled when the fault condition no longer exists
VOUT_OV_WARN_LIMIT (42h)
The VOUT_OV_WARN_LIMIT command sets the value of the output voltage measured at the sense of output pins that causes
an output voltage high warning. This is a read and write register.
The VOUT_OV_WARN_LIMIT uses ULINEAR16 format, which is a 16-bit unsigned integer according to the setting of the
VOUT_MODE command.
Bit Description
BITS
SYMBOL
VALUE
15:0
Ulinear 16
0151h
ACTION
The VOUT_OV_WARN_LIMIT is specified as 0.66 V
The VOUT_OV_WARN_LIMIT range is 0.3 V to 14 V, resolution is 1.953 mV, and its NVM register default store value is 0151h
equivalent to 0.66 V.
VOUT_UV_WARN_LIMIT (43h)
The VOUT_UV_WARN_LIMIT command sets the value of the output voltage measured at the sense of output pins that causes
an output voltage low warning. This is a read and write register.
The VOUT_UV_WARN_LIMIT uses ULINEAR16 format, which is a 16-bit unsigned integer according to the setting of the
VOUT_MODE command.
Bit Description
BITS
SYMBOL
VALUE
15:0
Ulinear 16
0114h
ACTION
The VOUT_UV_WARN_LIMIT is specified as 0.54 V
The VOUT_UV_WARN_LIMIT range is 0 V to 14 V, resolution is 1.953 mV, and its NVM register default store value is 0114h
equivalent to 0.54 V.
VOUT_UV_FAULT_LIMIT (44h)
The VOUT_UV_FAULT_LIMIT command sets the value of the output voltage measured at the sense of output pins that causes
an output undervoltage fault. This is a read and write register.
The VOUT_UV_FAULT_LIMIT uses ULINEAR16 format, which is a 16-bit unsigned integer according to the setting of the
VOUT_MODE command.
Bit Description
BITS
SYMBOL
VALUE
15:0
Ulinear 16
00F5h
ACTION
The VOUT_UV_FAULT_LIMIT is specified as 0.48 V
The VOUT_UV_FAULT_LIMIT range is 0 V to 14 V, resolution is 1.953 mV, and its NVM register default store value is 00F5h
equivalent to 0.48 V.
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
24
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
VOUT_UV_FAULT_RESPONSE (45h)
The VOUT_UV_FAULT_RESPONSE command instructs the device on what action to take in response to an output undervoltage
fault. This is a read and write register and the NVM register default store value is B9h.
COMMAND
VOUT_UV_FAULT_RESPONSE
Bit position
7
Function
6
5
4
UVRSP
Default (B9h)
1
3
2
UVRTY
0
1
1
1
0
UVDLY
1
0
0
1
Supported Commands
UVRSP
UVRTY
UVDLY
DESCRIPTIONS
1
0
1
1
1
0
0
1
The device shuts down (disables the output) and attempts to restart continuously,
without limitation, until it is commanded off (by the EN pin or OPERATION
command or both), bias power is removed, or another fault condition causes the
unit to shut down. 20 ms delay
0
0
0
0
0
0
0
0
The device continues operation
0
0
0
1
0
1
1
0
The device continues operation
0
0
1
0
0
0
1
0
The device continues operation
0
0
1
1
0
1
1
0
The device continues operation
1
1
0
0
0
0
0
0
The device’s output is disabled while the fault is present. Operation resumes and
the output is enabled when the fault condition no longer exists. The device does
not attempt to restart. The output remains disabled until the fault is cleared
1
1
0
1
0
1
1
0
The device’s output is disabled while the fault is present. Operation resumes and
the output is enabled when the fault condition no longer exists. The device does
not attempt to restart. The output remains disabled until the fault is cleared
1
1
1
0
0
0
1
0
The device’s output is disabled while the fault is present. Operation resumes and
the output is enabled when the fault condition no longer exists. The device does
not attempt to restart. The output remains disabled until the fault is cleared
1
1
1
1
0
1
1
0
The device’s output is disabled while the fault is present. Operation resumes and
the output is enabled when the fault condition no longer exists. The device does
not attempt to restart. The output remains disabled until the fault is cleared
IOUT_OC_FAULT_LIMIT (46h)
The IOUT_OC_FAULT_LIMIT command sets the value of the output current, in Amperes, that causes the overcurrent detector
to indicate an overcurrent fault condition. This is a read and write register. The IOUT_OC_FAULT_LIMIT uses LINEAR11 format,
which has two data bytes with an 11-bit two’s complement mantissa and a 5-bit two’s complement exponent (scaling factor).
The 5-bit two’s complement exponent of the IOUT_OC_FAULT_LIMIT command is constant as 5’b11111, that is, -1 in decimal.
The LINEAR11 format of the two data bytes is illustrated in Table - “LINEAR11 Numeric Format Data Bytes”.
Bit Description
BITS
15:0
SYMBOL
Linear 11
VALUE
ACTION
F870h
The IOUT_OC_FAULT_LIMIT is 56 A for SiC450
F846h
The IOUT_OC_FAULT_LIMIT is 35 A for SiC451
F82Ah
The IOUT_OC_FAULT_LIMIT is 21 A for SiC453
The IOUT_OC_FAULT_LIMIT range is 0 A to 127 A, resolution is 0.5 A, and its NVM register default store value is F846h for
SiC451 equivalent to 35 A. Any commands out of the valid range or with incorrect resolution will be ignored and reported.
IOUT_OC_FAULT_RESPONSE (47h)
The IOUT_OC_FAULT_RESPONSE is used to set device over current protection response (OCP) when valley inductor current
is higher than IOUT_OC_FAULT_LIMIT. This is a read and write register and the NVM register default store value is A1h.
COMMAND
Bit position
Function
Default (0xA1h)
IOUT_OC_FAULT_RESPONSE
7
6
5
0
1
OCRSP
1
4
OCCYCL
0
3
2
0
0
1
OCDLY
0
0
1
This command deviates from standard PMBus 1.3 specifications. It provides users 3-bit [5 : 3] setting to generate OC fault
based on total number of consecutive pulse-by-pulse OC counts. It also provides users 3-bit [2 : 0] delay time option between
shutdown and next restart attempt. In case of bits [5 : 3] = 111b, the device does not report OC fault and continues to operate
indefinitely while maintaining the output current at the value set by IOUT_OC_FAULT_LIMIT without regard to the output
voltage.
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
25
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
Supported Commands
OCRSP
OCRTY
OCDLY
1
0
1
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
1
1
0
1
0
1
0
0
0
0
0
1
0
1
0
1
1
1
0
0
0
0
1
1
0
0
0
0
0
0
1
1
0
1
0
1
1
0
1
1
1
0
0
0
1
0
1
1
1
1
0
1
1
0
1
1
1
1
1
0
0
0
DESCRIPTIONS
The device continues operation for 128 consecutive OC cycles and then shut down.
Waiting for 20 ms, it hiccups until the fault condition no longer exists
The device continues operation
The device continues operation
The device continues operation
The device continues operation
The device continues operation for 8 consecutive OC cycles and then shut down
without delay
The device continues operation for 32 consecutive OC cycles and then shut down
without delay
The device continues operation for 128 consecutive OC cycles and then shut down
without delay.
The device continues operation for 512 consecutive OC cycles and then shut down
without delay
The device continues operation and never shut down when OCP happens
IOUT_OC_WARN_LIMIT (4Ah)
The IOUT_OC_WARN_LIMIT command sets the value of the output current, in ampere, that causes an output overcurrent
warning. This is a read and write register. The IOUT_OC_WARN_LIMIT uses LINEAR11 format, which has two data bytes with
an 11-bit two’s complement mantissa and a 5-bit two’s complement exponent (scaling factor). The 5-bit two’s complement
exponent of the IOUT_OC_WARN_LIMIT command is constant as 5’b11111, that is, -1 in decimal. The LINEAR11 format of the
two data bytes is illustrated in Table - “LINEAR11 Numeric Format Data Bytes”.
Bit Description
BITS
1 5: 0
SYMBOL
Linear 11
VALUE
ACTION
F868h
The IOUT_OC_WARN_LIMIT is 52 A SiC450
F841h
The IOUT_OC_WARN_LIMIT is 32.5 A for SiC451
F827h
The IOUT_OC_WARN_LIMIT is 19.5 A for SiC453
The IOUT_OC_WARN_LIMIT range is 0 A to 127 A, resolution is 0.5 A, and its NVM register default store value is F841h for
SiC451 equivalent to 32.5 A. Any commands out of the valid range or with incorrect resolution will be ignored and reported.
OT_FAULT_LIMIT (4Fh)
The OT FAULT LIMIT command sets the temperature of the unit, in degree celsius, at which it should indicate an
overtemperature fault. This is a read and write register. The OT_FAULT_LIMIT uses LINEAR11 format, which has two data bytes
with an 11- bit two’s complement mantissa and a 5- bit two’s complement exponent (scaling factor). The 5- bit two’s
complement exponent of the OT_FAULT_LIMIT command is constant as 5’b00000, that is, 0 in decimal. The LINEAR11 format
of the two data bytes is illustrated in Table - “LINEAR11 Numeric Format Data Bytes”.
Bit Description
BITS
SYMBOL
VALUE
15:0
Linear 11
007Dh
ACTION
The OT_FAULT_LIMIT is specified as 125 °C
The OT_FAULT_LIMIT range is 0 °C to 150 °C, resolution is 1 °C, and its NVM register default store value is 007Dh equivalent
to 125 °C. Any commands out of the valid range or with incorrect resolution will be ignored and reported.
OT_FAULT_RESPONSE (50h)
The OT_FAULT_RESPONSE command instructs the device on what action to take in response to an overtemperature fault. This
is a read and write register and the NVM register default store value is F9h.
COMMAND
Bit position
OT FAULT RESPONSE
7
Function
Default (F9h)
S21-0213-Rev. B, 08-Mar-2021
6
5
1
1
OTRSP
1
4
3
2
1
0
OTRTY
1
1
0
OTDLY
0
1
Document Number: 77863
26
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
Supported Commands
OTRSP
OTRTY
OTDLY
DESCRIPTIONS
1
1
1
1
1
0
0
1
The device’s output is disabled while the fault is present. Operation resumes and
the output is enabled when the fault condition no longer exists. It attempts to
restart continuously, without limitation, until it is commanded off (by the EN pin
or OPERATION command or both), bias power is removed, or another fault
condition causes the unit to shut down
0
0
0
0
0
0
0
0
The device continues operation
0
0
0
1
0
1
1
0
The device continues operation
0
0
1
0
0
0
1
0
The device continues operation
0
0
1
1
0
1
1
0
The device continues operation
1
1
0
0
0
0
0
0
The device’s output is disabled while the fault is present. Operation resumes and
the output is enabled when the fault condition no longer exists. It does not
attempt to restart. The output remains disabled until the fault is cleared
1
1
0
1
0
1
1
0
The device’s output is disabled while the fault is present. Operation resumes and
the output is enabled when the fault condition no longer exists
1
1
1
0
0
0
1
0
The device’s output is disabled while the fault is present. Operation resumes and
the output is enabled when the fault condition no longer exists
1
1
1
1
0
1
1
0
The device’s output is disabled while the fault is present. Operation resumes and
the output is enabled when the fault condition no longer exists
OT_WARN_LIMIT (51h)
The OT_WARN_LIMIT command sets the temperature of the unit, in degree celsius, at which it should indicate an
overtemperature warning alarm. This is a read and write register. The OT_WARN_LIMIT uses LINEAR11 format, which has two
data bytes with an 11- bit two’s complement mantissa and a 5-bit two’s complement exponent (scaling factor). The 5-bit two’s
complement exponent of the OT WARN LIMIT command is constant as 5’b00000, that is, 0 in decimal. The LINEAR11 format
of the two data bytes is illustrated in Table - “LINEAR11 Numeric Format Data Bytes”.
Bit Description
BITS
SYMBOL
VALUE
15 : 0
Linear 11
0069h
ACTION
The OT_WARN_LIMIT is specified as 105 °C
The OT_WARN_LIMIT range is 0 °C to 150 °C, resolution is 1 °C, and its NVM register default store value is 0069h equivalent
to 105 °C. Any commands out of the valid range or with incorrect resolution will be ignored and reported.
VIN_OV_FAULT_LIMIT (55h)
The VIN_OV_FAULT_LIMIT command sets the value of the input voltage, in volt, that causes an input overvoltage fault. This is
a read and write register. The VIN_OV_FAULT_LIMIT uses LINEAR11 format, which has two data bytes with an 11-bit two’s
complement mantissa and a 5 bit two’s complement exponent (scaling factor). The 5-bit two’s complement exponent of the
VIN_OV_FAULT_LIMIT command is constant as 5’b11111, that is, -1 in decimal. The LINEAR11 format of the two data bytes is
illustrated in Table - “LINEAR11 Numeric Format Data Bytes”.
Bit Description
BITS
SYMBOL
VALUE
15 : 0
Linear 11
F81Eh
ACTION
The VIN_OV_FAULT_LIMIT is specified as 15 V
The VIN_OV_FAULT_LIMIT range is 1 V to 80 V, resolution is 0.5 V, and its NVM register default store value is F81Eh equivalent
to 15 V. Any commands out of the valid range or with incorrect resolution will be ignored and reported.
VIN_OV_FAULT_RESPONSE (56h)
The VIN_OV_FAULT_RESPONSE command instructs the device on what action to take in response to an input overvoltage fault.
This is a read and write register and the NVM register default store value is B8h.
COMMAND
Bit position
VIN_OV_FAULT_RESPONSE
7
Function
Default (B8h)
S21-0213-Rev. B, 08-Mar-2021
6
5
VIOVRSP
1
4
3
2
VIOVRTY
0
1
1
1
0
VIOVDLY
1
0
0
0
Document Number: 77863
27
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
Supported Commands
OTRSP
OTRTY
OTDLY
1
0
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
0
1
0
1
0
0
0
0
0
1
0
1
0
1
1
1
0
0
0
0
1
1
0
0
0
0
0
0
1
1
0
1
0
1
1
0
1
1
1
0
0
0
1
0
1
1
1
1
0
1
1
0
DESCRIPTIONS
This command deviates from standard PMBus 1.3 specifications. The device’s
output is disabled while the fault is present. Operation resumes and the output
is enabled when the fault condition no longer exists. It does not attempt to
restart. The output remains disabled until the fault is cleared
The device continues operation
The device continues operation
The device continues operation
The device continues operation
The device’s output is disabled while the fault is present. Operation resumes and
the output is enabled when the fault condition no longer exists. It does not
attempt to restart. The output remains disabled until the fault is cleared
The device’s output is disabled while the fault is present. Operation resumes and
the output is enabled when the fault condition no longer exists
The device’s output is disabled while the fault is present. Operation resumes and
the output is enabled when the fault condition no longer exists
The device’s output is disabled while the fault is present. Operation resumes and
the output is enabled when the fault condition no longer exists
VIN_UV_WARN_LIMIT (58h)
The VIN_UV_WARN_LIMIT command sets the value of the input voltage, in volt, that causes an input voltage low warning. This
is a read and write register. The VIN_UV_WARN_LIMIT uses LINEAR11 format, which has two data bytes with an 11-bit two’s
complement mantissa and a 5-bit two’s complement exponent (scaling factor). The 5-bit two’s complement exponent of the
VIN_UV_WARN_LIMIT command is constant as 5’b11111, that is, -1 in decimal. The LINEAR11 format of the two data bytes is
illustrated in Table - “LINEAR11 Numeric Format Data Bytes”.
Bit Description
BITS
SYMBOL
VALUE
15 : 0
Linear 11
F812h
ACTION
The VIN_UV_WARN_LIMIT is specified as 9 V
The VIN_UV_WARN_LIMIT range is 1 V to 80 V, resolution is 0.5 V, and its NVM register default store value is F812h equivalent
to 9 V. Any commands out of the valid range or with incorrect resolution will be ignored and reported.
IIN_OC_WARN_LIMIT (5Dh)
The IIN_OC_WARN_LIMIT command sets the value of the input current, in ampere, that causes an input current overcurrent
Warning. This is a read and write register. The IIN_OC_WARN_LIMIT uses LINEAR11 format, which has two data bytes with an
11-bit two’s complement mantissa and a 5-bit two’s complement exponent (scaling factor). The 5-bit two’s complement
exponent of the IIN_OC_WARN_LIMIT command is constant as 5’b11111, that is, -1 in decimal. The LINEAR11 format of the
two data bytes is illustrated in Table - “LINEAR11 Numeric Format Data Bytes”.
Bit Description
BITS
SYMBOL
VALUE
15 : 0
Linear 11
F80Ah
ACTION
The IIN_OC_WARN_LIMIT is specified as 5 A
The IIN_OC_WARN_LIMIT range is 0 A to 127 A, resolution is 0.5 A, and its NVM register default store value is F80Ah equivalent
to 5 A. Any commands out of the valid range or with incorrect resolution will be ignored and reported.
POWER_GOOD_ON (5Eh)
The POWER_GOOD_ON command sets the value of the output voltage at which an optional power good signal should be
asserted, indicating that the output voltage is valid. This is a read and write register. The POWER_GOOD_ON uses ULINEAR16
format, which is a 16-bit unsigned integer according to the setting of the VOUT_MODE command.
Bit Description
BITS
SYMBOL
VALUE
15 : 0
Ulinear 16
0114h
ACTION
The POWER_GOOD_ON is specified as 0.54 V
The POWER_GOOD_ON range is 0.24 V to 14 V, resolution is 1.953 mV, and its NVM register default store value is 0114h
equivalent to 0.54 V.
POWER_GOOD_OFF (5Fh)
The POWER_GOOD_OFF command sets the value of the output voltage at which an optional power good signal should be
negated, indicating that the output voltage is not valid. This is a read and write register. The POWER_GOOD_OFF uses
ULINEAR16 format, which is a 16-bit unsigned integer according to the setting of the VOUT_MODE command.
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
28
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
Bit Description
BITS
SYMBOL
VALUE
15 : 0
Ulinear 16
0105h
ACTION
The POWER_GOOD_OFF is specified as 0.51 V
The POWER_GOOD_OFF range is 0.24 V to 14 V, resolution is 1.953 mV, and its NVM register default store value is 0105h
equivalent to 0.51 V.
TON_DELAY(60h)
The TON_DELAY command sets the time, in millisecond, from which a start condition is received (as programmed by the
ON_OFF_CONFIG command) until the output voltage starts to rise. This is a read and write register. The TON_DELAY uses
LINEAR11 format, which has two data bytes with an 11-bit two’s complement mantissa and a 5-bit two’s complement exponent
(scaling factor). The 5 bit two’s complement exponent of the TON_DELAY command is constant as 5’b0000, that is, 0 in
decimal. The LINEAR11 format of the two data bytes is illustrated in Table - “LINEAR11 Numeric Format Data Bytes”.
Bit Description
BITS
SYMBOL
VALUE
15 : 0
Linear 11
0000h
ACTION
The TON_DELAY is specified as 0 ms
The TON_DELAY range is 0 ms to 127 ms, resolution is 1 ms, and its NVM register default store value is 0000h equivalent to
0 ms. Any commands out of the valid range or with incorrect resolution will be ignored and reported.
TON_RISE (61h)
The TON_RISE command sets the time, in millisecond, from when the output starts to rise until the voltage has entered the
regulation band. This is a read and write register. The TON_RISE uses LINEAR11 format, which has two data bytes with an 11-bit
two’s complement mantissa and a 5-bit two’s complement exponent (scaling factor). The 5-bit two’s complement exponent of
the TON_RISE command is constant as 5’b0000, that is, 0 in decimal. The LINEAR11 format of the two data bytes is illustrated
in Table - “LINEAR11 Numeric Format Data Bytes”.
Bit Description
BITS
SYMBOL
VALUE
15 : 0
Linear 11
0005h
ACTION
The TON_RISE is specified as 5 ms
The TON_RISE range is 0 ms to 127 ms, resolution is 1 ms, and its NVM register default store value is 0005h equivalent to
5 ms. Any commands out of the valid range or with incorrect resolution will be ignored and reported.
TON_MAX_FAULT_LIMIT (62h)
The TON_MAX_FAULT_LIMIT command sets an upper limit, in millisecond, on how long the unit can attempt to power up the
output without reaching the output undervoltage fault limit. This is a read and write register. The TON_MAX_FAULT_LIMIT uses
LINEAR11 format, which has two data bytes with an 11-bit two’s complement mantissa and a 5-bit two’s complement exponent
(scaling factor). The 5-bit two’s complement exponent of the TON_MAX_FAULT_LIMIT command is constant as 5’b0000, that
is, 0 in decimal. The LINEAR11 format of the two data bytes is illustrated in Table - “LINEAR11 Numeric Format Data Bytes”.
Bit Description
BITS
SYMBOL
VALUE
15 : 0
Linear 11
0014h
ACTION
The TON_MAX_FAULT_LIMIT is specified as 20 ms
The TON_MAX_FAULT_LIMIT range is 0 ms to 127 ms, resolution is 1 ms, and its NVM register default store value is 0014h
equivalent to 20 ms. Any commands out of the valid range or with incorrect resolution will be ignored and reported.
TON_MAX_FAULT_RESPONSE (63h)
The TON_MAX_FAULT_RESPONSE command instructs the device on what action to take in response to an input overcurrent
fault. This is a read and write register and the NVM register default store value is B9h.
COMMAND
Bit position
Function
Default (0xB9h)
S21-0213-Rev. B, 08-Mar-2021
TON_MAX_FAULT_RESPONSE
7
6
5
ONMXRSP
1
0
4
3
2
ONMXRTY
1
1
1
0
ONMXDLY
1
0
0
1
Document Number: 77863
29
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
Supported Commands
ONMXRSP
ONMXRTY
ONMXDLY
DESCRIPTIONS
1
0
1
1
1
0
0
1
The device shuts down (disables the output). It attempts to restart continuously,
without limitation, until it is commanded off (by the EN pin or OPERATION command
or both), bias power is removed, or another fault condition causes the unit to shut
down. 20 ms delay
1
0
0
0
0
0
0
0
The device shuts down (disables the output). It does not attempt to restart. The
output remains disabled until the fault is cleared
1
0
0
0
0
0
1
1
The device shuts down (disables the output). It does not attempt to restart. The
output remains disabled until the fault is cleared
1
0
0
0
0
1
1
0
The device shuts down (disables the output). It does not attempt to restart. The
output remains disabled until the fault is cleared
1
0
0
0
1
0
0
0
The device shuts down (disables the output). It attempts to restart 1 time. No delay
1
0
0
0
1
0
0
1
The device shuts down (disables the output). It attempts to restart 1 time. 20 ms delay
1
0
0
0
1
0
1
0
The device shuts down (disables the output). It attempts to restart 1 time. 30 ms delay
1
0
0
0
1
0
1
1
The device shuts down (disables the output). It attempts to restart 1 time. 40 ms delay
TOFF_DELAY (64h)
The TOFF_DELAY command sets the time, in millisecond, from when a stop condition is received until the unit stops transferring
energy to the output. This is a read and write register. The TOFF_DELAY uses LINEAR11 format, which has two data bytes with
an 11-bit two’s complement mantissa and a 5-bit two’s complement exponent (scaling factor). The 5-bit two’s complement
exponent of the TOFF_DELAY command is constant as 5’b0000, that is, 0 in decimal. The LINEAR11 format of the two data
bytes is illustrated in Table - “LINEAR11 Numeric Format Data Bytes”.
Bit Description
BITS
SYMBOL
VALUE
15 : 0
Linear 11
0000h
ACTION
The TOFF_DELAY is specified as 0 ms
The TOFF_DELAY range is 0 ms to 127 ms, resolution is 1 ms, and its NVM register default store value is 0000h equivalent to
0 ms. Any commands out of the valid range or with incorrect resolution will be ignored and reported.
TOFF_FALL (65h)
The TOFF_FALL command sets the time, in millisecond, from the end of the turn-off delay time until the voltage is commanded
to zero. Note that this command can only be used with a device whose output can sink enough current to cause the output
voltage to decrease at a controlled rate. This is a read and write register. The TOFF_FALL uses LINEAR11 format, which has
two data bytes with an 11-bit two’s complement mantissa and a 5-bit two’s complement exponent (scaling factor). The 5-bit
two’s complement exponent of the TOFF_FALL command is constant as 5’b0000, that is, 0 in decimal. The LINEAR11 format
of the two data bytes is illustrated in Table - “LINEAR11 Numeric Format Data Bytes”.
Bit Description
BITS
SYMBOL
VALUE
15 : 0
Linear 11
0005h
ACTION
The TOFF_FALL is specified as 5 ms
The TOFF_FALL range is 0 ms to 127 ms, resolution is 1 ms, and its NVM register default store value is 0005h equivalent to
5 ms. Any commands out of the valid range or with incorrect resolution will be ignored and reported.
TOFF_MAX_WARN_LIMIT (66h)
The TOFF_MAX_WARN_LIMIT command sets an upper limit, in millisecond, on how long the unit can attempt to power down
the output without reaching 12.5 % of the output voltage programmed at the time the unit is turned off. This is a read and write
register. The TOFF_MAX_WARN_LIMIT uses LINEAR11 format, which has two data bytes with an 11-bit two’s complement
mantissa and a 5-bit two’s complement exponent (scaling factor). The 5- bit two’s complement exponent of the
TOFF_MAX_WARN_LIMIT command is constant as 5’b0000, that is, 0 in decimal. The LINEAR11 format of the two data bytes
is illustrated in Table - “LINEAR11 Numeric Format Data Bytes”.
Bit Description
BITS
SYMBOL
VALUE
15 : 0
Linear 11
003Ch
ACTION
The TOFF_MAX_WARN_LIMIT is specified as 60 ms
The TOFF_MAX_WARN_LIMIT range is 0 ms to 127 ms, resolution is 1 ms, and its NVM register default store value is 003Ch
equivalent to 60 ms. Any commands out of the valid range or with incorrect resolution will be ignored and reported.
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
30
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
STATUS_BYTE (78h)
The STATUS_BYTE command returns one byte of information with a summary of the most critical faults. The STATUS_BYTE
message content is described in the table below. This is a read register.
Table - STATUS_BYTE Message Contents
BIT
STATUS BIT NAME
MEANING
7
BUSY
A fault was declared because the device was busy and unable to respond
6
OFF
This bit is asserted if the unit is not providing power to the output, regardless of the reason,
including simply not being enabled
5
VOUT_OV_FAULT
An output overvoltage fault has occurred
4
IOUT_OC_FAULT
An output overcurrent fault has occurred
3
VIN_UV_FAULT
An input undervoltage fault has occurred
2
Temperature
A temperature fault or warning has occurred
1
CML
A communications, memory or logic fault has occurred
0
None of the above
A fault or warning not listed in bits (7 to 1) has occurred
STATUS_WORD (79h)
The STATUS_WORD command returns two bytes of information with a summary of the unit’s fault condition. Based on the
information in these bytes, the host can get more information by reading the appropriate status registers. The low byte of the
status word is the same register as the STATUS_BYTE command. The STATUS_WORD message content is described in the
following table. This is a read register.
BYTE
Low
High
BIT
STATUS BIT NAME
MEANING
7
Busy
A fault was declared because the device was busy and unable to respond
6
OFF
This bit is asserted if the unit is not providing power to the output, regardless of the
reason, including simply not being enabled
An output overvoltage fault has occurred
5
VOUT_OV_FAULT
4
IOUT_OC_FAULT
An output overcurrent fault has occurred
3
VIN_UV_FAULT
An input undervoltage fault has occurred
2
Temperature
A temperature fault or warning has occurred
1
CML
A communications, memory or logic fault has occurred
0
None of the above
A fault or warning not listed in bits [7 : 1] has occurred
7
VOUT
An output voltage fault or warning has occurred
6
IOUT / POUT
An output current or output power fault or warning has occurred
5
Input
An input voltage, input current, or input power fault or warning has occurred
4
MFR specific
A manufacturer specific fault or warning has occurred
3
PG status #
The power good signal, if present, is negated
2
Fans
Not available
1
Other
Not available
0
Unknown
Not available
STATUS_VOUT (7Ah)
The STATUS_VOUT command returns one byte with contents described in the following table. This is a read register.
BIT
MEANING
7
VOUT OV fault (output overvoltage fault)
6
VOUT OV warning (output overvoltage warning)
5
VOUT UV warning (output undervoltage warning)
4
VOUT OV fault (output undervoltage fault)
3
VOUT max. min. (an attempt has been made to set the output voltage toa value higher than allowed by the VOUT max. or
lower than the limited allowed by the VOUT min.)
2
tON max. fault (output overvoltage fault)
1
tOFF max. warning (output overvoltage fault)
0
Not available
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
31
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
STATUS_IOUT (7Bh)
The STATUS_IOUT command returns one byte with contents described in the following table. This is a read register.
BIT
MEANING
7
IOUT OC fault (output overcurrent fault)
6
Not available
5
IOUT OC warning (output overcurrent warning)
4
Not available
3
Not available
2
Not available
1
Not available
0
Not available
STATUS_INPUT (7Ch)
The STATUS_INPUT command returns one byte with contents described in the following table. This is a read register.
BIT
MEANING
7
VIN OV fault (input overvoltage fault)
6
Not available
5
VIN UV warning (input undervoltage warning)
4
Not available
3
Unit off for insufficient input voltage
2
Not available
1
IIN OC warning (input overcurrent warning)
0
Not available
STATUS_TEMPERATURE (7Dh)
The STATUS_TEMPERATURE command returns one byte with contents described in the following table. This is a read register.
BIT
MEANING
7
OT fault (overtemperature fault)
6
OT warning (overtemperature warning)
5 to 0
Not available
STATUS_CML (7Eh)
The STATUS_CML command returns one byte with contents described in the following table. This is a read register.
BIT
MEANING
7
Invalid or unsupported command received
6
Invalid or unsupported data received
5
Packet error check failed
4
Memory fault detected
3
Not available
2
Reserved
1
A communication fault other than the ones listed in this table has occurred
0
Not available
STATUS_MFR Specific (80h)
The STATUS_MFR specific command returns one byte with contents described in the following table. This is a read register.
BIT
MEANING
7 to 4
Not available
3
IL master fault
2
YF verify fault
1
YF erase fault
0
YF PGM fault
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
32
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
READ_VIN (88h)
The READ_VIN command returns the input voltage in volt. The two data bytes are encoded in LINEAR11 format. The LINEAR11
format of the two data bytes is illustrated in Table - “LINEAR11 Numeric Format Data Bytes”. This is a read register.
READ_IIN (89h)
The READ_IIN command returns the input current in ampere. The two data bytes are encoded in LINEAR11 format. The
LINEAR11 format of the two data bytes is illustrated in Table - “LINEAR11 Numeric Format Data Bytes”. This is a read register.
READ_VOUT (8Bh)
The read VOUT command returns the actual, measured output voltage in volt. The two data bytes are encoded in ULINEAR16
format, which is a 16 bit unsigned integer according to the setting of the VOUT_MODE command. This is a read register.
READ_IOUT (8Ch)
The READ_IOUT command returns the measured output current in ampere. The two data bytes are encoded in LINEAR11
format. The LINEAR11 format of the two data bytes is illustrated in Table - “LINEAR11 Numeric Format Data Bytes”. This is a
read register.
READ_TEMPERATURE (8Dh)
The READ_TEMPERATURE command returns the measured temperature of the PMBus unit in degree celsius. The two data
bytes are encoded in LINEAR11 format. The LINEAR11 format of the two data bytes is illustrated in Table - “LINEAR11 Numeric
Format Data Bytes”. This is a read register.
READ_DUTY_CYCLE (94h)
The READ_DUTY_CYCLE command returns the duty of the PMBus unit’s power conversion in percent. The two data bytes are
encoded in LINEAR11 format. The LINEAR11 format of the two data bytes is illustrated in Table - “LINEAR11 Numeric Format
Data Bytes”. This is a read register.
READ_POUT (96h)
The READ_POUT command returns the output power, in watt, of the PMBus unit. The two data bytes are encoded in LINEAR11
format. The LINEAR11 format of the two data bytes is illustrated in Table - “LINEAR11 Numeric Format Data Bytes”. This is a
read register.
READ_PIN (97h)
The READ_PIN command returns the input power, in watt, of the PMBus unit. The two data bytes are encoded in LINEAR11
format. The LINEAR11 format of the two data bytes is illustrated in Table - “LINEAR11 Numeric Format Data Bytes”. This is a
read register.
PMBus_REVISION (98h)
The PMBUS_REVISION command stores or reads the revision of the PMBus to which the device is compliant. The command
has one data byte. Bits (7 to 4) indicate the revision of PMBus specification Part I to which the device is compliant. Bits (3 to 0)
indicate the revision of PMBus specification part II to which the device is compliant. The permissible values are shown in the
table below. This is a read register.
Table - PMBUS_REVISION DATA Byte Contents
BITS (7 TO 4)
PART I REVISION
BIT (3 TO 0)
PART II REVISION
0000b
1.0
0000b
1.0
0001b
1.1
0001b
1.1
0010b
1.2
0010b
1.2
0011b
1.3
0011b
1.3
MFR_SERIAL (9Eh)
The MFR_SERIAL command is used to store user’s customized information. This is a read and write 16-bit block register.
Bit Description
BITS
15 to 0
SYMBOL
VALUE
Block
0000h
S21-0213-Rev. B, 08-Mar-2021
ACTION
A block register to store user’s customized information
Document Number: 77863
33
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
IC_DEVICE_ID (ADh)
The IC_DEVICE_ID command is used to either set or read the type or part number of an IC embedded within a PMBus that is
used for the PMBus interface. Each manufacturer uses the format of their choice for the IC device identification. IC_DEVICE_ID
is typically only set once, at the time of manufacture.
Bit Description
BITS
15 to 0
SYMBOL
VALUE
Block
0000h
ACTION
The part number of the unit
MFR_BASE_ADDRESS (D7h)
The MFR_BASE_ADDRESS command is used to read or set the unit’s PMBus address when a designated voltage setting
resistor is assembled between VSET pin of the PMBus unit and ground. The four least significant bits (LSB) [3 : 0] of the
MFR_BASE_ADDRESS are set by resistance of the resistor assembled between ADDR pin and ground. The three most
significant bits (MSB) [6 : 4] of the MFR_BASE_ADDRESS are set by the MSB [6 : 4] 3-bit of the MFR_BASE_ADDRESS NVM
register store value. The default store value of MFR_BASE_ADDRESS NVM register is 10h. This is a read and write register.
Bit Description
BITS
SYMBOL
VALUE
ACTION
6 to 0
Pins program
10h
NVM register of MFR_BASE_ADDRESS default store value is 10h. Thus, MSB 3-bit [6 : 4]
of MFR_BASE_ADDRESS is 001b. When a 0.845 kΩ resistor is connected between ADDR
pin and ground and a Vout setting resistor is connected between VSET pin and ground, the
LSB 4-bit [3 : 0] of MFR_BASE_ADDRESS is 0000b.
EEPROM_PASSWORD (DBh)
The EEPROM_PASSWORD command will unlock write access to the internal NVM. This command must be sent before the
STORE_USER_ALL command. Access to the NVM can be disabled by sending any other data and will be automatically disabled
on each power-cycle.
Bit Description
BITS
15 to 0
SYMBOL
Block
VALUE
1234h
ACTION
Default password for unlocking access to the NVM before the STORE_USER_ALL
command
MFR_BASE_ADDRESS_2 (E2h)
The MFR_BASE_ADDRESS_2 command is used to read or set the unit’s PMBus address when there is no voltage setting
resistor assembled between VSET pin of the PMBus unit and ground. The four least significant bits (LSB) [3 : 0] of the
MFR_BASE_ADDRESS_2 are set by resistance of the resistor assembled between ADDR pin and ground. The MSB [6 : 4] 3-bit
of the MFR_BASE_ADDRESS_2 are set by the MSB [6 : 4] 3-bit of MFR_BASE_ADDRESS_2 NVM register store value. The
default store value of MFR_BASE_ADDRESS_2 NVM register is 50h. This is a read and write register.
Bit Description
BITS
6 to 0
SYMBOL
Pins program
S21-0213-Rev. B, 08-Mar-2021
VALUE
ACTION
50h
NVM register of MFR_BASE_ADDRESS_2 default store value is 50h. Thus, MSB 3-bit [6 : 4]
of MFR_BASE_ADDRESS_2 is 101b. When a 0.845 kΩ resistor is connected between
ADDR pin and ground and there is not a VOUT setting resistor assembled between VSET pin
and ground, the LSB 4-bit [3 : 0] of MFR_BASE_ADDRESS_2 is 0000b.
Document Number: 77863
34
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
ELECTRICAL CHARACTERISTICS (VIN = 12 V, VOUT = 1.2 V, fsw = 600 kHz, SiC453 (15 A), CIN = 2.2 μF x 3,
COUT = 47 μF x 12, unless otherwise noted)
Enable: 5V/div
VIN: 5V/div
Vo: 500mV/div
Vo: 500mV/div
Pgood: 5V/div
Pgood: 5V/div
Vdd: 5V/div
Vdd: 5V/div
Fig. 11 - SiC453 Startup with VIN, t = 5 ms/div
Fig. 14 - SiC453 Shut down with EN, t = 100 ms/div
VIN: 5V/div
Vo: 200mV/div
load: 5A/div
Vo: 500mV/div
Salert: 5V/div
Pgood: 5V/div
Vdd: 5V/div
SW: 5V/div
Fig. 12 - SiC453 Shut Down with VIN, t = 100 ms/div
Fig. 15 - SiC453 OCP
Vo: 200mV/div
Enable: 5V/div
Salert: 5V/div
Vo: 500mV/div
Pgood: 5V/div
Vdd: 5V/div
SW: 5V/div
Fig. 13 - SiC453 Startup with EN, t = 5 ms/div
S21-0213-Rev. B, 08-Mar-2021
Fig. 16 - SiC453 UVP
Document Number: 77863
35
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
ELECTRICAL CHARACTERISTICS (VIN = 12 V, VOUT = 1.2 V, fsw = 600 kHz, SiC453 (15 A), CIN = 2.2 μF x 3,
COUT = 47 μF x 12, unless otherwise noted)
Vo: 50mV/div(AC)
Vo: 50mV/div(AC)
Istep: 4A/div
Istep: 4A/div(AC)
SW: 10V/div
Fig. 17 - SiC453 Load Step, 7.5 A to 15 A, 1 A/μs, t = 10 μs/div
Vo: 50mV/div(AC)
SW: 10V/div
Fig. 20 - SiC453 Load Step, 0 A to 7.5 A, 1 A/μs, t = 10 μs/div
Vo: 50mV/div(AC)
Istep: 4A/div(AC)
Istep: 4A/div
SW: 10V/div
SW: 10V/div
Fig. 18 - SiC453 Load Step, 15 A to 7.5 A, 1 A/μs, t = 10 μs/div
Vo: 50mV/div(AC)
Fig. 21 - SiC453 Load Step, 0 A to 7.5 A, 1 A/μs, t = 10 μs/div
Skip Mode Enabled
Vo: 50mV/div(AC)
Istep: 4A/div
Istep: 4A/div
SW: 10V/div
Fig. 19 - SiC453 Load Step, 0 A to 7.5 A, 1 A/μs, t = 10 μs/div
S21-0213-Rev. B, 08-Mar-2021
SW: 10V/div
Fig. 22 - SiC453 Load Step, 7.5 A to 0 A, 1 A/μs, t = 10 μs/div
Skip Mode Enabled
Document Number: 77863
36
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
ELECTRICAL CHARACTERISTICS (VIN = 12 V, VOUT = 1.2 V, fsw = 600 kHz, SiC453 (15 A), CIN = 2.2 μF x 3,
COUT = 47 μF x 12, unless otherwise noted)
Vo: 20mV/div(AC)
SW: 5V/div
Fig. 23 - SiC453 Output Ripple, 0.01 A, t = 1 μs/div
Forced Continuous Conduction Mode
Vo: 20mV/div(AC)
SW: 5V/div
Fig. 26 - SiC453 Output Ripple, 15 A, t = 1 μs/div
Vo: 20mV/div(AC)
Enable: 5V/div
Vo: 200mV/div
SW: 5V/div
SW: 10V/div
Fig. 24 - SiC453 Output Ripple, 0.01 A, t = 20 μs/div
DCM Mode
Fig. 27 - SiC453 Prebias Startup
Vo: 20mV/div(AC)
SW: 5V/div
Fig. 25 - SiC453 Output Ripple, 7.5 A, t = 1 μs/div
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
37
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
ELECTRICAL CHARACTERISTICS (VIN = 12 V, VOUT = 1.2 V, fsw = 600 kHz, SiC451 (25 A), CIN = 2.2 μF x 3,
COUT = 47 μF x 12, unless otherwise noted)
Enable: 5V/div
VIN: 5V/div
Vo: 500mV/div
Vo: 500mV/div
Pgood: 5V/div
Pgood: 5V/div
Vdd: 5V/div
Vdd: 5V/div
Fig. 28 - SiC451 Startup with VIN, t = 5 ms/div
VIN: 5V/div
Fig. 31 - SiC451 Shut down with EN, t = 100 ms/div
Vo: 200mV/div
load: 10A/div
Vo: 500mV/div
Salert: 5V/div
Pgood: 5V/div
SW: 10V/div
Vdd: 5V/div
Fig. 29 - SiC451 Shut Down with VIN, t = 100 ms/div
Fig. 32 - SiC451 OCP
Vo: 200mV/div
Enable: 5V/div
Salert: 5V/div
Vo: 500mV/div
SW: 5V/div
Pgood: 5V/div
Vdd: 5V/div
Fig. 30 - SiC451 Startup with EN, t = 2 ms/div
S21-0213-Rev. B, 08-Mar-2021
Fig. 33 - SiC451 UVP
Document Number: 77863
38
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
ELECTRICAL CHARACTERISTICS (VIN = 12 V, VOUT = 1.2 V, fsw = 600 kHz, SiC451 (25 A), CIN = 2.2 μF x 3,
COUT = 47 μF x 12, unless otherwise noted)
Vo: 50mV/div(AC)
Vo: 50mV/div(AC)
Istep: 10A/div
Istep: 10A/div(AC)
SW: 5V/div
Fig. 34 - SiC451 Load Step, 12.5 A to 25 A, 10 A/μs, t = 10 μs/div
Vo: 50mV/div(AC)
SW: 5V/div
Fig. 37 - SiC451 Load Step, 12.5 A to 0 A, 1 A/μs, t = 10 μs/div
Vo: 50mV/div(AC)
Istep: 10A/div(AC)
Istep: 10A/div
SW: 5V/div
SW: 5V/div
Fig. 35 - SiC451 Load Step, 25 A to 12.5 A, 1 A/μs, t = 10 μs/div
Vo: 50mV/div(AC)
Fig. 38 - SiC451 Load Step, 0 A to 12.5 A, 1 A/μs, t = 10 μs/div
Skip Mode Enabled
Vo: 50mV/div
Istep: 10A/div
Istep: 10A/div
SW: 5V/div
Fig. 36 - SiC451 Load Step, 0 A to 12.5 A, 1 A/μs, t = 10 μs/div
S21-0213-Rev. B, 08-Mar-2021
SW: 5V/div
Fig. 39 - SiC451 Load Step, 12.5 A to 0 A, 1 A/μs, t = 10 μs/div
Skip Mode Enabled
Document Number: 77863
39
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
ELECTRICAL CHARACTERISTICS (VIN = 12 V, VOUT = 1.2 V, fsw = 600 kHz, SiC451 (25 A), CIN = 2.2 μF x 3,
COUT = 47 μF x 12, unless otherwise noted)
Vo: 20mV/div(AC)
SW: 5V/div
Fig. 40 - SiC451 Output Ripple, 0.01 A, t = 1 μs/div
Forced Continuous Conduction Mode
Vo: 20mV/div(AC)
Vo: 20mV/div(AC)
SW: 5V/div
Fig. 43 - SiC451 Output Ripple, 25 A, t = 1 μs/div
Forced Continuous Conduction Mode
Enable: 5V/div
Vo: 200mV/div
SW: 5V/div
Fig. 41 - SiC451 Output Ripple, 0.01 A, t = 2 ms/div
DCM Mode
SW: 10V/div
Fig. 44 - SiC451 Prebias Startup
Vo: 20mV/div(AC)
SW: 5V/div
Fig. 42 - SiC451 Output Ripple, 12.5 A, t = 1 μs/div
Forced Continuous Conduction Mode
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
40
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
ELECTRICAL CHARACTERISTICS (VIN = 12 V, VOUT = 1.2 V, fsw = 600 kHz, SiC450 (40 A), CIN = 2.2 μF x 3,
COUT = 47 μF x 12, unless otherwise noted)
Enable: 5V/div
Vo: 500mV/div
VIN: 5V/div
Vo: 500mV/div
Pgood: 5V/div
Pgood: 5V/div
Vdd: 5V/div
Vdd: 5V/div
Fig. 45 - SiC450 Startup with VIN, t = 5 ms/div
Fig. 48 - SiC450 Shut down with EN, t = 100 ms/div
VIN: 5V/div
Salert: 5V/div
Vo: 500mV/div
load: 20A/div
Vo: 500mV/div
Pgood: 5V/div
Vdd: 5V/div
SW: 5V/div
Fig. 46 - SiC450 Shut Down with VIN, t = 100 ms/div
Fig. 49 - SiC450 Overcurrent Protection Behavior, t = 10 μs
Salert: 5V/div
Enable: 5V/div
Vo: 500mV/div
SW: 5V/div
Vo: 500mV/div
Pgood: 5V/div
Vdd: 5V/div
Fig. 47 - SiC450 Startup with EN, t = 5 ms/div
S21-0213-Rev. B, 08-Mar-2021
Fig. 50 - SiC450 Output Undervoltage Protection Behavior,
t = 5 μs/div
Document Number: 77863
41
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
ELECTRICAL CHARACTERISTICS (VIN = 12 V, VOUT = 1.2 V, fsw = 600 kHz, SiC450 (40 A), CIN = 2.2 μF x 3,
COUT = 47 μF x 12, unless otherwise noted)
Vo: 50mV/div(AC)
Vo: 50mV/div(AC)
Istep: 10A/div(AC)
Istep: 10A/div
SW: 10V/div
Fig. 51 - SiC450 Load Step, 20 A to 40 A, 1 A/μs, t = 10 μs/div
Vo: 50mV/div(AC)
SW: 10V/div
Fig. 54 - SiC450 Load Step, 20 A to 0 A, 1 A/μs, t = 10 μs/div
Vo: 50mV/div(AC)
Istep: 10A/div(AC)
Istep: 10A/div
SW: 10V/div
SW: 10V/div
Fig. 52 - SiC450 Load Step, 40 A to 20 A, 10 A/μs, t = 10 μs/div
Fig. 55 - SiC450 Load Step, 0 A to 20 A, 1 A/μs, t = 10 μs/div
Skip Mode Enabled
Vo: 50mV/div(AC)
Vo: 50mV/div(AC)
Istep: 10A/div
Istep: 10A/div
SW: 10V/div
Fig. 53 - SiC450 Load Step, 0 A to 20 A, 1 A/μs, t = 10 μs/div
S21-0213-Rev. B, 08-Mar-2021
SW: 10V/div
Fig. 56 - SiC450 Load Step, 20 A to 0 A, 1 A/μs, t = 10 μs/div
Skip Mode Enabled
Document Number: 77863
42
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
ELECTRICAL CHARACTERISTICS (VIN = 12 V, VOUT = 1.2 V, fsw = 600 kHz, SiC450 (40 A), CIN = 2.2 μF x 3,
COUT = 47 μF x 12, unless otherwise noted)
Vo: 20mV/div(AC)
Vo: 20mV/div(AC)
SW: 5V/div
Fig. 57 - SiC450 Output Ripple, 0.01 A, t = 1 μs/div
Forced Continuous Conduction Mode
SW: 5V/div
Fig. 60 - SiC450 Output Ripple, 40 A, t = 1 μs/div
Forced Continuous Conduction Mode
Vo: 20mV/div(AC)
Enable: 5V/div
Vo: 200mV/div
SW: 5V/div
SW: 10V/div
Fig. 58 - SiC450 Output Ripple, 0.01 A, t = 50 μs/div
DCM Mode
Fig. 61 - SiC450 Prebias Startup
Vo: 20mV/div(AC)
SW: 5V/div
Fig. 59 - SiC450 Output Ripple, 20 A, t = 1 μs/div
Forced Continuous Conduction Mode
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
43
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
PCB LAYOUT RECOMMENDATIONS
Step 1: VIN/GND Planes and Decoupling
Step 3: VSWH Plane
VIN plane
Snubber
VIN
PGND plane
VSWH
PGND plane
VSWH
Fig. 62
1. Layout VIN and PGND planes as shown above
2. Ceramic capacitors should be placed right between VIN
and PGND, and very close to the device for best
decoupling effect
3. Difference values / packages of ceramic capacitors
should be used to cover entire decoupling spectrum
e.g. 1210 and 0603
4. Smaller capacitance value, closer to device VIN pin(s) better high frequency noise absorbing
Fig. 64
1. Connect output inductor to SiC45x with large plane to
lower the resistance
Step 2: VIN Pin
2. If any snubber network is required, place the
components on the bottom side as shown above
A GND plane
VIN decouple cap
Fig. 63
1. VIN (pin 23) is the input pin for both internal LDO and tON
block. tON time varies based on input voltage. It is
necessary to put a decouple cap close to this pin
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
44
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Step 4: VDD/PVCC Input Filter
Vishay Siliconix
Step 6: Signal Routing
VOUT sense signals
PGND
GND
AGND
plane
Fig. 67
Fig. 65
1. CVDD and CPVCC caps should be placed close to the IC
to filter noise and provide maximum instantaneous driver
current for low side MOSFET during switching cycle
Step 5: BOOT Resistor and Capacitor Placement
1. Separate the small analog signal from high current path.
As shown above, the high current paths with high dv/dt,
di/dt are placed on the right side of the IC, while the
small control signals are placed on the left side of the IC.
All the components for small analog signal should be
placed closer to IC with minimum trace length
2. Pin 16 is considered as IC analog ground, which should
have single connection to power ground. The AGND
ground plane connected with pin 16 helps to keep AGND
quite and improve noise immunity
3. Vsen+ / Vsen- differential analog signal pair should layout
using minimum clearance. Also, the differential pair
should be far away from VSWH node and other signals
throughout the length of the trace. Ground shield is
highly recommended
Fig. 66
1. These components need to be placed very close to
SiC45x, right between PHASE (pin 4) and BOOT (pin 6)
2. To reduce parasitic inductance, chip size 0402 can be
used
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
45
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
Step 7: Adding Thermal Relief Vias and Duplicate Power
Path Plane
Step 8: Ground Layer
VIN plane
PGND plane
A GND plane
PGND plane
Fig. 69
1. It is recommended to make the whole inner 1 layer (next
to top layer) ground plane
VSWH
Fig. 68
1. Thermal relief Vias can be added on the VIN and PGND
pads to utilize inner layers for high current and thermal
dissipation
2. This ground plane provides shielding between noise
source on top layer and signal trace within inner layer
3. The ground plane can be broken into two section as
power ground and analogue ground
2. To achieve better thermal performance, additional Vias
can be put on VIN plane and PGND plane. It is also
necessary to duplicate the VIN and ground plane at
bottom layer to maximize the power dissipation
capability from PCB
3. VSWH pad is a noise source and not recommended to put
Vias on this pad
4. 8 mil drill for pads and 10 mils drill for plane can be the
optional Via size. The Vias on pad may drain solder
during assembly and cause assembly issue. Please
consult with the assembly house for guideline
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
46
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiC450, SiC451, SiC453
www.vishay.com
Vishay Siliconix
PRODUCT SUMMARY
Part number
SiC450
SiC451
SiC453
Description
4.5 V to 20 V input 40 A
microBUCK DC/DC converter
with PMBus
4.5 V to 20 V input 25 A
microBUCK DC/DC converter
with PMBus
4.5 V to 20 V input 15 A
microBUCK DC/DC converter
with PMBus
Input voltage min. (V)
4.5
4.5
4.5
Input voltage max. (V)
20
20
20
Output voltage min. (V)
0.3
0.3
0.3
Output voltage max. (V)
12
12
12
Continuous current (A)
40
25
15
Switch frequency min. (kHz)
300
300
300
Switch frequency max. (kHz)
1500
1500
1500
Pre-bias operation (yes / no)
yes
yes
yes
Internal bias reg. (yes / no)
yes
yes
yes
internal
internal
internal
Enable (yes / no)
yes
yes
yes
PGOOD (yes / no)
yes
yes
yes
Over current protection
yes
yes
yes
OVP, OCP, UVP/SCP, OTP,
UVLO
OVP, OCP, UVP/SCP, OTP,
UVLO
OVP, OCP, UVP/SCP, OTP,
UVLO
Light load mode
yes
yes
yes
Peak efficiency (%)
96
96
96
PowerPAK MLP34-57
PowerPAK MLP34-57
PowerPAK MLP34-57
5.0 x 7.0 x 0.75
Compensation
Protection
Package type
Package size (W, L, H) (mm)
5.0 x 7.0 x 0.75
5.0 x 7.0 x 0.75
Status code
1
1
1
Product type
microBUCK
microBUCK
microBUCK
Applications
Computer, industrial, networking Computer, industrial, networking Computer, industrial, networking
Vishay Siliconix maintains worldwide manufacturing capability. Products may be manufactured at one of several qualified locations. Reliability data for Silicon
Technology and Package Reliability represent a composite of all qualified locations. For related documents such as package / tape drawings, part marking, and
reliability data, see www.vishay.com/ppg?77863.
S21-0213-Rev. B, 08-Mar-2021
Document Number: 77863
47
For technical questions, contact: powerictechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay's knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer's responsibility to validate that a particular product
with the properties described in the product specification is suitable for use in a particular application. Parameters provided in
datasheets and / or specifications may vary in different applications and performance may vary over time. All operating
parameters, including typical parameters, must be validated for each customer application by the customer's technical experts.
Product specifications do not expand or otherwise modify Vishay's terms and conditions of purchase, including but not limited
to the warranty expressed therein.
Hyperlinks included in this datasheet may direct users to third-party websites. These links are provided as a convenience and
for informational purposes only. Inclusion of these hyperlinks does not constitute an endorsement or an approval by Vishay of
any of the products, services or opinions of the corporation, organization or individual associated with the third-party website.
Vishay disclaims any and all liability and bears no responsibility for the accuracy, legality or content of the third-party website
or for that of subsequent links.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please
contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
© 2021 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED
Revision: 09-Jul-2021
1
Document Number: 91000
