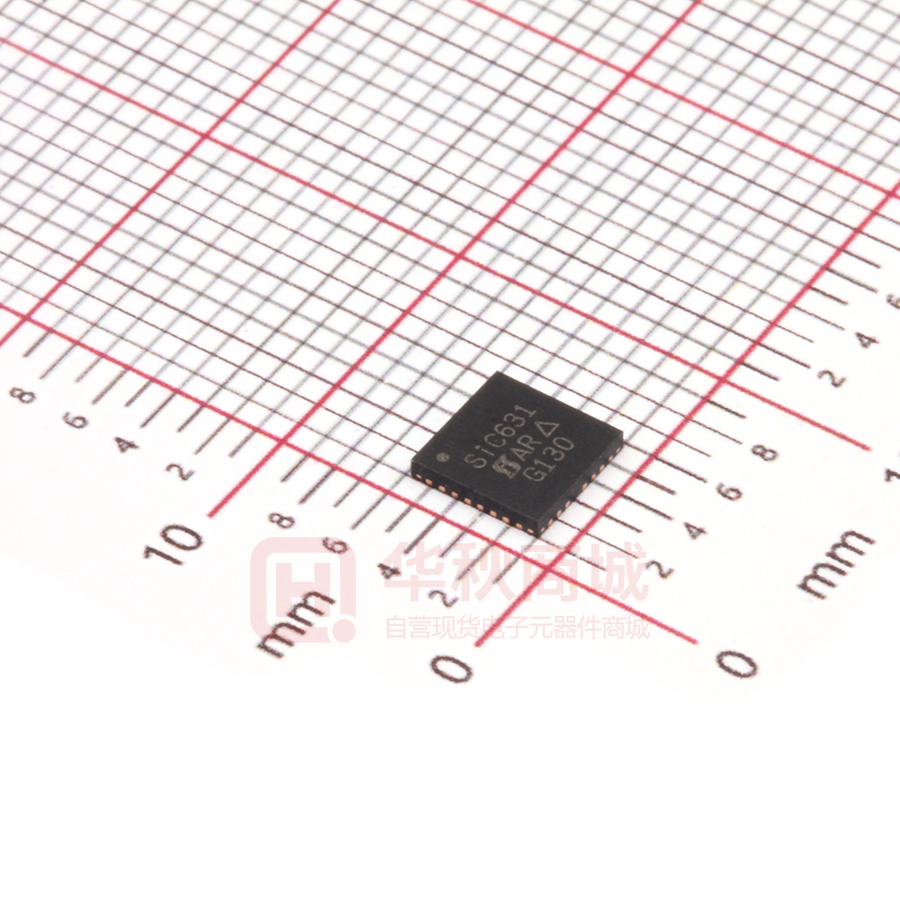

SIC631CD-T1-GE3

SiC631 www.vishay.com Vishay Siliconix 50 A VRPower® Integrated Power Stage DESCRIPTION FEATURES The SiC631 is integrated power stage solutions optimized for synchronous buck applications to offer high current, high efficiency, and high power density performance. Packaged in Vishay’s proprietary 5 mm x 5 mm MLP package, SiC631 enables voltage regulator designs to deliver up to 50 A continuous current per phase. • Thermally enhanced PowerPAK® MLP55-31L package • Vishay’s Gen IV MOSFET technology and a low-side MOSFET with integrated Schottky diode • Delivers in excess of 50 A continuous current, 55 A at 10 ms peak current • High efficiency performance • High frequency operation up to 2 MHz • Power MOSFETs optimized for 19 V input stage • 5 V PWM logic with tri-state and hold-off • Supports PS4 mode light load requirement for IMVP8 with low shutdown supply current (5 V, 3 μA) • Under voltage lockout for VCIN The internal power MOSFETs utilizes Vishay’s state-of-the-art Gen IV TrenchFET technology that delivers industry benchmark performance to significantly reduce switching and conduction losses. The SiC631 incorporates an advanced MOSFET gate driver IC that features high current driving capability, adaptive dead-time control, an integrated bootstrap Schottky diode, and zero current detection to improve light load efficiency. The driver is also compatible with a wide range of PWM controllers, supports tri-state PWM, and 5 V PWM logic. A user selectable diode emulation mode (ZCD_EN#) is included to improve the light load performance. The device also supports PS4 mode to reduce power consumption when system operates in standby state. • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS • Multi-phase VRDs for computing, graphics card and memory • Intel IMVP-8 VRPower delivery - VCORE, VGRAPHICS, VSYSTEM AGENT Skylake, Kabylake platforms - VCCGI for Apollo Lake platforms • Up to 24 V rail input DC/DC VR modules TYPICAL APPLICATION DIAGRAM 5V VIN V IN VDRV BOOT PHASE VCIN ZCD_EN# PWM controller PWM VSWH VOUT Gate driver PGND GL C GND Fig. 1 - SiC631 Typical Application Diagram S17-1583-Rev. D, 16-Oct-17 Document Number: 67104 1 For technical questions, contact: powerictechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiC631 www.vishay.com Vishay Siliconix GL CGND N.C. 4 BOOT 5 PGND N.C. 6 VIN VSWH 21 20 VSWH VSWH 20 19 VSWH VSWH 19 18 VSWH VSWH 18 17 VSWH VSWH 17 16 VSWH VSWH 16 N.C. VDRV PGND VSWH GL N.C. 2 ZCD_EN# 32 CGND 3 VCIN 4 N.C. 35 PGND 5 BOOT 6 N.C. 34 VIN 7 PHASE 8 VIN Top view VIN PGND PGND PGND 11 10 PGND 15 14 13 12 PGND 12 13 14 15 VIN VIN 10 11 VIN 21 VSWH 1 PWM GL VIN 9 VSWH 22 PGND VIN 8 VSWH 23 22 VSWH PGND PHASE 7 23 VSWH PGND VCIN 3 24 25 26 27 28 29 30 31 9 VIN PWM 1 VSWH VSWH VSWH GL VSWH PGND VDRV N.C. N.C. 33 GL 31 30 29 28 27 26 25 24 ZCD_EN# 2 VSWH PINOUT CONFIGURATION Bottom view Fig. 2 - SiC631 Pin Configuration PIN CONFIGURATION PIN NUMBER NAME 1 PWM 2 ZCD_EN# 3 VCIN 5 BOOT 4, 6, 30, 31 N.C. 7 PHASE 8 to 11, 34 VIN FUNCTION PWM input logic The ZCD_EN# pin enables or disables diode emulation. When ZCD_EN# is LOW, diode emulation is allowed. When ZCD_EN# is HIGH, continuous conduction mode is forced. ZCD_EN# can also be put in a high impedance mode by floating the pin. If both ZCD_EN# and PWM are floating, the device shuts down and consumes typically 3 μA (9 μA max.) current. Supply voltage for internal logic circuitry High-side driver bootstrap voltage Pin 4 can be either left floating or connected to CGND. Internally it is either connected to GND or not internally connected depending on manufacturing location. Factory code “G” on line 3, pin 4 = CGND Factory code “T” on line 3, pin 4 = not internally connected P/N P/N LL LL GYWW TYWW Return path of high-side gate driver Power stage input voltage. Drain of high-side MOSFET 12 to 15, 28, 35 PGND Power ground 16 to 26 VSWH Phase node of the power stage 27, 33 GL 29 VDRV Supply voltage for internal gate driver 32 CGND Signal ground Low-side MOSFET gate signal ORDERING INFORMATION PART NUMBER SiC631CD-T1-GE3 SiC631DB S17-1583-Rev. D, 16-Oct-17 PACKAGE PowerPAK MLP55-31L MARKING CODE OPTION SiC631 5 V PWM optimized Reference board Document Number: 67104 2 For technical questions, contact: powerictechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiC631 www.vishay.com Vishay Siliconix PART MARKING INFORMATION = Pin 1 Indicator = Part Number Code = Siliconix Logo = ESD Symbol F = Assembly Factory Code Y = Year Code WW = Week Code LL = Lot Code P/N P/N LL FYWW ABSOLUTE MAXIMUM RATINGS ELECTRICAL PARAMETER CONDITIONS LIMIT VIN -0.3 to +28 Control Logic Supply Voltage VCIN -0.3 to +7 Drive Supply Voltage VDRV Input Voltage Switch Node (DC voltage) -0.3 to +7 -0.3 to +28 VSWH Switch Node (AC voltage) (1) BOOT Voltage (DC voltage) -7 to +35 BOOT to PHASE (DC voltage) 40 -0.3 to +7 VBOOT-PHASE BOOT to PHASE (AC voltage) (3) -0.3 to +8 All Logic Inputs and Outputs (PWM, ZCD_EN#) -0.3 to VCIN +0.3 Max. Operating Junction Temperature TJ 150 Ambient Temperature TA -40 to +125 Storage Temperature Tstg -65 to +150 Human body model, JESD22-A114 2000 Charged device model, JESD22-C101 1000 Electrostatic Discharge Protection V 33 VBOOT BOOT Voltage (AC voltage) (2) UNIT °C V Notes • Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability (1) The specification values indicated “AC” is V SWH to PGND -8 V (< 20 ns, 10 μJ), min. and 35 V (< 50 ns), max. (2) The specification value indicates “AC voltage” is V BOOT to PGND, 40 V (< 50 ns) max. (3) The specification value indicates “AC voltage” is V BOOT to VPHASE, 8 V (< 50 ns) max. RECOMMENDED OPERATING RANGE ELECTRICAL PARAMETER Input Voltage (VIN) MINIMUM TYPICAL MAXIMUM 4.5 - 24 Drive Supply Voltage (VDRV) 4.5 5 5.5 Control Logic Supply Voltage (VCIN) 4.5 5 5.5 BOOT to PHASE (VBOOT-PHASE, DC voltage) 4 4.5 5.5 Thermal Resistance from Junction to Ambient - 10.6 - Thermal Resistance from Junction to Case - 1.6 - S17-1583-Rev. D, 16-Oct-17 UNIT V °C/W Document Number: 67104 3 For technical questions, contact: powerictechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiC631 www.vishay.com Vishay Siliconix ELECTRICAL SPECIFICATIONS (ZCD_EN# = 5 V, VIN = 12 V, VDRV and VCIN = 5 V, TA = 25 °C, unless otherwise stated) PARAMETER SYMBOL TEST CONDITION LIMITS UNIT MIN. TYP. MAX. VPWM = FLOAT VPWM = FLOAT, VZCD_EN# = 0 V fS = 300 kHz, D = 0.1 fS = 300 kHz, D = 0.1 fS = 1 MHz, D = 0.1 VPWM = VZCD_EN# = FLOAT, TA = -10 °C to +100 °C - 80 120 300 10 30 20 - - 3 9 μA IF = 2 mA - - 0.65 V VPWM = FLOAT 3.6 0.72 1.1 3.4 3.9 1 2.5 1.35 3.7 4.2 1.3 1.6 4 V VHYS_TRI_R - 325 - VHYS_TRI_F - 250 - VPWM = 5 V VPWM = 0 V - - 350 -350 μA VZCD_EN# = FLOAT 3.3 1.1 1.5 2.9 3.6 1.4 2.5 1.8 3.15 3.9 1.7 2.1 3.4 V VHYS_TRI_ZCD#_R - 375 - VHYS_TRI_ZCD#_F - 450 - - 100 -100 5 POWER SUPPLY Control Logic Supply Current IVCIN Drive Supply Current IVDRV PS4 Mode Supply Current BOOTSTRAP SUPPLY Bootstrap Diode Forward Voltage PWM CONTROL INPUT Rising Threshold Falling Threshold Tri-state Voltage Tri-state Rising Threshold Tri-state Falling Threshold Tri-state Rising Threshold Hysteresis Tri-state Falling Threshold Hysteresis PWM Input Current ZCD_EN# CONTROL INPUT Rising Threshold Falling Threshold Tri-state Voltage Tri-state Rising Threshold Tri-state Falling Threshold Tri-state Rising Threshold Hysteresis Tri-state Falling Threshold Hysteresis IVCIN + IVDRV VF VTH_PWM_R VTH_PWM_F VTRI VTRI_TH_R VTRI_TH_F IPWM VTH_ZCD_EN#_R VTH_ZCD_EN#_F VTRI_ZCD_EN# VTRI_ZCD_EN#_R VTRI_ZCD_EN#_F mV IZCD_EN# PS4 Exit Latency TIMING SPECIFICATIONS Tri-State to GH/GL Rising Propagation Delay Tri-state Hold-Off Time GH - Turn Off Propagation Delay GH - Turn On Propagation Delay (Dead time rising) GL - Turn Off Propagation Delay GL - Turn On Propagation Delay (Dead time falling) PWM Minimum On-Time PROTECTION tPS4EXIT - tPD_TRI_R - 20 - tTSHO tPD_OFF_GH - 150 20 - - 15 - tPD_OFF_GL - 20 - tPD_ON_GL - 20 - tPWM_ON_MIN. 30 - - 2.4 - 3.4 2.9 500 3.9 - Under Voltage Lockout Hysteresis mA mV ZCD_EN# Input Current Under Voltage Lockout μA tPD_ON_GH VUVLO VZCD_EN# = 5 V VZCD_EN# = 0 V No load, see fig. 4 VCIN rising, on threshold VCIN falling, off threshold VUVLO_HYST μA μs ns V mV Notes (1) Typical limits are established by characterization and are not production tested (2) Guaranteed by design S17-1583-Rev. D, 16-Oct-17 Document Number: 67104 4 For technical questions, contact: powerictechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiC631 www.vishay.com Vishay Siliconix DETAILED OPERATIONAL DESCRIPTION PWM Input with Tri-state Function Switch Node (VSWH and PHASE) The PWM input receives the PWM control signal from the VR controller IC. The PWM input is designed to be compatible with standard controllers using two state logic (H and L) and advanced controllers that incorporate tri-state logic (H, L and tri-state) on the PWM output. For two state logic, the PWM input operates as follows. When PWM is driven above VPWM_TH_R the low-side is turned ON and the high-side is turned ON. When PWM input is driven below VPWM_TH_F the high-side is turned OFF and the low-side is turned ON. For tri-state logic, the PWM input operates as previously stated for driving the MOSFETs when PWM is logic high and logic low. However, there is an third state that is entered as the PWM output of tri-state compatible controller enters its high impedance state during shut-down. The high impedance state of the controller’s PWM output allows the SiC631 to pull the PWM input into the tri-state region (see definition of PWM logic and tri-state, fig. 4). If the PWM input stays in this region for the tri-state hold-off period, tTSHO, both high-side and low-side MOSFETs are turned OFF. The function allows the VR phase to be disabled without negative output voltage swing caused by inductor ringing and saves a Schottky diode clamp. The PWM and tri-state regions are separated by hysteresis to prevent false triggering. The SiC631 incorporates PWM voltage thresholds that are compatible with 5 V. The switch node, VSWH, is the circuit power stage output. This is the output applied to the power inductor and output filter to deliver the output for the buck converter. The PHASE pin is internally connected to the switch node VSWH. This pin is to be used exclusively as the return pin for the BOOT capacitor. Diode Emulation Mode and PS4 Mode (ZCD_EN#) The ZCD_EN# pin enables or disables diode emulation mode. When ZCD_EN# is driven below VTH_ZCD_EN#_F, diode emulation is allowed. When ZCD_EN# is driven above VTH_ZCD_EN#_R, continuous conduction mode is forced. Diode emulation mode allows for higher converter efficiency under light load situations. With diode emulation active, the SiC631 will detect the zero current crossing of the output inductor and turn off the low-side MOSFET. This ensures that discontinuous conduction mode (DCM) is achieved. Diode emulation is asynchronous to the PWM signal, therefore, the SiC631 will respond to the ZCD_EN# input immediately after it changes state. The ZCD_EN# pin can be floated resulting in a high impedance state. High impedance on the input of ZCD_EN# combined with a tri-stated PWM output will shut down the SiC631, reducing current consumption to typically 5 μA. This is an important feature in achieving the low standby current requirements required in the PS4 state in ultrabooks and notebooks. Voltage Input (VIN) This is the power input to the drain of the high-side power MOSFET. This pin is connected to the high power intermediate BUS rail. S17-1583-Rev. D, 16-Oct-17 Ground Connections (CGND and PGND) PGND (power ground) should be externally connected to CGND (control signal ground). The layout of the printed circuit board should be such that the inductance separating CGND and PGND is minimized. Transient differences due to inductance effects between these two pins should not exceed 0.5 V Control and Drive Supply Voltage Input (VDRV, VCIN) VCIN is the bias supply for the gate drive control IC. VDRV is the bias supply for the gate drivers. It is recommended to separate these pins through a resistor. This creates a low pass filtering effect to avoid coupling of high frequency gate drive noise into the IC. Bootstrap Circuit (BOOT) The internal bootstrap diode and an external bootstrap capacitor form a charge pump that supplies voltage to the BOOT pin. An integrated bootstrap diode is incorporated so that only an external capacitor is necessary to complete the bootstrap circuit. Connect a boot strap capacitor with one leg tied to BOOT pin and the other tied to PHASE pin. Shoot-Through Protection and Adaptive Dead Time The SiC631 has an internal adaptive logic to avoid shoot through and optimize dead time. The shoot through protection ensures that both high-side and low-side MOSFETs are not turned ON at the same time. The adaptive dead time control operates as follows. The high-side and low-side gate voltages are monitored to prevent the one turning ON from tuning ON until the other's gate voltage is sufficiently low (< 1 V). Built in delays also ensure that one power MOS is completely OFF, before the other can be turned ON. This feature helps to adjust dead time as gate transitions change with respect to output current and temperature. Under Voltage Lockout (UVLO) During the start up cycle, the UVLO disables the gate drive holding high-side and low-side MOSFET gates low until the supply voltage rail has reached a point at which the logic circuitry can be safely activated. The SiC631 also incorporates logic to clamp the gate drive signals to zero when the UVLO falling edge triggers the shutdown of the device. Document Number: 67104 5 For technical questions, contact: powerictechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiC631 www.vishay.com Vishay Siliconix FUNCTIONAL BLOCK DIAGRAM BOOT V IN VDRV VCIN UVLO ZCD_EN# VCIN PWM PWM logic control & state machine Anti-cross conduction control logic + GL PHASE VSWH + VDRV CGND GL PGND Fig. 3 - SiC631 Functional Block Diagram DEVICE TRUTH TABLE ZCD_EN# PWM GH Tri-state X L L L L H, IL > 0 A L, IL < 0 A L H H L L Tri-state L L L GL H L L H H H H L H Tri-state L L S17-1583-Rev. D, 16-Oct-17 Document Number: 67104 6 For technical questions, contact: powerictechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiC631 www.vishay.com Vishay Siliconix PWM TIMING DIAGRAM VTH_PWM_R VTH_TRI_F VTH_TRI_R VTH_PWM_F PWM t PD_OFF_GL t TSHO GL t PD_ON_GL t PD_TRI_R t TSHO t PD_ON_GH t PD_OFF_GH t PD_TRI_R GH Fig. 4 - Definition of PWM Logic and Tri-state ZCD_EN# - PS4 EXIT TIMING 5V PWM tPS4EXIT VSWH 5V ZCD_EN# 2.5 V Fig. 5 - ZCD_EN# - PS4 Exit Timing S17-1583-Rev. D, 16-Oct-17 Document Number: 67104 7 For technical questions, contact: powerictechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiC631 www.vishay.com Vishay Siliconix ELECTRICAL CHARACTERISTICS Test condition: VIN = 13 V (unless otherwise stated), VDRV = VCIN = 5 V, ZCD_EN# = 5 V, VOUT = 1 V, LOUT = 250 nH (DCR = 0.32 m), TA = 25 °C, natural convection cooling (All power loss and normalized power loss curves show SiC631 losses only unless otherwise stated) 94 60 90 55 50 500 kHz 750 kHz 82 Output Current, IOUT (A) Efficiency (%) 86 1 MHz 78 74 70 500 kHz 40 1 MHz 35 30 25 Complete converter efficiency PIN = [(VIN x IIN) + 5 V x (IVDRV + IVCIN)] POUT = VOUT x IOUT, measured at output capacitor 66 45 20 15 62 0 5 10 15 20 25 30 35 Output Current, IOUT (A) 40 45 0 50 15 30 45 60 75 90 105 120 135 150 PCB Temperature, TPCB (°C) Fig. 9 - Safe Operating Area (VIN = 12.6 V) Fig. 6 - Efficiency vs. Output Current (VIN = 12.6 V) 16.0 5.0 4.5 14.0 4.0 12.0 Power Loss, PL (W) Power Loss, PL (W) IOUT = 25 A 3.5 3.0 2.5 1MHz 10.0 8.0 750 kHz 6.0 2.0 4.0 1.5 2.0 500 kHz 0.0 1.0 200 300 0 400 500 600 700 800 900 1000 1100 Switching Frequency, fS (kHz) Fig. 7 - Power Loss vs. Switching Frequency (VIN = 12.6 V) 10 15 20 25 30 35 Output Current, IOUT (A) 40 45 50 Fig. 10 - Power Loss vs. Output Current (VIN = 12.6 V) 98 94 500 kHz 500 kHz 94 90 90 Efficiency (%) 86 86 Efficiency (%) 5 750 kHz 82 1 MHz 78 82 750 kHz 78 1 MHz 74 74 70 70 Complete converter efficiency PIN = [(VIN x IIN) + 5 V x (IVDRV + IVCIN)] POUT = VOUT x IOUT, measured at output capacitor 66 Complete converter efficiency PIN = [(VIN x IIN) + 5 V x (IVDRV + IVCIN)] POUT = VOUT x IOUT, measured at output capacitor 66 62 62 0 5 10 15 20 25 30 35 Output Current, IOUT (A) 40 45 50 Fig. 8 - Efficiency vs. Output Current (VIN = 9 V) S17-1583-Rev. D, 16-Oct-17 0 5 10 15 20 25 30 35 Output Current, IOUT (A) 40 45 50 Fig. 11 - Efficiency vs. Output Current (VIN = 19 V) Document Number: 67104 8 For technical questions, contact: powerictechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiC631 www.vishay.com Vishay Siliconix ELECTRICAL CHARACTERISTICS 4.2 0.80 4.0 0.75 BOOT Diode Forward Voltage, VF (V) Control Logic Supply Voltage, VCIN (V) Test condition: VIN = 13 V (unless otherwise stated), VDRV = VCIN = 5 V, ZCD_EN# = 5 V, VOUT = 1 V, LOUT = 250 nH (DCR = 0.32 m), TA = 25 °C, natural convection cooling (All power loss and normalized power loss curves show SiC631 losses only unless otherwise stated) 3.8 3.6 VUVLO_RISING 3.4 3.2 VUVLO_FALLING 3.0 2.8 2.6 0 20 40 60 80 0.55 0.50 0.45 -60 -40 -20 0 40 60 80 100 120 140 Temperature (°C) Fig. 12 - UVLO Threshold vs. Temperature Fig. 15 - BOOT Diode Forward Voltage vs. Temperature 4.8 VTH_PWM_R 3.6 VTRI_TH_F 3.0 VTRI 1.8 VTRI_TH_R 1.2 VTH_PWM_F 0.6 0.0 4.2 VTH_ZCD_EN#_R 3.6 3.0 VTRI_ZCD_EN#_F 2.4 VTRI_ZCD_EN#_R 1.8 1.2 VTH_ZCD_EN#_F 0.6 0.0 -60 -40 -20 0 20 40 60 80 100 120 140 -60 -40 -20 0 Temperature (°C) Fig. 13 - PWM Threshold vs. Temperature 20 40 60 80 Temperature (°C) 100 120 140 Fig. 16 - ZCD_EN# Threshold vs. Temperature 1.8 6.0 5.5 1.6 PS4 Mode Current, IVDRV & IVCIN (uA) Normalized PS4 Exit Latency, tPS4EXIT 20 Temperature (°C) ZCD_EN# Threshold Voltage, VZCD_EN# (V) PWM Threshold Voltage, VPWM (V) 0.60 100 120 140 4.8 2.4 0.65 0.40 -60 -40 -20 4.2 IF = 2 mA 0.70 1.4 1.2 1.0 0.8 0.6 0.4 0.2 VPWM = VZCD_EN # = FLOAT 5.0 4.5 4.0 3.5 3.0 2.5 2.0 1.5 1.0 -60 -40 -20 0 20 40 60 80 100 120 140 -60 -40 -20 0 20 40 60 80 100 120 140 Temperature (°C) Temperature (°C) Fig. 14 - PS4 Exit Latency vs. Temperature Fig. 17 - PS4 Mode Current vs. Temperature S17-1583-Rev. D, 16-Oct-17 Document Number: 67104 9 For technical questions, contact: powerictechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiC631 www.vishay.com Vishay Siliconix PCB LAYOUT RECOMMENDATIONS Step 1: VIN/GND Planes and Decoupling Step 3: VCIN/VDRV Input Filter VSWH P G N D PGND CVDRV CVCIN VIN CGND VIN plane PGND plane 1. Layout VIN and PGND planes as shown above 2. Ceramic capacitors should be placed directly between VIN and PGND, and close to the device for best decoupling effect 3. Different values / packages of ceramic capacitors should be used to cover entire decoupling spectrum e.g. 1210, 0805, 0603 and 0402 4. Smaller capacitance values, closer to device VIN pin(s), - results in better high frequency noise absorbing Step 2: VSWH Plane 1. The VCIN/VDRV input filter ceramic capacitors should be placed close to IC. It is recommended to connect two caps separately. 2. VCIN capacitor should be placed between pin 3 (VCIN) and pin 4 (CGND of driver IC) to achieve best noise filtering. 3. VDRV capacitor should be placed between pin 28 (PGND of driver IC) and pin 29 (VDRV) to provide maximum instantaneous driver current for low-side MOSFET during switching cycle 4. It is recommended to use a large plane analog ground, CGND, plane to reduce parasitic inductance. VVSWH SWH Step 4: BOOT Resistor and Capacitor Placement Snubber Cboot Rboot PPGND Plane GND plane 1. Connect output inductor to DrMOS with large plane to lower resistance 2. If a snubber network is required, place the components as shown above, the network can be placed at bottom 1. The components should be placed close to IC, directly between PHASE (pin 7) and BOOT (pin 5). 2. To reduce parasitic inductance, chip size 0402 can be used. S17-1583-Rev. D, 16-Oct-17 Document Number: 67104 10 For technical questions, contact: powerictechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiC631 www.vishay.com Step 5: Signal Routing Vishay Siliconix Step 6: Adding Thermal Relief Vias CGND CGND VSWH CGND PGND VIN PGND plane PGND VIN plane 1. Route the PWM / ZCD_EN# signal traces out of the top left corner, next to DrMOS pin 1. 2. PWM is an important signal, both signal and return traces should not cross any power nodes on any layer. 3. It is best to “shield” traces form power switching nodes, e.g. VSWH, to improve signal integrity. 4. GL (pin 27) has been connected with GL pad internally and does not need to connect externally. 1. Thermal relief vias can be added on the VIN and PGND pads to utilize inner layers for high-current and thermal dissipation. 2. To achieve better thermal performance, additional vias can be added to VIN and PGND planes. 3. VSWH pad is a noise source and not recommended to put vias on this plane. 4. 8 mil vias for pads and 10 mils vias for planes are the optimal via sizes. Vias on pads may drain solder during assembly and cause assembly issue. Please consult with the assembly house for guideline. Step 7: Ground Connection CGND VSWH PGND 1. It is recommended to make a single connection between CGND and PGND, this connection can be done on top layer. 2. It is recommended to make the entire first inner layer (next to top layer) a ground plane and separate it into CGND and PGND plane. 3. These ground planes provide shielding between noise sources on top layer and signal traces on bottom layer. S17-1583-Rev. D, 16-Oct-17 Document Number: 67104 11 For technical questions, contact: powerictechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiC631 www.vishay.com Vishay Siliconix Multi-Phases VRPower PCB Layout The following is an example of 6 phase layout. As can be seen, all the VRPower stages are lined in X-direction compactly with decoupling capacitors next to them. The inductors are placed as close as possible to the SiC631 to minimize the PCB copper loss. Vias are applied on all PADs (VIN, PGND, CGND) of the SiC631 to ensure that both electrical and thermal performance are optimized. Large copper planes are used for all high current loops, such as VIN, VSWH, VOUT and PGND. These copper planes are duplicated in other layers to minimize the inductance and resistance. All the control signals are routed from the SiC631 to a controller placed to the north of the power stage through inner layers to avoid the overlap of high current loops. This achieves a compact design with the output from the inductors feeding a load located to the south of the design as shown in the figure. VIN PGND VOUT Fig. 18 - Multi - Phase VRPower Layout Top View VIN PGND VOUT Fig. 19 - Multi - Phase VRPower Layout Bottom View S17-1583-Rev. D, 16-Oct-17 Document Number: 67104 12 For technical questions, contact: powerictechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiC631 www.vishay.com Vishay Siliconix RECOMMENDED LAND PATTERN POWERPAK MLP55-31L (D2-4) 3.4 (D2-1) 31 1.03 Land pattern for MLP55-31L 5 (D2-5) 1.05 24 1.35 0.57 1 24 0.5 31 0.3 0.33 0.75 Package outline top view, transparent 1.13 0.3 (D2-2) 1.03 (D2-3) 1.92 15 (L) 0.4 8 0.55 0.35 3.05 2.15 2.08 0.07 3.5 0.3 16 0.18 0.65 9 (L) 0.4 2.02 1.75 0.4 0.33 1.42 0.1 0.58 16 23 1.15 0.3 0.35 9 0.5 0.35 0.65 0.5 15 0.75 0.3 8 0.5 (E2-3) 1.98 (b) 0.25 (K1) 0.67 5 (E2-1) 4.2 (K2) 0.22 0.4 1.2 1 0.35 0.15 (E3) 0.45 (E2-2) 1.32 0.5 (e) 23 1.6 0.75 (D3) 0.3 1 24 31 1 23 33 All dimensions in millimeters 32 35 33 8 16 9 S17-1583-Rev. D, 16-Oct-17 15 Document Number: 67104 13 For technical questions, contact: powerictechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiC631 www.vishay.com Vishay Siliconix PACKAGE OUTLINE DRAWING MLP55-31L K4 D2-4 31 E2- 2 8 16 b L B K10 K3 E2- 3 4 E MLP55-31L (5 mm x 5 mm) 1 e 0.1 M C A B 23 (Nd-1) x e ref. 24 K8 A2 0.1 C B K12 K1 D2- 1 K6 0.1 C A D D2-5 K11 A 2x K7 K5 E2- 1 0.08 C A A1 2x E2-4 5 6 Pin 1 dot by marking 15 C 9 K2 D2-3 D2-2 K9 (Nd-1) x e ref. Top view Side view Bottom view MILLIMETERS INCHES DIM. A (8) A1 MIN. NOM. MAX. MIN. NOM. MAX. 0.70 0.75 0.80 0.027 0.029 0.031 0.00 - 0.05 0.000 - 0.002 A2 b (4) 0.20 ref. 0.20 0.25 0.008 ref. 0.30 0.008 0.010 D 5.00 BSC 0.196 BSC e 0.50 BSC 0.019 BSC E 5.00 BSC 0.196 BSC L 0.35 0.40 0.45 0.013 0.015 N (3) 32 32 Nd (3) 8 8 Ne (3) 8 8 0.012 0.017 D2-1 0.98 1.03 1.08 0.039 0.041 0.043 D2-2 0.98 1.03 1.08 0.039 0.041 0.043 D2-3 1.87 1.92 1.97 0.074 0.076 0.078 D2-4 0.30 BSC 0.012 BSC D2-5 1.00 1.05 1.10 0.039 0.041 0.043 E2-1 1.27 1.32 1.37 0.050 0.052 0.054 E2-2 1.93 1.98 2.03 0.076 0.078 0.080 E2-3 3.75 3.80 3.82 0.148 0.150 0.152 E2-4 0.45 BSC 0.018 BSC K1 0.67 BSC 0.026 BSC K2 0.22 BSC 0.008 BSC K3 1.25 BSC 0.049 BSC S17-1583-Rev. D, 16-Oct-17 Document Number: 67104 14 For technical questions, contact: powerictechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiC631 www.vishay.com Vishay Siliconix MILLIMETERS INCHES DIM. MIN. NOM. MAX. MIN. NOM. K4 0.05 BSC 0.002 BSC K5 0.38 BSC 0.015 BSC K6 0.12 BSC 0.005 BSC K7 0.40 BSC 0.016 BSC K8 0.40 BSC 0.016 BSC K9 0.40 BSC 0.016 BSC K10 0.85 BSC 0.033 BSC K11 0.40 BSC 0.016 BSC K12 0.40 BSC 0.016 BSC MAX. Vishay Siliconix maintains worldwide manufacturing capability. Products may be manufactured at one of several qualified locations. Reliability data for Silicon Technology and Package Reliability represent a composite of all qualified locations. For related documents such as package / tape drawings, part marking, and reliability data, see www.vishay.com/ppg?67104 S17-1583-Rev. D, 16-Oct-17 Document Number: 67104 15 For technical questions, contact: powerictechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Package Information www.vishay.com Vishay Siliconix PowerPAK® MLP55-31L Case Outline K12 K1 D2- 1 K8 E2- 2 (Nd-1) xe ref. K10 K3 e 8 16 b L B 1 E2- 3 0.10 m C A B MLP55-31L (5 mm x 5 mm) 4 E 23 31 K6 24 K4 D2-4 E2-4 A2 0.10 C B F2 F1 D 2x D2-5 A1 0.10 C A A K7 A K5 E2- 1 2x K11 0.08 C 5 6 Pin 1 dot by marking 15 C 9 K2 D2- 3 D2- 2 K9 (Nd-1) x e ref. Top view DIM. Bottom view Side view MILLIMETERS INCHES MIN. NOM. MAX. MIN. NOM. A (8) 0.70 0.75 0.80 0.027 0.029 0.031 A1 0.00 - 0.05 0.000 - 0.002 A2 b (4) D 0.20 ref. MAX. 0.008 ref. 0.20 0.25 0.30 0.008 0.010 0.012 4.90 5.00 5.10 0.193 0.196 0.200 e 0.50 BSC 0.019 BSC E 4.90 5.00 5.10 0.193 0.196 0.200 L 0.35 0.40 0.45 0.013 0.015 0.017 N (3) 32 32 Nd (3) 8 8 Ne (3) 8 8 D2-1 0.98 1.03 1.08 0.039 0.041 0.043 D2-2 0.98 1.03 1.08 0.039 0.041 0.043 D2-3 1.87 1.92 1.97 0.074 0.076 0.078 D2-4 0.30 BSC 0.012 BSC D2-5 1.00 1.05 1.10 0.039 0.041 0.043 E2-1 1.27 1.32 1.37 0.050 0.052 0.054 E2-2 1.93 1.98 2.03 0.076 0.078 0.080 E2-3 3.75 3.80 3.82 0.148 0.150 0.152 E2-4 0.45 BSC 0.018 BSC F1 0.20 BSC 0.008 BSC F2 0.20 BSC 0.008 BSC K1 0.67 BSC 0.026 BSC K2 0.22 BSC 0.008 BSC K3 1.25 BSC 0.049 BSC K4 0.05 BSC 0.002 BSC K5 0.38 BSC 0.015 BSC K6 0.12 BSC 0.005 BSC Revision: 24-Oct-16 Document Number: 64909 1 For technical questions, contact: powerictechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Package Information www.vishay.com DIM. Vishay Siliconix MILLIMETERS MIN. NOM. INCHES MAX. MIN. NOM. K7 0.40 BSC 0.016 BSC K8 0.40 BSC 0.016 BSC K9 0.40 BSC 0.016 BSC K10 0.85 BSC 0.033 BSC K11 0.40 BSC 0.016 BSC K12 0.40 BSC 0.016 BSC MAX. ECN: T16-0644-Rev. E, 24-Oct-16 DWG: 6025 Notes 1. Use millimeters as the primary measurement 2. Dimensioning and tolerances conform to ASME Y14.5M. - 1994 3. N is the number of terminals, Nd is the number of terminals in X-direction, and Ne is the number of terminals in Y-direction 4. Dimension b applies to plated terminal and is measured between 0.20 mm and 0.25 mm from terminal tip 5. The pin #1 identifier must be existed on the top surface of the package by using indentation mark or other feature of package body 6. Exact shape and size of this feature is optional 7. Package warpage max. 0.08 mm 8. Applied only for terminals Revision: 24-Oct-16 Document Number: 64909 2 For technical questions, contact: powerictechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 PAD Pattern www.vishay.com Vishay Siliconix Recommended Land Pattern PowerPAK® MLP55-31L for SiC620, SiC620A Top side transparent view (not bottom view) Land pattern for MLP55-31L 5 (D2-5) 1.05 24 1.35 0.57 1 24 0.5 31 0.3 0.33 0.75 (D2-1) 31 1.03 (D2-4) 3.4 0.75 (D2-2) 1.03 (D2-3) 1.92 15 (L) 0.4 1.6 0.85 3.5 3.05 0.33 0.07 2.15 0.35 0.3 16 0.18 0.65 9 (L) 0.4 2.02 1.75 0.4 2.08 8 0.58 16 23 1.15 0.3 0.35 9 0.5 0.35 0.65 0.5 15 0.75 0.3 8 0.5 (E2-3) 1.98 (b) 0.25 5 (E2-1) 4.2 (K2) 0.22 (K1) 0.67 1.13 0.3 1 0.35 0.15 (E3) 0.45 (E2-2) 1.32 0.5 (e) 23 1.42 (D3) 0.3 1 All dimensions in millimeters 24 31 1 23 33 Component for MLP55-31L 32 33 Land pattern for MLP55-31L 35 8 16 9 Revision: 24-Jul-17 15 Document Number: 66944 1 For technical questions, contact: powerictechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer  ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2017 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 08-Feb-17 1 Document Number: 91000
