SiHFPS40N60K
www.vishay.com
Vishay Siliconix
Power MOSFET
FEATURES
D
• Low gate charge Qg results in simple drive
requirement

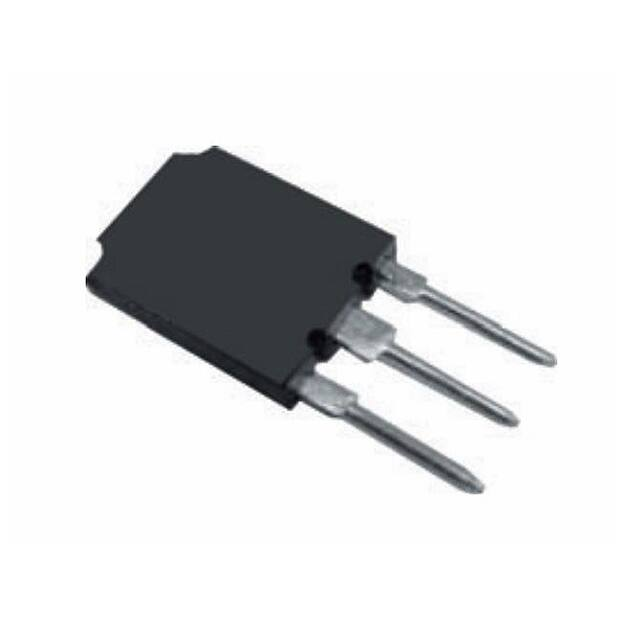

Super-247
• Improved gate, avalanche and dynamic dV/dt
ruggedness
G
• Fully
characterized
capacitance
avalanche voltage and current
S
D
G
S
• Enhanced body diode dV/dt capability
N-Channel MOSFET
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
PRODUCT SUMMARY
VDS (V)
APPLICATIONS
600
RDS(on) (Ω)
and
VGS = 10 V
• Hard switching primary or PFC switch
0.110
330
• Switch mode power supply (SMPS)
Qgs (nC)
84
• Uninterruptible power supply
Qgd (nC)
150
• High speed power switching
Qg (Max.) (nC)
Configuration
Single
• Motor drive
ORDERING INFORMATION
Package
Super-247
Lead (Pb)-free and halogen-free
SiHFPS40N60K-GE3
ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted)
PARAMETER
SYMBOL
LIMIT
Drain-source voltage
VDS
600
Gate-source voltage
VGS
± 30
VGS at 10 V
Continuous drain current
TC = 25 °C
Pulsed drain current a
V
40
ID
TC = 100 °C
UNIT
A
24
IDM
160
4.5
W/°C
Single pulse avalanche energy b
EAS
600
mJ
Repetitive avalanche current a
IAR
40
A
EAR
57
mJ
PD
570
W
dV/dt
7.5
V/ns
TJ, Tstg
- 55 to + 150
Linear derating factor
Repetitive avalanche
energy a
TC = 25 °C
Maximum power dissipation
Peak diode recovery dV/dt c
Operating junction and storage temperature range
Soldering recommendations (peak temperature)
°C
300 d
for 10 s
Notes
a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11)
b. Starting TJ = 25 °C, L = 0.84 mH, Rg = 25 Ω, IAS = 38 A, dV/dt = 5.5 V/ns (see fig. 12a)
c. ISD ≤ 38 A, dI/dt ≤ 150 A/μs, VDD ≤ VDS, TJ ≤ 150 °C
d. 1.6 mm from case
THERMAL RESISTANCE RATINGS
PARAMETER
Maximum junction-to-ambient
Case-to-sink, flat, greased surface
Maximum junction-to-case (drain)
S21-0019-Rev. C, 18-Jan-2021
SYMBOL
TYP.
MAX.
UNIT
RthJA
RthCS
RthJC
0.24
-
40
0.22
°C/W
Document Number: 91261
1
For technical questions, contact: hvm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiHFPS40N60K
www.vishay.com
Vishay Siliconix
SPECIFICATIONS (TJ = 25 °C, unless otherwise noted)
PARAMETER
SYMBOL
TEST CONDITIONS
MIN.
TYP.
MAX.
UNIT
Static
Drain-source breakdown voltage
VDS temperature coefficient
Gate-source threshold voltage
VDS
VGS = 0 V, ID = 250 μA
600
-
-
V
ΔVDS/TJ
Reference to 25 °C, ID = 1 mA
-
0.63
-
V/°C
VGS(th)
VDS = VGS, ID = 250 μA
3.0
-
5.0
V
Gate-source leakage
IGSS
VGS = ± 30 V
-
-
± 100
nA
Zero gate voltage drain current
IDSS
VDS = 600 V, VGS = 0 V
-
-
50
VDS = 480 V, VGS = 0 V, TJ = 125 °C
-
-
250
Drain-source on-state resistance
Forward transconductance
μA
-
0.110
0.130
Ω
gfs
VDS = 50 V, ID = 24 A b
21
-
-
S
VGS = 0 V,
VDS = 25 V,
f = 1.0 MHz, see fig. 5
-
7970
-
-
750
-
RDS(on)
ID = 24 A b
VGS = 10 V
Dynamic
Input capacitance
Ciss
Output capacitance
Coss
Reverse transfer capacitance
Crss
Output capacitance
Effective output capacitance
Coss
Total gate charge
Qg
Gate-source charge
Qgs
Gate-drain charge
Qgd
Turn-on delay time
td(on)
Rise time
Turn-off delay time
Fall time
VGS = 0 V
Coss eff.
-
75
-
VDS = 1.0 V, f = 1.0 MHz
-
9440
-
VDS = 480 V, f = 1.0 MHz
-
200
-
VDS = 0 V to 480 V c
-
260
-
-
-
330
ID = 38 A, VDS = 480 V,
see fig. 6 and 13 b
VGS = 10 V
tr
VDD = 300 V, ID = 38 A,
RG = 4.3 Ω, see fig. 10 b
td(off)
tf
-
-
84
-
-
150
-
47
-
-
110
-
-
97
-
-
60
-
-
-
40
-
-
160
pF
nC
ns
Drain-source body diode characteristics
Continuous source-drain diode current
IS
Pulsed diode forward current a
ISM
Body diode voltage
VSD
Body diode reverse recovery time
Body diode reverse recovery charge
Body diode recovery current
Forward turn-on time
trr
Qrr
IRRM
ton
MOSFET symbol
showing the
integral reverse
p - n junction diode
D
A
G
S
TJ = 25 °C, IS = 38 A, VGS = 0 V b
TJ = 25 °C
TJ = 125 °C
TJ = 25 °C
IF = 38 A, dI/dt = 100
A/μs
TJ = 125 °C
TJ = 25 °C
-
-
1.5
-
630
950
-
730
1090
-
14
20
-
17
25
-
39
58
V
ns
μC
A
Intrinsic turn-on time is negligible (turn-on is dominated by LS and LD)
Notes
a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11)
b. Pulse width ≤ 300 μs; duty cycle ≤ 2 %
c. Coss eff. is a fixed capacitance that gives the same charging time as Coss while VDS is rising from 0 % to 80 % VDS
S21-0019-Rev. C, 18-Jan-2021
Document Number: 91261
2
For technical questions, contact: hvm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiHFPS40N60K
www.vishay.com
Vishay Siliconix
TYPICAL CHARACTERISTICS (25 °C, unless otherwise noted)
1000
3.5
VGS
15V
10V
8.0V
7.0V
6.0V
5.5V
5.0V
BOTTOM 4.5V
I D = 38A
10
3.0
1
0.1
4.5V
0.01
20μs PULSE WIDTH
Tj = 25°C
0.001
0.1
1
10
2.5
(Normalized)
100
R DS(on) , Drain-to-Source On Resistance
ID, Drain-to-Source Current (A)
TOP
2.0
1.5
1.0
0.5
V GS = 10V
0.0
100
-60
-40
-20
Fig. 1 - Typical Output Characteristics
60
80
100
120
140
160
( ° C)
100000
VGS
15V
10V
8.0V
7.0V
6.0V
5.5V
5.0V
BOTTOM 4.5V
VGS
Ciss
Crss
Coss
= 0V,
f = 1 MHZ
= Cgs + C gd, Cds SHORTED
= Cgd
= C ds + C gd
10000
C, Capacitance(pF)
ID, Drain-to-Source Current (A)
40
Fig. 4 - Normalized On-Resistance vs. Temperature
TOP
10
20
TJ , Junction Temperature
VDS, Drain-to-Source Voltage (V)
100
0
4.5V
1
Ciss
1000
Coss
100
Crss
20μs PULSE WIDTH
Tj = 150°C
0.1
0.1
1
10
100
10
1
VDS, Drain-to-Source Voltage (V)
10
100
1000
VDS, Drain-to-Source Voltage (V)
Fig. 2 - Typical Output Characteristics
Fig. 5 - Typical Capacitance vs. Drain-to-Source Voltage
12
1000
I D = 38A
VDS = 480V
VDS = 300V
VDS = 120V
10
T J= 150 ° C
VGS , Gate-to-Source Voltage (V)
I D, Drain-to-Source Current (A)
100
10
TJ = 25 °C
1
0.1
7
5
2
V DS= 50V
20μs PULSE WIDTH
0
0.01
4
6
8
10
11
13
15
V GS, Gate-to-Source Voltage (V)
Fig. 3 - Typical Transfer Characteristics
S21-0019-Rev. C, 18-Jan-2021
0
50
100
150
200
250
QG, Total Gate Charge (nC)
Fig. 6 - Typical Gate Charge vs. Gate-to-Source Voltage
Document Number: 91261
3
For technical questions, contact: hvm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiHFPS40N60K
www.vishay.com
Vishay Siliconix
100
30
I D , Drain Current (A)
40
I SD , Reverse Drain Current (A)
1000
T J= 150 ° C
10
TJ = 25 °C
1
20
10
V GS = 0 V
0.1
0
0.2
0.6
0.9
1.3
1.6
25
50
V SD,Source-to-Drain Voltage (V)
75
Fig. 7 - Typical Source-Drain Diode Forward Voltage
125
RD
OPERATION IN THIS AREA
LIMITED BY R DS(on)
VDS
VGS
100
D.U.T.
RG
100μsec
10
10 V
1
1
+
- VDD
Pulse width ≤ 1 µs
Duty factor ≤ 0.1 %
1msec
0.1
150
( ° C)
Fig. 9 - Maximum Drain Current vs. Case Temperature
1000
ID, Drain-to-Source Current (A)
100
TC , Case Temperature
10msec
Fig. 10a - Switching Time Test Circuit
Tc = 25°C
Tj = 150°C
Single Pulse
VDS
10
1000
90 %
100
10000
VDS , Drain-toSource Voltage (V)
Fig. 8 - Maximum Safe Operating Area
10 %
VGS
td(on)
tr
td(off) tf
Fig. 10b - Switching Time Waveforms
S21-0019-Rev. C, 18-Jan-2021
Document Number: 91261
4
For technical questions, contact: hvm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiHFPS40N60K
www.vishay.com
Vishay Siliconix
(Z thJC )
1
D = 0.50
0.1
Thermal Response
0.20
0.10
0.05
P DM
0.02
0.01
0.01
SINGLE PULSE
(THERMAL RESPONSE)
t1
t2
Notes:
1. Duty factor D =
2. Peak T
0.001
0.00001
0.0001
0.001
t1/ t 2
J = P DM x Z thJC
0.01
+TC
0.1
1
t 1, Rectangular Pulse Duration (sec)
Fig. 11 - Maximum Effective Transient Thermal Impedance, Junction-to-Case
1200
960
Driver
L
VDS
D.U.T.
RG
+
A
- VDD
IAS
20 V
tp
EAS , Single Pulse Avalanche Energy (mJ)
15 V
0.01 Ω
TOP
ID
17A
24A
BOTTOM
38A
720
480
240
0
25
Fig. 12a - Unclamped Inductive Test Circuit
50
75
100
125
150
( ° C)
Starting Tj, Junction Temperature
Fig. 12c - Maximum Avalanche Energy vs. Drain Current
VDS
IAS
5.0
VGS(th) Gate threshold Voltage (V)
tp
4.5
4.0
ID = 250μA
3.5
3.0
2.5
Fig. 12b - Unclamped Inductive Waveforms
2.0
-75
-50
-25
0
25
50
75
100
125 150
T J , Temperature ( °C )
Fig. 12d - Threshold Voltage vs. Temperature
S21-0019-Rev. C, 18-Jan-2021
Document Number: 91261
5
For technical questions, contact: hvm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiHFPS40N60K
www.vishay.com
Vishay Siliconix
Current regulator
Same type as D.U.T.
QG
VGS V
50 kΩ
12 V
0.2 µF
0.3 µF
QGS
QGD
+
D.U.T.
-
VDS
VG
VGS
3 mA
Charge
IG
ID
Current sampling resistors
Fig. 13a - Basic Gate Charge Waveform
S21-0019-Rev. C, 18-Jan-2021
Fig. 13b - Gate Charge Test Circuit
Document Number: 91261
6
For technical questions, contact: hvm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SiHFPS40N60K
www.vishay.com
Vishay Siliconix
Peak Diode Recovery dV/dt Test Circuit
+
D.U.T.
Circuit layout considerations
• Low stray inductance
• Ground plane
• Low leakage inductance
current transformer
+
-
-
Rg
•
•
•
•
+
dV/dt controlled by Rg
Driver same type as D.U.T.
ISD controlled by duty factor “D”
D.U.T. - device under test
+
-
VDD
Driver gate drive
P.W.
Period
D=
P.W.
Period
VGS = 10 Va
D.U.T. lSD waveform
Reverse
recovery
current
Body diode forward
current
dI/dt
D.U.T. VDS waveform
Diode recovery
dV/dt
Re-applied
voltage
Inductor current
VDD
Body diode forward drop
Ripple ≤ 5 %
ISD
Note
a. VGS = 5 V for logic level devices
Fig. 14 - For N-Channel
Vishay Siliconix maintains worldwide manufacturing capability. Products may be manufactured at one of several qualified locations. Reliability data for Silicon
Technology and Package Reliability represent a composite of all qualified locations. For related documents such as package/tape drawings, part marking, and
reliability data, see www.vishay.com/ppg?91261.
S21-0019-Rev. C, 18-Jan-2021
Document Number: 91261
7
For technical questions, contact: hvm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Package Information
www.vishay.com
Vishay Siliconix
TO-274AA (High Voltage)
VERSION 1: FACILITY CODE = Y
B
A
E
E4
A
D2
E1
A1
R
D1
D
L1
L
Detail “A”
C
b
e
A2
0.10 (0.25) M B A M
10°
b4
b2
Lead Tip
5°
Detail “A”
Scale: 2:1
MILLIMETERS
INCHES
MILLIMETERS
INCHES
DIM.
MIN.
MAX.
MIN.
MAX.
DIM.
MIN.
MAX.
MIN.
A
4.70
5.30
0.185
0.209
D1
15.50
16.10
0.610
0.634
A1
1.50
2.50
0.059
0.098
D2
0.70
1.30
0.028
0.051
A2
2.25
2.65
0.089
0.104
E
15.10
16.10
0.594
0.634
13.30
13.90
0.524
0.547
b
1.30
1.60
0.051
0.063
E1
b2
1.80
2.20
0.071
0.087
e
5.45 BSC
MAX.
0.215 BSC
b4
3.00
3.25
0.118
0.128
L
13.70
14.70
0.539
0.579
c (1)
0.38
0.89
0.015
0.035
L1
1.00
1.60
0.039
0.063
D
19.80
20.80
0.780
0.819
R
2.00
3.00
0.079
0.118
Notes
• Dimensioning and tolerancing per ASME Y14.5M-1994
• Dimension D and E do not include mold flash. Mold flash shall not exceed 0.127 mm (0.005") per side. These dimensions are measured at
the outer extremes of the plastic body
• Outline conforms to JEDEC® outline to TO-274AA
(1) Dimension measured at tip of lead
Revision: 19-Oct-2020
Document Number: 91365
1
For technical questions, contact: hvm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Package Information
www.vishay.com
Vishay Siliconix
VERSION 2: FACILITY CODE = N
A
E
A
E3
B
D
D1
D2
E2
Q
A2
L1
F
F
H
H
C
G
L
G
A1
e
b
3x
0.25 M B A M
b1
C
b3
E4
E1
b’, b2, b4
C
C’
Base metal
b, b1, b3
Plating
SECTION "F-F", "G-G" AND "H-H"
SCALE: NONE
MILLIMETERS
MILLIMETERS
DIM.
MIN.
MAX.
DIM.
MIN.
MAX.
A
4.83
5.21
D1
16.25
17.65
A1
2.29
2.54
D2
0.50
0.80
A2
1.91
2.16
E
15.75
16.13
b’
1.07
1.28
E1
13.10
14.15
b
1.07
1.33
E2
3.68
5.10
b1
1.91
2.41
E3
1.00
1.90
b2
1.91
2.16
E4
12.38
13.43
b3
2.87
3.38
e
b4
2.87
3.13
N
c’
0.55
0.65
L
19.81
c
0.55
0.68
L1
3.70
4.00
D
20.80
21.10
Q
5.49
6.00
5.44 BSC
3
20.32
ECN: E20-0538-Rev. C, 19-Oct-2020
DWG: 5975
Notes
• Dimensioning and tolerancing per ASME Y14.5M-1994
• Outline conforms to JEDEC® outline to TO-274AD
• Dimensions are measured in mm, angles are in degree
• Metal surfaces are tin plated, except area of cut
Revision: 19-Oct-2020
Document Number: 91365
2
For technical questions, contact: hvm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay's knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer's responsibility to validate that a particular product
with the properties described in the product specification is suitable for use in a particular application. Parameters provided in
datasheets and / or specifications may vary in different applications and performance may vary over time. All operating
parameters, including typical parameters, must be validated for each customer application by the customer's technical experts.
Product specifications do not expand or otherwise modify Vishay's terms and conditions of purchase, including but not limited
to the warranty expressed therein.
Hyperlinks included in this datasheet may direct users to third-party websites. These links are provided as a convenience and
for informational purposes only. Inclusion of these hyperlinks does not constitute an endorsement or an approval by Vishay of
any of the products, services or opinions of the corporation, organization or individual associated with the third-party website.
Vishay disclaims any and all liability and bears no responsibility for the accuracy, legality or content of the third-party website
or for that of subsequent links.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please
contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
© 2021 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED
Revision: 09-Jul-2021
1
Document Number: 91000
