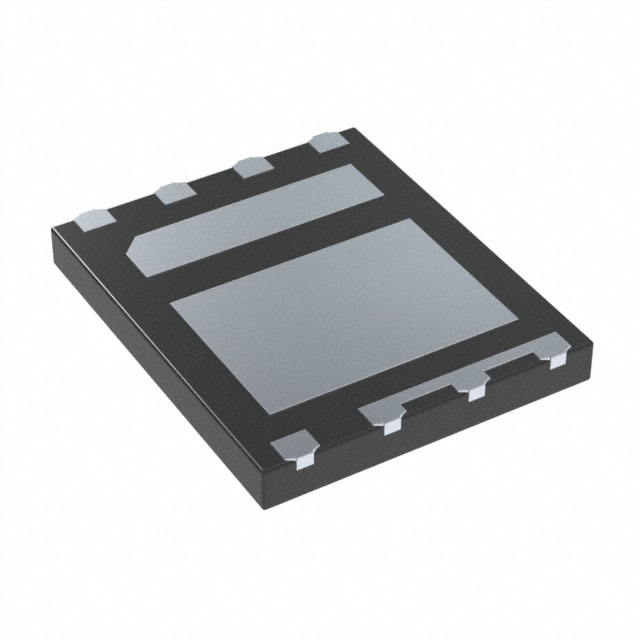

SiZ980DT www.vishay.com Vishay Siliconix Dual N-Channel 30 V (D-S) MOSFET with Schottky Diode FEATURES PowerPAIR® 6 x 5 S2 5 S2 S2 7 6 G2 8 • TrenchFET® Gen IV power MOSFET • SkyFET® low side MOSFET with integrated Schottky S1/D2 (Pin 9) • 100 % Rg and UIS tested • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 D1 6 1 2 G 3 D 1 4 D 1 1 D1 Bottom View m m 1 m 5m Top View APPLICATIONS • CPU core power PRODUCT SUMMARY VDS (V) RDS(on) max. () at VGS = 10 V RDS(on) max. () at VGS = 4.5 V Qg typ. (nC) ID (A) a Configuration D1 • Computer / server peripherals CHANNEL-1 CHANNEL-2 30 30 0.0067 00.0016 0.0100 0.0022 5.4 21 20 60 Dual plus integrated Schottky (SkyFET) • POL • Synchronous buck converter G1 N-Channel 1 MOSFET S1/D2 • Telecom DC/DC Schottky Diode G2 N-Channel 2 MOSFET S2 ORDERING INFORMATION Package Lead (Pb)-free and halogen-free PowerPAIR 6 x 5 SiZ980DT-T1-GE3 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) PARAMETER Drain-source voltage Gate-source voltage Continuous drain current (TJ = 150 °C) SYMBOL VDS VGS TC = 25 °C TC = 70 °C TA = 25 °C TA = 70 °C Pulsed drain current (t = 100 μs) ID IDM Continuous source-drain diode current TC = 25 °C TA = 25 °C IS Single pulse avalanche current Single pulse avalanche energy L = 0.1 mH IAS EAS TC = 25 °C TC = 70 °C Maximum power dissipation TA = 25 °C TA = 70 °C Operating junction and storage temperature range Soldering recommendations (peak temperature) d, e PD CHANNEL-1 30 +20, -16 20 a 20 a 18.8 b, c 14.6 b, c 90 20 a 3.2 b, c 15 11.2 20 12.9 3.8 b, c 2.4 b, c TJ, Tstg CHANNEL-2 30 +20, -16 60 a 60 a 43 b, c 34 b, c 130 55 a 4.1 b, c 25 31 66 42 5 b, c 3.2 b, c -55 to +150 260 UNIT V A mJ W °C THERMAL RESISTANCE RATINGS PARAMETER SYMBOL CHANNEL-1 TYP. 26 4.7 MAX. 33 6.2 CHANNEL-2 TYP. 20 1.5 MAX. 25 1.9 UNIT t  10 s RthJA Maximum junction-to-ambient b, f °C/W Maximum junction-to-case (drain) Steady state RthJC Notes a. Package limited b. Surface mounted on 1" x 1" FR4 board c. t = 10 s d. See solder profile (www.vishay.com/doc?73257). The PowerPAIR is a leadless package. The end of the lead terminal is exposed copper (not plated) as a result of the singulation process in manufacturing. A solder fillet at the exposed copper tip cannot be guaranteed and is not required to ensure adequate bottom side solder interconnection e. Rework conditions: manual soldering with a soldering iron is not recommended for leadless components f. Maximum under steady state conditions is 68 °C/W for channel-1 and 57 °C/W for channel-2 S16-2419-Rev. C, 28-Nov-16 Document Number: 62976 1 For technical questions, contact: pmostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiZ980DT www.vishay.com Vishay Siliconix SPECIFICATIONS (TJ = 25 °C, unless otherwise noted) PARAMETER SYMBOL TEST CONDITIONS MIN. TYP. MAX. Ch-1 30 - - Ch-2 30 - - Ch-1 36 - - Ch-2 36 - - Ch-1 1.2 - 2.2 Ch-2 1.1 - 2.2 Ch-1 - - ± 100 Ch-2 - - ± 100 UNIT Static Drain-source breakdown voltage Drain-source breakdown voltage (transient) VDS c Gate-source threshold voltage Gate-source leakage VGS = 0 V, ID = 250 μA VDSt VGS = 0 V, ttransient  1 μs VGS(th) VDS = VGS, ID = 250 μA IGSS VDS = 0 V, VGS = +20 V, -16 V VDS = 30 V, VGS = 0 V Zero gate voltage drain current IDSS VDS = 30 V, VGS = 0 V, TJ = 55 °C On-state drain current b Drain-source on-state resistance b Forward transconductance b ID(on) RDS(on) gfs Ch-1 - - 1 Ch-2 - 20 100 Ch-1 - - 5 Ch-2 - 100 1000 VDS  5 V, VGS = 10 V Ch-1 20 - - Ch-2 20 - - VGS = 10 V, ID = 15 A Ch-1 - 0.0047 0.0067 VGS = 10 V, ID = 19 A Ch-2 - 0.0011 0.0016 VGS = 4.5 V, ID = 12 A Ch-1 - 0.0065 0.0100 VGS = 4.5 V, ID = 15 A Ch-2 - 0.0016 0.0022 VDS = 10 V, ID = 15 A Ch-1 - 80 - VDS = 10 V, ID = 19 A Ch-2 155 - V nA μA A  S Dynamic a Input capacitance Ciss Output capacitance Coss Reverse transfer capacitance Crss Channel-1 VDS = 15 V, VGS = 0 V, f = 1 MHz Channel-2 VDS = 15 V, VGS = 0 V, f = 1 MHz Crss/Ciss ratio Qg Ch-2 - 4600 - Ch-1 - 325 - Ch-2 - 1700 - Ch-1 - 21 Ch-2 - 115 - Ch-1 - 0.023 0.046 0.025 0.050 12 18 - Ch-2 Ch-1 VDS = 15 V, VGS = 4.5 V, ID = 19 A Ch-2 Channel-1 VDS = 15 V, VGS = 4.5 V, ID = 19 A Ch-1 Gate-drain charge Qgd Channel-2 VDS = 15 V, VGS = 4.5 V, ID = 19 A Output charge Qoss VDS = 15 V, VGS = 0 V Rg Ch-1 VDS = 15 V, VGS = 10 V, ID = 19 A Qgs S16-2419-Rev. C, 28-Nov-16 930 VDS = 15 V, VGS = 4.5 V, ID = 19 A Gate-source charge Gate resistance - Ch-2 VDS = 15 V, VGS = 10 V, ID = 19 A Total gate charge Ch-1 f = 1 MHz 51 77 5.4 8.1 - 23 35 - 3 - Ch-2 - 12.2 - Ch-1 - 0.75 - Ch-2 - 2.2 - Ch-1 - 10 - Ch-2 - 54 - Ch-1 0.3 1.5 3 Ch-2 0.2 1 2 pF nC  Document Number: 62976 2 For technical questions, contact: pmostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiZ980DT www.vishay.com Vishay Siliconix SPECIFICATIONS (TJ = 25 °C, unless otherwise noted) PARAMETER SYMBOL TEST CONDITIONS MIN. TYP. MAX. Ch-1 - 15 30 Ch-2 - 35 70 Ch-1 - 65 130 Ch-2 - 75 150 Ch-1 - 10 20 Ch-2 - 30 60 Ch-1 - 10 20 Ch-2 - 10 20 Ch-1 - 10 20 Ch-2 - 15 30 Ch-1 - 25 50 Ch-2 - 21 40 Ch-1 - 15 30 Ch-2 - 32 60 Ch-1 - 10 20 Ch-2 - 10 20 Ch-1 - - 20 Ch-2 - - 60 Ch-1 - - 90 130 UNIT Dynamic a Turn-on delay time td(on) Rise time Turn-off delay time tr td(off) Fall time Turn-on delay time tf td(on) Rise time Turn-off delay time tr td(off) Fall time tf Channel-1 VDD = 15 V, RL = 1.5  ID  10 A, VGEN = 4.5 V, Rg = 1  Channel-2 VDD = 15 V, RL = 1.5  ID  10 A, VGEN = 4.5 V, Rg = 1  Channel-1 VDD = 15 V, RL = 1.5  ID  10 A, VGEN = 10 V, Rg = 1  Channel-2 VDD = 15 V, RL = 1.5  ID  10 A, VGEN = 10 V, Rg = 1  ns Drain-Source Body Diode Characteristics Continuous source-drain diode current Pulse diode forward current a Body diode voltage IS ISM VSD Body diode reverse recovery time trr Body diode reverse recovery charge Qrr Reverse recovery fall time ta Reverse recovery Rise time TC = 25 °C tb IS = 10 A, VGS = 0 V Channel-1 IF = 10 A, di/dt = 100 A/μs, TJ = 25 °C Channel-2 IF = 10 A, di/dt = 100 A/μs, TJ = 25 °C Ch-2 - - Ch-1 - 0.8 1.2 Ch-2 - 0.58 0.87 Ch-1 - 30 60 Ch-2 - 50 100 Ch-1 - 11 20 Ch-2 - 28 60 Ch-1 - 18 - Ch-2 - 28 - Ch-1 - 12 - Ch-2 - 22 - A V ns nC ns Notes a. Guaranteed by design, not subject to production testing b. Pulse test; pulse width  300 μs, duty cycle  2 % c. Derived from UIS characterization data at time of product release. Production data log is not available Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. S16-2419-Rev. C, 28-Nov-16 Document Number: 62976 3 For technical questions, contact: pmostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiZ980DT www.vishay.com Vishay Siliconix CHANNEL-1 TYPICAL CHARACTERISTICS (25 °C, unless otherwise noted) 80 20 VGS = 10 V thru 4 V 16 ID - Drain Current (A) ID - Drain Current (A) 60 40 VGS = 3 V 12 TC = 25 °C 8 TC = 125 °C 20 4 TC = - 55 °C 0 0 0.0 0.5 1.0 1.5 2.0 2.5 0.0 3.0 0.5 Output Characteristics 1.5 2.0 2.5 3.0 3.5 Transfer Characteristics 0.010 1200 1000 0.008 Ciss VGS = 4.5 V C - Capacitance (pF) RDS(on) - On-Resistance (Ω) 1.0 VGS - Gate-to-Source Voltage (V) VDS - Drain-to-Source Voltage (V) 0.006 0.004 VGS = 10 V 800 600 Coss 400 0.002 200 0.000 0 20 40 60 Crss 0 80 0 5 ID - Drain Current (A) 10 15 20 25 VDS - Drain-to-Source Voltage (V) Capacitance On-Resistance vs. Drain Current 1.8 10 ID = 19 A VDS = 7.5 V RDS(on) - On-Resistance (Normalized) VGS - Gate-to-Source Voltage (V) 30 8 6 VDS = 15 V VDS = 24 V 4 2 ID = 19 A 1.6 VGS = 10 V 1.4 1.2 VGS = 4.5 V 1.0 0.8 0.6 0 0 3 6 9 12 15 - 50 - 25 0 25 50 75 100 125 Qg - Total Gate Charge (nC) TJ - Junction Temperature (°C) Gate Charge On-Resistance vs. Junction Temperature S16-2419-Rev. C, 28-Nov-16 150 Document Number: 62976 4 For technical questions, contact: pmostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiZ980DT www.vishay.com Vishay Siliconix CHANNEL-1 TYPICAL CHARACTERISTICS (25 °C, unless otherwise noted) 0.015 100 ID = 19 A RDS(on) - On-Resistance (Ω) IS - Source Current (A) 0.012 TJ = 150 °C 10 TJ = 25 °C 1 0.1 0.009 TJ = 125 °C 0.006 TJ = 25 °C 0.003 0.000 0.0 0.2 0.4 0.6 0.8 1.0 1.2 0 2 4 6 8 10 VSD - Source-to-Drain Voltage (V) VGS - Gate-to-Source Voltage (V) Source-Drain Diode Forward Voltage On-Resistance vs. Gate-to-Source Voltage 2.0 50 1.8 40 Power (W) VGS(th) (V) 1.6 1.4 1.2 ID = 250 μA 30 20 1.0 10 0.8 0.6 - 50 - 25 0 25 50 75 100 125 0 0.001 150 TJ - Temperature (°C) 0.01 0.1 1 Time (s) 10 100 1000 Threshold Voltage Single Pulse Power, Junction-to-Ambient 1000 Limited by RDS(on)* IDM Limited ID - Drain Current (A) 100 IDM Limited 10 100 μs 1 ms 1 10 ms 0.1 100 ms 1s 10 s DC TA = 25 °C BVDSS Limited 0.01 0.1 1 10 100 VDS - Drain-to-Source Voltage (V) * VGS > minimum VGS at which RDS(on) is specified Safe Operating Area, Junction-to-Ambient S16-2419-Rev. C, 28-Nov-16 Document Number: 62976 5 For technical questions, contact: pmostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiZ980DT www.vishay.com Vishay Siliconix 40 20 30 15 Power Dissipation (W) ID - Drain Current (A) CHANNEL-1 TYPICAL CHARACTERISTICS (25 °C, unless otherwise noted) Package Limited 20 10 10 5 0 0 0 25 50 75 100 125 150 25 50 75 100 125 TC - Case Temperature (°C) TC - Case Temperature (°C) Current Derating a Power, Junction-to-Case 150 Note a. The power dissipation PD is based on TJ max. = 150 °C, using junction-to-case thermal resistance, and is more useful in settling the upper dissipation limit for cases where additional heatsinking is used. It is used to determine the current rating, when this rating falls below the package limit S16-2419-Rev. C, 28-Nov-16 Document Number: 62976 6 For technical questions, contact: pmostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiZ980DT www.vishay.com Vishay Siliconix CHANNEL-1 TYPICAL CHARACTERISTICS (25 °C, unless otherwise noted) 1 Normalized Effective Transient Thermal Impedance Duty Cycle = 0.5 0.2 Notes: 0.1 PDM 0.1 0.05 t1 t2 1. Duty Cycle, D = t1 t2 2. Per Unit Base = RthJA = 68 °C/W 0.02 3. TJM - TA = PDMZthJA(t) Single Pulse 0.01 0.0001 0.001 4. Surface Mounted 0.01 0.1 1 10 100 1000 Square Wave Pulse Duration (s) Normalized Effective Transient Thermal Impedance Normalized Thermal Transient Impedance, Junction-to-Ambient 1 Duty Cycle = 0.5 0.2 0.1 0.05 0.1 0.02 Single Pulse 0.0001 0.001 0.01 0.1 1 Square Wave Pulse Duration (s) Normalized Thermal Transient Impedance, Junction-to-Case S16-2419-Rev. C, 28-Nov-16 Document Number: 62976 7 For technical questions, contact: pmostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiZ980DT www.vishay.com Vishay Siliconix CHANNEL-2 TYPICAL CHARACTERISTICS (25 °C, unless otherwise noted) 100 20 VGS = 10 V thru 4 V VGS = 3 V 16 ID - Drain Current (A) ID - Drain Current (A) 80 60 40 TC = 25 °C 12 8 TC = 125 °C 4 20 TC = - 55 °C 0 0 0.0 0.5 1.0 1.5 2.0 2.5 0.0 3.0 0.5 1.0 1.5 2.0 2.5 VDS - Drain-to-Source Voltage (V) VGS - Gate-to-Source Voltage (V) Output Characteristics Transfer Characteristics 3.0 3.5 8000 0.0025 7000 6000 C - Capacitance (pF) RDS(on) - On-Resistance (Ω) 0.0020 VGS = 4.5 V 0.0015 0.0010 VGS = 10 V Ciss 5000 4000 3000 Coss 2000 0.0005 1000 0.0000 0 Crss 0 20 40 60 80 100 0 5 ID - Drain Current (A) 10 15 20 25 VDS - Drain-to-Source Voltage (V) Capacitance On-Resistance vs. Drain Current 10 1.8 RDS(on) - On-Resistance (Normalized) VDS = 7.5 V VGS - Gate-to-Source Voltage (V) 30 ID = 19 A 8 VDS = 15 V 6 VDS = 24 V 4 2 0 0 10 20 30 40 50 60 1.6 ID = 19 A VGS = 10 V 1.4 1.2 VGS = 4.5 V 1.0 0.8 0.6 - 50 - 25 0 25 50 75 100 125 Qg - Total Gate Charge (nC) TJ - Junction Temperature (°C) Gate Charge On-Resistance vs. Junction Temperature S16-2419-Rev. C, 28-Nov-16 150 Document Number: 62976 8 For technical questions, contact: pmostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiZ980DT www.vishay.com Vishay Siliconix CHANNEL-2 TYPICAL CHARACTERISTICS (25 °C, unless otherwise noted) 100 0.008 RDS(on) - On-Resistance (Ω) IS - Source Current (A) ID = 19 A TJ = 150 °C 10 TJ = 25 °C 1 0.006 0.004 TJ = 125 °C 0.002 TJ = 25 °C 0.1 0.000 0.0 0.2 0.4 0.6 0.8 1.0 0 2 4 6 8 10 VGS - Gate-to-Source Voltage (V) VSD - Source-to-Drain Voltage (V) Source-Drain Diode Forward Voltage On-Resistance vs. Gate-to-Source Voltage 10-1 50 10-2 40 VDS = 10 V Power (W) 10-3 IR (A) VDS = 20, 30 V 10-4 30 20 10 10-5 0 0.001 10-6 0 25 50 75 100 125 150 0.01 TJ - Temperature (°C) 0.1 1 10 100 1000 Time (s) Threshold Voltage Single Pulse Power, Junction-to-Ambient 1000 IDM Limited Limited by RDS(on)* IDM Limited ID - Drain Current (A) 100 100 μs 10 1 ms 10 ms 1 0.1 100 ms 10 s 1s TA= 25 °C DC BVDSS Limited 0.01 0.01 0.1 1 10 100 VDS - Drain-to-Source Voltage (V) * VGS > minimum VGS at which RDS(on) is specified Safe Operating Area, Junction-to-Ambient S16-2419-Rev. C, 28-Nov-16 Document Number: 62976 9 For technical questions, contact: pmostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiZ980DT www.vishay.com Vishay Siliconix CHANNEL-2 TYPICAL CHARACTERISTICS (25 °C, unless otherwise noted) 180 80 150 Power (W) ID - Drain Current (A) 60 120 90 40 60 Package Limited 20 30 0 0 0 25 50 75 100 TC - Case Temperature (°C) Current Derating a 125 150 25 50 75 100 125 150 TC - Case Temperature (°C) Power, Junction-to-Case Note a. The power dissipation PD is based on TJ max. = 150 °C, using junction-to-case thermal resistance, and is more useful in settling the upper dissipation limit for cases where additional heatsinking is used. It is used to determine the current rating, when this rating falls below the package limit S16-2419-Rev. C, 28-Nov-16 Document Number: 62976 10 For technical questions, contact: pmostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SiZ980DT www.vishay.com Vishay Siliconix CHANNEL-2 TYPICAL CHARACTERISTICS (25 °C, unless otherwise noted) 1 Normalized Effective Transient Thermal Impedance Duty Cycle = 0.5 0.2 Notes: 0.1 PDM 0.1 t1 t2 1. Duty Cycle, D = 0.05 0.02 t1 t2 2. Per Unit Base = R thJA = 57 °C/W 3. T JM - TA = PDMZthJA(t) 4. Surface Mounted Single Pulse 0.01 0.0001 0.001 0.01 0.1 1 10 100 1000 Square Wave Pulse Duration (s) Normalized Thermal Transient Impedance, Junction-to-Ambient 1 Normalized Effective Transient Thermal Impedance Duty Cycle = 0.5 0.2 0.1 0.05 0.02 Single Pulse 0.1 0.0001 0.001 0.01 0.1 Square Wave Pulse Duration (s) Normalized Thermal Transient Impedance, Junction-to-Case Vishay Siliconix maintains worldwide manufacturing capability. Products may be manufactured at one of several qualified locations. Reliability data for Silicon Technology and Package Reliability represent a composite of all qualified locations. For related documents such as package/tape drawings, part marking, and reliability data, see www.vishay.com/ppg?62976. S16-2419-Rev. C, 28-Nov-16 Document Number: 62976 11 For technical questions, contact: pmostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Package Information www.vishay.com Vishay Siliconix PowerPAIR® 6 x 5 Case Outline Pin 7 Pin 6 Pin 5 Pin 5 Pin 6 Pin 7 Pin 8 K L Pin 8 b z L3 2X A D 0.10 C K1 E E1 D1 Pin 1 Pin 2 0.10 C Pin 3 Pin 4 Pin 3 Pin 4 2X E2 D1 Pin 2 Pin # 1 ident (optional) Pin 1 e Back side view Top side view 0.10 C A1 A3 b1 A C 0.08 C F F MILLIMETERS INCHES DIM. MIN. NOM. MAX. MIN. NOM. MAX. A 0.70 0.75 0.80 0.028 0.030 0.032 A1 0.00 - 0.10 0.000 - 0.004 A3 0.15 0.20 0.25 0.006 0.007 0.009 b 0.43 0.51 0.61 0.017 0.020 0.024 b1 0.25 BSC 0.010 BSC D 4.90 5.00 5.10 0.192 0.196 0.200 D1 3.75 3.80 3.85 0.148 0.150 0.152 E 5.90 6.00 6.10 0.232 0.236 0.240 E1 Option AA (for W/B) 2.62 2.67 2.72 0.103 0.105 0.107 E1 Option AB (for BWL) 2.42 2.47 2.52 0.095 0.097 0.099 E2 0.87 0.92 0.97 0.034 0.036 0.038 e 1.27 BSC 0.050 BSC 0.018 typ. K Option AA (for W/B) 0.45 typ. K Option AB (for BWL) 0.65 typ. 0.025 typ. K1 0.66 typ. 0.025 typ. L 0.33 0.43 0.53 0.013 0.017 L3 0.23 BSC 0.009 BSC z 0.34 BSC 0.013 BSC 0.020 ECN: T14-0782-Rev. C, 22-Dec-14 DWG: 6005 Revision: 22-Dec-14 1 Document Number: 63656 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 PAD Pattern www.vishay.com Vishay Siliconix Recommended Minimum PAD for PowerPAIR® 6 x 5 0.28 (0.011) 0.53 (0.021) 2.835 (0.112) 0.45 (0.018) 2.12 (0.083) 2.67 (0.105) 4 (0.157) (0, 0) 0.55 (0.022) 0.66 (0.026) 1.21 (0.048) 0.92 (0.036) 4 (0.157) 2.13 (0.084) 0.44 (0.017) 2.835 (0.112) 1.905 (0.075) Pin 1 0.53 (0.021) 1.27 (0.050) 0.66 (0.026) 0.61 (0.024) Dimensions in millimeters (inch) Note • Linear dimensions are in black, the same information is provided in ordinate dimensions which are in blue. Revision: 16-Feb-15 1 Document Number: 67480 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay's knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer's responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer's technical experts. Product specifications do not expand or otherwise modify Vishay's terms and conditions of purchase, including but not limited to the warranty expressed therein. Hyperlinks included in this datasheet may direct users to third-party websites. These links are provided as a convenience and for informational purposes only. Inclusion of these hyperlinks does not constitute an endorsement or an approval by Vishay of any of the products, services or opinions of the corporation, organization or individual associated with the third-party website. Vishay disclaims any and all liability and bears no responsibility for the accuracy, legality or content of the third-party website or for that of subsequent links. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2021 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 09-Jul-2021 1 Document Number: 91000
