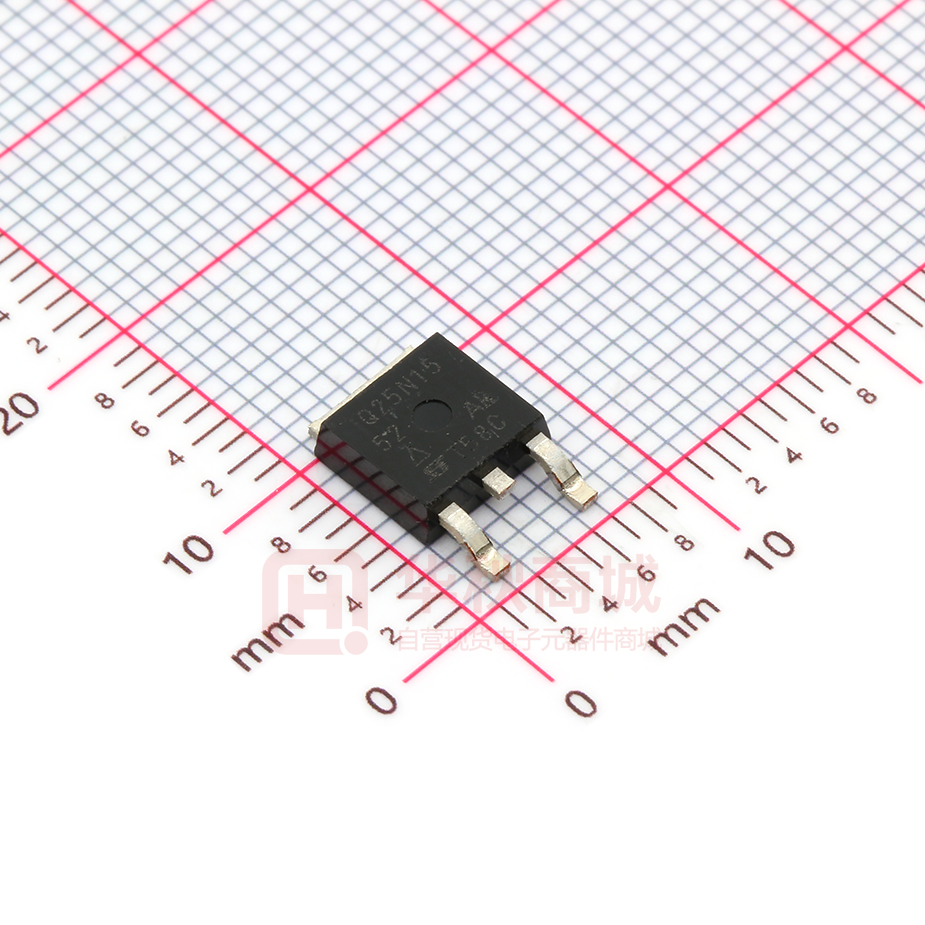

SQD25N15-52_GE3

SQD25N15-52 www.vishay.com Vishay Siliconix Automotive N-Channel 150 V (D-S) 175 °C MOSFET FEATURES PRODUCT SUMMARY VDS (V) • TrenchFET® power MOSFET 150 RDS(on) () at VGS = 10 V • Package with low thermal resistance 0.052 ID (A) • 100 % Rg and UIS tested 25 Configuration • AEC-Q101 qualified Single Package • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 TO-252 TO-252 TO D Drain connected to tab G S N-Channel MOSFET D S G Top View ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL LIMIT Drain-Source Voltage VDS 150 Gate-Source Voltage VGS ± 20 Continuous Drain Current TC = 25 °C TC = 125 °C Continuous Source Current (Diode Conduction) a Pulsed Drain Current b Single Pulse Avalanche Current Single Pulse Avalanche Energy Maximum Power Dissipation b L = 0.1 mH TC = 25 °C TC = 125 °C Operating Junction and Storage Temperature Range ID 25 IS 50 63 IAS 30 PD V 16 IDM EAS UNIT 45 107 35 A mJ W TJ, Tstg -55 to +175 °C SYMBOL LIMIT UNIT RthJA 50 RthJC 1.4 THERMAL RESISTANCE RATINGS PARAMETER Junction-to-Ambient Junction-to-Case (Drain) PCB Mount c °C/W Notes a. Package limited. b. Pulse test; pulse width  300 μs, duty cycle  2 %. c. When mounted on 1" square PCB (FR4 material). S15-2583-Rev. G, 02-Nov-15 Document Number: 68604 1 For technical questions, contact: automostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SQD25N15-52 www.vishay.com Vishay Siliconix SPECIFICATIONS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL TEST CONDITIONS MIN. TYP. MAX. VDS VGS = 0 V, ID = 250 μA 150 - - VGS(th) VDS = VGS, ID = 250 μA 2.5 3 4 VDS = 0 V, VGS = ± 20 V UNIT Static Drain-Source Breakdown Voltage Gate-Source Threshold Voltage Gate-Source Leakage Zero Gate Voltage Drain Current On-State Drain Current a Drain-Source On-State Resistance a Forward Transconductance b IGSS IDSS ID(on) RDS(on) gfs - - ± 100 VGS = 0 V VDS = 150 V - - 1 VGS = 0 V VDS = 150 V, TJ = 125 °C - - 50 VGS = 0 V VDS = 150 V, TJ = 175 °C - - 250 VGS = 10 V VDS  5 V 30 - - VGS = 10 V ID = 15 A - 0.038 0.052 VGS = 10 V ID = 15 A, TJ = 125 °C - - 0.104 VGS = 10 V ID = 15 A, TJ = 175 °C - - 0.136 - 33 2200 VDS = 15 V, ID = 15 A V nA μA A  S Dynamic b Input Capacitance Ciss Output Capacitance Coss Reverse Transfer Capacitance Total Gate Charge c Gate-Source Charge c Gate-Drain Charge c Gate Resistance Turn-On Delay Time c Rise Time c Turn-Off Delay Time c Fall Time c - 1760 - 215 270 Crss - 97 125 Qg - 34 51 Qgs VGS = 0 V VGS = 10 V VDS = 25 V, f = 1 MHz VDS = 75 V, ID = 25 A Qgd Rg f = 1 MHz td(on) tr td(off) VDD = 75 V, RL = 3  ID  25 A, VGEN = 10 V, Rg = 1  tf - 14.5 - - 5.4 - 0.35 1.0 3.2 - 11 17 - 21 33 - 20 30 - 12 20 pF nC  ns Source-Drain Diode Ratings and Characteristics b Pulsed Current a ISM Forward Voltage VSD IF = 20 A, VGS = 0 V - - 63 A - 0.87 1.5 V Notes a. Pulse test; pulse width  300 μs, duty cycle  2 %. b. Guaranteed by design, not subject to production testing. c. Independent of operating temperature.   Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. S15-2583-Rev. G, 02-Nov-15 Document Number: 68604 2 For technical questions, contact: automostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SQD25N15-52 www.vishay.com Vishay Siliconix TYPICAL CHARACTERISTICS (TA = 25 °C, unless otherwise noted) 50 45 VGS = 10 V thru 7 V 36 30 ID - Drain Current (A) ID - Drain Current (A) 40 VGS = 6 V 20 10 27 TC = 25 °C 18 9 TC = 125 °C VGS = 5 V 0 TC = - 55 °C 0 0 2 4 6 8 10 0 2 4 6 8 VDS - Drain-to-Source Voltage (V) VGS - Gate-to-Source Voltage (V) Output Characteristics Transfer Characteristics 5 60 4 48 10 gfs - Transconductance (S) ID - Drain Current (A) TC = - 55 °C 3 TC = 25 °C 2 1 TC = 25 °C 36 TC = 125 °C 24 12 TC = 125 °C TC = - 55 °C 0 1.5 3.0 4.5 6.0 0 7.5 0 5 10 15 VGS - Gate-to-Source Voltage (V) ID - Drain Current (A) Transfer Characteristics Transconductance 0.15 3000 0.12 2400 C - Capacitance (pF) RDS(on) - On-Resistance (Ω) 0.0 0.09 0.06 VGS = 10 V 0.03 20 25 80 100 Ciss 1800 1200 600 Crss Coss 0.00 0 0 10 20 30 40 50 0 20 40 60 ID - Drain Current (A) VDS - Drain-to-Source Voltage (V) On-Resistance vs. Drain Current Capacitance S15-2583-Rev. G, 02-Nov-15 Document Number: 68604 3 For technical questions, contact: automostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SQD25N15-52 www.vishay.com Vishay Siliconix TYPICAL CHARACTERISTICS (TA = 25 °C, unless otherwise noted) 3.0 RDS(on) - On-Resistance (Normalized) VGS - Gate-to-Source Voltage (V) 10 ID = 25 A VDS = 75 V 8 6 4 2 10 15 20 25 30 35 40 VGS = 10 V 1.5 1.0 -25 0 25 50 75 100 125 150 Qg - Total Gate Charge (nC) TJ - Junction Temperature (°C) Gate Charge On-Resistance vs. Junction Temperature 100 0.25 10 0.20 RDS(on) - On-Resistance (Ω) IS - Source Current (A) 5 2.0 0.5 -50 0 0 ID = 5 A 2.5 TJ = 150 °C 1 0.1 TJ = 25 °C 0.01 175 0.15 TJ = 150 °C 0.10 0.05 TJ = 25 °C 0.001 0.00 0.0 0.2 0.4 0.6 0.8 1.0 VSD - Source-to-Drain Voltage (V) 1.2 0 10 On-Resistance vs. Gate-to-Source Voltage Source Drain Diode Forward Voltage 1.0 VDS - Drain-to-Source Voltage (V) 190 0.4 VGS(th) Variance (V) 2 4 6 8 VGS - Gate-to-Source Voltage (V) -0.2 ID = 5 mA -0.8 ID = 250 μA -1.4 -2.0 -50 -25 0 25 50 75 100 125 150 175 ID = 10 mA 180 170 160 150 140 -50 -25 0 25 50 75 100 125 150 175 TJ - Temperature (°C) TJ - Junction Temperature (°C) Threshold Voltage Drain Source Breakdown vs. Junction Temperature S15-2583-Rev. G, 02-Nov-15 Document Number: 68604 4 For technical questions, contact: automostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SQD25N15-52 www.vishay.com Vishay Siliconix THERMAL RATINGS (TA = 25 °C, unless otherwise noted) 1000 IDM Limited ID - Drain Current (A) 100 10 100 μs Limited by RDS(on)* 1 ms 10 ms 100 ms, 1s, 10 s, DC 1 0.1 BVDSS Limited TC = 25 °C Single Pulse 0.01 0.01 0.1 1 10 100 VDS - Drain-to-Source Voltage (V) * VGS > minimum VGS at which RDS(on) is specified 1000 Safe Operating Area 2 Normalized Effective Transient Thermal Impedance 1 Duty Cycle = 0.5 0.2 0.1 0.1 0.05 0.02 Single Pulse 0.01 10-4 10-3 10-2 10-1 1 10 100 1000 Square Wave Pulse Duration (s) Normalized Thermal Transient Impedance, Junction-to-Ambient S15-2583-Rev. G, 02-Nov-15 Document Number: 68604 5 For technical questions, contact: automostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SQD25N15-52 www.vishay.com Vishay Siliconix THERMAL RATINGS (TA = 25 °C, unless otherwise noted) 2 Normalized Effective Transient Thermal Impedance 1 Duty Cycle = 0.5 0.2 0.1 0.1 0.05 0.02 Single Pulse 0.01 10 -4 10 -3 10 -2 10 -1 1 10 100 Square Wave Pulse Duration (s) Normalized Thermal Transient Impedance, Junction-to-Case Note • The characteristics shown in the two graphs - Normalized Transient Thermal Impedance Junction-to- Ambient (25 °C) - Normalized Transient Thermal Impedance Junction-to-Case (25 °C) are given for general guidelines only to enable the user to get a “ball park” indication of part capabilities. The data are extracted from single pulse transient thermal impedance characteristics which are developed from empirical measurements. The latter is valid for the part mounted on printed circuit board - FR4, size 1" x 1" x 0.062", double sided with 2 oz. copper, 100 % on both sides. The part capabilities can widely vary depending on actual application parameters and operating conditions.                                    Vishay Siliconix maintains worldwide manufacturing capability. Products may be manufactured at one of several qualified locations. Reliability data for Silicon Technology and Package Reliability represent a composite of all qualified locations. For related documents such as package/tape drawings, part marking, and reliability data, see www.vishay.com/ppg?68604. S15-2583-Rev. G, 02-Nov-15 Document Number: 68604 6 For technical questions, contact: automostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SQD25N15-52 www.vishay.com REVISION HISTORY REVISION G a DATE 08-Aug-15 Vishay Siliconix DESCRIPTION OF CHANGE • Rg, Crss, tr and tf changed Note a. As of April 2014 S15-2583-Rev. G, 02-Nov-15 Document Number: 68604 7 For technical questions, contact: automostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Package Information www.vishay.com Vishay Siliconix TO-252AA Case Outline E MILLIMETERS A C2 e b2 D1 e1 E1 L gage plane height (0.5 mm) L4 b L5 H D L3 b3 C A1 INCHES DIM. MIN. MAX. MIN. MAX. A 2.18 2.38 0.086 0.094 A1 - 0.127 - 0.005 b 0.64 0.88 0.025 0.035 b2 0.76 1.14 0.030 0.045 b3 4.95 5.46 0.195 0.215 0.024 C 0.46 0.61 0.018 C2 0.46 0.89 0.018 0.035 D 5.97 6.22 0.235 0.245 D1 4.10 - 0.161 - E 6.35 6.73 0.250 0.265 E1 4.32 - 0.170 - H 9.40 10.41 0.370 0.410 e 2.28 BSC e1 0.090 BSC 4.56 BSC 0.180 BSC L 1.40 1.78 0.055 0.070 L3 0.89 1.27 0.035 0.050 L4 - 1.02 - 0.040 L5 1.01 1.52 0.040 0.060 ECN: T13-0592-Rev. A, 02-Sep-13 DWG: 6019 Note • Dimension L3 is for reference only. Revision: 02-Sep-13 Document Number: 64424 1 For technical questions, contact: pmostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Application Note 826 Vishay Siliconix RECOMMENDED MINIMUM PADS FOR DPAK (TO-252) 0.224 0.243 0.087 (2.202) 0.090 (2.286) (10.668) 0.420 (6.180) (5.690) 0.180 0.055 (4.572) (1.397) Recommended Minimum Pads Dimensions in Inches/(mm) Return to Index Return to Index APPLICATION NOTE Document Number: 72594 Revision: 21-Jan-08 www.vishay.com 3 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer  ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2017 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 08-Feb-17 1 Document Number: 91000
