TCRT1000, TCRT1010
www.vishay.com
Vishay Semiconductors

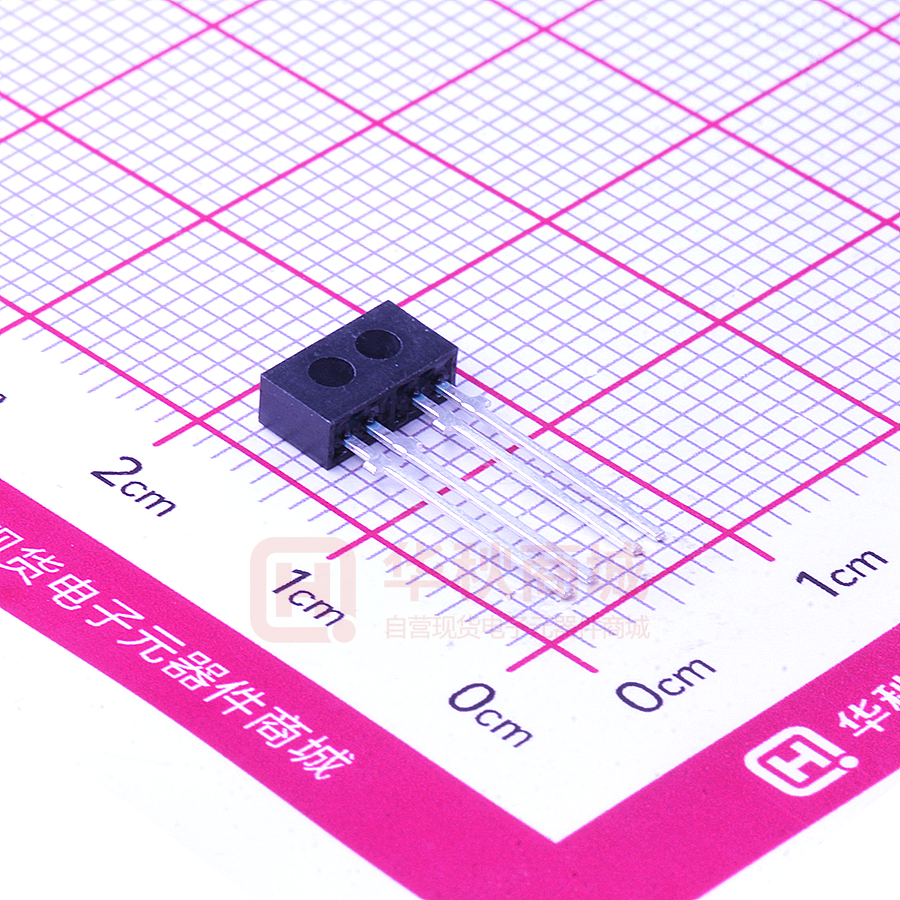

Reflective Optical Sensor With Transistor Output
FEATURES
TCRT1000
TCRT1010
• Package type: leaded
• Detector type: phototransistor
• Dimensions (L x W x H in mm): 7 x 4 x 2.5
• Peak operating distance: 1 mm
• Operating range within > 20 % relative
collector current: 0.2 mm to 4 mm
• Typical output current under test: IC = 0.7 mA
21836
• Daylight blocking filter
• Emitter wavelength: 950 nm
• Lead (Pb)-free soldering released
A
C
E
C
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
19155_1
DESCRIPTION
APPLICATIONS
The TCRT1000 and TCRT1010 are reflective sensors which
include an infrared emitter and phototransistor in a leaded
package which blocks visible light.
• Optoelectronic scanning and switching devices i.e.,
index sensing, coded disk scanning etc. (optoelectronic
encoder assemblies for transmissive sensing).
PRODUCT SUMMARY
PART NUMBER
DISTANCE FOR
MAXIMUM CTRREL (1)
(mm)
DISTANCE RANGE FOR
TYPICAL OUTPUT
DAYLIGHT
RELATIVE Iout > 20 %
CURRENT UNDER TEST (2) BLOCKING FILTER
INTEGRATED
(mm)
(mA)
TCRT1000
1
0.2 to 4
0.7
Yes
TCRT1010
1
0.2 to 4
0.7
Yes
Notes
(1) CTR: current transfere ratio, I /I
out in
(2) Conditions like in table basic charactristics/sensor
ORDERING INFORMATION
PACKAGING
VOLUME (1)
REMARKS
TCRT1000
Bulk
MOQ: 1000 pcs, 1000 pcs/bulk
Straight leads
TCRT1010
Bulk
MOQ: 1000 pcs, 1000 pcs/bulk
Bent leads
ORDERING CODE
Note
(1) MOQ: minimum order quantity
ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
SYMBOL
VALUE
UNIT
SENSOR
Total power dissipation
Tamb ≤ 25 °C
Ptot
270
mW
Ambient temperature range
Tamb
-40 to +85
°C
Storage temperature range
Tstg
-40 to +100
°C
Tsd
260
°C
Soldering temperature
2 mm distance to package, t ≤ 5 s
INPUT (EMITTER)
Reverse voltage
VR
5
V
Forward current
IF
100
mA
Forward surge current
Power dissipation
Junction temperature
tp ≤ 100 μs
IFSM
1.5
A
Tamb ≤ 25 °C
PV
170
mW
Tj
100
°C
Document Number: 83752
1
For technical questions, contact: sensorstechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Rev. 2.0, 13-Oct-2021
TCRT1000, TCRT1010
www.vishay.com
Vishay Semiconductors
ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
SYMBOL
VALUE
UNIT
Collector emitter voltage
VCEO
32
V
Emitter collector voltage
VECO
5
V
OUTPUT (DETECTOR)
Collector current
Tamb ≤ 25 °C
Power dissipation
IC
50
mA
PV
100
mW
Tj
100
°C
Junction temperature
ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified)
Axis Title
10000
300
250
1000
200
Emitter
1st line
2nd line
2nd line
PV - Power Dissipation (mW)
Coupled device
150
Detector
100
100
50
10
0
0
20
40
60
80
100
Tamb - Ambient Temperature (°C)
Fig. 1 - Power Dissipation Limit vs. Ambient Temperature
BASIC CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
SYMBOL
MIN.
TYP.
MAX.
UNIT
VCE = 5 V, IF = 20 mA,
d = 1 mm (Fig. 2)
IC (1)
0.6
0.7
-
mA
VCE = 5 V, IF = 20 mA
(2)
-
-
1
μA
-
-
0.3
V
SENSOR
Collector current
Cross talk current
Collector emitter saturation
voltage
IF = 20 mA, IC = 0.1 mA,
d = 1 mm (Fig. 2)
ICX
VCEsat (1)
INPUT (EMITTER)
Forward voltage
IF = 100 mA
VF
-
1.6
1.7
V
Peak wavelength
IF = 100 mA
λP
950
-
-
nm
OUTPUT (DETECTOR)
Collector emitter voltage
IC = 1 mA
VCEO
32
-
-
V
Emitter collector voltage
IE = 100 μA
VECO
5
-
-
V
VCE = 10 V, IF = 0 A, E = 0 lx
ICEO
-
-
200
nA
Collector dark current
Notes
(1) Measured with the “Kodak neutral test card”, white side with 90 % diffuse reflectance
(2) Measured without reflecting medium
Document Number: 83752
2
For technical questions, contact: sensorstechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Rev. 2.0, 13-Oct-2021
TCRT1000, TCRT1010
www.vishay.com
Vishay Semiconductors
Reflecting medium
(Kodak neutral test card)
~
~~
~
~~
d
Detector
Emitter
A
C
E
C
95 10893
Fig. 2 - Test Condition
BASIC CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
Axis Title
Axis Title
100
10000
10000
10
10
100
10
1
1.0
1.2
1.4
IF = 50 mA
1
IF = 10 mA
IF = 5 mA
0.1
100
0.01
1.6
10
0.1
1
10
100
VF - Forward Voltage (V)
VCE - Collector Emitter Voltage (V)
Fig. 3 - Forward Current vs. Forward Voltage
Fig. 5 - Collector Current vs. Collector Emitter Voltage
Axis Title
Axis Title
2.0
100
10000
VCE = 5 V,
IF = 20 mA
1.0
100
0.5
10
0
-15
10
35
60
85
1000
1st line
2nd line
1000
2nd line
CTR - Current Transfer Ratio (%)
1.5
-40
10000
VCE = 5 V
1st line
2nd line
2nd line
CTRrel - Relative Current Transfer Ratio
1000
IF = 20 mA
1st line
2nd line
1000
2nd line
IC - Collector Current (mA)
IF = 100 mA
1st line
2nd line
2nd line
IF - Forward Current (mA)
tp = 20 ms
10
100
10
1
1
10
100
Tamb - Ambient Temperature (°C)
IF - Forward Current (mA)
Fig. 4 - Relative Current Transfer Ratio vs. Ambient Temperature
Fig. 6 - Current Transfer Ratio vs. Forward Current
Document Number: 83752
3
For technical questions, contact: sensorstechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Rev. 2.0, 13-Oct-2021
TCRT1000, TCRT1010
www.vishay.com
Vishay Semiconductors
Axis Title
Axis Title
10000
1000
80
60
100
40
20
10
0
0
1
2
3
4
5
6
7
8
9
10
10000
100
80
1000
1st line
2nd line
100
2nd line
IC. - Relative Collector Current (%)
120
1st line
2nd line
2nd line
IC - Relarive Collector Current (%)
120
60
40
100
20
0
10
0
1
2
3
4
5
6
7
8
9
10
z - Distance (mm)
S - Displacement (mm)
Fig. 7 - Collector Current vs. Distance
Fig. 8 - Relative Collector Current vs. Displacement
Document Number: 83752
4
For technical questions, contact: sensorstechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Rev. 2.0, 13-Oct-2021
TCRT1000, TCRT1010
www.vishay.com
Vishay Semiconductors
PACKAGE DIMENSIONS in millimeters
14768
14769
Document Number: 83752
5
For technical questions, contact: sensorstechsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Rev. 2.0, 13-Oct-2021
