TDSR1350, TDSR1360
www.vishay.com
Vishay Semiconductors
High Intensity Red Low Current 7-Segment Display
FEATURES
• 1500 μcd typical at 1 mA
• Very low power consumption
• Wide viewing angle
• Grey package surface
• Light intensity categorized at IF = 1 mA
• Material categorization: for definitions of
compliance please see www.vishay.com/doc?99912
19237
APPLICATIONS
DESCRIPTION
• Battery driven instruments

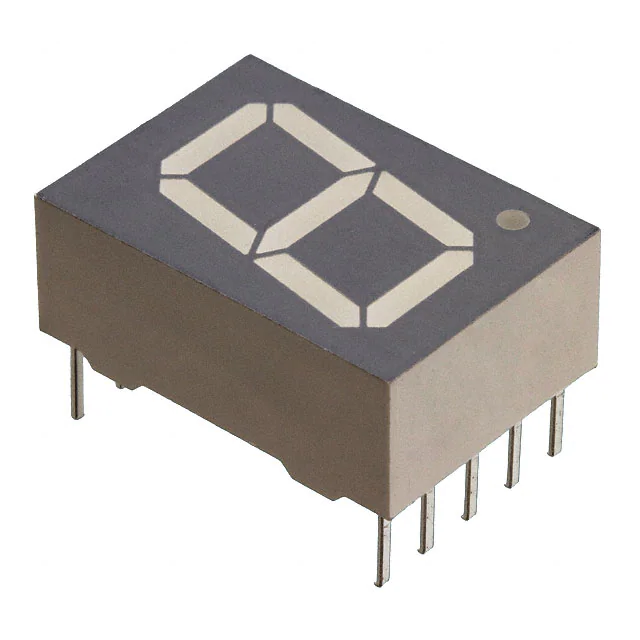

This series defines a new standard for low current displays.
It is a single digit 7-segment LED display utilizing AllnGaP
technology in color red.
The supreme light intensity allows applications under direct
sunlight or “black front” designs by using tinted filter glass
in front of the display.
Typical 1500 μcd at 1 mA is best in class performance for
applications with very limited power supply. The maximum
forward current of 10 mA is allowed for an ambient
temperature range of - 40 °C to + 85 °C without current
derating.
Due to the design of 13 mm displays, a certain amount of
cross-talk between segments is unavoidable. This light
leakage becomes more noticeable as the brightness of
the operated segments increases. However, higher
environmental illumination, or a partially transparent cover,
may reduce this effect. Therefore, it's important to consider
this phenomenon during design-in and to validate suitability
for the particular application and all its operation modes.
• Telecom devices
• Home appliances
• Instrumentation
• POS terminals
PRODUCT GROUP AND PACKAGE DATA
• Product group: display
• Package: 13 mm
• Product series: low current
• Angle of half intensity: ± 50°
PARTS TABLE
PART
COLOR
LUMINOUS INTENSITY
(μcd)
MIN.
TYP.
MAX.
WAVELENGTH
at
at FORWARD VOLTAGE at
(nm)
(V)
IF
IF
IF
(mA) MIN. TYP. MAX. (mA) MIN. TYP. MAX. (mA)
CIRCUITRY
TDSR1350
Red
280
-
3600
1
-
640
-
1
-
1.8
2.4
1
Common anode
TDSR1360
Red
280
-
3600
1
-
640
-
1
-
1.8
2.4
1
Common cathode
TDSR1360-IK
Red
1100
-
3600
1
-
640
-
1
-
1.8
2.4
1
Common cathode
ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified)
TDSR1350, TDSR1360, TDSR1360-IK
PARAMETER
SYMBOL
VALUE
Reverse voltage per segment
VR
5
V
DC forward current per segment
IF
10
mA
tp ≤ 10 μs, duty cycle 1/10
IFM
50
mA
Tamb ≤ 85 °C
PV
185
mW
Tj
105
°C
Operating temperature range
Tamb
-40 to +85
°C
Storage temperature range
Tstg
-40 to +85
°C
Tsd
260
°C
RthJA
100
K/W
Peak forward current per segment
Power dissipation
TEST CONDITION
Junction temperature
Soldering temperature
Thermal resistance LED junction to ambient
Rev. 1.4, 15-Nov-2021
t ≤ 3 s, 2 mm below seating plane
UNIT
Document Number: 85180
1
For technical questions, contact: LED@Vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
TDSR1350, TDSR1360
www.vishay.com
Vishay Semiconductors
OPTICAL AND ELECTRICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
TDSR1350, TDSR1360, TDSR1360-IK, RED
PARAMETER
TEST CONDITION
PART
SYMBOL
TDSR1350
Luminous intensity per segment
(digit average)
IF = 1 mA
TDSR1360
IV
TDSR1360-IK
MIN.
TYP.
MAX.
280
-
3600
280
-
3600
1100
-
3600
UNIT
μcd
Dominant wavelength
IF = 1 mA
λd
-
640
-
nm
Peak wavelength
IF = 1 mA
λp
-
650
-
nm
Angle of half intensity
IF = 1 mA
ϕ
-
± 50
-
°
Forward voltage per segment or DP
IF = 1 mA
VF
-
1.8
2.4
V
Reverse voltage per segment or DP
VR = 6 V
IR
-
10
-
μA
TDSR1350,
TDSR1360,
TDSR1360-IK
LUMINOUS INTENSTIY CLASSIFICATION
GROUP
LIGHT INTENSITY (μcd)
STANDARD
MIN.
MAX.
F
280
560
G
450
900
H
700
1400
I
1100
2200
K
1800
3600
Note
• The above type numbers represent the order groups which include only a few brightness groups. Only one group will be shipped in one tube
(there will be no mixing of two groups in one tube).
In order to ensure availability, single brightness groups will not be orderable.
TYPICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
0°
10°
20°
25
20
15
10
5
40°
1.0
0.9
50°
0.8
60°
70°
0.7
ϕ - Angular Displacement
30°
IV rel - Relative Luminous Intensity
IF - Forward Current (mA)
30
80°
0
0
18540
20
40
60
80 85
Tamb - Ambient Temperature (°C)
Fig. 1 - Forward Current vs. Ambient Temperature
Rev. 1.4, 15-Nov-2021
0.6
100
0.4
0.2
0
95 10082
Fig. 2 - Relative Luminous Intensity vs. Angular Displacement
Document Number: 85180
2
For technical questions, contact: LED@Vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
TDSR1350, TDSR1360
www.vishay.com
Vishay Semiconductors
1.2
IV rel - Relative Luminous Intensity
IF - Forward Current (mA)
100
10
1
1
1.5
2
2.5
3
VF - Forward Voltage (V)
95 10878
Fig. 3 - Forward Current vs. Forward Voltage
IF = 10 mA
red
1.0
0.8
0.6
0.4
0.2
0.0
560 580 600 620 640 660 680 700 720
18541
λ - Wavelength (mm)
Fig. 6 - Relative Luminous Intensity vs. Ambient Temperature
100
IV rel - Relative Luminous Intensity
10
9
8
7
6
a
10
f
b
g
1
e
c
DP
d
0.1
0.1
1
10
100
IF - Forward Current (mA)
16120
Fig. 4 - Relative Luminous Intensity vs. Forward Current
1
2
3
4
5
1
2
3
4
5
6
7
8
9
10
e
d
A(C)
c
DP
b
a
A(C)
f
g
95 10896
Fig. 7 - TDSR13..
IV rel - Relative Luminous Intensity
1.6
red
IF = 1 mA
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
16119
0
10
20 30 40 50 60 70 80 90 100
Tamb - Ambient Temperature (°C)
Fig. 5 - Relative Luminous Intensity vs. Ambient Temperature
Rev. 1.4, 15-Nov-2021
Document Number: 85180
3
For technical questions, contact: LED@Vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
TDSR1350, TDSR1360
www.vishay.com
Vishay Semiconductors
PACKAGE DIMENSIONS FOR TDSR13.. in millimeters
Drawing-No.: 6.544-5150.01-4
Issue: 1; 21.11.95
95 11344
Rev. 1.4, 15-Nov-2021
Document Number: 85180
4
For technical questions, contact: LED@Vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
