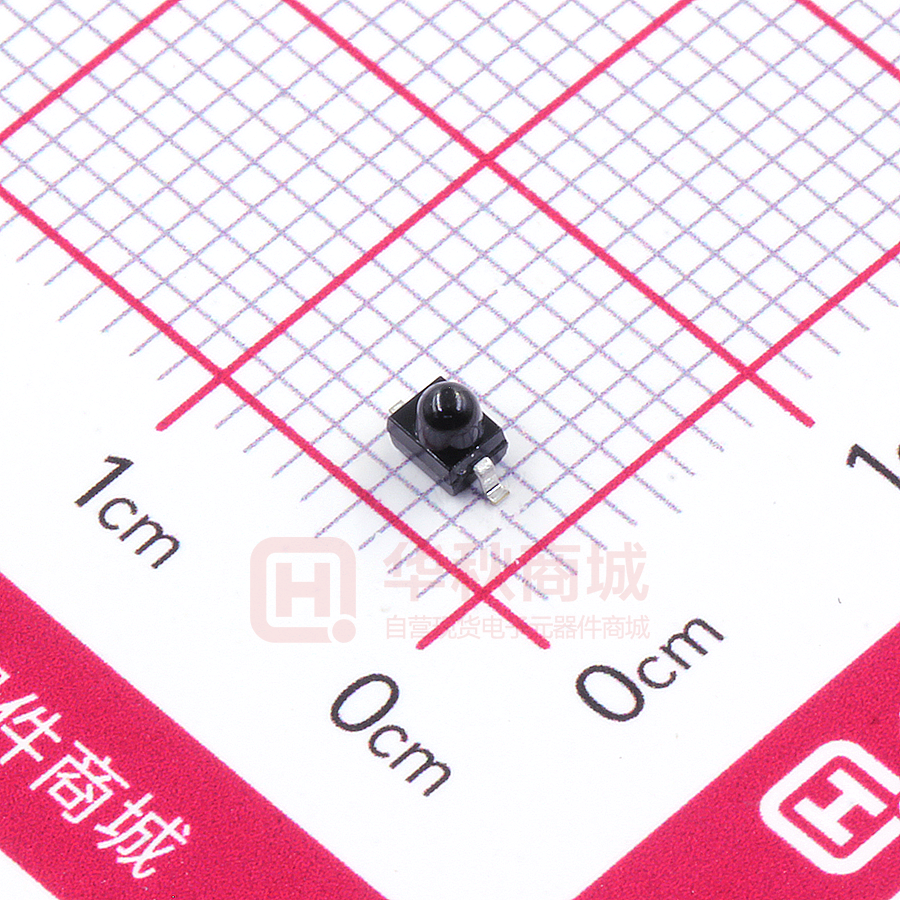

TEMT1020

TEMT1000, TEMT1020, TEMT1030, TEMT1040 www.vishay.com Vishay Semiconductors Silicon NPN Phototransistor, RoHS Compliant TEMT1000 FEATURES TEMT1020 • • • • • TEMT1030 • • • • • TEMT1040 16757 Package type: surface mount Package form: GW, RGW, yoke, axial Dimensions (L x W x H in mm): 2.5 x 2 x 2.7 High radiant sensitivity Daylight blocking filter matched with 870 nm to 950 nm IR emitters Fast response times Angle of half sensitivity:  = ± 15° Package matches with IR emitter series TSML1000 Floor life: 168 h, MSL 3, acc. J-STD-020 Compliant to RoHS Directive 2002/95/EC and in accordance with WEEE 2002/96/EC APPLICATIONS DESCRIPTION • • • • • TEMT1000 series are silicon NPN phototransistors with high radiant sensitivity in black, surface mount, plastic packages with lens and daylight blocking filter. Filter bandwidth is matched with 870 nm to 950 nm IR emitters. Detector in electronic control and drive circuits IR detector for daylight application Photo interrupters Counter Encoder PRODUCT SUMMARY Ica (mA)  (deg) 0.5 (nm) TEMT1000 7 ± 15 730 to 1000 TEMT1020 7 ± 15 730 to 1000 TEMT1030 7 ± 15 730 to 1000 TEMT1040 7 ± 15 730 to 1000 ORDERING CODE PACKAGING REMARKS PACKAGE FORM TEMT1000 Tape and reel MOQ: 1000 pcs, 1000 pcs/reel Reverse gullwing TEMT1020 Tape and reel MOQ: 1000 pcs, 1000 pcs/reel Gullwing TEMT1030 Tape and reel MOQ: 1000 pcs, 1000 pcs/reel Yoke TEMT1040 Bulk MOQ: 1000 pcs, 1000 pcs/bulk Axial leads COMPONENT Note • Test conditions see table “Basic Characteristics” ORDERING INFORMATION Note • MOQ: minimum order quantity ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified) PARAMETER TEST CONDITION SYMBOL VALUE VECO 5 V IC 50 mA tp/T = 0.5, tp  10 ms ICM 100 mA Tamb  55 °C PV 100 mW Emitter collector voltage Collector current Collector peak current Power dissipation Junction temperature Operating temperature range Storage temperature range Soldering temperature Thermal resistance junction/ambient Rev. 1.6, 29-Jun-11 UNIT Tj 100 °C Tamb - 40 to + 85 °C Tstg - 40 to + 100 °C t5s Tsd 260 °C Soldered on PCB with pad dimensions: 4 mm x 4 mm RthJA 400 K/W 1 Document Number: 81554 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TEMT1000, TEMT1020, TEMT1030, TEMT1040 www.vishay.com Vishay Semiconductors PV - Power Dissipation (mW) 120 100 80 60 RthJA = 400 K/W 40 20 0 0 10 20 30 40 50 60 70 80 90 100 Tamb - Ambient Temperature (°C) 21167 Fig. 1 - Power Dissipation Limit vs. Ambient Temperature BASIC CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) PARAMETER TEST CONDITION SYMBOL MIN. IC = 1 mA VCEO 70 Collector emitter dark current VCE = 20 V, E = 0 ICEO Collector emitter capacitance VCE = 5 V, f = 1 MHz, E = 0 CCEO 3 pF  ± 15 deg Collector emitter voltage Angle of half sensitivity TYP. MAX. UNIT 1 200 nA V Wavelength of peak sensitivity p 880 nm Range of spectral bandwidth 0.5 730 to 1000 nm Ee = 1 mW/cm2,  = 950 nm, IC = 0.1 mA VCEsat VS = 5 V, IC = 5 mA, RL = 100  ton Turn-off time VS = 5 V, IC = 5 mA, RL = 100  toff 2.3 μs Cut-off frequency VS = 5 V, IC = 5 mA, RL = 100  fc 180 kHz Ee = 1 mW/cm2,  = 950 nm, VCE = 5 V Ica 7.0 mA Collector emitter saturation voltage Turn-on time Collector light current 0.3 V 2.0 2 μs BASIC CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) 10 2.0 Ica rel - Relative Collector Current ICEO - Collector Dark Current (nA) 104 3 VCE = 20 V 102 101 10 20 94 8304 40 60 80 VCE = 5 V Ee = 1 mW/cm2 λ = 950 nm 1.6 1.4 1.2 1.0 0.8 0.6 100 0 Tamb - Ambient Temperature (°C) 94 8239 Fig. 2 - Collector Dark Current vs. Ambient Temperature Rev. 1.6, 29-Jun-11 1.8 20 40 60 80 100 Tamb - Ambient Temperature (°C) Fig. 3 - Relative Collector Current vs. Ambient Temperature 2 Document Number: 81554 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TEMT1000, TEMT1020, TEMT1030, TEMT1040 www.vishay.com Vishay Semiconductors 1.0 S(λ)rel - Relative Spectral Sensitivity 10 1 VCE = 5 V λ = 950 nm 0.1 0.01 0.01 0.1 21168 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0.0 600 10 1 Ee - Irradiance (mW/cm²) 700 21169 800 900 1000 λ - Wavelength (nm) 1100 Fig. 7 - Relative Spectral Sensitivity vs. Wavelength Fig. 4 - Collector Light Current vs. Irradiance 0° 10 10° 20° 30° f = 1 MHz 8 Srel - Relative Sensitivity CCEO - Collector Emitter Capacitance (pF) 0.9 6 4 2 40° 1.0 0.9 50° 0.8 60° 70° 0.7 ϕ - Angular Displacement Ica - Collector Light Current (mA) 100 80° 0 0.1 1 100 10 0.6 VCE - Collector Emitter Voltage (V) 94 8294 0.4 0.2 0 94 8248 Fig. 8 - Relative Radiant Sensitivity vs. Angular Displacement Fig. 5 - Collector Emitter Capacitance vs. Collector Emitter Voltage ton/toff - Turn-on/Turn-off Time (µs) 8 VCE = 5 V RL = 100 Ω λ = 950 nm 6 4 toff 2 ton 0 0 94 8293 2 4 6 8 10 12 14 IC - Collector Current (mA) Fig. 6 - Turn-on/Turn-off Time vs. Collector Current Rev. 1.6, 29-Jun-11 3 Document Number: 81554 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TEMT1000, TEMT1020, TEMT1030, TEMT1040 www.vishay.com Vishay Semiconductors PRECAUTIONS FOR USE REFLOW SOLDER PROFILE 1. Over-current-proof 260 Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change (burn out will happen). 240 Temperature (°C) 220 2. Storage • Storage temperature and rel. humidity conditions are: °C to 35 °C, R.H. 60 %. 5 • Floor life must not exceed 168 h, acc. to JEDEC level 3, J-STD-020. Once the package is opened, the products should be used within a week. Otherwise, they should be kept in a damp proof box with desiccant. Considering tape life, we suggest to use products within one year from production date. 200 - 5 °C/s + 5 °C/s 180 160 140 120 60 s to 120 s 5s 100 80 60 0 20 40 60 80 100 120 140 160 180 200 220 Time (s) 17172 Fig. 9 - Lead Tin (SnPb) Reflow Solder Profile • If opened more than one week in an atmosphere 5 °C to 35 °C, R.H. 60 %, devices should be treated at 60 °C ± 5 °C for 15 h. 1 °C/s to 5 °C/s Pre-heating 180 °C to 200 °C • If humidity indicator in the package shows pink color (normal blue), then devices should be treated with the same conditions as 2.3. 260 °C max. 10 s max. 60 s max. above 220 °C 120 s max. 1 °C/s to 5 °C/s 22566 Fig. 10 - Lead (Pb)-Free Reflow Solder Profile acc. J-STD-020 PACKAGE DIMENSIONS in millimeters: TEMT1000 3.05 ± 0.2 2.7 ± 0.2 1.4 1.5 0.15 ± 0.05 Ø 1.9 ± 0.2 4.3 ± 0.2 5.8 ± 0.2 2.5 ± 0.2 0.4 C 3.7 ± 0.1 1 ± 0.1 6.3 ± 0.1 0.5 2 ± 0.2 1.1 E 16104 Rev. 1.6, 29-Jun-11 4 Document Number: 81554 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TEMT1000, TEMT1020, TEMT1030, TEMT1040 www.vishay.com Vishay Semiconductors PACKAGE DIMENSIONS in millimeters: TEMT1020 16105 PACKAGE DIMENSIONS in millimeters: TEMT1030 16756 Rev. 1.6, 29-Jun-11 5 Document Number: 81554 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TEMT1000, TEMT1020, TEMT1030, TEMT1040 www.vishay.com Vishay Semiconductors PACKAGE DIMENSIONS in millimeters: TEMT1040 16500 16 ±0.2 Unreel direction X 2. 60.2 ±0.5 REEL DIMENSIONS in millimeters 5 178 ±1 .5 ±0 0. 5 Tape position coming out from reel 13 ± X 13.2 ±1.5 Label posted here Leader and trailer tape: Empty leader (400 mm, min.) Parts mounted Drawing-No.: 9.800-5080.01-4 Direction of pulling out Issue: 3; 11.06.08 Empty trailer (200 mm, min.) 18033 Rev. 1.6, 29-Jun-11 6 Document Number: 81554 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TEMT1000, TEMT1020, TEMT1030, TEMT1040 www.vishay.com Vishay Semiconductors TAPING DIMENSIONS in millimeters: TEMT1000 3.05 ± 0.1 1.75 ± 0.1 2 ± 0.05 Ø 1.55 ± 0.05 4 ± 0.1 Feed direction Top tape 12 ± 0.3 5.5 ± 0.05 0.3 4 ± 0.1 Collector Push pin through hole 18089 Quantity per reel: 1000 pcs or 5000 pcs TAPING DIMENSIONS in millimeters: TEMT1020 3.05 ± 0.1 4 ± 0.1 Feed direction Top tape 12 ± 0.3 1.75 ± 0.1 2 ± 0.05 Ø 1.55 ± 0.05 5.5 ± 0.05 0.3 4 ± 0.1 Collector Push pin through hole 18090 Quantity per reel: 1000 pcs or 5000 pcs Rev. 1.6, 29-Jun-11 7 Document Number: 81554 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TEMT1000, TEMT1020, TEMT1030, TEMT1040 www.vishay.com Vishay Semiconductors TAPING DIMENSIONS in millimeters: TEMT1030 3.05 ± 0.1 4 ± 0.1 Feed direction Top tape 12 ± 0.3 1.75 ± 0.1 2 ± 0.05 Ø 1.55 ± 0.05 5.5 ± 0.05 0.3 4 ± 0.1 Collector 18091 Push pin through hole Quantity per reel: 1000 pcs or 5000 pcs Rev. 1.6, 29-Jun-11 8 Document Number: 81554 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay's knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer's responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer's technical experts. Product specifications do not expand or otherwise modify Vishay's terms and conditions of purchase, including but not limited to the warranty expressed therein. Hyperlinks included in this datasheet may direct users to third-party websites. These links are provided as a convenience and for informational purposes only. Inclusion of these hyperlinks does not constitute an endorsement or an approval by Vishay of any of the products, services or opinions of the corporation, organization or individual associated with the third-party website. Vishay disclaims any and all liability and bears no responsibility for the accuracy, legality or content of the third-party website or for that of subsequent links. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2022 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 01-Jan-2022 1 Document Number: 91000
