TEMT6200FX01

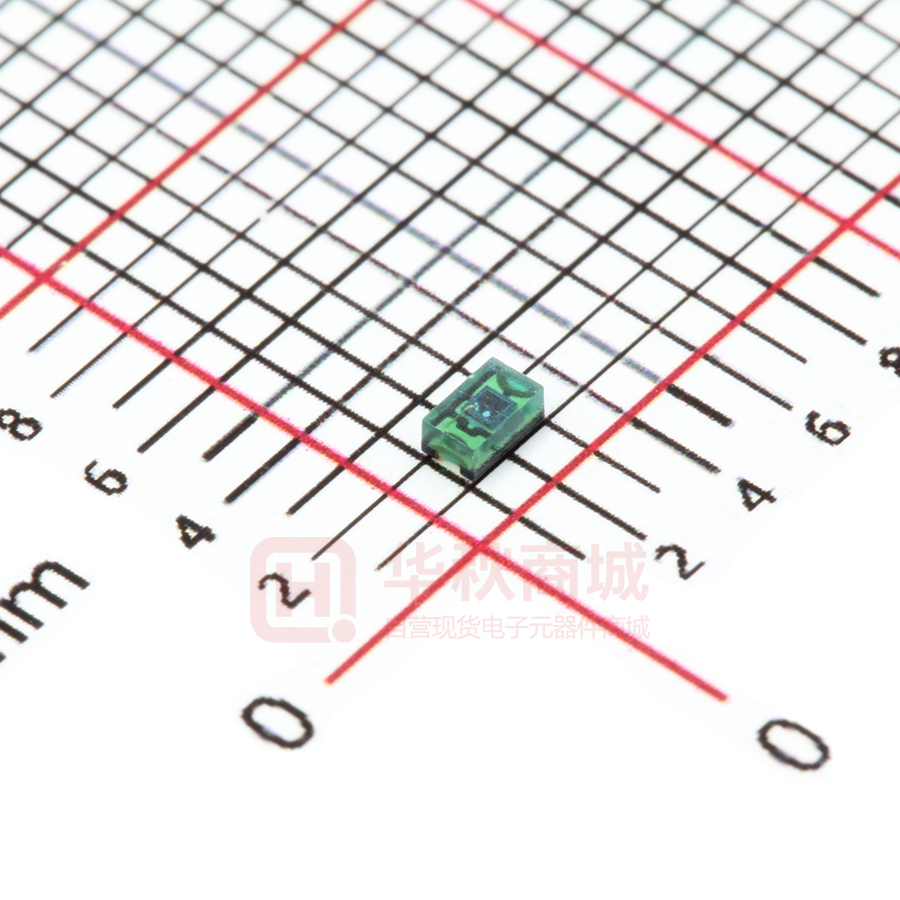

TEMT6200FX01 www.vishay.com Vishay Semiconductors Ambient Light Sensor in 0805 Package FEATURES • Package type: surface mount • Package form: 0805 • Dimensions (L x W x H in mm): 2 x 1.25 x 0.85 • AEC-Q101 qualified • High photo sensitivity • Adapted to human eye responsivity • Supression filter for near infrared radiation • Angle of half sensitivity: ϕ = ± 60° • Floor life: 168 h, MSL 3, acc. J-STD-020 • Lead (Pb)-free reflow soldering • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 DESCRIPTION TEMT6200FX01 ambient light sensor is a silicon NPN epitaxial planar phototransistor in a miniature transparent 0805 package for surface mounting. It is sensitive to visible light much like the human eye and has peak sensitivity at 550 nm. APPLICATIONS • Automotive sensors • Ambient light sensor for display backlight dimming in: - Mobile phones Notebook computers PDAs Cameras Dashboards PRODUCT SUMMARY COMPONENT IPCE (μA) ϕ (deg) λ0.5 (nm) TEMT6200FX01 23 ± 60 450 to 610 Note • Test condition see table “Basic Characteristics” ORDERING INFORMATION ORDERING CODE TEMT6200FX01 PACKAGING REMARKS PACKAGE FORM Tape and reel MOQ: 3000 pcs, 3000 pcs/reel. Label with IPCE group on each reel. Specifications of group A/B/C see table “Type Dedicated Characteristics” 0805 Note • MOQ: minimum order quantity ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified) PARAMETER SYMBOL VALUE UNIT Collector emitter voltage TEST CONDITION VCEO 6 V Emitter collector voltage VECO 1.5 V Collector current IC 20 mA Power dissipation PV 100 mW Junction temperature Operating temperature range Storage temperature range Soldering temperature Thermal resistance junction/ambient Rev. 1.9, 25-Jun-14 Tj 100 °C Tamb -40 to +100 °C °C Tstg -40 to +100 Acc. reflow profile fig. 9 Tsd 260 °C Soldered on PCB with pad dimensions: 4 mm x 4 mm RthJA 450 K/W Document Number: 81317 1 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TEMT6200FX01 www.vishay.com Vishay Semiconductors PV - Power Dissipation (mW) 125 100 75 RthJA = 450 K/W 50 25 0 0 94 8308 20 40 60 100 80 Tamb - Ambient Temperature (°C) Fig. 1 - Power Dissipation Limit vs. Ambient Temperature BASIC CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) PARAMETER Collector emitter breakdown voltage Collector dark current Collector emitter capacitance Photo current Temperature coefficient of IPCE TEST CONDITION SYMBOL MIN. IC = 0.1 mA VCEO 6 VCE = 5 V, E = 0 lx ICEO VCE = 0 V, f = 1 MHz, E = 0 lx CCEO 16 pF EV = 20 lx, CIE illuminant A, VCE = 5 V IPCE 4.6 μA EV = 100 lx, CIE illuminant A, VCE = 5 V IPCE CIE illuminant A TKIPCE LED, white 7.5 TYP. MAX. UNIT 3 50 nA V 23 39 μA 1.18 %/K TKIPCE 0.9 %/K Angle of half sensitivity ϕ ± 60 deg Wavelength of peak sensitivity λp 550 nm λ0.5 450 to 610 nm VCEsat 0.1 V Range of spectral bandwidth Collector emitter saturation voltage EV = 20 lx, 0.45 μA TYPE DEDICATED CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) PARAMETER TEST CONDITION BINNED GROUP Photo current EV = 100 lx, CIE illuminant A, VCEtz51 = 5 V C SYMBOL MIN. MAX. UNIT A IPCE 7.5 15 μA B IPCE 12 24 μA IPCE 19.5 39 μA Note • Each 3000 piece packing unit will contain a single group. The label on the bag will indicate which binned group is in the bag. A specific group cannot be ordered. Production shipments containing multiple bags will likely include multiple groups. Please design accordingly. Rev. 1.9, 25-Jun-14 Document Number: 81317 2 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TEMT6200FX01 www.vishay.com Vishay Semiconductors BASIC CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) 10 VCE = 5 V IPSE - Photo Current (mA) 10 -7 10 -8 10 -9 10 -10 10 -11 10 klx 1 3 klx 1 klx 500 lx 0.1 200 lx 100 lx 10 -12 0.01 10 -13 -40 -20 0 20 40 60 80 Tamb - Ambient Temperature (°C) 19758 IPCE rel - Relative Photo Current 2.2 2.0 1.8 1.6 1.4 1.2 1.0 0.8 0.6 0 VCE = 5 V, white LED -40 19759 -20 0 20 40 60 80 Tamb - Ambient Temperature (°C) 100 1 0.1 VCE = 5 V 0.01 0.001 10 20769 100 1000 EV - Illuminance (Ix) Fig. 4 - Photo Current vs. Illuminance Rev. 1.9, 25-Jun-14 10 000 3 4 5 25 f = 1 MHz 20 15 10 5 0 0.1 1.0 10.0 VCE - Collector Emitter Voltage (V) Fig. 6 - Collector Emitter Capacitance vs. Collector Emitter Voltage S ( λ) rel - Relative Spectral Sensitivity IPCE - Photo Current (mA) 10 2 Fig. 5 - Photo Current vs. Collector Emitter Voltage 19762 Fig. 3 - Relative Photo Current vs. Ambient Temperature 1 VCE - Collector Emitter Voltage (V) 20770 Fig. 2 - Collector Dark Current vs. Ambient Temperature 0.4 0.2 0 100 CCE0 - Collector Emitter Capacitance (pF) ICEO - Collector Dark Current (A) 10 -6 1.2 1.0 0.8 0.6 0.4 0.2 0.0 400 20116 500 600 700 800 900 1000 1100 λ - Wavelength (nm) Fig. 7 - Relative Spectral Sensitivity vs. Wavelength Document Number: 81317 3 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TEMT6200FX01 www.vishay.com 0° Vishay Semiconductors 10° 20° 40° 1.0 0.9 50° 0.8 60° 70° 0.7 ϕ - Angular Displacement Srel - Relative Sensitivity 30° 80° 0.6 0.4 0.2 0 94 8318 Fig. 8 - Relative Radiant Sensitivity vs. Angular Displacement REFLOW SOLDER PROFILE DRYPACK Devices are packed in moisture barrier bags (MBB) to prevent the products from moisture absorption during transportation and storage. Each bag contains a desiccant. 300 Temperature (°C) max. 260 °C 245 °C 255 °C 240 °C 217 °C 250 FLOOR LIFE Time between soldering and removing from MBB must not exceed the time indicated in J-STD-020: 200 max. 30 s 150 Moisture sensitivity: level 3 max. 100 s max. 120 s Floor life: 168 h 100 Conditions: Tamb < 30 °C, RH < 60 % max. ramp up 3 °C/s max. ramp down 6 °C/s 50 DRYING 0 0 19841 50 100 150 200 250 300 Time (s) Fig. 9 - Lead (Pb)-free Reflow Solder Profile acc. J-STD-020 Rev. 1.9, 25-Jun-14 In case of moisture absorption devices should be baked before soldering. Conditions see J-STD-020 or label. Devices taped on reel dry using recommended conditions 192 h at 40 °C (+ 5 °C), RH < 5 %. Document Number: 81317 4 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TEMT6200FX01 www.vishay.com Vishay Semiconductors PACKAGE DIMENSIONS in millimeters 19757 Rev. 1.9, 25-Jun-14 Document Number: 81317 5 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TEMT6200FX01 www.vishay.com Vishay Semiconductors BLISTER TAPE DIMENSIONS in millimeters Quantity per reel: 3000 pcs 20690 Rev. 1.9, 25-Jun-14 Document Number: 81317 6 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TEMT6200FX01 www.vishay.com Vishay Semiconductors REEL DIMENSIONS in millimeters 8.4 +2.5 Ø 177.8 max. Ø 55 min. 8.4 +0.15 Z Form of the leave open of the wheel is supplier specific. 14.4 max. Ø 20.2 min. 1.5 min. Ø 13 - 0.2 + 0.5 Z 2:1 Drawing-No.: 9.800-5096.01-4 Issue: 2; 26.04.10 20875 Rev. 1.9, 25-Jun-14 technical drawings according to DIN specifications Document Number: 81317 7 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer  ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2017 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 08-Feb-17 1 Document Number: 91000
