TEPT4400

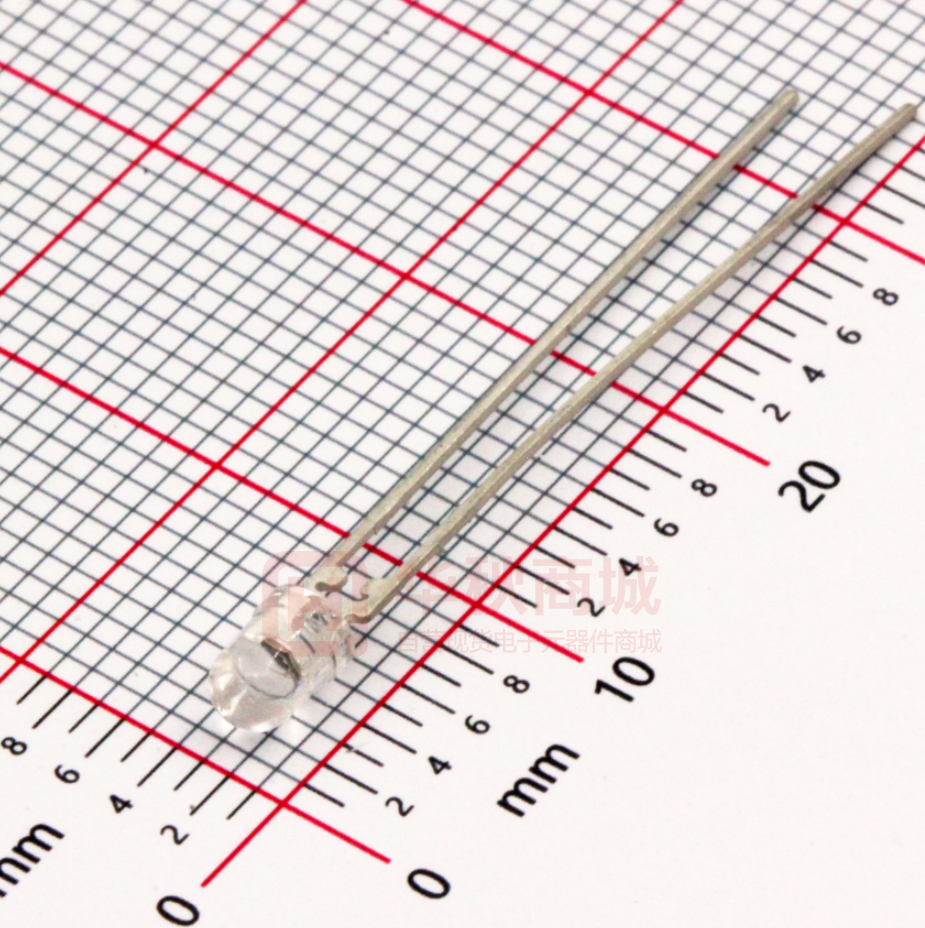

TEPT4400 www.vishay.com Vishay Semiconductors Ambient Light Sensor FEATURES • Package type: leaded • Package form: T-1 • Dimensions (in mm): Ø 3 • High photo sensitivity • Adapted to human eye responsivity • Angle of half sensitivity: ϕ = ± 30° • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 20815 DESCRIPTION APPLICATIONS TEPT4400 ambient light sensor is a silicon NPN epitaxial planar phototransistor in a T-1 package. It is sensitive to visible light much like the human eye and has peak sensitivity at 570 nm. • Ambient light sensor for control of display backlight dimming in LCD displays and keypad backlighting of mobile devices and in industrial on / off-lighting operation • Replacement of CdS photoresistors PRODUCT SUMMARY COMPONENT IPCE (μA) ϕ (deg) λ0.5 (nm) 200 ± 30 440 to 800 TEPT4400 Note • Test condition see table “Basic Characteristics“ ORDERING INFORMATION ORDERING CODE TEPT4400 PACKAGING REMARKS PACKAGE FORM Bulk MOQ: 5000 pcs, 1000 pcs/bulk. Label with IPCE group on each bulk. Specifications of group A / B / C see table “Type Dedicated Characteristics” on page 2 T-1 Note • MOQ: minimum order quantity ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified) PARAMETER SYMBOL VALUE UNIT Collector emitter voltage TEST CONDITION VCEO 6 V Emitter collector voltage VECO 1.5 V IC 20 mA PV 100 mW Collector current Power dissipation Tamb ≤ 55 °C Junction temperature Operating temperature range Storage temperature range Soldering temperature Thermal resistance junction / ambient Rev. 1.8, 30-Jun-16 Tj 100 °C Tamb -40 to +85 °C °C Tstg -40 to +100 t≤3s Tsd 260 °C JESTD 51 RthJA 300 K/W Document Number: 81341 1 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TEPT4400 www.vishay.com Vishay Semiconductors PV - Power Dissipation (mW) 120 100 80 60 RthJA = 300 K/W 40 20 0 0 21337 10 20 30 40 50 60 70 80 90 100 Tamb - Ambient Temperature (°C) Fig. 1 - Power Dissipation Limit vs. Ambient Temperature BASIC CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) PARAMETER Collector emitter breakdown voltage Collector dark current Collector emitter capacitance Collector light current TEST CONDITION SYMBOL MIN. TYP. MAX. IC = 0.1 mA VCEO 6 - - V VCE = 5 V, E = 0 ICEO - 3 50 nA VCE = 0 V, f = 1 MHz, E = 0 CCEO - 16 Ev = 20 lx, CIE illuminant A, VCE = 5 V IPCE 15 - 70 μA Ev = 100 lx, CIE illuminant A, VCE = 5 V IPCE - 200 - μA ϕ - ± 30 - deg Angle of half sensitivity Wavelength of peak sensitivity Range of spectral bandwidth Collector emitter saturation voltage UNIT Ev = 20 lx, CIE illuminant A, IPCE = 1.2 μA pF λp - 570 - nm λ0.5 - 440 to 800 - nm VCEsat - 0.1 - V TYPE DEDICATED CHARACTERISTICS PARAMETER Photo current TEST CONDITION BINNED GROUP SYMBOL MIN. MAX. UNIT EV = 20 lx, CIE illuminant A, VCE = 5 V, Tamb = 25 °C A IPCE 15 28.4 μA B IPCE 23.5 44.6 μA C IPCE 36.9 70 μA Note • Each 5000 piece bag will contain a single group. The label on the bag will indicate which binned group is in the bag. A specific group cannot be ordered. Production shipments containing multiple bags will likely include multiple groups. Please design accordingly. Rev. 1.8, 30-Jun-16 Document Number: 81341 2 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TEPT4400 www.vishay.com Vishay Semiconductors BASIC CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) 10 000 VCE = 5 V VCE = 5 V 10 -7 IPCE - Photo Current (µA) ICEO - Collector Dark Current (A) 10 -6 10 -8 10 -9 10 -10 10 -11 1000 100 10 -12 10 -13 -40 19758 -20 0 20 40 60 80 Tamb - Ambient Temperature (°C) 10 10 100 20149 IPCE rel - Relative Photo Current 2.2 2.0 1.8 1.6 1.4 1.2 1.0 0.8 0.6 0.4 0.2 0 VCE = 5 V, white LED -40 19759 -20 0 20 40 60 80 Tamb - Ambient Temperature (°C) 100 Fig. 3 - Relative Photo Current vs. Ambient Temperature f = 1 MHz 20 15 10 5 0 0.1 1.0 10.0 VCE - Collector Emitter Voltage (V) Fig. 6 - Collector Emitter Capacitance vs. Collector Emitter Voltage 1.0 200 lx 350 300 250 200 100 lx 150 100 50 lx 50 20 lx 0 20210 2 1 3 4 5 VCE - Collector Emitter Voltage (V) Fig. 4 - Photo Current vs. Collector Emitter Voltage Rev. 1.8, 30-Jun-16 S(λ)rel - Relative Spectral Sensitivity IPCE - Photo Current (µA) 25 19762 400 0 1000 Fig. 5 - Photo Current vs. Illuminance CCE0 - Collector Emitter Capacitance (pF) Fig. 2 - Collector Dark Current vs. Ambient Temperature 100 E v - Illuminance (Ix) 20019 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0.0 300 400 500 600 700 800 900 1000 1100 λ - Wavelength (nm) Fig. 7 - Relative Spectral Sensitivity vs. Wavelength Document Number: 81341 3 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TEPT4400 www.vishay.com 0° Vishay Semiconductors 10° 20° 40° 1.0 0.9 50° 0.8 60° 70° 0.7 ϕ - Angular Displacement Srel- Relative Sensitivity 30° 80° 20159 0.6 0.4 0.2 0 Fig. 8 - Relative Radiant Sensitivity vs. Angular Displacement Ø 3.2 ± 0.15 PACKAGE DIMENSIONS in millimeters E C (2.5) 3.4 ± 0.1 5 .4 < 0.6 R1 (p 34.4 ± 0.5 AREA NOT PLANE + 0.2 2.54 nom. Drawing-No.: 6.544-5054.01-4 Issue: 5; 28.07.14 1.5 ± 0:5 1.05 ± 0.1 0.5 - 0.1 Rev. 1.8, 30-Jun-16 ) re he 7 ± 0.3 4.4 ± 0.1 Ø 3 ± 0.1 0.4 ± 0.05 technical drawings according to DIN specifications Document Number: 81341 4 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer  ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2017 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 08-Feb-17 1 Document Number: 91000
