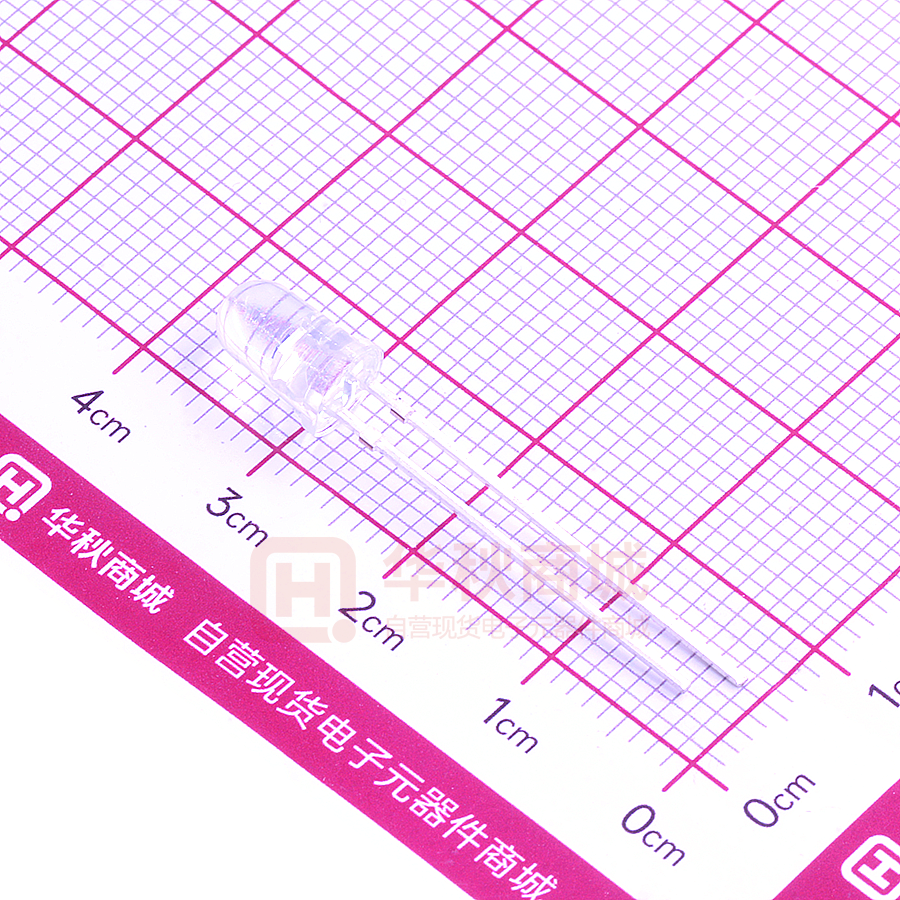

TEPT5600 www.vishay.com Vishay Semiconductors Ambient Light Sensor FEATURES • Package type: leaded • Package form: T-1¾ • Dimensions (in mm): Ø 5 • High photo sensitivity • Adapted to human eye responsivity • Angle of half sensitivity: ϕ = ± 20° 94 8390 • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS DESCRIPTION • Replacement of cadmium sulfide (CdS) photoresistors TEPT5600 ambient light sensor is a silicon NPN epitaxial planar phototransistor in a T-1¾ package. It is sensitive to visible light much like the human eye and has peak sensitivity at 570 nm. • Ambient light sensor PRODUCT SUMMARY COMPONENT TEPT5600 IPCE (μA) ϕ (deg) λ0.5 (nm) 630 ± 20 440 to 800 Note • Test condition see table “Basic Characteristics” ORDERING INFORMATION ORDERING CODE PACKAGING REMARKS PACKAGE FORM Bulk MOQ: 4000 pcs, 4000 pcs/bulk. Label with IPCE group on each bulk. Specifications of group A/B/C/D see table “Type Dedicated Characteristics” T-1¾ TEPT5600 Note • MOQ: minimum order quantity ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified) PARAMETER SYMBOL VALUE UNIT Collector emitter voltage TEST CONDITION VCEO 6 V Emitter collector voltage VECO 1.5 V IC 20 mA PV 100 mW Tj 100 °C Operating temperature range Tamb -40 to +85 °C Storage temperature range Tstg -40 to +100 °C t ≤ 3 s, 2 mm distance to package Tsd 260 °C J-STD-051, soldered on PCB RthJA 230 K/W Collector current Power dissipation Tamb ≤ 55 °C Junction temperature Soldering temperature Thermal resistance junction/ambient Rev. 1.9, 26-Nov-14 Document Number: 84768 1 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TEPT5600 www.vishay.com Vishay Semiconductors PV - Power Dissipation (mW) 120 100 80 60 RthJA = 230 K/W 40 20 0 0 21333 10 20 30 40 50 60 70 80 90 100 Tamb - Ambient Temperature (°C) Fig. 1 - Power Dissipation Limit vs. Ambient Temperature BASIC CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) PARAMETER Collector emitter breakdown voltage Collector dark current Collector emitter capacitance TEST CONDITION SYMBOL MIN. 6 TYP. MAX. UNIT 50 nA IC = 0.1 mA VCEO VCE = 5 V, E = 0 ICEO 3 16 V VCE = 0 V, f = 1 MHz, E = 0 CCEO Ev = 20 lx, CIE illuminant A, VCE = 5 V IPCE Ev = 100 lx, CIE illuminant A, VCE = 5 V IPCE 630 μA Angle of half sensitivity ϕ ± 20 deg Wavelength of peak sensitivity λp 570 nm λ0.5 440 to 800 nm Photo current Range of spectral bandwidth 25 pF 226.8 μA TYPE DEDICATED CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) PARAMETER Photo current TEST CONDITION EV = 20 lx, CIE illuminant A, VCE = 5 V, Tamb = 25 °C BINNED GROUP SYMBOL MIN. MAX. UNIT A IPCE 25 50.4 μA B IPCE 41.7 84 μA C IPCE 69.4 140 μA D IPCE 113.4 226.8 μA Note • Each 4000 piece bag will contain a single group. The label on the bag will indicate which binned group is in the bag. A specific group cannot be ordered. Production shipments containing multiple bags will likely include multiple groups. Please design accordingly. Rev. 1.9, 26-Nov-14 Document Number: 84768 2 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TEPT5600 www.vishay.com Vishay Semiconductors BASIC CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) 10 000 VCE = 5 V 10 -7 IPCE - Photo Current (µA) ICEO - Collector Dark Current (A) 10 -6 10 -8 10 -9 10 -10 10 -11 1000 100 10 -12 10 10 -13 -40 -20 0 20 40 60 80 Tamb - Ambient Temperature (°C) 19758 100 10 20204 Fig. 2 - Collector Dark Current vs. Ambient Temperature 1.8 1.6 1.4 1.2 1.0 0.8 0.6 VCE = 5 V, white LED -40 19759 -20 0 20 40 60 80 Tamb - Ambient Temperature (°C) 100 25 f = 1 MHz 20 15 10 5 0 0.1 19762 Fig. 3 - Relative Photo Current vs. Ambient Temperature 1.0 10.0 VCE - Collector Emitter Voltage (V) Fig. 6 - Collector Emitter Capacitance vs. Collector Emitter Voltage 1.0 700 650 600 550 500 450 400 350 300 250 200 150 100 50 0 S(λ)rel - Relative Spectral Sensitivity IPCE - Photo Current (µA) CCE0 - Collector Emitter Capacitance (pF) IPCE rel - Relative Photo Current 2.0 0 1000 Fig. 5 - Photo Current vs. Illuminance 2.2 0.4 0.2 100 EV - Illuminance (lx) 200 lx 100 lx 50 lx 20 lx 0 20205 1 2 3 4 5 VCE - Collector Emitter Voltage (V) Fig. 4 - Photo Current vs. Collector Emitter Voltage Rev. 1.9, 26-Nov-14 20019 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0.0 300 400 500 600 700 800 900 1000 1100 λ - Wavelength (nm) Fig. 7 - Relative Spectral Sensitivity vs. Wavelength Document Number: 84768 3 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TEPT5600 www.vishay.com 0° Vishay Semiconductors 10° 20° 40° 1.0 0.9 50° 0.8 60° 70° 0.7 ϕ - Angular Displacement Srel - Relative Sensitivity 30° 80° 0.6 0.4 0.2 0 94 8624 Fig. 8 - Relative Radiant Sensitivity vs. Angular Displacement 5.75 ± 0.15 PACKAGE DIMENSIONS in millimeters C ± 0.15 Chip position R 2.45 (sphere) ± 0.15 7.6 ± 0.3 8.6 + 0.2 - 0.1 + 0.2 - 0.1 0.63 + 0.2 - 0.1 Area not plane 0.5 + 0.15 1.5 ± 0.25 1 0.8 < 0.7 34.8 ± 0.5 11.8 ± 0.3 (4.3) Ø5 E 2.54 nom. Drawing-No.: 6.544-5185.03-4 technical drawings according to DIN specifications Issue:1; 19.06.06 21981 Rev. 1.9, 26-Nov-14 Document Number: 84768 4 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2021 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 01-Jan-2021 1 Document Number: 91000
