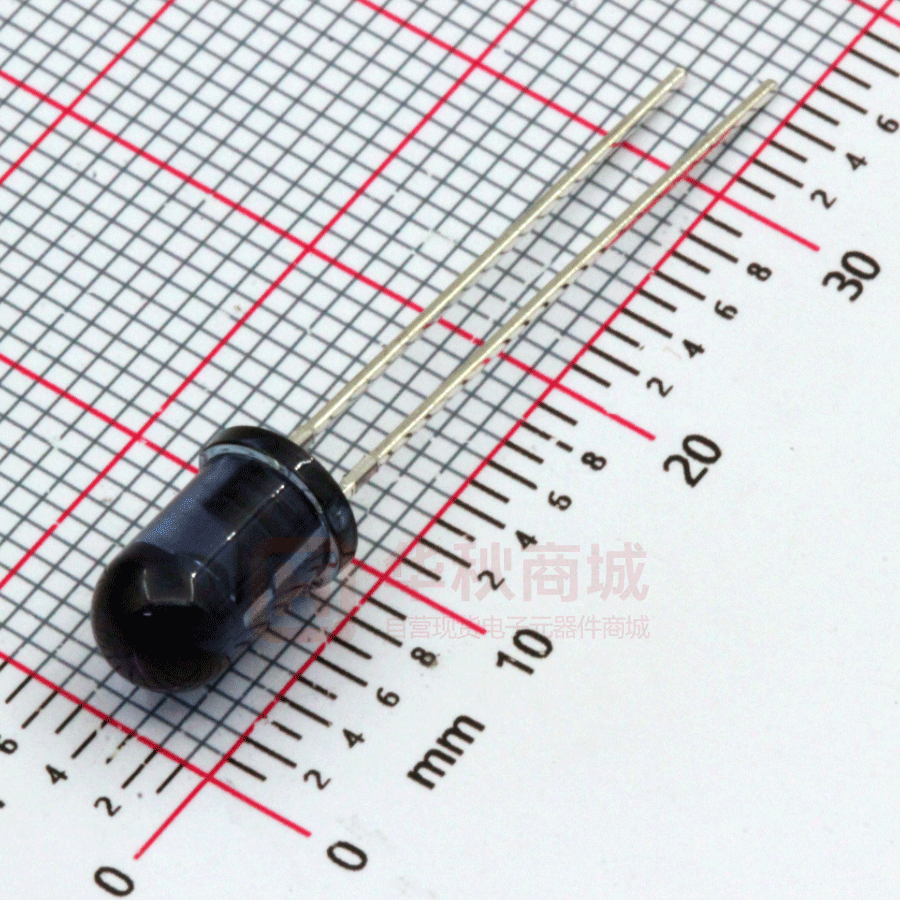

TSAL6200

TSAL6200 www.vishay.com Vishay Semiconductors High Power Infrared Emitting Diode, 940 nm, GaAlAs, MQW FEATURES • Package type: leaded • Package form: T-1¾ • Dimensions (in mm): Ø 5 • Peak wavelength: λp = 940 nm • High reliability • High radiant power • High radiant intensity • Angle of half intensity: ϕ = ± 17° 94 8389 • Low forward voltage • Suitable for high pulse current operation • Good spectral matching with Si photodetectors • Material categorization: For definitions of compliance please see www.vishay.com/doc?99912 DESCRIPTION TSAL6200 is an infrared, 940 nm emitting diode in GaAlAs multi quantum well (MQW) technology with high radiant power and high speed molded in a blue-gray plastic package. APPLICATIONS • Infrared remote requirements control units with high power • Free air transmission systems • Infrared source for optical counters and card readers PRODUCT SUMMARY COMPONENT Ie (mW/sr) ϕ (deg) λp (nm) tr (ns) 72 ± 17 940 15 TSAL6200 Note • Test conditions see table “Basic Characteristics” ORDERING INFORMATION ORDERING CODE TSAL6200 PACKAGING REMARKS PACKAGE FORM Bulk MOQ: 4000 pcs, 4000 pcs/bulk T-1¾ Note • MOQ: minimum order quantity ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified) SYMBOL VALUE Reverse voltage PARAMETER TEST CONDITION VR 5 UNIT V Forward current IF 100 mA mA Peak forward current tp/T = 0.5, tp = 100 μs IFM 200 Surge forward current tp = 100 μs IFSM 1.5 A PV 160 mW °C Power dissipation Junction temperature Tj 100 Operating temperature range Tamb -40 to +85 °C Storage temperature range Tstg -40 to +100 °C t ≤ 5 s, 2 mm from case Tsd 260 °C J-STD-051, leads 7 mm soldered on PCB RthJA 230 K/W Soldering temperature Thermal resistance junction/ambient Rev. 2.4, 13-Mar-14 Document Number: 81010 1 For technical questions, contact: emittertechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TSAL6200 www.vishay.com Vishay Semiconductors 120 160 IF - Forward Current (mA) PV - Power Dissipation (mW) 180 140 120 100 RthJA = 230 K/W 80 60 40 100 80 RthJA = 230 K/W 60 40 20 20 0 0 0 10 21211 20 30 40 50 60 70 80 90 100 0 10 21212 Tamb - Ambient Temperature (°C) Fig. 1 - Power Dissipation Limit vs. Ambient Temperature 20 30 40 50 60 70 80 90 100 Tamb - Ambient Temperature (°C) Fig. 2 - Forward Current Limit vs. Ambient Temperature BASIC CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) PARAMETER TEST CONDITION SYMBOL TYP. MAX. UNIT IF = 100 mA, tp = 20 ms VF 1.35 1.6 V IF = 1 A, tp = 100 μs VF 2.2 3 V Temperature coefficient of VF IF = 1 mA TKVF -1.8 Reverse current VR = 5 V IR VR = 0 V, f = 1 MHz, E = 0 Cj IF = 100 mA, tp = 20 ms Ie 40 72 340 600 Forward voltage Junction capacitance Radiant intensity Radiant power Temperature coefficient of φe MIN. mV/K 10 μA 200 mW/sr 40 pF IF = 1 A, tp = 100 μs Ie IF = 100 mA, tp = 20 ms φe 40 mW IF = 20 mA TKφe -0.6 %/K ϕ ± 17 deg nm Angle of half intensity mW/sr Peak wavelength IF = 100 mA λp 940 Spectral bandwidth IF = 100 mA Δλ 30 nm Temperature coefficient of λp IF = 100 mA TKλp 0.2 nm/K Rise time IF = 100 mA tr 15 ns Fall time IF = 100 mA tf 15 ns Rev. 2.4, 13-Mar-14 Document Number: 81010 2 For technical questions, contact: emittertechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TSAL6200 www.vishay.com Vishay Semiconductors BASIC CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) 1000 IFSM = 1 A (Single Pulse) t p/T = 0.01 0.05 10 0 0.1 0.5 1.0 10 -1 -2 10 96 11987 tp = 100 μs Phie - Radiant Power (mW) I F - Forward Current (A) 10 1 100 10 1 0.1 10 -1 10 0 10 1 t p - Pulse Duration (ms) 1 10 2 1000 Fig. 6 - Radiant Power vs. Forward Current 1.6 1000 IF - Forward Current (mA) 100 IF - Forward Current (mA) Fig. 3 - Pulse Forward Current vs. Pulse Duration 1.2 Ie rel; Φe rel 100 IF = 20 mA 0.8 10 0.4 tp = 100 µs tp/T= 0.001 0 -10 0 10 1 0 1 2 3 VF - Forward Voltage (V) 21534 94 7993 Fig. 4 - Forward Current vs. Forward Voltage 50 100 140 T amb - Ambient Temperature (°C) Fig. 7 - Relative Radiant Intensity/Power vs. Ambient Temperature 1000 100 Φe rel - Relative Radiant Power (%) Ie - Radiant Intensity (mW/sr) 10 tp = 100 μs 100 10 1 0.1 1 10 100 Fig. 5 - Radiant Intensity vs. Forward Current Rev. 2.4, 13-Mar-14 80 21445 IF = 30 mA 70 60 50 40 30 20 10 0 840 1000 IF - Forward Current (mA) 90 880 920 960 1000 1040 λ - Wavelength (nm) Fig. 8 - Relative Radiant Power vs. Wavelength Document Number: 81010 3 For technical questions, contact: emittertechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TSAL6200 www.vishay.com 0° Vishay Semiconductors 10° 20° 40° 1.0 0.9 50° 0.8 60° 70° 0.7 ϕ - Angular Displacement I e rel - Relative Radiant Intensity 30° 80° 0.6 0.4 0.2 0 14329 Fig. 9 - Relative Radiant Intensity vs. Angular Displacement PACKAGE DIMENSIONS in millimeters Ø 5.8 ± 0.15 C R 2.49 (sphere) (3.5) 34.3 ± 0.55 < 0.7 8.7 ± 0.3 7.7 ± 0.15 A Area not plane + 0.2 0.6 - 0.1 1 min. Ø 5 ± 0.15 0.15 0.5 +- 0.05 0.15 0.5 +- 0.05 technical drawings according to DIN specifications 2.54 nom. Drawing-No.: 6.544-5259.06-4 Issue: 6; 19.05.09 19257 Rev. 2.4, 13-Mar-14 Document Number: 81010 4 For technical questions, contact: emittertechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer  ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2017 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 08-Feb-17 1 Document Number: 91000
