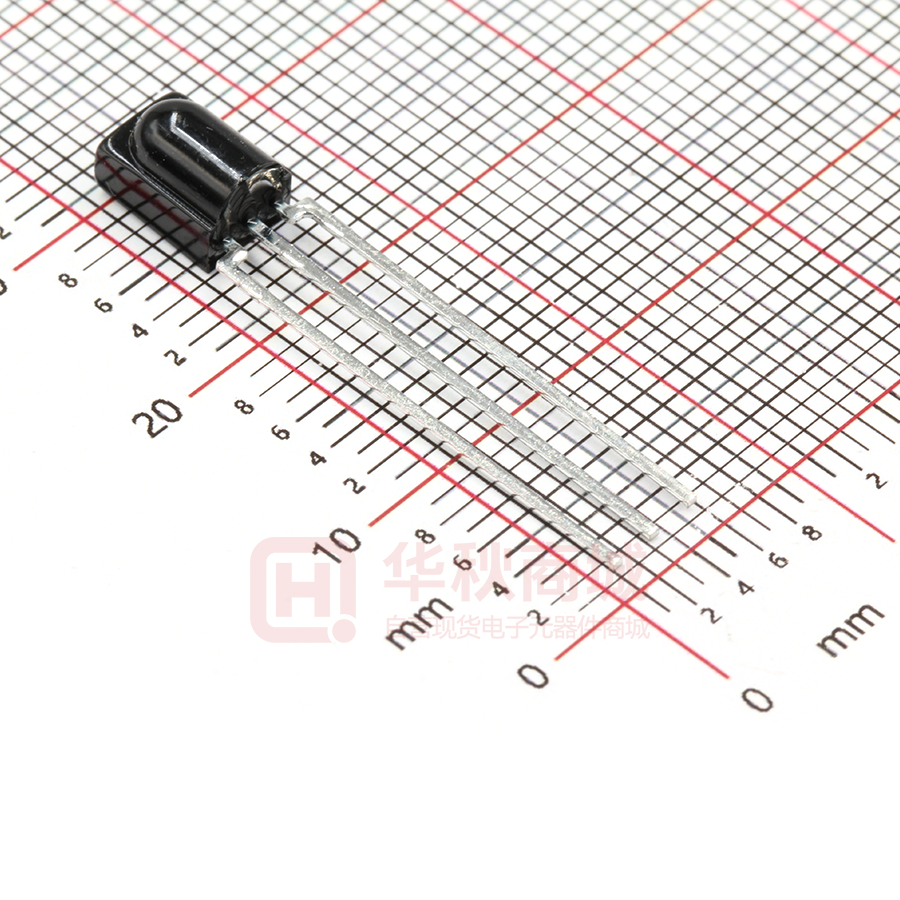

TSOP38338

TSOP381.., TSOP383.., TSOP385.. www.vishay.com Vishay Semiconductors IR Receiver Modules for Remote Control Systems FEATURES • Very low supply current • Photo detector and preamplifier in one package • Internal filter for PCM frequency • Supply voltage: 2.5 V to 5.5 V • Improved immunity against ambient light • Insensitive to supply voltage ripple and noise 1 • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 2 3 19026 LINKS TO ADDITIONAL RESOURCES MECHANICAL DATA 3D 3D Product Page 3D Models Calculators Marking Pinning for TSOP381.., TSOP383.., TSOP385..: Packages 1 = OUT, 2 = GND, 3 = VS Holders Bends and Cuts ORDERING CODE TSOP38... - 1500 pieces in bags DESCRIPTION These products are miniaturized receivers for infrared remote control systems. A PIN diode and a preamplifier are assembled on a lead frame, the epoxy package contains an IR filter. The demodulated output signal can be directly connected to a microprocessor for decoding. BLOCK DIAGRAM 16833-13 3 30 kΩ The TSOP383.. series devices are optimized to suppress almost all spurious pulses from energy saving lamps like CFLs. AGC3 may also suppress some data signals if continuously transmitted. 1 Input The TSOP381.. series are provided primarily for compatibility with old AGC1 designs. New designs should prefer the TSOP383.. series containing the newer AGC3. The TSOP385.. series contain a very robust AGC5. This series should only be used for critically noisy environments. Band pass AGC Demodulator 2 PIN These components have not been qualified according to automotive specifications. Control circuit APPLICATION CIRCUIT 17170-11 R1 IR receiver VS Circuit Transmitter with TSALxxxx + VS C1 μC OUT GND VO GND R1 and C1 recommended to reduce supply ripple for VS < 2.8 V Rev. 1.8, 13-Apr-20212 1 Document Number: 81743 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TSOP381.., TSOP383.., TSOP385.. www.vishay.com Vishay Semiconductors PARTS TABLE LEGACY, FOR SHORT BURST REMOTE CONTROLS (AGC1) NOISY ENVIRONMENTS AND SHORT BURSTS (AGC3) VERY NOISY ENVIRONMENTS AND SHORT BURSTS (AGC5) 30 kHz TSOP38130 TSOP38330 TSOP38530 33 kHz TSOP38133 TSOP38333 TSOP38533 36 kHz TSOP38136 TSOP38336 (1)(6) TSOP38536 38 kHz TSOP38138 TSOP38338 (2)(3)(4)(5) TSOP38538 40 kHz TSOP38140 TSOP38340 TSOP38540 56 kHz TSOP38156 TSOP38356 TSOP38556 AGC Carrier frequency Package Minicast Pinning 1 = OUT, 2 = GND, 3 = VS Dimensions (mm) 5.0 W x 6.95 H x 4.8 D Mounting Leaded Application Best choice for Special options Remote control (1) MCIR (2) Mitsubishi (3) RECS-80 Code (4) r-map (5) XMP-1, XMP-2 (6) RCMM • Low voltage option: www.vishay.com/doc?82382 ABSOLUTE MAXIMUM RATINGS PARAMETER Supply voltage Supply current Output voltage Output current Junction temperature Storage temperature range Operating temperature range Power consumption Soldering temperature TEST CONDITION Tamb ≤ 85 °C t ≤ 10 s, 1 mm from case SYMBOL VS IS VO IO Tj Tstg Tamb Ptot Tsd VALUE -0.3 to +6 3 -0.3 to (VS + 0.3) 5 100 -25 to +85 -25 to +85 10 260 UNIT V mA V mA °C °C °C mW °C Note • Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect the device reliability ELECTRICAL AND OPTICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) PARAMETER Supply current TEST CONDITION Ev = 0, VS = 3.3 V Ev = 40 klx, sunlight SYMBOL ISD ISH VS MIN. 0.27 2.5 TYP. 0.35 0.45 - MAX. 0.45 5.5 UNIT mA mA V Ev = 0, test signal see Fig. 1, IR diode TSAL6200, IF = 50 mA IOSL = 0.5 mA, Ee = 0.7 mW/m2, test signal see Fig. 1 Pulse width tolerance: tpi - 5/fo < tpo < tpi + 6/fo, test signal see Fig. 1 tpi - 5/fo < tpo < tpi + 6/fo, test signal see Fig. 1 Angle of half transmission distance d - 24 - m VOSL - - 100 mV Ee min. - 0.12 0.25 mW/m2 Ee max. ϕ1/2 30 - ± 45 - W/m2 ° Supply voltage Transmission distance Output voltage low Minimum irradiance Maximum irradiance Directivity Rev. 1.8, 13-Apr-20212 2 Document Number: 81743 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TSOP381.., TSOP383.., TSOP385.. www.vishay.com Vishay Semiconductors TYPICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) Optical Test Signal (IR diode TSAL6200, IF = 0.4 A, N = 6 pulses, f = f0, t = 10 ms) 0.8 ton, toff - Output Pulse Width (ms) Ee t tpi *) T *) tpi ≥ 6/f0 is recommended for optimal function Output Signal VO 1) 2) VOH VOL 14337 3/f0 < td < 9/f0 tpi - 4/f0 < tpo < tpi + 6/f0 td 1) 0.6 0.5 toff 0.4 0.3 0.2 λ = 950 nm, optical test signal, Fig. 3 0.1 0 0.1 t tpo 2) ton 0.7 1 10 100 1000 10 000 Ee - Irradiance (mW/m2) 20759 Fig. 1 - Output Active Low Fig. 4 - Output Pulse Diagram 0.35 1.2 0.30 0.25 Ee min./Ee - Relative Responsivity tpo - Output Pulse Width (ms) 0.40 Output pulse width 0.20 0.15 Input burst length 0.10 λ = 950 nm, optical test signal, Fig. 1 0.05 0 0.1 1 10 100 1000 10 000 100 000 Ee - Irradiance (mW/m²) 20771 1.0 0.8 0.6 0.4 f = f0 ± 5 % Δf(3 dB) = f0/10 0.2 0.0 0.7 Fig. 2 - Pulse Length and Sensitivity in Dark Ambient 600 µs t 600 µs t = 60 ms VO 94 8134 Output Signal, (see Fig. 4) VOH VOL t on 1.1 1.3 Fig. 5 - Frequency Dependence of Responsivity Optical Test Signal Ee min. - Threshold Irradiance (mW/m2) Ee 0.9 f/f0 - Relative Frequency 16925 t off t 4.0 3.5 Correlation with ambient light sources: 10 W/m2 = 1.4 klx (std. illum. A, T = 2855 K) 10 W/m2 = 8.2 klx (daylight, T = 5900 K) 3.0 2.5 Wavelength of ambient illumination: λ = 950 nm 2.0 1.5 1.0 0.5 0 0.01 Fig. 3 - Output Function 20757 0.1 1 10 100 Ee - Ambient DC Irradiance (W/m2) Fig. 6 - Sensitivity in Bright Ambient Rev. 1.8, 13-Apr-20212 3 Document Number: 81743 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TSOP381.., TSOP383.., TSOP385.. www.vishay.com Vishay Semiconductors Axis Title 1.0 2.5 f = f0 f = 30 kHz f = 10 kHz f = 100 Hz 2.0 1.5 1.0 0.5 0 1 10 100 1000 10000 0.9 0.8 0.7 1000 0.6 1st line 2nd line 2nd line S(λ)rel. - Relative Spectral Sensitivity Ee min. - Threshold Irradiance (mW/m2) 3.0 0.5 0.4 100 0.3 0.2 0.1 750 850 Fig. 7 - Sensitivity vs. Supply Voltage Disturbances 950 1050 λ - Wavelength (nm) 21425 Fig. 10 - Relative Spectral Sensitivity vs. Wavelength 0° 1.0 10° 20° 30° f = 38 kHz, Ee = 2 mW/m² 0.9 Max. Envelope Duty Cycle 10 1150 0 ΔVS RMS - AC Voltage on DC Supply Voltage (mV) 0.8 0.7 40° 0.6 1.0 TSOP381.. TSOP391.. 0.5 0.9 50° 0.8 60° 0.4 0.3 TSOP383.., TSOP393.. 0.2 70° 0.7 0.1 80° TSOP385.., TSOP395.. 0 0 22180-7 20 40 60 80 100 120 0.6 19258 Burst Length (Number of Cycles/Burst) Ee min. - Threshold Irradiance (mW/m2) Fig. 8 - Max. Envelope Duty Cycle vs. Burst Length 0.4 0.2 0 drel - Relative Transmission Distance Fig. 11 - Horizontal Directivity 0.30 0° 10° 20° 30° 0.25 0.20 40° 1.0 0.15 0.10 0.9 50° 0.8 60° 70° 0.05 0.7 80° 0 -30 -10 10 30 50 70 90 0.6 Tamb - Ambient Temperature (°C) 19259 Fig. 9 - Sensitivity vs. Ambient Temperature Rev. 1.8, 13-Apr-20212 0.4 0.2 0 d rel - Relative Transmission Distance Fig. 12 - Vertical Directivity 4 Document Number: 81743 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TSOP381.., TSOP383.., TSOP385.. www.vishay.com Vishay Semiconductors Ee min. - Sensitivity (mW/m2) 0.30 0.25 0.20 0.15 0.10 0.05 0.00 1 2 3 4 5 VS - Supply Voltage (V) Fig. 13 - Sensitivity vs. Supply Voltage Rev. 1.8, 13-Apr-20212 5 Document Number: 81743 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TSOP381.., TSOP383.., TSOP385.. www.vishay.com Vishay Semiconductors SUITABLE DATA FORMAT Axis Title This series is designed to suppress spurious output pulses due to noise or disturbance signals. The devices can distinguish data signals from noise due to differences in frequency, burst length, and envelope duty cycle. The data signal should be close to the device’s band-pass center frequency (e.g. 38 kHz) and fulfill the conditions in the table below. 10000 7 When a data signal is applied to the product in the presence of a disturbance, the sensitivity of the receiver is automatically reduced by the AGC to insure that no spurious pulses are present at the receiver’s output. 5 1000 1st line 2nd line 2nd line IR Signal Amplitude 6 4 3 100 2 1 Some examples which are suppressed are: 10 0 • DC light (e.g. from tungsten bulbs sunlight) 0 • Continuous signals at any frequency 5 15 20 Time (ms) 16920 • Strongly or weakly modulated patterns from fluorescent lamps with electronic ballasts (see Fig. 14 or Fig. 15) 10 Fig. 14 - IR Disturbance from Fluorescent Lamp With Low Modulation Axis Title 10000 40 1000 0 1st line 2nd line 2nd line IR Signal Amplitude 20 -20 100 -40 10 -60 0 5 10 15 20 Time (ms) 16921 Fig. 15 - IR Disturbance from Fluorescent Lamp With High Modulation TSOP381.. TSOP383.. TSOP385.. Minimum burst length 6 cycles/burst 6 cycles/burst 6 cycles/burst After each burst of length A gap time is required of 6 to 70 cycles ≥ 10 cycles 6 to 35 cycles ≥ 10 cycles 6 to 24 cycles ≥ 10 cycles 70 cycles 35 cycles 24 cycles > 1.2 x burst length > 6 x burst length > 25 ms 2000 2000 2000 Yes For bursts greater than a minimum gap time in the data stream is needed of Maximum number of continuous short bursts/second MCIR code Yes Preferred RCMM code Yes Preferred Yes XMP-1, XMP-2 code Yes Preferred Yes Mild disturbance patterns are suppressed (example: signal pattern of Fig. 14) Complex disturbance patterns are suppressed (example: signal pattern of Fig. 15) Critical disturbance patterns are suppressed, e.g. highly dimmed LCDs Suppression of interference from fluorescent lamps Note • For data formats with long bursts (more than 10 carrier cycles) please see the datasheet for TSOP382.., TSOP384.. Rev. 1.8, 13-Apr-20212 6 Document Number: 81743 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TSOP381.., TSOP383.., TSOP385.. www.vishay.com Vishay Semiconductors PACKAGE DIMENSIONS in millimeters 5 4.8 (4) 2.8 (5.55) 6.95 ± 0.3 8.25 ± 0.3 R2 0.9 1.1 30.5 ± 0.5 (1.54) 0.85 max. 0.7 max. 2.54 nom. 2.54 nom. 0.5 max. 1.2 ± 0.2 Marking area technical drawings according to DIN specifications Not indicated to lerances ± 0.2 Drawing-No.: 6.550-5263.01-4 Issue: 12; 16.04.10 19009 Rev. 1.8, 13-Apr-20212 R2 7 Document Number: 81743 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay's knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer's responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer's technical experts. Product specifications do not expand or otherwise modify Vishay's terms and conditions of purchase, including but not limited to the warranty expressed therein. Hyperlinks included in this datasheet may direct users to third-party websites. These links are provided as a convenience and for informational purposes only. Inclusion of these hyperlinks does not constitute an endorsement or an approval by Vishay of any of the products, services or opinions of the corporation, organization or individual associated with the third-party website. Vishay disclaims any and all liability and bears no responsibility for the accuracy, legality or content of the third-party website or for that of subsequent links. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2022 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 01-Jan-2022 1 Document Number: 91000
