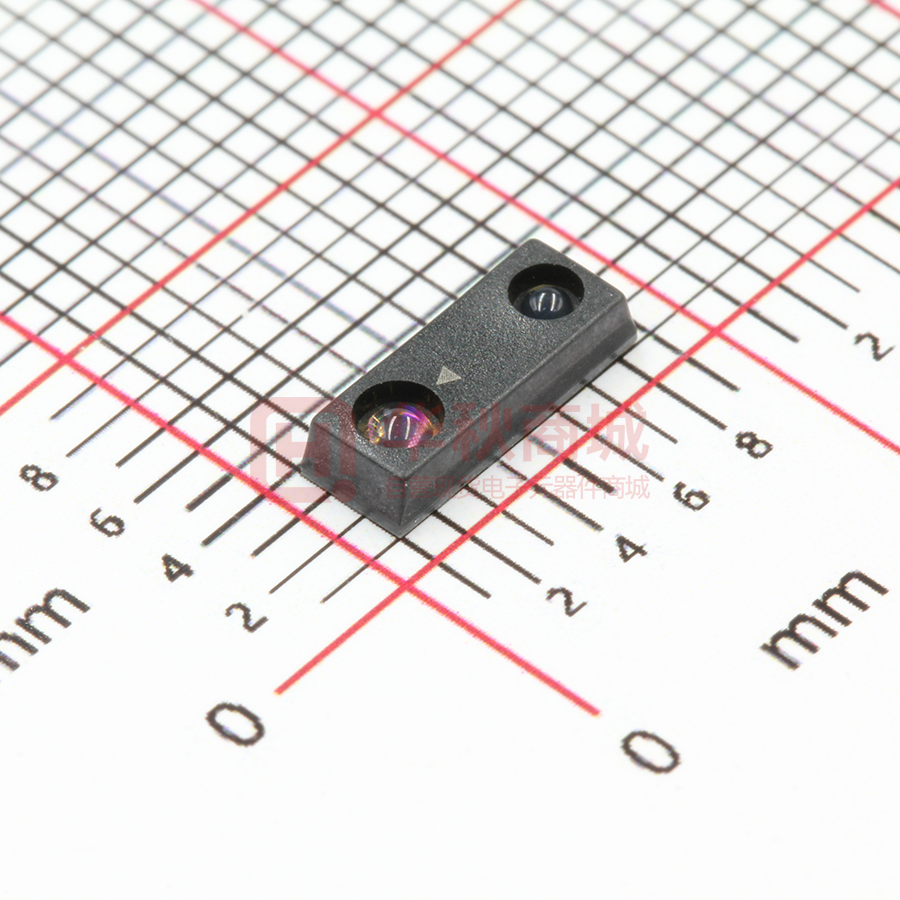

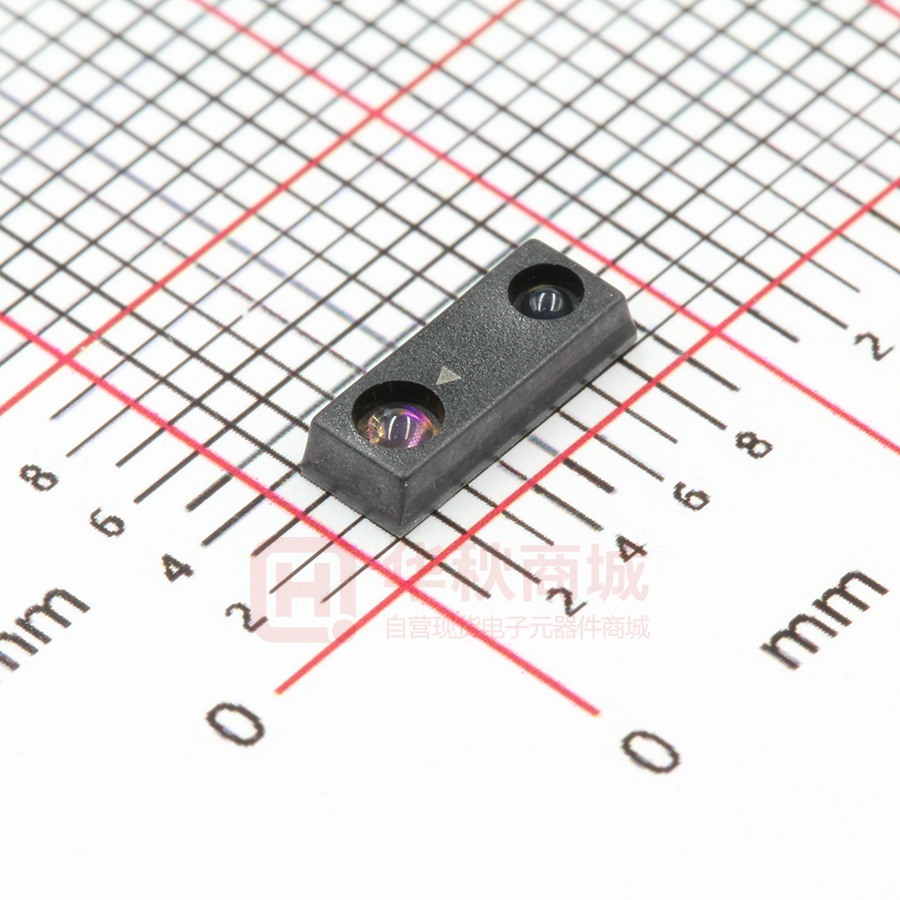

VCNL4200

VCNL4200 www.vishay.com Vishay Semiconductors High Sensitivity Long Distance Proximity and Ambient Light Sensor With I2C Interface FEATURES • Package type: surface-mount • Dimensions (L x W x H in mm): 8.0 x 3.0 x 1.8 • Integrated modules: infrared emitter (IRED), ambient light sensor (ALS), proximity sensor (PS), and signal conditioning IC • Operates ALS and PS in parallel structure • FiltronTM technology adoption background light cancellation for robust • Supports low transmittance (dark) lens design • Temperature compensation: -40 °C to +85 °C DESCRIPTION VCNL4200 integrates a high sensitivity long distance proximity sensor (PS), ambient light sensor (ALS), and 940 nm IRED into one small package. It incorporates photodiodes, amplifiers, and analog to digital converting circuits into a single chip using a CMOS process. The 16-bit high resolution ALS offers excellent sensing capabilities with sufficient selections to fulfill most applications whether a dark or high transparency lens design. VCNL4200 offers individual programmable high and low threshold interrupt features for the best utilization of resources and power saving on the microcontroller. For the 12-bit / 16-bit proximity sensing function, VCNL4200 has a built-in intelligent cancellation scheme that eliminates background light issues. The persistence feature prevents false judgment of proximity sensing due to ambient light noise. FiltronTM • Low power consumption I2C (SMBus compatible) interface • Floor life: 168 h, MSL 3, according to J-STD-020 • Output type: I2C bus (ALS / PS) • Operation voltage: 2.5 V to 3.6 V • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 PROXIMITY FUNCTION • Immunity to red glow (940 nm IRED) • Intelligent background light cancellation • Smart persistence scheme to reduce PS response time • Proximity distance up to 1.5 m technology achieves The adoption of the patented the closest ambient light spectral sensitivity to real human eye responses. VCNL4200 provides excellent temperature compensation capability for keeping the output stable under changing temperature. ALS and PS functions are easily operated via the simple command format of I2C (SMBus compatible) interface protocol. Operating voltage ranges from 2.5 V to 3.6 V. AMBIENT LIGHT FUNCTION PIN DEFINITION • Programmable interrupt function for ALS and PS with upper and lower thresholds 5 4 3 2 1 6 7 8 9 10 • Fluorescent light flicker immunity • Spectrum close to real human eye responses • Selectable maximum detection range (197 / 393 / 786 / 1573) lux with highest sensitivity 0.003 lux/step INTERRUPT • Adjustable persistence to prevent false triggers for ALS and PS APPLICATIONS Top View • Presence detection to activate displays in printers, copiers, and home appliances • Collision detection in robots and toys 1 GND 6 LED+ 2 LED_CATHODE 7 NC • Proximity sensing and lighting control in offices, corridors and public buildings 3 VDD 8 INT • Parking space availability in lots and garages 4 NC 9 SDAT 5 LED- 10 SCLK Rev. 1.4, 16-Oct-2019 • Proximity detection in lavatory appliances Document Number: 84430 1 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VCNL4200 www.vishay.com Vishay Semiconductors PRODUCT SUMMARY PART NUMBER OPERATING RANGE (mm) VCNL4200 0 to 1500 OPERATING I2C BUS IRED PULSE VOLTAGE VOLTAGE CURRENT RANGE RANGE (mA) (V) (V) 2.5 to 3.6 1.8 to 3.6 AMBIENT LIGHT RANGE (lx) 800 (1) AMBIENT ADC RESOLUTION LIGHT OUTPUT PROXIMITY / RESOLUTION CODE AMBIENT LIGHT (lx) 0.003 to 1573 0.003 16 bit, I2C 12 bit / 16 bit Note (1) Maximum allowed current for VCNL4200 internal IRED ORDERING INFORMATION ORDERING CODE PACKAGING VOLUME (1) PIN NUMBER REMARKS VCNL4200 Tape and reel MOQ: 2500 pcs 10 8.0 mm x 3.0 mm x 1.8 mm Note MOQ: minimum order quantity (1) ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified) PARAMETER SYMBOL MIN. MAX. Supply voltage TEST CONDITION VDD - 5.0 UNIT V Operation temperature range Tamb -40 +85 °C Storage temperature range Tstg -40 +100 °C RECOMMENDED OPERATING CONDITIONS (Tamb = 25 °C, unless otherwise specified) PARAMETER TEST CONDITION SYMBOL MIN. MAX. UNIT VDD 2.5 3.6 V Operation temperature range Tamb -40 +85 °C I2C bus operating frequency f(I2CCLK) 10 400 kHz Supply voltage PIN DESCRIPTIONS PIN ASSIGNMENT SYMBOL TYPE 1 GND I FUNCTION Ground 2 LED_CATHODE I IRED cathode connection 3 VDD I Power supply input 4 NC - No connection 5 LED- O IRED cathode 6 LED+ I IRED anode 7 NC - No connection 8 INT O Interrupt pin 9 SDAT I / O (open drain) I2C data bus data input / output 10 SCLK I I2C digital bus clock input Rev. 1.4, 16-Oct-2019 Document Number: 84430 2 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VCNL4200 www.vishay.com Vishay Semiconductors BLOCK DIAGRAM VDD PS timing controller LED+ PS buffer DSP IRED LED- PS PD Oscillator INT SCLK SDAT LED driver LED_CATHODE Temperature sensor I2C bus logic control ALS PD ALS 16-bits data buffer Low pass filter GND BASIC CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT VDD 2.5 - 3.6 V VIRED 3.8 - 5.5 V Excluded LED driving IDD - 350 - μA Light condition = dark, VDD = 3.3 V IDD (SD) - 0.2 - μA ALS disable, PS enable IALSSD - 300 - μA ALS enable, PS disable IPSSD - 213 - μA VIH 1.5 - - VIL - - 0.8 VIH 1.4 - - VIL - - 0.6 Peak sensitivity wavelength of ALS λp - 550 - Peak sensitivity wavelength of PS λpps - 940 - nm 16-bit resolution - - 65 535 steps steps Supply voltage Supply voltage for IRED Supply current Shutdown current ALS shut down PS shut down Logic high I2C signal input Logic low Logic high Logic low Full ALS counts Full PS counts VDD = 3.3 V VDD = 2.6 V V nm 12-bit / 16-bit resolution - - 4095 / 65 535 Minimum IT = 400 ms, VDD = 3.3 V, 1 step (1)(2) - 0.003 - Maximum IT = 50 ms, VDD = 3.3 V, 65 535 steps (1)(2) - 1573 - IT = 50 ms, VDD = 3.3 V, normal sensitivity (1) 0 - 3 -40 - +85 °C - - 800 mA Detectable intensity ALS dark offset Operating temperature range IRED driving current V lx Tamb (3) steps Notes (1) Light source: white LED (2) Maximum detection range to ambient light can be determined by ALS refresh time adjustment. Refer to table 17 “ALS Resolution and Maximum Detection Range” (3) Based on IRED on / off duty ratio = 1/160, 1/320, 1/640, and 1/1280. The circuitry should use an external MOSFET as shown with Fig.11. Please see also the Application Note “Designing the VCNL4200 into an Application” (www.vishay.com/doc?84327) Rev. 1.4, 16-Oct-2019 Document Number: 84430 3 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VCNL4200 www.vishay.com Vishay Semiconductors I2C BUS TIMING CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) PARAMETER SYMBOL Clock frequency STANDARD MODE MIN. MAX. f(SMBCLK) 10 t(BUF) 4.7 t(HDSTA) Repeated start condition setup time Stop condition setup time Data hold time t(HDDAT) Data setup time Bus free time between start and stop condition Hold time after (repeated) start condition; after this period, the first clock is generated FAST MODE UNIT MIN. MAX. 100 10 400 kHz - 1.3 - μs 4.0 - 0.6 - μs t(SUSTA) 4.7 - 0.6 - μs t(SUSTO) 4.0 - 0.6 - μs 3450 - 900 ns t(SUDAT) 250 - 100 - ns I2C clock (SCK) low period t(LOW) 4.7 - 1.3 - μs I2C clock (SCK) high period t(HIGH) 4.0 - 0.6 - μs Clock / data fall time t(F) - 300 - 300 ns Clock / data rise time t(R) - 1000 - 300 ns t(LOW) I2C BUS CLOCK (SCLK) t(R) t(F) VIH VIL t(HDSTA) t(HIGH) t(SUSTA) t(SUSTO) t(BUF) t(HDDAT) I2C BUS DATA (SDAT) t(SUDAT) VIH VIL { P Stop condition { { S Start condition { S Start P Stop t(LOSEXT) SCLKACK t(LOWMEXT) SDAACK t(LOWMEXT) t(LOWMEXT) I2C BUS CLOCK (SCLK) I2C BUS DATA (SDAT) Fig. 1 - I2C Bus Timing Diagram Rev. 1.4, 16-Oct-2019 Document Number: 84430 4 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VCNL4200 www.vishay.com Vishay Semiconductors PARAMETER TIMING INFORMATION I2C BUS CLOCK (SCLK) I2C BUS DATA (SDAT) SA7 SA5 SA6 SA4 SA3 W SA1 SA2 Start by master SA7 SA6 SA5 SA4 SA3 SA1 SA2 SA0 ACK by VCNL4200 ACK by VCNL4200 2 I C bus slave address byte Command code I2C BUS CLOCK (SCLK) I2C BUS DATA (SDAT) SA7 SA6 SA4 SA5 SA2 SA3 SA7 SA0 SA1 SA6 SA4 SA5 SA3 SA2 SA1 SA0 ACK by VCNL4200 ACK by VCNL4200 Data byte low Stop by master Data byte high Fig. 2 - I2C Bus Timing for Sending Word Command Format I2C BUS CLOCK (SCLK) I2C BUS DATA (SDAT) SA7 SA6 SA5 SA4 SA3 W SA1 SA2 Start by master SA7 SA6 SA5 SA4 SA3 SA2 SA1 SA0 ACK by VCNL4200 ACK by VCNL4200 Command code 2 I C bus slave address byte I2C BUS CLOCK (SCLK) I2C BUS DATA (SDAT) SA7 SA6 SA5 SA4 SA3 SA2 R SA1 Start by master SA7 SA6 SA5 SA4 SA3 SA2 SA1 SA0 ACK by master ACK by VCNL4200 Data byte low 2 I C bus slave address byte I2C BUS CLOCK (SCLK) I2C BUS DATA (SDAT) SA7 SA6 SA5 SA4 SA3 SA2 SA1 SA0 NACK by master Stop by master Data byte high Fig. 3 - I2C Bus Timing for Receiving Word Command Format Rev. 1.4, 16-Oct-2019 Document Number: 84430 5 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VCNL4200 www.vishay.com Vishay Semiconductors TYPICAL PERFORMANCE CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) Axis Title Axis Title 100 PS ALS 70 1000 1st line 2nd line 60 50 40 100 30 20 10 230 220 1000 210 1st line 2nd line 80 10000 240 Relative Radiant Intensity IDD - Supply Current (A) 90 200 190 100 180 170 160 500 700 600 800 900 10 150 -40 -20 Wavelength (nm) 2nd line 20 0 100 Fig. 7 - IDD vs.Temperature Axis Title 10° 0° 110 20° 10000 80 1000 1st line 2nd line 70 60 50 40 100 30 20 10 Relative Radiant Intensity 90 Ie, rel - Relative Radiant Intensity 30° 100 Relative Radiant Intensity Normalized Output (%) 80 60 Tamb - Ambient Temperature (°C) 2nd line Fig. 4 - Normalized Spectral Response 40° 1.0 0.9 50° 0.8 60° 70° 0.7 80° 10 0 -90 -60 0 -30 30 60 0.6 90 0.4 0.2 0 View Angle 2nd line Tamb - Ambient Temperature (°C) 2nd line Fig. 5 - ALS Normalized Output vs. View Angle Fig. 8 - Relative Radiant Intensity vs. Angular Displacement Axis Title Axis Title 70 000 1.0 10000 10000 0.9 1000 40 000 200 ms 30 000 100 ms 20 000 100 50 ms 10 000 0.8 0.7 1000 0.6 1st line 2nd line 400 ms 1st line 2nd line 50 000 Relative Radiant Intensity Relative Radiant Intensity 60 000 Step Step 40 2nd line 400 10 1000 1100 Angular Displacement 0 ϕ- Relative Radiant Intensity Relative Response (%) 250 10000 0.5 0.4 100 0.3 0.2 0.1 0 0 10 250 500 750 1000 1250 1500 1750 2000 0 -100 -75 10 -50 -25 0 25 50 75 100 Lux 2nd line View Angle 2nd line Fig. 6 - ALS Refresh Time vs. Maximum Detection Range Fig. 9 - Relative Radiant Intensity vs. Angular Displacement (Cartesian view) Rev. 1.4, 16-Oct-2019 Document Number: 84430 6 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VCNL4200 www.vishay.com Vishay Semiconductors Axis Title 1000 10000 100 1000 10 100 1st line 2nd line IF - Forward Current (mA) 1st line tp = 100 μs 1 10 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 VF - Forward Voltage (V) 2nd line Fig. 10 - Forward Current vs. Forward Voltage APPLICATION INFORMATION Pin Connection with the Host VCNL4200 is a cost effective solution of a long distance proximity sensor with I2C interface. The standard serial digital interface easily accesses “light intensity” by using simple calculations. Application circuitry below shows the added MOSFET which is driven by the ASIC’s pin 2. A 1 kΩ pull-up resistor needs to be added here. The RLED defines the current through the IRED. A small 0.1 μF is sufficient at VDD for power supply noise rejection, but a 2.2 μF should be placed at VIRED to provide the energy for the IRED. For the I2C bus design, the pull-up voltage refers to the I/O specification of the baseband due to its “open drain” design. The pull-high resistors for the I2C bus lines are recommended to be ≥ 2.2 kΩ. Vpull up VDD VIRED 0.1 μF 2.2 kΩ 2.2 kΩ 2.2 μF 1 kΩ 3 VDD 10 SCLK SCLK SCK 9 SDA MCU S LED 2 CATHODE PMOS G D SDAT VCNL4200 8.2 kΩ LED+ 6 INT 8 LED- 5 INT INT GND RLED 2.7 Ω 1 Fig. 11 - Application Diagram Notes • VDD range: 2.5 V to 3.6 V and VIRED is recommended 5.0 V • Power path of VDD and VIRED should be routed separately up to stable power source • The RLED resister value should be evaluated within ready-made application and the current through VCNL4200-internal IRED should not exceed 800 mA • LED_I programmed to lowest value of 50 mA is enough to drive the FET Rev. 1.4, 16-Oct-2019 Document Number: 84430 7 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VCNL4200 www.vishay.com Vishay Semiconductors Digital Interface VCNL4200 applies single 7-bit slave address 0x51 (HEX) following I2C protocol. All operations can be controlled by the command register. The simple command structure helps users easily program the operation setting and latch the light data from VCNL4200. As fig. 12 shows, VCNL4200’s I2C command format is simple for read and write operations between VCNL4200 and the host. The white sections indicate host activity and the gray sections indicate VCNL4200’s acknowledgement of the host access activity. Write word and read word protocols are suitable for accessing registers particularly for 16-bit ALS data and 12-bit / 16-bit PS data. Interrupt can be cleared by reading data out from register: INT_Flag. Send Byte ɦ Write Command to VCNL4200 1 S 1 1 8 1 8 1 8 1 1 Wr A Command Code A Data Byte Low A Data Byte High A P 7 Slave Address Receive Byte ɦ Read Data from VCNL4200 1 7 1 1 8 1 1 7 1 1 8 1 8 1 1 S Slave Address Wr A Command Code A S Slave Address Rd A Data Byte Low A Data Byte High N P S = start condition P = stop condition A = acknowledge N = no acknowledge Shaded area = VCNL4200 acknowledge Fig. 12 - Command Protocol Format Function Description VCNL4200 applies a 16-bit high resolution ALS that provides the best ambient light sensing capability up to 0.003 lx/step which works well under a low transmittance lens design (dark lens). Please also note from Fig. 5, that the viewing angle of the ALS is very small, so accurate values will only be measured, if the light source is directly above the sensor. A flexible interrupt function of ALS (register: ALS_CONF) is also supported. The INT signal will not be asserted by VCNL4200 if the ALS value is not over high INT threshold window level, or lower than low INT threshold window level of ALS. As long as the ALS INT is asserted, the host can read the data from VCNL4200. For proximity sensor function, VCNL4200 supports different kinds of mechanical design to achieve the best proximity detection performance for any color object. The basic PS function settings, such as duty ratio, integration time, interrupt, and PS enable / disable and persistence, are handled by the register: PS_CONF1. Duty ratio controls the PS response time. Integration time represents the duration for which the detector is sensitive to be reflected light. The interrupt is asserted when the PS detection goes over the high threshold level setting (register: PS_THDH) or lower than low threshold (register: PS_THDL). If the interrupt function is enabled, the host reads the PS output data from VCNL4200 that saves host from periodically reading PS data. Additionaly INT flag (register: INT_Flag) indicates the behavior of INT triggered under different conditions. PS persistence (PS_PERS) sets up the PS INT asserted conditions as long as the PS output value continually exceeds the threshold level. PS_MS enables the interrupt logic mode, where the interrupt is triggered by surpassing the high threshold and is automatically reset when the signal falls below the low threshold. Rev. 1.4, 16-Oct-2019 Document Number: 84430 8 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VCNL4200 www.vishay.com Vishay Semiconductors Descriptions of each of these settings are shown in table 1. TABLE 1 - COMMAND CODE AND REGISTER DESCRIPTION COMMAND CODE REGISTER NAME R/W DEFAULT VALUE FUNCTION DESCRIPTION 00H_L ALS_CONF R/W 01H 00H_H Reserved R/W 00H ALS integration time, persistence, interrupt, and function enable / disable Reserved 01H_L ALS_THDH_L R/W 00H ALS high interrupt threshold, LSB 01H_H ALS_THDH_H R/W 00H ALS high interrupt threshold, MSB 02H_L ALS_THDL_L R/W 00H ALS low interrupt threshold, LSB 02H_H ALS_THDL_H R/W 00H ALS low interrupt threshold, MSB 03H_L PS_CONF1 R/W 01H PS duty ratio, integration time, persistence, and PS enable / disable 03H_H PS_CONF2 R/W 00H PS_HD, PS interrupt trigger method 04H_L PS_CONF3 R/W 00H PS multi pulse, active force mode, enable sunlight cancellation 04H_H PS_MS R/W 00H PS mode selection, sunlight capability, sunlight protection mode 05H_L PS_CANC_L R/W 00H PS cancellation level setting, LSB 05H_H PS_CANC_H R/W 00H PS cancellation level setting, MSB 06H_L PS_THDL_L R/W 00H PS low interrupt threshold setting, LSB 06H_H PS_THDL_H R/W 00H PS low interrupt threshold setting, MSB 07H_L PS_THDH_L R/W 00H PS high interrupt threshold setting, LSB PS high interrupt threshold setting, MSB 07H_H PS_THDH_H R/W 00H 08H_L PS_Data_L R 00H PS LSB output data 08H_H PS_Data_H R 00H PS MSB output data 09H_L ALS_Data_L R 00H ALS LSB output data 09H_H ALS_Data_H R 00H ALS MSB output data 0AH_L White_Data_L R 00H White LSB output data 0AH_H White_Data_H R 00H White MSB output data 0BH_L Reserved R 00H Reserved 0BH_H Reserved R 00H Reserved 0CH_L Reserved R 00H Reserved 0CH_H Reserved R 00H Reserved 0DH_L Reserved R 00H Reserved 0DH_H INT_Flag R 00H ALS, PS interrupt flags 0EH_L ID_L R 58H Device ID LSB 0EH_H ID_H R 10H Device ID MSB Rev. 1.4, 16-Oct-2019 Document Number: 84430 9 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VCNL4200 www.vishay.com Vishay Semiconductors Command Register Format VCNL4200 provides an 8-bit command register for ALS and PS controlling independently. The description of each command format is shown in following tables. TABLE 2 - REGISTER: ALS_CONF DESCRIPTION REGISTER NAME Command COMMAND CODE: 00H_L (00H DATA BYTE LOW) Bit 7 6 ALS_CONF Command ALS_IT 4 Bit 7:6 ALS_INT_SWITCH 5 Reserved 4 ALS_PERS 5 3 2 1 0 COMMAND CODE: 00H_L (00H DATA BYTE LOW) 3:2 Description (0 : 0) = 50 ms; (0 : 1) = 100 ms; (1 : 0) = 200 ms; (1 : 1) = 400 ms ALS integration time setting, longer integration time has higher sensitivity ALS interrupt switch, 0 = ALS channel interrupt, 1 = white channel interrupt Default = 0, reserved (0 : 0) = 1, (0 : 1) = 2, (1 : 0) = 4, (1 : 1) = 8 ALS interrupt persistence setting ALS_INT_EN 1 0 = ALS interrupt disable, 1 = ALS interrupt enable ALS_SD 0 0 = ALS power on, 1 = ALS shut down TABLE 3 - REGISTER: RESERVE COMMAND DESCRIPTION Reserved COMMAND CODE: 00H_H (00H DATA BYTE HIGH) Command Bit Reserved 7:0 Description Default = 00H TABLE 4 - REGISTER ALS_THDH_L AND ALS_THDH_H DESCRIPTION ALS_THDH_L ALS_THDH_H Register COMMAND CODE: 01H_L (01H DATA BYTE LOW) COMMAND CODE: 01H_H (01H DATA BYTE HIGH) Bit Description ALS_THDH_L 7:0 00H to FFH, ALS high interrupt threshold, LSB ALS_THDH_H 7:0 00H to FFH, ALS high interrupt threshold, MSB TABLE 5 - REGISTER: ALS_THDL_L AND ALS_THDL_H DESCRIPTION ALS_THDL_L ALS_THDL_H Register COMMAND CODE: 02H_L (02H DATA BYTE LOW) COMMAND CODE: 02H_H (02H DATA BYTE HIGH) Bit Description ALS_THDL_L 7:0 00H to FFH, ALS low interrupt threshold, LSB ALS_THDL_H 7:0 00H to FFH, ALS low interrupt threshold, MSB TABLE 6 - REGISTER: PS_CONF1 DESCRIPTION PS_CONF1 Command COMMAND CODE: 03H_L (03H DATA BYTE LOW) Bit Description PS_Duty 7:6 (0 : 0) = 1/160, (0 : 1) = 1/320, (1 : 0) = 1/640, (1 : 1) = 1/1280 PS IRED on / off duty ratio setting PS_PERS 5:4 (0 : 0) = 1, (0 : 1) = 2, (1 : 0) = 3, (1 : 1) = 4 PS interrupt persistence setting PS_ IT 3:1 (0 : 0 : 0) = 1T, (0 : 0 : 1) = 1.5T, (0 : 1 : 0) = 2T, (0 : 1 : 1) = 4T, (1 : 0 : 0) = 8T, (1 : 0 : 1) = 9T, (1 : 1 : 0) = reserved, (1 : 1 : 1) = reserved PS_SD 0 Rev. 1.4, 16-Oct-2019 0 = PS power on, 1 = PS shut down Document Number: 84430 10 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VCNL4200 www.vishay.com Vishay Semiconductors TABLE 7 - REGISTER: PS_CONF2 DESCRIPTION PS_CONF2 COMMAND CODE: 03H_H (03H DATA BYTE HIGH) Command Bit Reserved 7:4 Description Reserved PS_HD 3 0 = PS output is 12 bits, 1 = PS output is 16 bits Reserved 2 Reserved PS_INT 1:0 Proximity interrupt configuration (0 : 0) = interrupt disable, (0 : 1) = trigger by closing, (1 : 0) = trigger by away, (1 : 1) = trigger by closing and away TABLE 8 - REGISTER: PS_CONF3 DESCRIPTION PS_CONF3 COMMAND CODE: 04H_L (04H DATA BYTE LOW) Command Bit Reserved 7 PS_MPS 6:5 Description Default = 0, reserved Proximity multi pulse numbers (0 : 0) = 1, (0 : 1) = 2, (1 : 0) = 4, (1 : 1) = 8 multi pulses PS_SMART_PERS 4 Proximity sensor smart persistence 0 = disable; 1 = enable PS_AF 3 0 = active force mode disable (normal mode), 1 = active force mode enable PS_TRIG 2 0 = no PS active force mode trigger, 1 = trigger one time cycle VCNL4200 output one cycle data every time host writes in “1” to sensor. The state returns to “0” automatically. PS_SC_ADV 1 0 = typical sunlight immunity; 1 = 2 x typical sunlight immunity PS_SC_EN 0 PS sunlight cancel enable setting, 1 = sunlight cancellation function enable TABLE 9 - REGISTER: PS_MS DESCRIPTION Reserved COMMAND CODE: 04H_H (04H DATA BYTE HIGH) Command Bit Reserved 7:6 Description Default = 0, reserved PS_MS 5 Proximity operation mode 0 = proximity normal operation with interrupt function, 1 = proximity detection logic output mode enable PS_SP 4 0 = typical sunlight capability, 1 = 1.5 x typical sunlight capability PS_SPO 3 0 = output is 00h in sunlight protect mode, 1 = output is FFh in sunlight protect mode LED_I 2:0 (0 : 0 : 0) = 50 mA, (0 : 0 : 1) = 75 mA, (0 : 1 : 0) = 100 mA, (0 : 1 : 1) = 120 mA, (1 : 0 : 0) = 140 mA, (1 : 0 : 1) = 160 mA, (1 : 1 : 0) = 180 mA, (1 : 1 : 1) = 200 mA TABLE 10 - REGISTER: CANC_L AND CANC_H DESCRIPTION Reserved Register COMMAND CODE: 05H_L (05H DATA BYTE LOW) Bit Description PS_CANC_L 7:0 00H to FFH, PS cancellation level setting, LSB PS_CANC_H 7:0 00H to FFH, PS cancellation level setting, MSB TABLE 11 - REGISTER: PS_THDL_L AND PS_THDL_H DESCRIPTION PS_THDL_L PS_THDL_H Register COMMAND CODE: 06H_L (06H DATA BYTE LOW) COMMAND CODE: 06H_H (06H DATA BYTE HIGH) Bit Description PS_THDL_L 7:0 00H to FFH, PS low interrupt threshold setting, LSB PS_THDL_H 7:0 00H to FFH, PS low interrupt threshold setting, MSB Rev. 1.4, 16-Oct-2019 Document Number: 84430 11 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VCNL4200 www.vishay.com Vishay Semiconductors TABLE 12 - REGISTER: PS_THDH_L AND PS_THDH_H DESCRIPTION PS_THDH_L PS_THDH_H Register COMMAND CODE: 07H_L (07H DATA BYTE LOW) COMMAND CODE: 07H_H (07H DATA BYTE HIGH) Bit Description PS_THDH_L 7:0 00H to FFH, PS high interrupt threshold setting, LSB PS_THDH_H 7:0 00H to FFH, PS high interrupt threshold setting, MSB TABLE 13 - READ OUT REGISTER DESCRIPTION REGISTER PS_Data_L COMMAND CODE BIT DESCRIPTION 08H_L (08H data byte low) 7:0 00H to FFH, PS LSB output data PS_Data_H 08H_H (08H data byte high) 7:0 00H to FFH, PS MSB output data ALS_Data_L 09H_L (09H data byte low) 7:0 00H to FFH, ALS LSB output data ALS_Data_H 09H_H (09H data byte high) 7:0 00H to FFH, ALS MSB output data White_Data_L 0AH_L (0AH data byte low) 7:0 00H to FFH, white LSB output data White_Data_H 0AH_H (0AH data byte high) 7:0 00H to FFH, white MSB output data Reserved 0BH_L (0BH data byte low) 7:0 Default = 00H Reserved 0BH_H (0BH data byte low) 7:0 Default = 00H Reserved 0CH_L (0CH data byte low) 7:0 Default = 00H Reserved 0CH_H (0CH data byte low) 7:0 Default = 00H Reserved 0DH_L (0DH data byte low) 7:0 Default = 00H INT_Flag 0DH_H (0DH data byte high) 7 6 5 4 3 2 1 0 ID_L 0x0EH_L (0x0EH data byte low) 7:0 58H for MP version sample, device ID LSB byte 0x0EH_H (0x0EH data byte high) 7:6 5:4 3:0 (0 : 0) (0 : 1) slave address = 0x51 (7-bit) Version code (0 : 0 : 0 : 0) = ES1, device ID MSB byte ID_H PS_UPFLAG PS code saturation flag PS_SPFLAG PS enter sunlight protection flag ALS_IF_L, ALS crossing low THD INT trigger event ALS_IF_H, ALS crossing high THD INT trigger event Default = 0, reserved Default = 0, reserved PS_IF_CLOSE, PS rise above PS_THDH INT trigger event PS_IF_AWAY, PS drop below PS_THDL INT trigger event Adjustable Sampling Time VCNL4200’s embedded LED driver drives the external IRED with the “LED_CATHODE” pin by a pulsed duty ratio. The IRED on / off duty ratio can be programmable by I2C command at register: PS_Duty is related to the current consumption and PS response time. The higher the duty ratio selected, the faster response time achieved with higher power consumption. Please see also the application note: “Designing VCNL4200 Into an Application”. Rev. 1.4, 16-Oct-2019 Document Number: 84430 12 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VCNL4200 www.vishay.com Vishay Semiconductors Threshold Window Setting • ALS Threshold Window Setting (Applying ALS INT) Register: ALS_THDH_L and ALS_THDH_H define 16-bit ALS high threshold data for LSB byte and MSB byte. Register: ALS_THDL_L and ALS_THDL_H define 16-bit ALS low threshold data for LSB byte and MSB byte. As long as ALS INT function is enabled, INT will be asserted once the ALS data exceeds ALS_THDH or goes below ALS_THDL. To easily define the threshold range, multiply the value of the resolution (lx/step) by the threshold level (refer table 14) TABLE 14 - ALS RESOLUTION AND MAXIMUM DETECTION RANGE ALS_IT ALS_IT (7 : 6) INTEGRATION TIME SENSITIVITY (lx/step) MAXIMUM DETECTION RANGE (lx) (0, 0) 50 ms 0.024 1573 (0, 1) 100 ms 0.012 786 (1, 0) 200 ms 0.006 393 (1, 1) 400 ms 0.003 197 • ALS Persistence The ALS INT is asserted as long as the ALS value is higher or lower than the threshold window when ALS_PERS (1 / 2 / 4 / 8 times) is set to one time. If ALS_PERS is set to four times, then the ALS INT will not be asserted if the ALS value is not over (or lower) than the threshold window for four continued refresh times (integration time) • Programmable PS Threshold VCNL4200 provides both high and low thresholds 8-bit data setting for proximity sensor. (register: PS_THDL, PS_THDH) that fulfills different mechanical designs with the best proximity detection capability for any kind of objects • PS Persistence The PS persistence function (PS_PERS 1 / 2 / 3 / 4) helps to avoid false trigger of the PS INT. For example, if PS_PERS = 3 times, the PS INT will not be asserted unless the PS value is greater than the PS threshold (PS1_THDH) value for three periods of time continuously Data Access All VCNL4200 command registers are readable. To access 16-bit high resolution ALS output data, it is suitable to use read word protocol to read out data by just one command at register: ALS_Data_L and ALS_Data_H. To represent the 16-bit data of ALS, it has to apply two bytes. One byte is for LSB, and the other byte is for MSB as shown in table 18. In terms of reading out 8-bit PS data, host just need to access register: PS_Data. TABLE 15 - 16-BIT ALS DATA FORMAT VCNL4200 Bit 15 Register 14 13 12 11 ALS_Data_H 10 9 8 7 6 5 4 3 2 1 0 ALS_Data_L Interrupt (INT) VCNL4200 has ALS and PS interrupt feature operated by a single pin “INT”. The purpose of the interrupt feature is to actively inform the host once INT has been asserted. With the interrupt function applied, the host does not need to constantly poll data from the sensor, but to only read data from the sensor when receiving interrupt request from the sensor. As long as the host enables ALS interrupt (register: ALS_INT_EN) or PS interrupt (register: PS_INT) function, the level of INT pin (pin 8) is able to be pulled low once INT asserted. All of registers are accessible even INT is asserted. ALS INT asserted when ALS value crosses over the value set by register: ALS_THDH or is lower than the value set by register: ALS_THDL. PS INT asserted when PS value crosses over the value set by register: PS_THDH or is lower than the value set by register: PS_THDL. Interrupt Flag Register: INT_Flag represents all of interrupt trigger status for ALS and PS. Any flag value changes from “0” to “1” state, the level of INT pin will be pulled low. As long as host reads INT_Flag data, the bit will change from “1” state to “0” state after reading out. The INT level will be returned to high afterwards. Rev. 1.4, 16-Oct-2019 Document Number: 84430 13 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VCNL4200 www.vishay.com Vishay Semiconductors PROXIMITY DETECTION LOGIC OUTPUT MODE VCNL4200 provides a proximity detection logic output mode that uses INT pin as a proximity detection logic high / low output (register: PS_MS). When this mode is selected, the PS output (INT/POUT) is pulled low when an object is close to being detected and returned to level high when the object moves away. Register: PS_THDH / PS_THDL defines how sensitive PS detection is. One thing to be noted is that whenever proximity detection logic mode applied, INT pin is only used as a logic high / low output. If host would like to use ALS with INT function, register: PS_MS has to be selected to normal operation mode (PS_MS = 0). Meanwhile, host has to simulate the GPIO pin as an INT pin function. If not, host needs to periodically read the state of INT at this GPIO pin. PROXIMITY DETECTION HYSTERESIS A PS detection hysteresis is important to keep the PS state in a certain range of detection distance. For example, PS INT asserts when PS value over PS_THDH. Host switches on panel backlight and then clears INT. When PS value is less than PS_THDL, host switches off panel backlight. Any PS value lower than PS_THDH or higher than PS_THDL PS INT will not be asserted. Host keeps the same state. PACKAGE INFORMATION in millimeters Side View 3.0 ± 0.1 1.8 ± 0.1 5 1.0 5 6 1.7 6 Bottom View 5 7 4 8 3 9 2 10 1 1.7 Ø 1.7 6 5.0 8.0 ± 0.1 LED 1.0 (10 x) Top View Ø 2.05 1.6 .6 Sensor 1 10 10 1.2 1 0.8 1.2 2.0 0.8 1.2 For Reflow Soldering (PCB Footprint) 1 GND 6 LED+ 2 LED_CATHODE 7 NC 3 VDD 8 INT 4 NC 9 SDAT 5 LED- 10 SCLK 1.7 Fig. 13 - VCNL4200 Package Dimensions Rev. 1.4, 16-Oct-2019 Document Number: 84430 14 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VCNL4200 www.vishay.com Vishay Semiconductors APPLICATION CIRCUIT BLOCK REFERENCE Vpull up VDD VIRED 0.1 μF 2.2 kΩ 2.2 kΩ 2.2 μF 1 kΩ 3 VDD 10 SCLK SCLK SCK 9 SDA MCU S LED 2 CATHODE PMOS G D SDAT VCNL4200 8.2 kΩ LED+ 6 8 INT LED- 5 INT INT RLED GND 2.7 Ω 1 Fig. 14 - VCNL4200 Application Circuit Notes • VDD range: 2.5 V to 3.6 V and VIRED is recommended 5.0 V • Power path of VDD and VIRED should be well separated and supply source for V_IRED should be stable enough for the high peak current • The RLED resistor value is reference for test stage, it should be adjusted again for the product usage basing on the power and the lens final design • The FET may be any small device, e.g. a Si2301 • LED_I programmed to lowest value of 50 mA is enough to drive the FET • If not that high detection distance is needed the application note “Designing the VCNL4200 Into an Application” (www.vishay.com/doc?84327) shows a circuitry without this added FET RECOMMENDED STORAGE AND REBAKING CONDITIONS PARAMETER MIN. MAX. UNIT Storage temperature 5 50 °C Relative humidity - 60 % Open time - 168 h From the date code on the aluminized envelope (unopened) - 12 months Tape and reel: 60 °C - 22 h Tube: 60 °C - 22 h Total time Rebaking Rev. 1.4, 16-Oct-2019 CONDITIONS Document Number: 84430 15 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VCNL4200 www.vishay.com Vishay Semiconductors RECOMMENDED INFRARED REFLOW Soldering conditions which are based on J-STD-020 C. IR REFLOW PROFILE CONDITION PARAMETER CONDITIONS Peak temperature TEMPERATURE TIME 255 °C + 0 °C / - 5 °C (max.: 260 °C) 10 s 150 °C to 200 °C 60 s to 180 s 217 °C 60 s to 150 s Preheat temperature range and timing Timing within 5 °C to peak temperature 10 s to 30 s Timing maintained above temperature / time Timing from 25 °C to peak temperature 8 min (max.) Ramp-up rate 3 °C/s (max.) Ramp-down rate 6 °C/s (max.) Temperature (°C) Recommend Normal Solder Reflow is 235 °C to 255 °C. Max. Temperature (260 °C + 0 °C / - 5 °C)/10 s 255 Ramp-Up Rate 3 °C/s (max.) 217 Ramp-Down Rate 6 °C/s (max.) 200 150 Soldering Zone 60 s to 150 s Ramp-Up Rate 3 °C/s (max.) Pre-Heating Time t2 - t1 = 60 s to 180 s t2 t1 Time (s) Fig. 15 - VCNL4200 Solder Reflow Profile Chart RECOMMENDED IRON TIP SOLDERING CONDITION AND WARNING HANDLING 1. Solder the device with the following conditions: 1.1. Soldering temperature: 400 °C (max.) 1.2. Soldering time: 3 s (max.) 2. If the temperature of the method portion rises in addition to the residual stress between the leads, the possibility that an open or short circuit occurs due to the deformation or destruction of the resin increases 3. The following methods: VPS and wave soldering, have not been suggested for the component assembly 4. Cleaning method conditions: 4.1. Solvent: methyl alcohol, ethyl alcohol, isopropyl alcohol 4.2. Solvent temperature < 45 °C (max.) 4.3. Time: 3 min (min.) Rev. 1.4, 16-Oct-2019 Document Number: 84430 16 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VCNL4200 www.vishay.com Vishay Semiconductors TAPE PACKAGING INFORMATION in millimeters 2 4 Ø 1.5 1.75 8 8.25 16 7.5 6° max. 3.25 2.05 Fig. 16 - Package Carrier Tape W1 W0 17.3 ± 0.2 100.0 ± 1.5 Ø 330.0 ± 1.5 2.2 ± 0.2 Ø 13.2 ± 0.2 120° Fig. 17 - Reel Dimensions Rev. 1.4, 16-Oct-2019 Document Number: 84430 17 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2019 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 01-Jan-2019 1 Document Number: 91000
