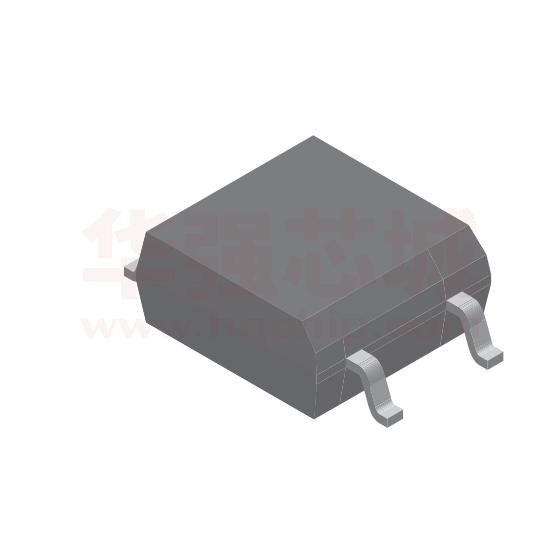

VOM160 www.vishay.com Vishay Semiconductors Optocoupler, Phototriac Output, Non-Zero Crossing, 0.5 kV/μs dV/dt, 600 V FEATURES • High static dV/dt > 0.5 kV/μs • Input sensitivity IFT = 5 mA, 7 mA, and 10 mA A 1 4 MT2 C 2 3 MT1 • On-state RMS current IT(RMS) = 70 mA • 600 V peak off-state blocking voltage • Isolation test voltage 3750 VRMS • Material categorization: For definitions of compliance please see www.vishay.com/doc?99912 i179066 APPLICATIONS DESCRIPTION • Consumer appliances The VOM160 series phototriac consist a AlGaAs infrared emitting diode (IRED) optically coupled to a photosensitive non-zero crossing TRIAC packaged in a SOP-4 package. It has a IRED trigger current of 5 mA, 7 mA, and 10 mA. • Triac drives The VOM160 series phototriac isolate low-voltage logic from 120 VAC, 240 VAC, and 380 VAC lines to control resistive, inductive, or capacitive loads including motors, solenoids, high current thyristors or TRIAC and relays. • Office equipment • Solid-state relays • Motor controls AGENCY APPROVALS • UL1577, file no. E52744, double protection • cUL-file no. E52744, equivalent to CSA bulletin 5A • VDE 0884-5, DIN EN 60747-5-5 • CQC: GB8898, GB4943 ORDERING INFORMATION SOP-4 V O M 1 6 0 X T PART NUMBER AGENCY CERTIFIED/PACKAGE UL, cUL, CQC SOP-4 VDE, UL, cUL, CQC SOP-4 7.21 mm TRIGGER CURRENT IFT 5 mA 7 mA 10 mA VOM160NT VOM160PT VOM160RT 5 mA 7 mA 10 mA VOM160N-X001T VOM160P-X001T VOM160R-X001T Notes • For additional information on the available options refer to option information. • The product is available only on tape and reel. Rev. 1.7, 18-Oct-12 Document Number: 81349 1 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VOM160 www.vishay.com Vishay Semiconductors ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified) PARAMETER TEST CONDITION PART SYMBOL VALUE UNIT INPUT Reverse voltage VR 6 V Forward current IF 60 mA Peak surge current 100 μs, 200 pps IFSM 0.5 A Pdiss 100 mW Peak off-state voltage VDRM 600 V RMS on-state current IT(RMS) 70 mA ITSM 1 A Pdiss 200 mW Power dissipation OUTPUT Peak non-repetitive surge current PW = 100 ms, 120 pps Power dissipation COUPLER Isolation test voltage VISO 3750 VRMS Power dissipation t = 1 min Ptot 300 mW Storage temperature range Tstg - 55 to + 150 °C Ambient temperature range Tamb - 40 to + 100 °C Soldering temperature (1) Tsld 260 °C Notes • Stresses in excess of the Absolute Maximum Ratings can cause permanent damage to the device. Functional operation of the device is not implied at these or any other conditions in excess of those given in the operational sections of this document. Exposure to Absolute Maximum Ratings for extended periods of the time can adversely affect reliability. (1) Wave soldering three cycles are allowed. Also refer to “Assembly Instructions” for surface mounted devices (www.vishay.com/doc?80054). IL - Load Current (mA) 100 80 60 40 20 0 - 40 - 20 0 20 40 60 80 100 120 Tamb - Temperature (°C) Fig. 1 - Recommended Operating Condition Rev. 1.7, 18-Oct-12 Document Number: 81349 2 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VOM160 www.vishay.com Vishay Semiconductors ELECTRICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. UNIT 1.2 1.5 V 10 μA INPUT Forward voltage IF = 10 mA Reverse current VF VR = 6 V IR VF = 0 V, f = 1 MHz CI Off-state current VD = VDRM IDRM 100 On-state voltage IT = 100 mA VTM 2.8 VD = 0.67 VDRM, TJ = 25 °C dV/dtcr Input capacitance 25 pF OUTPUT Critical rate of rise off-state voltage Critical rate of rise of voltage at current commutation 500 dV/dtcrq nA V V/μs 0.13 V/μs COUPLER LED trigger current, current required to latch output VD = 3 V VOM160N IFT 5 mA VOM160P IFT 7 mA 10 mA VOM160R Capacitance (input - output) Peak off-state voltage IFT f = 1 MHz, VIO = 0 V CIO IC = 100 μA VDRM Holding current 0.8 pF 600 Ihold V 0.3 mA Note • Minimum and maximum values were tested requirements. Typical values are characteristics of the device and are the result of engineering evaluations. Typical values are for information only and are not part of the testing requirements. SAFETY AND INSULATION RATINGS PARAMETER SYMBOL MIN. Climatic classification (according to IEC 68 part 1) MAX. UNIT 40/100/21 Pollution degree (DIN VDE 0109) Comparative tracking index TYP. 2 CTI 175 399 Peak transient overvoltage VIOTM 6000 Vpeak Peak insulation voltage VIORM 707 Vpeak Ω Isolation resistance at Tamb = 100 °C, VDC = 500 V RIO 1011 Isolation resistance at Tamb = 25 °C, VDC = 500 V RIO 1012 Safety rating - power rating PSO 400 mW Safety rating - input current ISI 150 mA Safety rating - temperature TSI 165 Creepage distance Ω °C 5 mm Clearance distance 5 mm Insulation thickness 0.4 mm Rev. 1.7, 18-Oct-12 Document Number: 81349 3 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VOM160 www.vishay.com Vishay Semiconductors 100 °C 1.4 85 °C 50 °C 1.2 25 °C 1.0 0 °C - 40 °C 0.8 1 10 100 IFT - Forward Current (mA) VR - Reverse Voltage (V) 100 80 60 40 20 - 20 0 20 40 60 80 100 Tamb - Ambient Temperature (°C) 21983 10 000 1000 100 10 1 0.1 - 40 - 20 Fig. 3 - Reverse Voltage vs. Ambient Temperature 20 40 60 80 100 Fig. 5 - Off-State Leakage Current vs. Ambient Temperature 1.5 VD = 3 V 1.3 1.1 0.9 0.7 0.5 - 40 21985 - 20 0 20 40 60 80 100 Tamb - Ambient Temperature (°C) Fig. 6 - Normalized Trigger Current vs. Ambient Temperature 100 100 75 50 Turn-On Time (µs) ITM - On-State Current (mA) 0 Tamb - Ambient Temperature 21993 Fig. 2 - Forward Current vs. Forward Voltage 0 - 40 100 000 IFT - Normalized Trigger Current (mA) VF - Forward Voltage (V) 1.6 IDRM - Off-State Leakage Current (nA) TYPICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) 25 0 - 25 - 50 10 - 75 VL = 7 V - 100 - 2.5 - 2 - 1.5 - 1 - 0.5 0 21982 0.5 1 1.5 2 2.5 VTM - On-State Voltage (V) Fig. 4 - On-State Current vs. On-State Voltage Rev. 1.7, 18-Oct-12 1 10 21987 20 30 40 50 IFT - Trigger Current (mA) Fig. 7 - Trigger Current vs. Turn-On Time Document Number: 81349 4 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VOM160 Vishay Semiconductors 8 2.5 IFT - Trigger Current (mA) IH - Normalized Holding Current (µA) www.vishay.com 2.0 1.5 1.0 0.5 6 5 4 3 0 - 40 - 20 0 20 40 60 80 0 100 21990 Tamb - Ambient Temperature (°C) 21986 7 Fig. 8 - Normalized Holding Current vs. Ambient Temperature 100 200 300 400 500 600 VLoad - Load Voltage (V) Fig. 11 - Trigger Current vs. Load Voltage tGD - Delay Time (µs) 100 10 1 10 20 30 40 50 IFT - Trigger Current (mA) 21988 Fig. 9 - Trigger Current vs. Delay Time IFT - Trigger Current (mA) 8 VL = 7 V 7 6 5 4 3 2 20 21989 40 60 80 100 PW - Trigger Pulse Width (µs) Fig. 10 - Trigger Current vs. Trigger Pulse Width Rev. 1.7, 18-Oct-12 Document Number: 81349 5 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VOM160 www.vishay.com Vishay Semiconductors PACKAGE DIMENSIONS in millimeters R 0.25 0.36 2.54 0.91 5.08 7.37 1.14 PACKAGE MARKING (example) M160N Pin 1 I.D. ink mark V YWW U68 TAPE AND REEL PACKAGING Dimensions in millimeters 1.50 ± 0.1 2.00 ± 0.05 ESD sticker 4.00 ± 0.1 1.75 ± 0.1 Tape slot in core 5.50 ± 0.05 330 (13") 7.33 ± 0.1 2 1 3 4 + 0.3 12.00 - 0.1 Regular, special or bar code label 17999 8° 2.66 ± 0.1 1.50 ± 0.25 8.00 ± 0.1 4.72 ± 0.1 22646 Fig. 12 - Tape and Reel Shipping Medium, 2000 units per reel Rev. 1.7, 18-Oct-12 Fig. 13 - Tape Dimensions Document Number: 81349 6 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer  ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2017 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 08-Feb-17 1 Document Number: 91000 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Vishay: VOM160NT VOM160PT VOM160RT VOM160N-X001T VOM160P-X001T VOM160R-X001T
