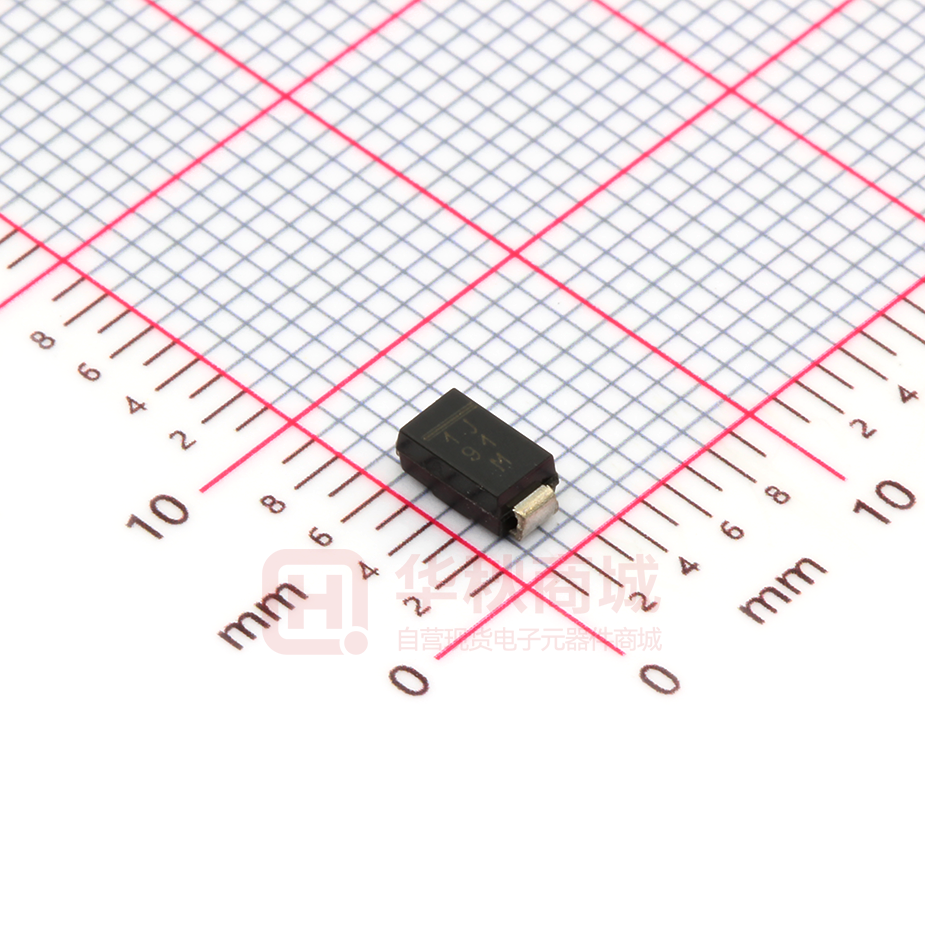

VS-10MQ100NTRPbF www.vishay.com Vishay Semiconductors High Performance Schottky Rectifier, 1 A FEATURES • Small foot print, surface mountable • Low forward voltage drop Cathode Anode • High frequency operation • Guard ring for enhanced ruggedness and long term reliability • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C SMA (DO-214AC) • Designed and qualified for industrial level PRODUCT SUMMARY Package SMA (DO-214AC) IF(AV) 1A VR 100 V VF at IF 0.78 V IRM 1 mA at 125 °C TJ max. 150 °C Diode variation Single EAS 1.0 mJ • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 DESCRIPTION The VS-10MQ100NTRPbF surface mount Schottky rectifier has been designed for applications requiring low forward drop and very small foot prints on PC boards. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL IF(AV) CHARACTERISTICS Rectangular waveform VRRM IFSM tp = 5 μs sine VF 1.5 Apk, TJ = 125 °C TJ Range VALUES UNITS 1 A 100 V 120 A 0.68 V -55 to +150 °C VOLTAGE RATINGS PARAMETER Maximum DC reverse voltage Maximum working peak reverse voltage SYMBOL VR VRWM VS-10MQ100NTRPbF UNITS 100 V ABSOLUTE MAXIMUM RATINGS PARAMETER SYMBOL TEST CONDITIONS VALUES 50 % duty cycle at TL = 126 °C, rectangular waveform On PC board 9 mm2 island (0.013 mm thick copper pad area) 1.5 50 % duty cycle at TL = 135 °C, rectangular waveform On PC board 9 mm2 island (0.013 mm thick copper pad area) 1 UNITS Maximum average forward current See fig. 4 IF(AV) Maximum peak one cycle non-repetitive surge current, TJ = 25 °C See fig. 6 IFSM Non-repetitive avalanche energy EAS TJ = 25 °C, IAS = 0.5 A, L = 8 mH 1.0 mJ IAR Current decaying linearly to zero in 1 μs Frequency limited by TJ maximum VA = 1.5 x VR typical 0.5 A Repetitive avalanche current 5 μs sine or 3 μs rect. pulse 10 ms sine or 6 ms rect. pulse Following any rated load condition and with rated VRRM applied A 120 30 A Revision: 17-May-17 Document Number: 94119 1 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VS-10MQ100NTRPbF www.vishay.com Vishay Semiconductors ELECTRICAL SPECIFICATIONS PARAMETER SYMBOL TEST CONDITIONS 1A Maximum forward voltage drop See fig. 1 VFM (1) TJ = 25 °C 1.5 A 1A TJ = 125 °C 1.5 A Maximum reverse leakage current See fig. 2 IRM (1) Threshold voltage VF(TO) Forward slope resistance rt Typical junction capacitance CT Typical series inductance Maximum voltage rate of change LS dV/dt TJ = 25 °C VR = Rated VR TJ = 125 °C TJ = TJ maximum VR = 10 VDC, TJ = 25 °C, test signal = 1 MHz Measured lead to lead 5 mm from package body Rated VR VALUES UNITS 0.78 0.85 V 0.63 0.68 0.1 mA 1 0.52 V 78.4 mΩ 38 pF 2.0 nH 10 000 V/μs VALUES UNITS -55 to +150 °C 80 °C/W Note (1) Pulse width < 300 μs, duty cycle < 2 % THERMAL - MECHANICAL SPECIFICATIONS PARAMETER SYMBOL Maximum junction and storage temperature range TJ (1), TStg Maximum thermal resistance, junction to ambient RthJA TEST CONDITIONS DC operation Approximate weight Marking device Case style SMA (DO-214AC)(similar D-64) 0.07 g 0.002 oz. 1J Note (1) dP tot 1 ------------- < -------------- thermal runaway condition for a diode on its own heatsink dT J R thJA Revision: 17-May-17 Document Number: 94119 2 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VS-10MQ100NTRPbF www.vishay.com Vishay Semiconductors Allowable Case Temperature (°C) IF - Instantaneous Forward Current (A) 10 TJ = 150 °C TJ = 125 °C TJ = 25 °C 1 0.1 0.4 150 140 130 120 110 Square wave (D = 0.50) 80 % rated VR applied 100 See note (1) 90 0.6 0.8 1.0 1.2 1.4 1.6 0 0.8 1.2 1.6 2.0 2.4 VFM - Forward Voltage Drop (V) IF(AV) - Average Forward Current (A) Fig. 4 - Maximum Average Forward Current vs. Allowable Lead Temperature 1.6 TJ = 150 °C TJ = 125 °C 0.1 Average Power Loss (W) IR - Reverse Current (mA) 0.4 Fig. 1 - Maximum Forward Voltage Drop Characteristics 1 TJ = 100 °C 0.01 TJ = 75 °C 0.001 TJ = 50 °C 0.0001 D = 0.20 D = 0.25 D = 0.33 D = 0.50 D = 0.75 1.4 1.2 1.0 RMS limit 0.8 0.6 DC 0.4 0.2 TJ = 25 °C 0 0 0 20 40 60 80 100 0 0.4 0.8 1.2 1.6 2.0 2.4 IF(AV) - Average Forward Current (A) Fig. 2 - Typical Peak Reverse Current vs. Reverse Voltage Fig. 5 - Maximum Average Forward Dissipation vs. Average Forward Current TJ = 25 °C 10 1 0 20 40 60 80 100 IFSM - Non-Repetitive Surge Current (A) VR - Reverse Voltage (V) 100 CT - Junction Capacitance (pF) DC D = 0.20 D = 0.25 D = 0.33 D = 0.50 D = 0.75 100 TJ = 25 °C At any rated load condition and with rated VRRM applied following surge 10 10 100 1000 10 000 VR - Reverse Voltage (V) tp - Square Wave Pulse Duration (µs) Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage Fig. 6 - Maximum Peak Surge Forward Current vs. Pulse Duration Note Formula used: TC = TJ - (Pd + PdREV) x RthJC; Pd = forward power loss = IF(AV) x VFM at (IF(AV)/D) (see fig. 6); PdREV = inverse power loss = VR1 x IR (1 - D); IR at VR1 = 80 % rated VR (1) Revision: 17-May-17 Document Number: 94119 3 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VS-10MQ100NTRPbF www.vishay.com Vishay Semiconductors ORDERING INFORMATION TABLE Device code VS- 10 M Q 100 N TR PbF 1 2 3 4 5 6 7 8 1 - Vishay Semiconductors product 2 - Current rating (10 = 1 A) 3 - M = SMA 4 - Q = Schottky “Q” series 5 - Voltage rating (100 = 100 V) 6 - N = new SMA 7 - TR = tape and reel 8 - PbF = lead (Pb)-free ORDERING INFORMATION (Example) PREFERRED P/N VS-10MQ100NTRPbF PREFERRED PACKAGE CODE MINIMUM ORDER QUANTITY PACKAGING DESCRIPTION 5AT 7500 13" diameter plastic tape and reel LINKS TO RELATED DOCUMENTS Dimensions www.vishay.com/doc?95400 Part marking information www.vishay.com/doc?95403 Packaging information www.vishay.com/doc?95404 SPICE model www.vishay.com/doc?95371 Revision: 17-May-17 Document Number: 94119 4 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Outline Dimensions Vishay Semiconductors SMA DIMENSIONS in inches (millimeters) DO-214AC (SMA) Cathode band Mounting Pad Layout 0.074 (1.88) MAX. 0.110 (2.79) 0.100 (2.54) 0.065 (1.65) 0.049 (1.25) 0.066 (1.68) MIN. 0.177 (4.50) 0.157 (3.99) 0.012 (0.305) 0.006 (0.152) 0.060 (1.52) MIN. 0.208 (5.28) REF. 0.090 (2.29) 0.078 (1.98) 0.060 (1.52) 0.030 (0.76) 0.008 (0.203) 0 (0) 0.208 (5.28) 0.194 (4.93) Document Number: 95400 Revision: 09-Jul-10 For technical questions within your region, please contact one of the following: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com www.vishay.com 1 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer  ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2017 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 08-Feb-17 1 Document Number: 91000
