VS-20BQ030-M3
www.vishay.com
Vishay Semiconductors
Schottky Rectifier, 2 A
FEATURES
• Low forward voltage drop
Cathode
• Guard ring for enhanced ruggedness and long
term reliability
Anode
• Small foot print, surface mountable
• High frequency operation
• Meets MSL level 1, per J-STD-020, LF maximum peak of
260 °C
PRODUCT SUMMARY
Package
SMB
IF(AV)
2A
VR
30 V
VF at IF
0.37 V
IRM
15 mA at 125 °C
TJ max.
150 °C
Diode variation
Single die
EAS
3.0 mJ
• Material categorization: For definitions of compliance
please see www.vishay.com/doc?99912
DESCRIPTION
The VS-20BQ030-M3 surface mount Schottky rectifier has
been designed for applications requiring low forward drop
and small foot prints on PC boards. Typical applications are
in disk drives, switching power supplies, converters,
freewheeling diodes, battery charging, and reverse battery
protection.
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
IF(AV)
CHARACTERISTICS
Rectangular waveform
VRRM
IFSM
tp = 5 μs sine
VF
2.0 Apk, TJ = 125 °C
TJ
Range
VALUES
UNITS
2
A
30
V
350
A
0.37
V
- 55 to 150
°C
VOLTAGE RATINGS
PARAMETER
SYMBOL
Maximum DC reverse voltage
VS-20BQ030-M3
UNITS
30
V
VR
Maximum working peak reverse voltage
VRWM
ABSOLUTE MAXIMUM RATINGS
PARAMETER
SYMBOL
TEST CONDITIONS
50 % duty cycle at TL = 119 °C, rectangular waveform
VALUES
UNITS
2.0
Maximum average forward current
IF(AV)
Maximum peak one cycle
non-repetitive surge current
IFSM
Non-repetitive avalanche energy
EAS
TJ = 25 °C, IAS = 1 A, L = 6 mH
3.0
mJ
IAR
Current decaying linearly to zero in 1 μs
Frequency limited by TJ maximum VA = 1.5 x VR typical
1.0
A
Repetitive avalanche current
Revision: 29-May-12
5 μs sine or 3 μs rect. pulse
10 ms sine or 6 ms rect. pulse
Following any rated load
condition and with rated
VRRM applied
350
A
75
Document Number: 93333
1
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
VS-20BQ030-M3
www.vishay.com
Vishay Semiconductors
ELECTRICAL SPECIFICATIONS
PARAMETER
SYMBOL
TEST CONDITIONS
2A
Maximum forward voltage drop
VFM (1)
TJ = 25 °C
4A
2A
TJ = 125 °C
4A
TJ = 25 °C
VR = Rated VR
VALUES
UNITS
0.47
0.55
V
0.37
0.47
0.5
mA
Maximum reverse leakage current
IRM
Maximum junction capacitance
CT
VR = 5 VDC, (test signal range 100 kHz to 1 MHz), 25 °C
200
pF
Typical series inductance
LS
Measured lead to lead 5 mm from package body
2.0
nH
10 000
V/μs
VALUES
UNITS
- 55 to 150
°C
Maximum voltage rate of change
dV/dt
TJ = 125 °C
Rated VR
15
Note
(1) Pulse width = 300 μs, duty cycle = 2 %
THERMAL - MECHANICAL SPECIFICATIONS
PARAMETER
SYMBOL
Maximum junction and
storage temperature range
TJ (1), TStg
Maximum thermal resistance,
junction to lead
RthJL (2)
Maximum thermal resistance,
junction to ambient
RthJA
TEST CONDITIONS
DC operation
°C/W
80
Approximate weight
Marking device
25

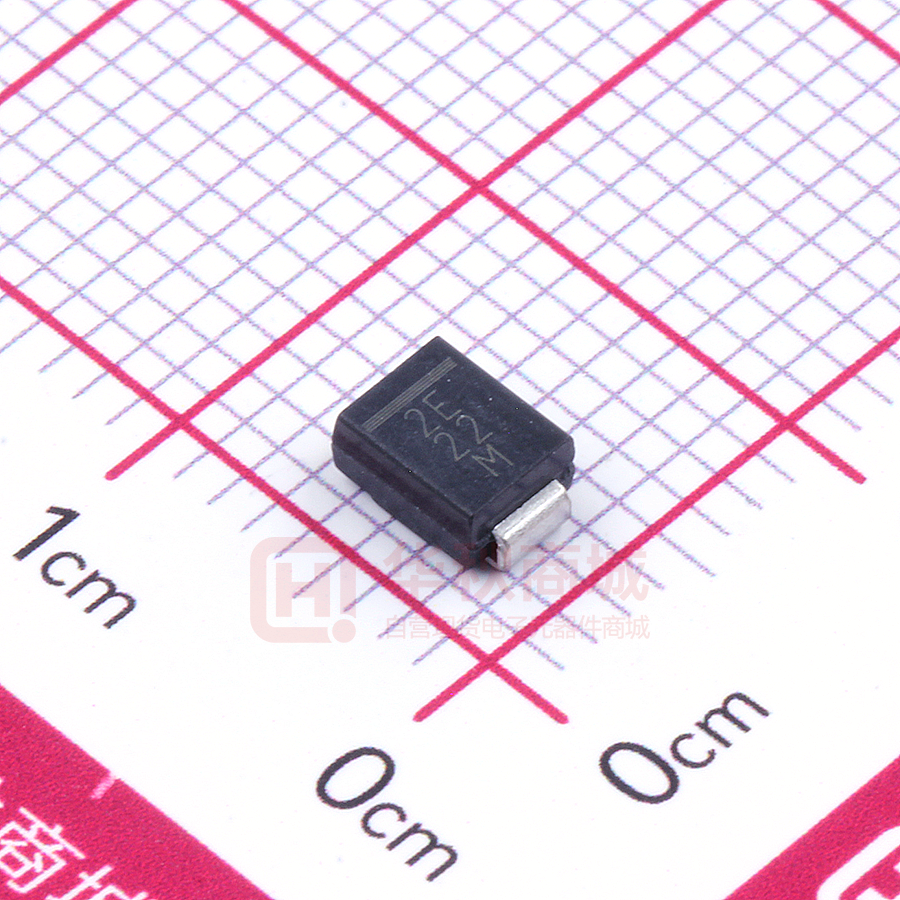

Case style SMB (similar DO-214AA)
0.10
g
0.003
oz.
2E
Notes
(1)
(2)
dP tot
1
------------- < -------------- thermal runaway condition for a diode on its own heatsink
dT J R thJA
Mounted 1" square PCB
Revision: 29-May-12
Document Number: 93333
2
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
VS-20BQ030-M3
www.vishay.com
Vishay Semiconductors
100
TJ = 150 °C
TJ = 125 °C
TJ = 25 °C
1
TJ = 150 °C
IR - Reverse Current (mA)
IF - Instantaneous Forward
Current (A)
10
0.1
10
TJ = 125 °C
1
TJ = 100 °C
TJ = 75 °C
0.1
TJ = 50 °C
0.01
TJ = 25 °C
0.001
0.0001
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0
0.8
5
VFM - Forward Voltage Drop (V)
10
15
20
25
30
VR - Reverse Voltage (V)
Fig. 1 - Maximum Forward Voltage Drop Characteristics
Fig. 2 - Typical Peak Reverse Current vs. Reverse Voltage
CT - Junction Capacitance (pF)
1000
TJ = 25 °C
100
10
0
10
20
30
VR - Reverse Voltage (V)
ZthJC - Thermal Impedance (°C/W)
Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage
100
10
1
PDM
D = 0.75
D = 0.50
D = 0.33
D = 0.25
D = 0.20
t1
t2
Notes:
1. Duty factor D = t1/t2 .
2. Peak TJ = PDM x ZthJL + TL
Single pulse
(thermal resistance)
0.1
0.00001
0.0001
0.001
0.01
0.1
1
10
.
100
t1 - Rectangular Pulse Duration (s)
Fig. 4 - Maximum Thermal Impedance ZthJL Characteristics
Revision: 29-May-12
Document Number: 93333
3
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
VS-20BQ030-M3
www.vishay.com
Vishay Semiconductors
150
1.2
D = 0.20
D = 0.25
D = 0.33
D = 0.50
D = 0.75
DC
Average Power Loss (W)
Lead Temperature (°C)
140
130
120
D = 0.20
D = 0.25
D = 0.33
D = 0.50
D = 0.75
110
100
90
80
Square wave (D = 0.50)
80 % rated VR applied
70
60
1.0
0.8
0.6
RMS limit
0.4
DC
0.2
See note (1)
50
0
0
0.5
1.0
1.5
2.0
2.5
3.0
0.5
0
1.0
1.5
2.0
2.5
3.0
IF(AV) - Average Forward Current (A)
Fig. 5 - Maximum Average Forward Current vs.
Allowable Lead Temperature
Fig. 6 - Maximum Average Forward Dissipation vs.
Average Forward Current
IFSM - Non-Repetitive Surge Current (A)
IF(AV) - Average Forward Current (A)
1000
100
At any rated load condition
and with rated VRRM applied
following surge
10
10
100
1000
10 000
tp - Square Wave Pulse Duration (µs)
Fig. 7 - Maximum Peak Surge Forward Current vs. Pulse Duration
Note
(1) Formula used: T = T - (Pd + Pd
L
J
REV) x RthJL;
Pd = Forward power loss = IF(AV) x VFM at (IF(AV)/D) (see fig. 6);
PdREV = Inverse power loss = VR1 x IR (1 - D); IR at VR1 = 80 % rated VR
Revision: 29-May-12
Document Number: 93333
4
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
VS-20BQ030-M3
www.vishay.com
Vishay Semiconductors
ORDERING INFORMATION TABLE
Device code
VS-
20
B
Q
030
-M3
1
2
3
4
5
6
1
-
Vishay Semiconductors product
2
-
Current rating
3
-
B = SMB
4
-
Q = Schottky “Q” series
5
-
Voltage rating (030 = 30 V)
6
-
Environmental digit:
-M3 = Halogen-free, RoHS compliant and terminations lead (Pb)-free
ORDERING INFORMATION (Example)
PREFERRED P/N
VS-20BQ030-M3/5BT
PREFERRED PACKAGE CODE
MINIMUM ORDER QUANTITY
PACKAGING DESCRIPTION
5BT
3200
13" diameter plastic tape and reel
LINKS TO RELATED DOCUMENTS
Dimensions
www.vishay.com/doc?95401
Part marking information
www.vishay.com/doc?95403
Packaging information
www.vishay.com/doc?95404
