VS-30CPQ1.0PbF Series, VS-30CPQ1.0-N3 Series
www.vishay.com
Vishay Semiconductors
Schottky Rectifier, 2 x 15 A
FEATURES
Base
common
cathode
2
• 175 °C TJ operation
• Low forward voltage drop
• High frequency operation
• High purity, high temperature epoxy
encapsulation for enhanced mechanical
strength and moisture resistance
3
2
1
1
3
Anode
Anode
2
1
2
Common
cathode

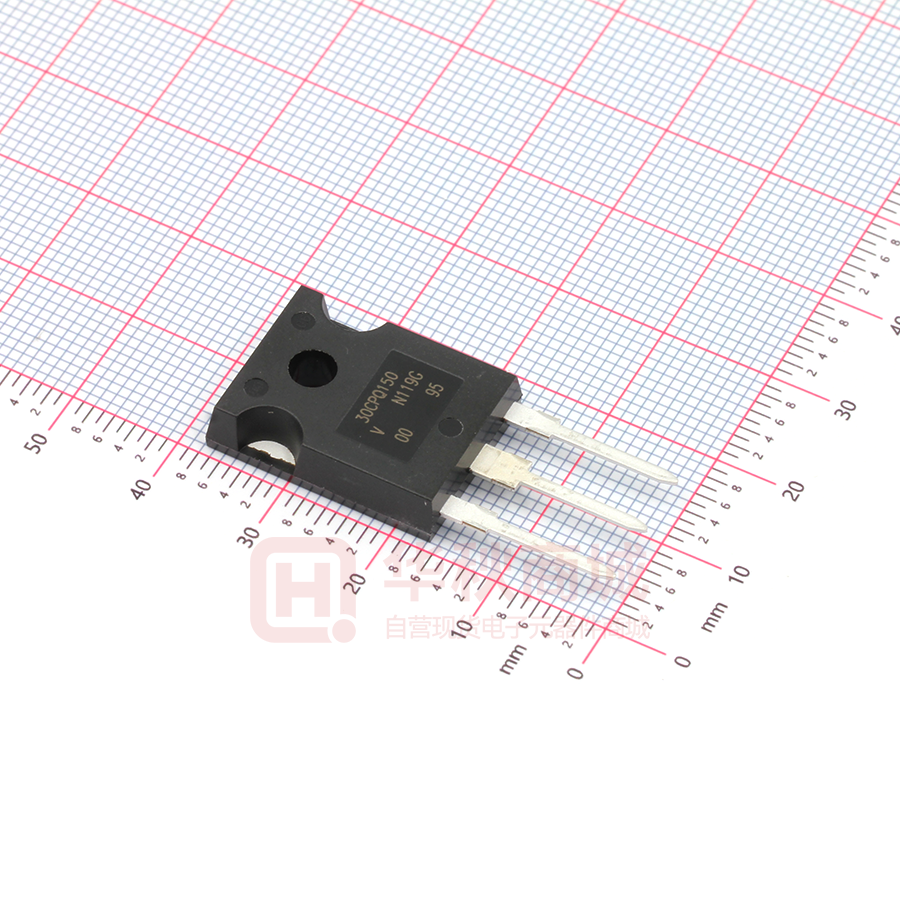

TO-247AC
PRODUCT SUMMARY
• Guard ring for enhanced ruggedness and
long term reliability
Available
• Designed and qualified according to JEDEC-JESD47
• Material categorization: For definitions of compliance
please see www.vishay.com/doc?99912
DESCRIPTION
Package
TO-247AC
IF(AV)
2 x 15 A
VR
140 V, 150 V
VF at IF
0.78 V
IRM max.
15 mA at 125 °C
TJ max.
175 °C
Diode variation
Common cathode
EAS
11.25 mJ
The VS-30CPQ... center tap Schottky rectifier series has
been optimized for low reverse leakage at high temperature.
The proprietary barrier technology allows for reliable
operation up to 175 °C junction temperature. Typical
applications are in switching power supplies, converters,
freewheeling diodes, and reverse battery protection.
MAJOR RATINGS AND CHARACTERISTICS
CHARACTERISTICS
SYMBOL
IF(AV)
VALUES
UNITS
Rectangular waveform
VRRM
IFSM
tp = 5 μs sine
VF
15 Apk, TJ = 125 °C (per leg)
TJ
30
A
150
V
1000
A
0.78
V
- 55 to 175
°C
VOLTAGE RATINGS
PARAMETER
SYMBOL
Maximum DC reverse voltage
Maximum working peak
reverse voltage
VS-30CPQ140PbF
VS-30CPQ140-N3
VS-30CPQ150PbF
VS-30CPQ150-N3
UNITS
140
140
150
150
V
VR
VRWM
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Maximum average
forward current
See fig. 5
SYMBOL
TEST CONDITIONS
per leg
VALUES
UNITS
30
per device
IF(AV)
50 % duty cycle at TC = 135 °C, rectangular waveform
15
A
Maximum peak one cycle non-repetitive
surge current per leg
See fig. 7
IFSM
Non-repetitive avalanche energy per leg
EAS
TJ = 25 °C, IAS = 0.50 A, L = 90 mH
11.25
mJ
Repetitive avalanche current per leg
IAR
Current decaying linearly to zero in 1 μs
Frequency limited by TJ maximum VA = 1.5 x VR typical
0.50
A
5 μs sine or 3 μs rect. pulse
10 ms sine or 6 ms rect. pulse
Following any rated load
condition and with rated
VRRM applied
1000
340
Document Number: 94186
1
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Revision: 17-Jul-13
VS-30CPQ1.0PbF Series, VS-30CPQ1.0-N3 Series
www.vishay.com
Vishay Semiconductors
ELECTRICAL SPECIFICATIONS
SYMBOL
PARAMETER
TEST CONDITIONS
15 A
Maximum forward voltage drop per leg
See fig. 1
VFM (1)
Maximum junction capacitance per leg
IRM (1)
UNITS
1.00
TJ = 25 °C
30 A
1.19
V
15 A
0.78
TJ = 125 °C
30 A
Maximum reverse leakage current per leg
See fig. 2
VALUES
TJ = 25 °C
0.93
0.1
VR = Rated VR
TJ = 125 °C
CT
VR = 5 VDC (test signal range 100 kHz to 1 MHz) 25 °C
Typical series inductance per leg
LS
Measured lead to lead 5 mm from package body
Maximum voltage rate of change
dV/dt
Rated VR
mA
15
340
pF
7.5
nH
10 000
V/μs
VALUES
UNITS
- 55 to 175
°C
Note
(1) Pulse width < 300 μs, duty cycle < 2 %
THERMAL - MECHANICAL SPECIFICATIONS
PARAMETER
SYMBOL
Maximum junction and storage
temperature range
TEST CONDITIONS
TJ, TStg
Maximum thermal resistance,
junction to case per leg
RthJC
Maximum thermal resistance,
junction to case per package
Typical thermal resistance,
case to heatsink
RthCS
DC operation
See fig. 4
DC operation
1.10
Mounting surface, smooth and greased
0.24
Approximate weight
Mounting torque
Marking device
2.20
°C/W
6
g
0.21
oz.
minimum
6 (5)
maximum
12 (10)
kgf cm
(lbf in)
Case style TO-247AC (JEDEC)
30CPQ140
30CPQ150
Document Number: 94186
2
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Revision: 17-Jul-13
VS-30CPQ1.0PbF Series, VS-30CPQ1.0-N3 Series
Vishay Semiconductors
100
1000
TJ = 175 °C
IR - Reverse Current (mA)
IF - Instantaneous Forward Current (A)
www.vishay.com
100
TJ = 175 °C
TJ = 125 °C
TJ = 25 °C
10
10
TJ = 150 °C
1
TJ = 125 °C
0.1
TJ = 100 °C
0.01
TJ = 75 °C
TJ = 50 °C
0.001
TJ = 25 °C
0.0001
1
0
0.5
1.0
1.5
2.0
2.5
0
3.0
25
50
75
100
125
150
VFM - Forward Voltage Drop (V)
VR - Reverse Voltage (V)
Fig. 1 - Maximum Forward Voltage Drop Characteristics (Per Leg)
Fig. 2 - Typical Values of Reverse Current vs.
Reverse Voltage (Per Leg)
CT - Junction Capacitance (pF)
1000
TJ = 25 °C
100
10
0
30
60
90
120
150
VR - Reverse Voltage (V)
ZthJC - Thermal Impedance (°C/W)
Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage (Per Leg)
10
1
PDM
0.1
0.01
0.001
0.00001
D = 0.50
D = 0.33
D = 0.25
D = 0.17
D = 0.08
Single pulse
(thermal resistance)
0.0001
0.001
0.01
0.1
t1
t2
Notes:
1. Duty factor D = t1/t2
2. Peak TJ = PDM x ZthJC + TC
1
10
100
t1 - Rectangular Pulse Duration (s)
Fig. 4 - Maximum Thermal Impedance ZthJC Characteristics (Per Leg)
Document Number: 94186
3
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Revision: 17-Jul-13
VS-30CPQ1.0PbF Series, VS-30CPQ1.0-N3 Series
Vishay Semiconductors
16
180
160
Average Power Loss (W)
Allowable Case Temperature (°C)
www.vishay.com
DC
140
Square wave (D = 0.50)
80 % Rated VR applied
120
See note (1)
D = 0.08
D = 0.17
D = 0.25
D = 0.33
D = 0.50
12
RMS limit
8
DC
4
0
100
0
5
10
15
20
0
25
5
10
15
20
25
IF(AV) - Average Forward Current (A)
Fig. 5 - Maximum Allowable Case Temperature vs. Average
Forward Current (Per Leg)
Fig. 6 - Forward Power Loss Characteristics (Per Leg)
IFSM - Non-Repetitive Surge Current (A)
IF(AV) - Average Forward Current (A)
1000
At any rated load condition
and with rated VRRM applied
following surge
100
10
100
1000
10000
tp - Square Wave Pulse Duration (μs)
Fig. 7 - Maximum Non-Repetitive Surge Current (Per Leg)
L
D.U.T.
IRFP460
Rg = 25 Ω
Current
monitor
High-speed
switch
Freewheel
diode
+ Vd = 25 V
40HFL40S02
Fig. 8 - Unclamped Inductive Test Circuit
Note
(1) Formula used: T = T - (Pd + Pd
C
J
REV) x RthJC;
Pd = Forward power loss = IF(AV) x VFM at (IF(AV)/D) (see fig. 6);
PdREV = Inverse power loss = VR1 x IR (1 - D); IR at VR1 = 80 % rated VR
Document Number: 94186
4
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Revision: 17-Jul-13
VS-30CPQ1.0PbF Series, VS-30CPQ1.0-N3 Series
www.vishay.com
Vishay Semiconductors
ORDERING INFORMATION TABLE
Device code
VS-
30
C
P
Q
1
2
3
4
5
150 PbF
6
1
-
Vishay Semiconductors product
2
-
Current rating (30 = 30 A)
3
-
Circuit configuration:
4
-
7
C = Common cathode
Package:
P = TO-247
5
-
Schottky “Q” series
6
-
Voltage code
7
-
Environmental digit
140 = 140 V
150 = 150 V
PbF = Lead (Pb)-free and RoHS compliant
-N3 = Halogen-free, RoHS compliant, and totally lead (Pb)-free
ORDERING INFORMATION (Example)
PREFERRED P/N
QUANTITY PER T/R
MINIMUM ORDER QUANTITY
VS-30CPQ140PbF
25
500
PACKAGING DESCRIPTION
Antistatic plastic tube
VS-30CPQ140-N3
25
500
Antistatic plastic tube
VS-30CPQ150PbF
25
500
Antistatic plastic tube
VS-30CPQ150-N3
25
500
Antistatic plastic tube
LINKS TO RELATED DOCUMENTS
Dimensions
www.vishay.com/doc?95542
TO-247ACPbF
www.vishay.com/doc?95226
TO-247AC-N3
www.vishay.com/doc?95007
Part marking information
Document Number: 94186
5
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Revision: 17-Jul-13
Outline Dimensions
www.vishay.com
Vishay Semiconductors
TO-247AC - 50 mils L/F
DIMENSIONS in millimeters and inches
A
A
(3)
(6) Φ P
E
B
(2) R/2
A2
S
(Datum B)
Ø K M DBM
Φ P1
A
D2
Q
2xR
(2)
D1 (4)
D
1
4
D
3
2
Thermal pad
(5) L1
C
L
A
See view B
2 x b2
3xb
0.10 M C A M
0.01 M D B M
View A - A
C
2x e
A1
b4
(b1, b3, b5)
Plating
(4)
E1
Base metal
D DE
(c)
c1
E
C
C
(b, b2, b4)
(4)
Section C - C, D - D, E - E
SYMBOL
A
A1
A2
b
b1
b2
b3
b4
b5
c
c1
D
D1
MILLIMETERS
MIN.
MAX.
4.65
5.31
2.21
2.59
1.17
1.37
0.99
1.40
0.99
1.35
1.65
2.39
1.65
2.34
2.59
3.43
2.59
3.38
0.38
0.89
0.38
0.84
19.71
20.70
13.08
-
INCHES
MIN.
MAX.
0.183
0.209
0.087
0.102
0.046
0.054
0.039
0.055
0.039
0.053
0.065
0.094
0.065
0.092
0.102
0.135
0.102
0.133
0.015
0.035
0.015
0.033
0.776
0.815
0.515
-
View B
NOTES
3
4
SYMBOL
D2
E
E1
e
ØK
L
L1
ØP
Ø P1
Q
R
S
MILLIMETERS
MIN.
MAX.
0.51
1.35
15.29
15.87
13.46
5.46 BSC
0.254
14.20
16.10
3.71
4.29
3.56
3.66
7.39
5.31
5.69
4.52
5.49
5.51 BSC
INCHES
MIN.
MAX.
0.020
0.053
0.602
0.625
0.53
0.215 BSC
0.010
0.559
0.634
0.146
0.169
0.14
0.144
0.291
0.209
0.224
0.178
0.216
0.217 BSC
NOTES
3
Notes
(1) Dimensioning and tolerancing per ASME Y14.5M-1994
(2) Contour of slot optional
(3) Dimension D and E do not include mold flash. Mold flash shall not exceed 0.127 mm (0.005") per side. These dimensions are measured at
the outermost extremes of the plastic body
(4) Thermal pad contour optional with dimensions D1 and E1
(5) Lead finish uncontrolled in L1
(6) Ø P to have a maximum draft angle of 1.5 to the top of the part with a maximum hole diameter of 3.91 mm (0.154")
(7) Outline conforms to JEDEC® outline TO-247 with exception of dimension c and Q
Revision: 20-Apr-17
Document Number: 95542
1
For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of
typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding
statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a
particular product with the properties described in the product specification is suitable for use in a particular application.
Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over
time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.
Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for
such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document
or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
© 2017 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED
Revision: 08-Feb-17
1
Document Number: 91000
