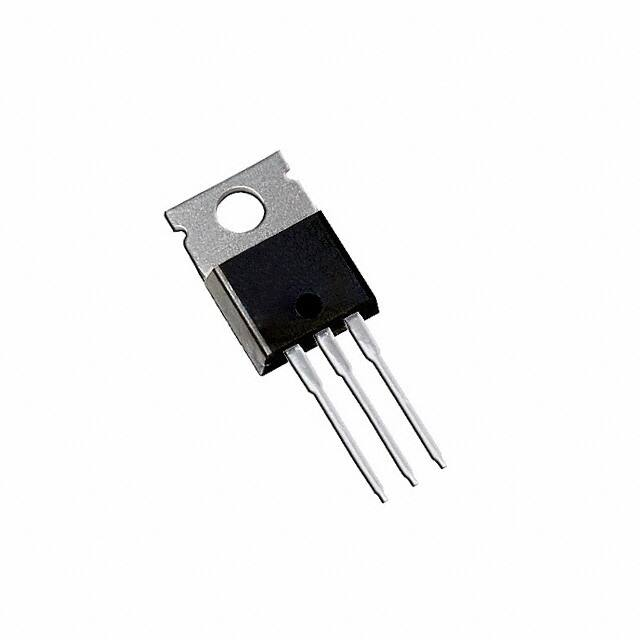

VS-30CTH02HN3

VS-30CTH02HN3 www.vishay.com Vishay Semiconductors Hyperfast Rectifier, 2 x 15 FRED Pt® FEATURES 4 • Hyperfast recovery time • Low forward voltage drop • 175 °C operating junction temperature • Low leakage current 1 TO-220AB 2 3 • Fully isolated package (VINS = 2500 VRMS) • Designed and qualified JEDEC®-JESD 47 Base common cathode 4 Available to • AEC-Q101 qualified • Meets JESD 201 class 2 whisker test • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 2 Common cathode 3 Anode 1 Anode according DESCRIPTION / APPLICATIONS 200 V series are the state of the art hyperfast recovery rectifiers specifically designed with optimized performance of forward voltage drop and hyperfast recovery time. VS-30CTH02HN3 PRODUCT SUMMARY Package TO-220AB IF(AV) 2 x 15 A VR 200 V VF at IF 0.78 V The planar structure and the platinum doped life time control, guarantee the best overall performance, ruggedness and reliability characteristics. trr typ. See Recovery table TJ max. 175 °C Diode variation Common cathode These devices are intended for use in the output rectification stage of SMPS, UPS, DC/DC converters as well as freewheeling diode in low voltage inverters and chopper motor drives. Their extremely optimized stored charge and low recovery current minimize the switching losses and reduce over dissipation in the switching element and snubbers. ABSOLUTE MAXIMUM RATINGS PARAMETER SYMBOL Peak repetitive reverse voltage TEST CONDITIONS VALUES UNITS 200 V VRRM per diode Average rectified forward current IF(AV) per device Non-repetitive peak surge current IFSM Operating junction and storage temperatures TC = 159 °C 15 A 30 TJ = 25 °C 200 TJ, TStg -55 to +175 °C ELECTRICAL SPECIFICATIONS (TJ = 25 °C unless otherwise specified) PARAMETER Breakdown voltage, blocking voltage Forward voltage SYMBOL VBR, VR VF TEST CONDITIONS MIN. TYP. MAX. 200 - - IF = 15 A - 0.92 1.05 IR = 100 μA IF = 15 A, TJ = 125 °C - 0.78 0.85 VR = VR rated - - 10 TJ = 125 °C, VR = VR rated - 5 300 UNITS V μA Reverse leakage current IR Junction capacitance CT VR = 200 V - 57 - pF Series inductance LS Measured lead to lead 5 mm from package body - 8 - nH Revision: 03-Jul-17 Document Number: 96116 1 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VS-30CTH02HN3 www.vishay.com Vishay Semiconductors DYNAMIC RECOVERY CHARACTERISTICS (TC = 25 °C unless otherwise specified) PARAMETER SYMBOL Reverse recovery time TEST CONDITIONS trr MIN. TYP. MAX. IF = 1 A, dIF/dt = 50 A/μs, VR = 30 V - - 35 IF = 1 A, dIF/dt = 100 A/μs, VR = 30 V - - 30 TJ = 25 °C - 26 - IF = 15 A dIF/dt = 200 A/μs VR = 160 V TJ = 125 °C Peak recovery current Reverse recovery charge Qrr ns - 40 - - 2.8 - TJ = 125 °C - 6.0 - TJ = 25 °C - 37 - TJ = 125 °C - 120 - MIN. TYP. MAX. UNITS -55 - 175 °C - - 1.1 °C/W - 2 - g TJ = 25 °C IRRM UNITS A nC THERMAL - MECHANICAL SPECIFICATIONS PARAMETER SYMBOL Maximum junction and storage temperature range Thermal resistance, junction to case TEST CONDITIONS TJ, TStg per diode RthJC Mounting surface, flat, smooth, and greased Approximate weight Mounting torque Marking device - 0.07 - oz. 6 - 12 kgf · cm 5 - 10 (lbf · cm) Case style TO-220AB 30CTH02H 100 100 TJ = 175 °C TJ = 125 °C TJ = 25 °C 10 1 0.4 IR - Reverse Current (µA) IF - Instantaneous Forward Current (A) TJ = 175 °C TJ = 150 °C 10 TJ = 125 °C 1 TJ = 100 °C TJ = 75 °C 0.1 TJ = 50 °C 0.01 TJ = 25 °C 0.001 0.0001 0.6 0.8 1.0 1.2 1.4 1.6 0 50 100 150 200 VF - Forward Voltage Drop (V) VR - Reverse Voltage (V) Fig. 1 - Typical Forward Voltage Drop Characteristics Fig. 2 - Typical Values of Reverse Current vs. Reverse Voltage Revision: 03-Jul-17 Document Number: 96116 2 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VS-30CTH02HN3 www.vishay.com Vishay Semiconductors CT - Junction Capacitance (pF) 1000 TJ = 25 °C 100 10 0 50 100 150 200 VR - Reverse Voltage (V) ZthJC - Thermal Impedance (°C/W) Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage 10 1 PDM D = 0.50 D = 0.20 D = 0.10 D = 0.05 D = 0.02 D = 0.01 0.1 Single pulse (thermal resistance) 0.01 0.00001 0.0001 0.001 t1 t2 Notes: 1. Duty factor D = t1/t2 . 2. Peak TJ = PDM x ZthJC + TC 0.01 0.1 1 . 10 t1 - Rectangular Pulse Duration (s) Fig. 4 - Maximum Thermal Impedance ZthJC Characteristics 25 Average Power Loss (W) Allowable Case Temperature (°C) 180 170 DC Square wave (D = 0.50) Rated VR applied 160 150 RMS limit 20 15 10 5 DC See note (1) 140 D = 0.01 D = 0.02 D = 0.05 D = 0.1 D = 0.2 D = 0.5 0 0 5 10 15 20 25 0 5 10 15 20 25 IF(AV) - Average Forward Current (A) IF(AV) - Average Forward Current (A) Fig. 5 - Maximum Allowable Case Temperature vs. Average Forward Current Fig. 6 - Forward Power Loss Characteristics Revision: 03-Jul-17 Document Number: 96116 3 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VS-30CTH02HN3 www.vishay.com Vishay Semiconductors 100 1000 IF = 15 A trr (ns) Qrr (nC) IF = 15 A 100 VR = 160 V TJ = 125 °C TJ = 25 °C 10 100 VR = 160 V TJ = 125 °C TJ = 25 °C 10 100 1000 1000 dIF/dt (A/µs) dIF/dt (A/µs) Fig. 7 - Typical Reverse Recovery Time vs. dIF/dt Fig. 8 - Typical Stored Charge vs. dIF/dt Note Formula used: TC = TJ - (Pd + PdREV) x RthJC; Pd = forward power loss = IF(AV) x VFM at (IF(AV)/D) (see fig. 8); PdREV = inverse power loss = VR1 x IR (1 - D); IR at VR1 = rated VR (1) (3) trr IF ta tb 0 Qrr (2) IRRM (4) 0.5 IRRM dI(rec)M/dt (5) 0.75 IRRM (1) dIF/dt (1) dIF/dt - rate of change of current through zero crossing (2) IRRM - peak reverse recovery current (3) trr - reverse recovery time measured from zero crossing point of negative going IF to point where a line passing through 0.75 IRRM and 0.50 IRRM extrapolated to zero current. (4) Qrr - area under curve defined by trr and IRRM Qrr = trr x IRRM 2 (5) dI(rec)M/dt - peak rate of change of current during tb portion of trr Fig. 9 - Reverse Recovery Waveform and Definitions Revision: 03-Jul-17 Document Number: 96116 4 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VS-30CTH02HN3 www.vishay.com Vishay Semiconductors ORDERING INFORMATION TABLE Device code VS- 30 C T H 02 H N3 1 2 3 4 5 6 7 8 1 - Vishay Semiconductors product 2 - Current rating (30 = 30 A) 3 - C = common cathode 4 - T = TO-220 5 - H = hyperfast recovery 6 - Voltage rating (02 = 200 V) 7 - H = AEC-Q101 qualified 8 - Environmental digit: -N3 = halogen-free, RoHS-compliant, and totally lead (Pb)-free ORDERING INFORMATION (Example) PREFERRED P/N QUANTITY PER T/R MINIMUM ORDER QUANTITY PACKAGING DESCRIPTION VS-30CTH02HN3 50 1000 Antistatic plastic tube LINKS TO RELATED DOCUMENTS Dimensions Part marking information TO-220AB www.vishay.com/doc?95222 TO-220AB-N3 www.vishay.com/doc?95028 Revision: 03-Jul-17 Document Number: 96116 5 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Outline Dimensions www.vishay.com Vishay Semiconductors TO-220AB DIMENSIONS in millimeters and inches A (6) E E2 ØP 0.014 M B A M (7) A B Seating plane A Thermal pad (E) A1 1 Q (6) D (H1) H1 (7) C D2 (6) (6) D 2 3 D L1 (2) C Detail B D1 3xb 1 2 3 3 x b2 Detail B C E1 (6) L (b, b2) Base metal View A - A c Plating c1 (4) c A 2x e A2 e1 b1, b3 (4) Section C - C and D - D 0.015 M B A M Lead tip Conforms to JEDEC® outline TO-220AB SYMBOL MILLIMETERS INCHES MIN. MAX. MIN. MAX. A 4.25 4.65 0.167 0.183 A1 1.14 1.40 0.045 0.055 NOTES SYMBOL MILLIMETERS INCHES NOTES MIN. MAX. MIN. MAX. D2 11.68 12.88 0.460 0.507 6 E 10.11 10.51 0.398 0.414 3, 6 A2 2.56 2.92 0.101 0.115 E1 6.86 8.89 0.270 0.350 6 b 0.69 1.01 0.027 0.040 E2 - 0.76 - 0.030 7 b1 0.38 0.97 0.015 0.038 4 e 2.41 2.67 0.095 0.105 b2 1.20 1.73 0.047 0.068 e1 4.88 5.28 0.192 0.208 b3 1.14 1.73 0.045 0.068 4 H1 5.84 6.86 0.230 0.270 c 0.36 0.61 0.014 0.024 L 13.52 14.02 0.532 0.552 c1 0.36 0.56 0.014 0.022 4 L1 3.32 3.82 0.131 0.150 D 14.85 15.25 0.585 0.600 3 ØP 3.54 3.73 0.139 0.147 D1 8.38 9.02 0.330 0.355 Q 2.60 3.00 0.102 0.118 6, 7 2 Notes (1) Dimensioning and tolerancing as per ASME Y14.5M-1994 (2) Lead dimension and finish uncontrolled in L1 (3) Dimension D, D1 and E do not include mold flash. Mold flash shall not exceed 0.127 mm (0.005") per side. These dimensions are measured at the outermost extremes of the plastic body (4) Dimension b1, b3 and c1 apply to base metal only (5) Controlling dimensions: inches (6) Thermal pad contour optional within dimensions E, H1, D2 and E1 (7) Dimensions E2 x H1 define a zone where stamping and singulation irregularities are allowed (8) Outline conforms to JEDEC® TO-220, except A2 (maximum) and D2 (minimum) where dimensions are derived from the actual package outline Revision: 06-Mar-2020 Document Number: 95222 1 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay's knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer's responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer's technical experts. Product specifications do not expand or otherwise modify Vishay's terms and conditions of purchase, including but not limited to the warranty expressed therein. Hyperlinks included in this datasheet may direct users to third-party websites. These links are provided as a convenience and for informational purposes only. Inclusion of these hyperlinks does not constitute an endorsement or an approval by Vishay of any of the products, services or opinions of the corporation, organization or individual associated with the third-party website. Vishay disclaims any and all liability and bears no responsibility for the accuracy, legality or content of the third-party website or for that of subsequent links. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2021 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 09-Jul-2021 1 Document Number: 91000
