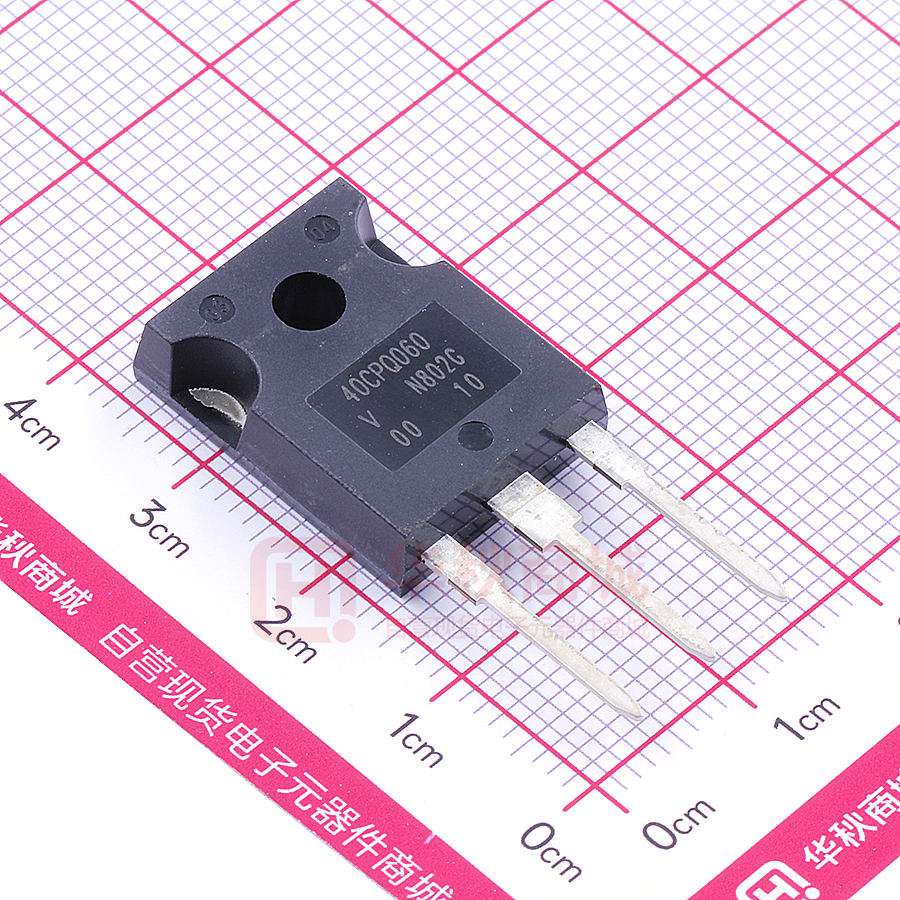

VS-40CPQ060PBF

VS-40CPQ0.0PbF Series, VS-40CPQ0.0-N3 Series www.vishay.com Vishay Semiconductors High Performance Schottky Rectifier, 2 x 20 A FEATURES Base common cathode 2 • 150 °C TJ operation • Very low forward voltage drop • High frequency operation • High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance 3 2 1 Anode 1 2 Common cathode TO-247AC • Guard ring for enhanced ruggedness and long term reliability 3 Anode Available • Designed and qualified according to JEDEC®-JESD47 • Halogen-free (-N3 only) • Material categorization: For definitions of compliance please see www.vishay.com/doc?99912 PRODUCT SUMMARY Package TO-247AC IF(AV) 2 x 20 A VR 50 V to 60 V DESCRIPTION VF at IF 0.49 V IRM max. 96 mA at 125 °C TJ max. 150 °C Diode variation Common cathode EAS 18 mJ The VS-40CPQ... center tap Schottky rectifier has been optimized for very low forward voltage drop with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL IF(AV) CHARACTERISTICS VALUES UNITS 40 A Rectangular waveform VRRM IFSM tp = 5 μs sine VF 20 Apk, TJ = 125 °C (per leg) TJ 50/60 V 3200 A 0.49 V -55 to 150 °C VOLTAGE RATINGS PARAMETER SYMBOL Maximum DC reverse voltage Maximum working peak reverse voltage VS-40CPQ050PbF VS-40CPQ050-N3 VS-40CPQ060PbF VS-40CPQ060-N3 UNITS 50 50 60 60 V VR VRWM ABSOLUTE MAXIMUM RATINGS PARAMETER Maximum average forward current See fig. 5 SYMBOL  IF(AV) TEST CONDITIONS 50 % duty cycle at TC = 120 °C, rectangular waveform 5 μs sine or 3 μs rect. pulse Following any rated load condition and with rated VRRM applied VALUES UNITS 40 3200 A Maximum peak one cycle non-repetitive surge current per leg See fig. 7 IFSM Non-repetitive avalanche energy per leg EAS TJ = 25 °C, IAS = 2 A, L = 9.0 mH 18 mJ IAR Current decaying linearly to zero in 1 μs Frequency limited by TJ maximum VA = 1.5 x VR typical 2 A Repetitive avalanche current per leg 10 ms sine or 6 ms rect. pulse 320 Revision: 10-Feb-14 Document Number: 94209 1 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VS-40CPQ0.0PbF Series, VS-40CPQ0.0-N3 Series www.vishay.com Vishay Semiconductors ELECTRICAL SPECIFICATIONS PARAMETER SYMBOL TEST CONDITIONS 20 A Maximum forward voltage drop per leg  See fig. 1 VFM (1) Maximum junction capacitance per leg IRM (1) CT Typical series inductance per leg LS Maximum voltage rate of change dV/dt UNITS 0.53 TJ = 25 °C 40 A 0.68 V 0.49 20 A TJ = 125 °C 40 A Maximum reverse leakage current per leg See fig. 2 VALUES TJ = 25 °C 0.64 1.7 VR = Rated VR TJ = 125 °C VR = 5 VDC (test signal range 100 kHz to 1 MHz) 25 °C Measured lead to lead 5 mm from package body Rated VR mA 96 1600 pF 7.5 nH 10 000 V/μs VALUES UNITS -55 to 150 °C Note (1) Pulse width < 300 μs, duty cycle < 2 % THERMAL - MECHANICAL SPECIFICATIONS PARAMETER SYMBOL Maximum junction and storage  temperature range TEST CONDITIONS TJ, TStg Maximum thermal resistance,  junction to case per leg RthJC Maximum thermal resistance,  junction to case per package Typical thermal resistance,  case to heatsink RthCS DC operation See fig. 4  1.25 DC operation 0.63 Mounting surface, smooth and greased 0.24 °C/W 6 g 0.21 oz. 6 (5) kgf ˜cm (lbf ˜in) Approximate weight minimum Mounting torque maximu m Non-lubricated threads 12 (10) 40CPQ050 Marking device Case style TO-247AC (JEDEC) 40CPQ060 Revision: 10-Feb-14 Document Number: 94209 2 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VS-40CPQ0.0PbF Series, VS-40CPQ0.0-N3 Series Vishay Semiconductors 1000 1000 IR - Reverse Current (mA) IF - Instantaneous Forward Current (A) www.vishay.com 100 TJ = 150 °C TJ = 125 °C TJ = 25 °C 10 1 TJ = 150 °C 100 TJ = 125 °C 10 TJ = 100 °C TJ = 75 °C 1 TJ = 50 °C 0.1 TJ = 25 °C 0.01 0.1 0 0.2 0.4 0.6 0.8 1.0 1.4 1.2 0 1.6 10 20 30 50 40 60 VFM - Forward Voltage Drop (V) VR - Reverse Voltage (V) Fig. 1 - Maximum Forward Voltage Drop Characteristics (Per Leg) Fig. 2 - Typical Values of Reverse Current vs. Reverse Voltage (Per Leg) CT - Junction Capacitance (pF) 10 000 1000 TJ = 25 °C 100 0 5 10 15 20 25 30 35 40 45 50 55 60 65 VR - Reverse Voltage (V) ZthJC - Thermal Impedance (°C/W) Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage (Per Leg) 10 1 PDM 0.1 0.01 0.001 0.00001 t1 Single pulse (thermal resistance) 0.0001 0.001 D = 0.50 D = 0.33 D = 0.25 D = 0.17 D = 0.08 0.01 t2 Notes: 1. Duty factor D = t1/t2 2. Peak TJ = PDM x ZthJC + TC 0.1 1 10 100 t1 - Rectangular Pulse Duration (s) Fig. 4 - Maximum Thermal Impedance ZthJC Characteristics (Per Leg) Revision: 10-Feb-14 Document Number: 94209 3 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VS-40CPQ0.0PbF Series, VS-40CPQ0.0-N3 Series Vishay Semiconductors 16 155 RthJC (DC) = 1.25 °C/W 145 135 DC D = 0.08 D = 0.17 D = 0.25 D = 0.33 D = 0.50 14 Average Power Loss (W) Allowable Case Temperature (°C) www.vishay.com 12 RMS limit 10 8 6 DC 4 2 0 125 0 5 10 15 20 25 0 30 5 10 15 20 25 30 IF(AV) - Average Forward Current (A) Fig. 5 - Maximum Allowable Case Temperature vs. Average Forward Current (Per Leg) Fig. 6 - Forward Power Loss Characteristics (Per Leg) IFSM - Non-Repetitive Surge Current (A) IF(AV) - Average Forward Current (A) 10 000 At any rated load condition and with rated VRRM applied following surge 1000 100 10 100 1000 10 000 tp - Square Wave Pulse Duration (μs) Fig. 7 - Maximum Non-Repetitive Surge Current (Per Leg) L D.U.T. IRFP460 Rg = 25 Ω Current monitor High-speed switch Freewheel diode + Vd = 25 V 40HFL40S02 Fig. 8 - Unclamped Inductive Test Circuit Revision: 10-Feb-14 Document Number: 94209 4 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 VS-40CPQ0.0PbF Series, VS-40CPQ0.0-N3 Series www.vishay.com Vishay Semiconductors ORDERING INFORMATION TABLE Device code VS- 40 C P Q 1 2 3 4 5 060 PbF 6 1 - Vishay Semiconductors product 2 - Current rating (40 = 40 A) 3 - Circuit configuration: - C = Common cathode Package: 4 7 P = TO-247 5 - Schottky “Q” series 6 - Voltage code 7 - Environmental digit 050 = 50 V 060 = 60 V PbF = Lead (Pb)-free and RoHS compliant -N3 = Halogen-free, RoHS compliant, and totally lead (Pb)-free ORDERING INFORMATION (Example) PREFERRED P/N QUANTITY PER T/R MINIMUM ORDER QUANTITY PACKAGING DESCRIPTION VS-40CPQ050PbF 25 500 Antistatic plastic tube VS-40CPQ050-N3 25 500 Antistatic plastic tube VS-40CPQ060PbF 25 500 Antistatic plastic tube VS-40CPQ060-N3 25 500 Antistatic plastic tube LINKS TO RELATED DOCUMENTS Dimensions www.vishay.com/doc?95542 TO-247AC PbF www.vishay.com/doc?95226 TO-247AC -N3 www.vishay.com/doc?95007 Part marking information Revision: 10-Feb-14 Document Number: 94209 5 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Outline Dimensions www.vishay.com Vishay Semiconductors TO-247AC DIMENSIONS in millimeters and inches A A (3) (6) Φ P E B (2) R/2 A2 S (Datum B) Ø K M DBM Φ P1 A D2 Q 2xR (2) D1 (4) D 1 4 D 3 2 Thermal pad (5) L1 C L A See view B 2 x b2 3xb 0.10 M C A M 0.01 M D B M View A - A C 2x e A1 b4 (b1, b3, b5) Plating (4) E1 Base metal D DE (c) c1 E C C (b, b2, b4) (4) Section C - C, D - D, E - E SYMBOL A A1 A2 b b1 b2 b3 b4 b5 c c1 D D1 MILLIMETERS MIN. MAX. 4.65 5.31 2.21 2.59 1.50 2.49 0.99 1.40 0.99 1.35 1.65 2.39 1.65 2.34 2.59 3.43 2.59 3.38 0.38 0.89 0.38 0.84 19.71 20.70 13.08 - INCHES MIN. MAX. 0.183 0.209 0.087 0.102 0.059 0.098 0.039 0.055 0.039 0.053 0.065 0.094 0.065 0.092 0.102 0.135 0.102 0.133 0.015 0.035 0.015 0.033 0.776 0.815 0.515 - View B NOTES 3 4 SYMBOL D2 E E1 e ØK L L1 ØP Ø P1 Q R S MILLIMETERS MIN. MAX. 0.51 1.30 15.29 15.87 13.72 5.46 BSC 2.54 14.20 16.10 3.71 4.29 3.56 3.66 6.98 5.31 5.69 4.52 5.49 5.51 BSC INCHES MIN. MAX. 0.020 0.051 0.602 0.625 0.540 0.215 BSC 0.010 0.559 0.634 0.146 0.169 0.14 0.144 0.275 0.209 0.224 0.178 0.216 0.217 BSC NOTES 3 Notes (1) Dimensioning and tolerancing per ASME Y14.5M-1994 (2) Contour of slot optional (3) Dimension D and E do not include mold flash. Mold flash shall not exceed 0.127 mm (0.005") per side. These dimensions are measured at the outermost extremes of the plastic body (4) Thermal pad contour optional with dimensions D1 and E1 (5) Lead finish uncontrolled in L1 (6) Ø P to have a maximum draft angle of 1.5 to the top of the part with a maximum hole diameter of 3.91 mm (0.154") (7) Outline conforms to JEDEC® outline TO-247 with exception of dimension c Revision: 20-Apr-17 Document Number: 95223 1 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer  ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2017 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 08-Feb-17 1 Document Number: 91000
